This ISUZU 4x2 drinking water tanker is equipped with a 238 horsepower 6HK1-TCG61 engine, featuring a 4×2 drive configuration, delivering strong, stable, and reliable power. Its large 12000L tank capacity caters to various operational needs, including urban sanitation, construction site dust suppression, and green space irrigation, making it an efficient and compliant multifunctional piece of equipment for municipal engineering and environmental management.
Model: CS5180GSS
Capacity: 12000L
Drive: 4×2
Engine Power: 238HP
Engine Type: 6HK1-TCG61
Send Inquiry
Description
This ISUZU 238HP water bowser truck for sale (also known as a sprinkler truck or water tanker) relies on mature and reliable Isuzu chassis technology and is equipped with a low fuel consumption, low emission power system. It is not only robust and durable with a low failure rate, but also meets stringent environmental regulations, ensuring controllable long term operating costs, making it a reliable partner for sanitation operations.
The vehicle's superstructure uses a corrosion resistant stainless steel tank, paired with a high performance spraying system, enabling multiple functions such as road washing, dust suppression, and green space irrigation. It combines large capacity water storage with the flexibility of urban road traffic, easily adapting to various scenarios such as daily cleaning, construction site operations, and emergency water supply.
Product features
Manufacturer: CS TRUCKS
Main Features:
➥Chassis: 4×2 drive, mature and reliable, suitable for sanitation operation scenarios.
➥Sprinkler System: A high flow water pump combined with front spray, rear spray, and high pressure water cannon provides wide coverage and comprehensive functionality.
➥Tank: 12000L large capacity tank, allowing for wider coverage in a single operation and reducing the number of trips.
➥High Adaptability: Specifically designed for urban and complex road conditions, balancing trafficability and load bearing capacity, offering strong practicality.
Technical parameters of ISUZU water sprinkler truck
Product Name
Jordan 12000Liters Water Tanker Truck ISUZU GIGA
Overall
Vehicle Model
CS5180GSS
Drive Type
4×2
Gross Vehicle Weight
18000 kg
Curb Weight
7970 kg
Front Axle
6.3 ton
Rear Axle
13 ton
Maximum Speed
89 km/h
Overall Dimensions L*W*H
8120×2550×3140 mm
Chassis
Chassis Brand
Qingling
Tire No.
295/80R22.5
Tire Specification
6+1
Wheelbase
4500 mm
Gear Box
Fast 8-speed manual
Brake
Air
Steering Wheel
LHD
Engine
Engine Model
6HK1-TCG61
Fuel Type
Diesel
Power
238HP/175kW
Emission Standard
Euro 6
Displacement
7790 ml
Engine Type
Inline 6-cylinder, 4-stroke, water-cooled
Superstructure
Volume
12000 L
Tank Material
Stainless steel
Flow
60 m³/h
Water Pump Head
90 m
Forward width
≥12 m
Rear spray width
≥8 m
Range
≥30 m 360° rotation
Core advantages
Chassis and Powertrain
◉ Reliable Chassis: Built on the 4×2 chassis, it is robust and durable, suitable for the high frequency use scenarios in sanitation operations.
◉ Efficient Power: Equipped with a 6HK1-TCG61 Euro 6 engine, it delivers ample 238 horsepower, balancing strong output with fuel economy.
◉ Stable Driving Performance: Meets Euro 6 emission standards, with a top speed of 89 km/h, stable power response, and controllable long term maintenance costs.
Sprinkler System
◉ Multi-mode Spray Nozzles: Front flushing width ≥12 meters, rear dust suppression width ≥8 meters, providing wide coverage and high efficiency.
◉ High Flow Water Pump: Flow rate 60 m³/h, head 90 meters, ensuring efficient and stable water intake and spraying operations.
◉ High Pressure Water Cannon: 360° rotation, range ≥30 meters, serving both landscaping irrigation and emergency firefighting auxiliary functions.
Tank
◉ Large Capacity Design: 12000L effective volume, long operating time per session, reducing the frequency of refills.
◉ Corrosion Resistant Material: Constructed of stainless steel, the tank is rust resistant, leak proof, and has a longer service life.
◉ Durable Structure: High strength tank suitable for long term full load operation, resistant to deformation and corrosion, and low maintenance costs.
Multi-mode spraying function
01
Side Spray Function
The side spray function is mainly used for irrigation and rinsing of urban green belts.
02
Rear Spray Function
The rear spraying function is mainly used to reduce dust and maintain road surfaces.
03
Elevated Shower Function
The high level spraying function is mainly used for irrigating and washing tall vegetation along roads to reduce road dust.
04
Greenery Water Cannon Function
Green water cannons are mainly used for cleaning factory buildings and urban glass curtain walls.
Product Details
Aluminum Alloy Fuel Tank
Driver's Cab
Gear Box
Water Injection Port
Application scenarios
This sprinkler truck integrates multiple functions to meet the operational needs of different scenarios:
●Road Washing: High pressure front flushing effectively removes dust, mud, and oil from roads, restoring road cleanliness.
●Dust Suppression: Large area rear spraying effectively suppresses dust from roads and construction sites, improving air quality.
● Green Space Irrigation: Side spraying devices provide efficient water saving routine maintenance for roadside green belts and park vegetation.
ISUZU 4x2 Water Tanker Price Near Me for Road Washing
ISUZU 238HP Water Tanker Truck Delivery for Construction Site Dust Control
ISUZU 12000 Liters Water Tank Truck for Sale for Green Irrigation
ISUZU water tank vehicle exterior views

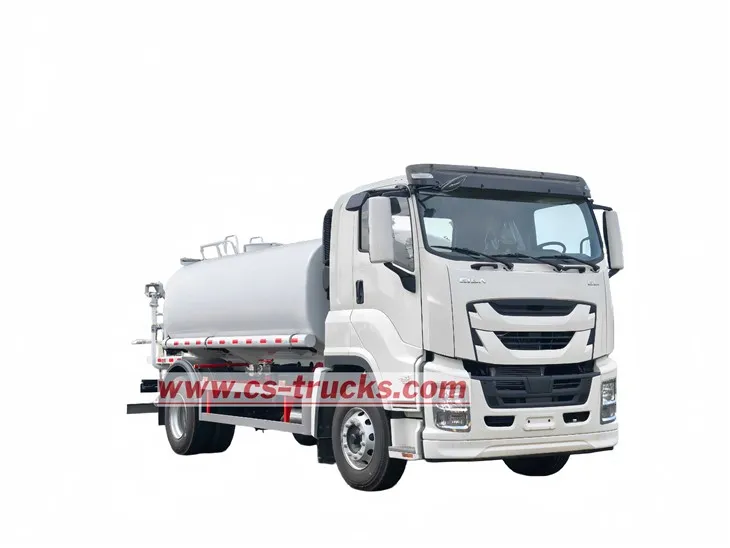

Front Left View of ISUZU 12000 Liters Water Tank Truck for Sale

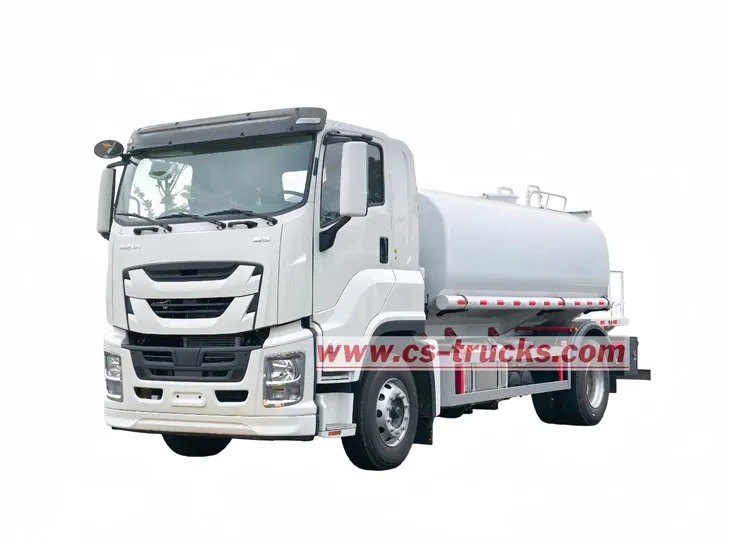

Front Right View of ISUZU 4x2 Water Tanker Price Near Me

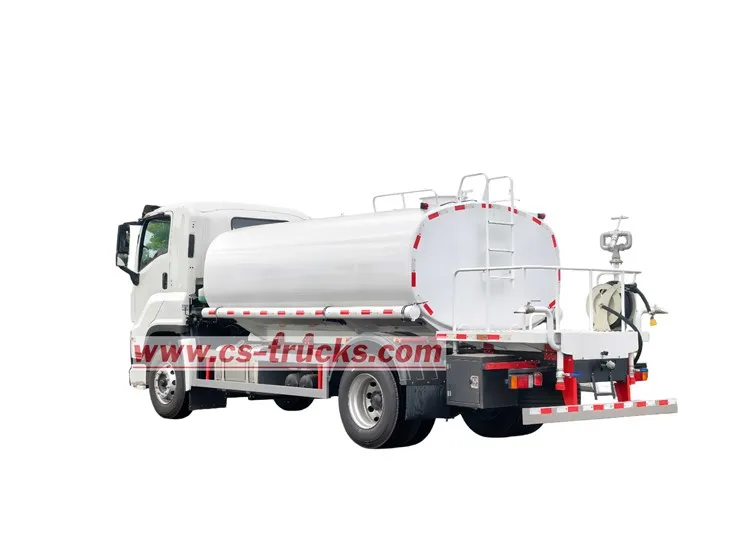

Rear Left View of ISUZU 238HP Water Tanker Truck Delivery
Rear Right View of Jordan ISUZU 12000 Liters Water Tanker Delivery
Right View of ISUZU 4x2 Drinking Water Tanker

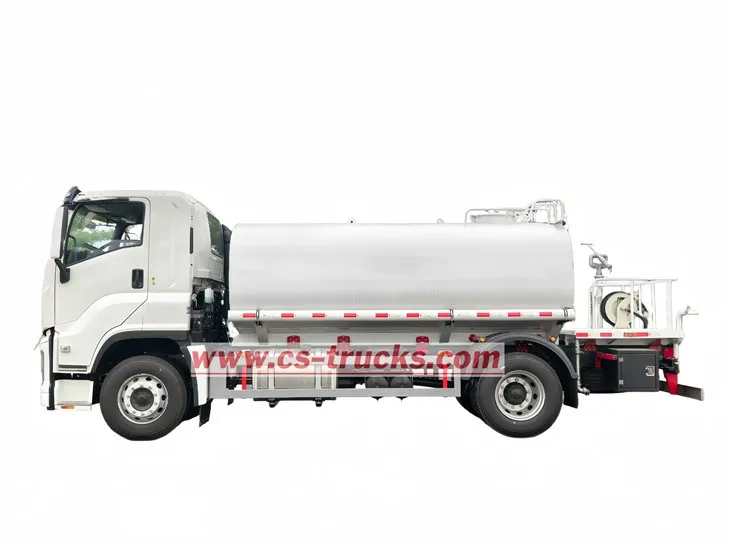

Left View of ISUZU 238HP Water Bowser Truck for Sale

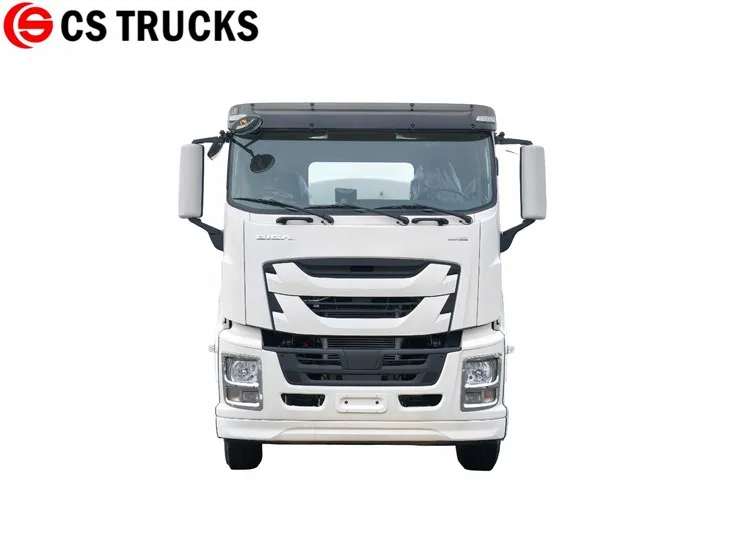

Front View of Jordan ISUZU 12000 Liters Water Lorry

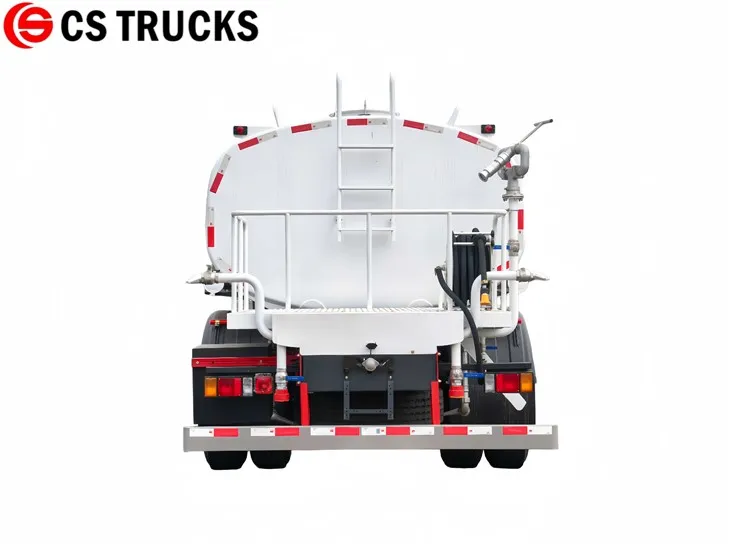

Rear View of Jordan ISUZU 4x2 Water Truck Cost
Usage Recommendations
Before operation
Check the cleanliness of the water source before adding water, and control the water level to not exceed the rated capacity; in winter, be sure to drain the water from the tank and pipelines to prevent freezing and cracking.
During operation
Control the vehicle speed for road washing at 15-25 km/h to avoid splashing water; high-pressure water cannons must not be aimed at personnel or vehicles, and a safe distance must be maintained; heavy loads should avoid potholes and steep slopes.
After operation
Rinse the water pump and pipelines with clean water each time, and regularly clean the sediment in the tank and check for nozzle blockages.
Daily maintenance
Regularly check the tank welds and pipeline joints for leaks, maintain the water pump and chassis according to the manual, and tighten the tank fixing bolts.
Safety regulation
Operators must be certified to work, and safety belts must be worn when working on the roof; overloading is strictly prohibited, and the tank must be emptied and rust-proofed if the vehicle is to be parked for a long period of time.
