Products Description

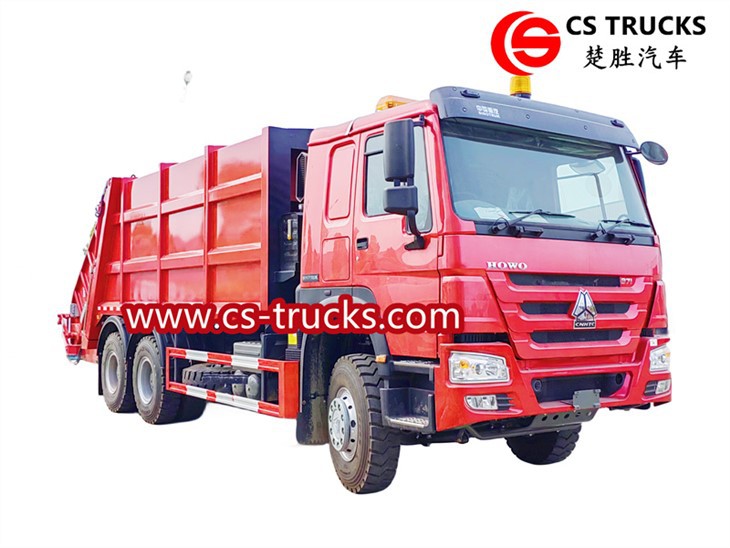

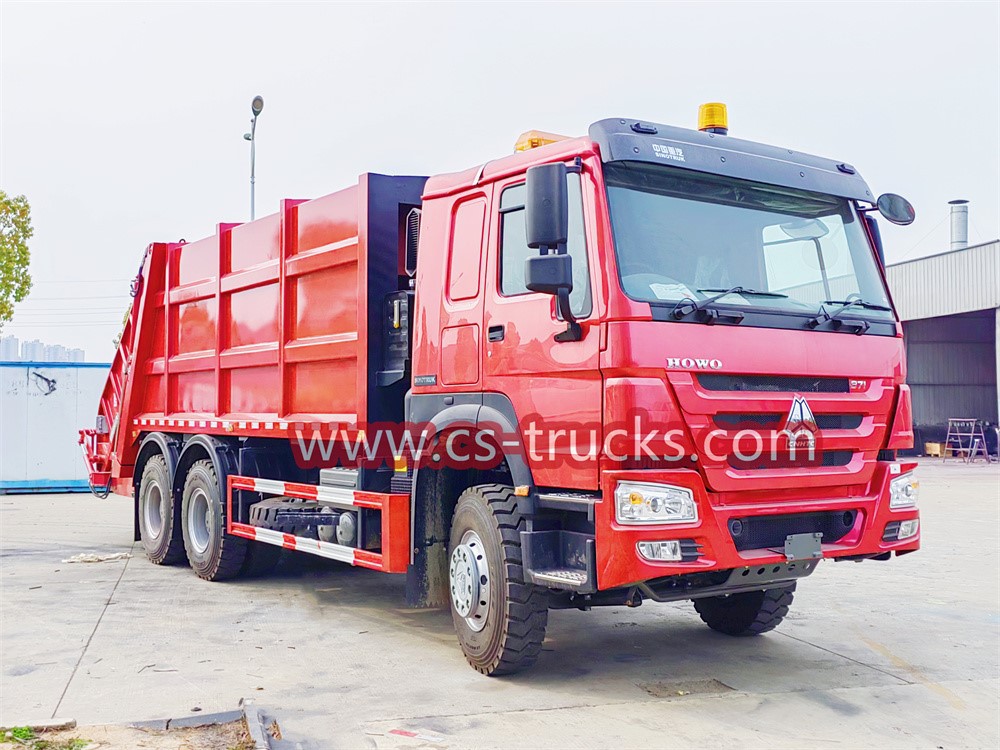

Howo Garbage removal trucks are essential vehicles used in the waste management industry. These howo garbage trucks are designed to collect and transport garbage and other waste materials from residential, commercial, and industrial areas to disposal or recycling facilities.
The main purpose of garbage removal trucks is to maintain cleanliness and hygiene in our communities by actively removing and disposing of waste. These refuse removal trucks are equipped with large storage compartments or containers that can hold a significant amount of garbage. They are also fitted with hydraulic systems that facilitate the lifting and emptying of these containers.
Key Features
----► Heavy duty HOWO 6x4 chassis
----► Euro 2 engine, suitable for africa
----► Siemens control system, Automatic operation.
----► Local training and spare parts free
----► 12 months long guarantee time.
Technical spefication
|
Chassis model |
CS TRUCKS - ZZ1257N4341W |
||
|
Overall dimensions |
9800X2496X3048mm |
||
|
Front/rear wheel track |
2022, 1830/1830mm |
||
|
Approach/departure angle |
16/15° |
||
|
Cab |
Configuration HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers |
||
|
Color White, other color is optional |
|||
|
Engine |
Model WD615.69 |
||
|
Emission |
|||
|
Type 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine |
|||
|
Rated power 336hp, rated power speed 2200rpm |
|||
|
Displacement 9726ml |
|||
|
Max.torque 1350N.m |
|||
|
Bore x stroke 126x130mm |
|||
|
Manufacturer |
|||
|
Tire |
Size 12.00R20 |
||
|
Number 10 |
|||
|
Clutch |
φ430 diaphragm clutch |
||
|
Fuel tank |
400L iron oil tank |
||
|
Front axle |
HF 7 tons |
||
|
Rear axle |
ST 16 tons |
||
|
Drive form |
6X4 |
||
|
Suspension |
Multi leaf springs |
||
|
Rated voltage |
24V, DC |
||
|
Transmissions |
gearbox HW19710, 10 speed forward 2 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Refuse compactor structure parameters |
|
|
Equipment |
|
|
Structure |
Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems |
|
Loading capacity |
20 m3 |
|
System of loading |
Mechanized, rear loading |
|
Modes of the pressing |
Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic |
|
Body |
|
|
Version |
All-metal |
|
Shape |
arc-shaped |
|
Sidewalls |
Sheet carbon steel (thickness: 4 mm) |
|
Bottom |
Sheet carbon steel (thickness: 4 mm) |
|
Roof |
Sheet carbon steel (thickness: 4 mm) |
|
Front frame |
Sheet carbonaceous steel (thickness: 5 mm) |
|
Rear frame |
n-shaped profile from sheet carbon steel (thickness:5 mm) |
|
Basis |
120x120mm (thickness: 5 mm) |
|
Loading bunker |
|
|
Loading bunker |
All-metal with sidewalls and a loading ladle |
|
Volume |
1.8 m3 |
|
Sidewalls |
Sheet carbon steel (thickness: 4 mm) |
|
Ladle floor material |
Sheet carbon steel (thickness: 4 mm) |
|
Liquid drain |
Drainage channel,sewage tank |
|
Working zone Lighting |
2 lamps |
|
Mechanism of raising |
Two hydraulic cylinders |
|
Ensuring tightness |
Between the body and lifting back part in the lower part profile acid-proof rubber is used. |
|
Pressing system |
|
|
Features |
Control mode diversification,bidirectional compression |
|
Pressure |
16Mpa |
|
Compaction ratio |
3.0:1 |
|
Loading cycle |
25-30 second |
|
Unloading cycle |
15-20 second |
|
pressing mechanism |
The giving plate and hinge related pressing plate moving on two directing bars |
|
Pressing mode |
Automatic pressing
(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately |
|
Control of pressing |
Control from the external panel on the bunker |
|
Lifting rear part |
|
|
Mechanism of lifting |
Two hydraulic cylinders |
|
Function description |
Suitable for various rubbish bins |
|
Others |
|
|
Color and Logo |
Optional |
|
Standard configuration |
Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control. |
|
Selective configuration |
PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc. |
Truck detail
africa howo truck chassis
rear hooper system

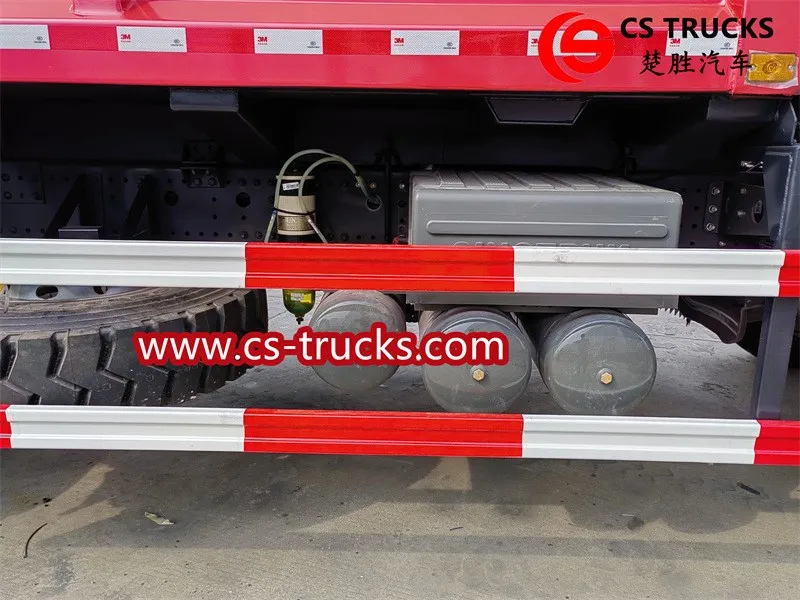

side protector with battery
Reliable italy valve opertion
CNHTC front cabin face
Large compactor body 22 cbm
Operation method
Factory production
China pressional garbage compactor truck factory
batch order of howo garabge compactor truck
Experienced workers for refuse compactor truck
Our workers are all with 25 years in CS TRUCKS factory
export howo compaction refuse truck
The requirements for Howo garbage compression trucks in Africa's export customization specifically include the following five points:
1. Adapt to African roads and harsh environments: Africa has a vast territory and complex road conditions. It is necessary to ensure that the Howo garbage compression truck can adapt to various terrains and road conditions, such as grasslands, deserts, mountains, etc. The vehicle should have good suspension system and anti-seismic performance to ensure stable driving in harsh road conditions.
2. Powerful engine system: Howo garbage compression trucks need to be equipped with a high-performance power system to cope with the mountainous and sloping terrain conditions in Africa. The engine should have the characteristics of high power, high torque, and low fuel consumption to ensure efficient operation and stability during the garbage disposal process.
3. Moderate compactor body capacity: Cities in Africa vary in size and the amount of waste generated will also vary. The capacity of the Howo garbage compression truck needs to be reasonably customized to adapt to the garbage disposal needs of each city. The capacity must not only meet the needs of each garbage collection, but also not be too large to cause inconvenience in operation and waste of fuel during empty driving.
4. Sturdy and durable structure: Due to the relatively difficult driving conditions in Africa, such as harsh road conditions and high temperature weather, the structure of the Howo garbage compactor truck needs to be reinforced to ensure that the vehicle can withstand the impact of various external environments and ensure long-term durability. Reliable operation.
5. Environmental protection and energy conservation: As global environmental problems become increasingly prominent, African countries are paying more and more attention to environmental protection. The design of Howo garbage compression trucks should comply with environmental protection requirements and should adopt advanced environmental protection technologies, such as exhaust gas treatment systems, etc., to reduce environmental pollution.
