Products Description
The SINOTRUK dumper truck is a truck produced by China CS TRUCKS. It is a special vehicle used to transport and unload various bulk materials such as ore, coal, sand and soil. The vehicle consists of a chassis and a dump carriage. The chassis of the SINOTRUK dump truck is made of high-quality steel and has strong load-bearing capacity and excellent durability
The dump compartment of the SINOTRUK dump truck adopts a fully automatic dumping mechanism, which can quickly unload cargo. The carriage has a large capacity and can meet the transportation needs of large quantities of goods. At the same time, the dump carriage is made of high-strength alloy steel, which has excellent impact resistance and wear resistance, ensuring the durability of the carriage.
Key Features
----► HOWO 76 classic cabin, for afria tough road.
----► Special reinforced truck beam
----► Weichai diesel engine, work more than 10 years
----► Full steel cargo upper body, suitable for sand transportation.
----► Local training and 12 month after sale service.
Technical Specification
HOWO fuel truck has a 10,000 liter fuel tank and are made of durable high-grade carbon steel. It has full-width bumpers and fenders and comes with two hoses with male/female adapters. There is a spare wheel and carrier mounted on the rear of the fuel tank, as well as a ladder for reaching the
|
Chassis Model |
CS TRUCKS |
|
Driving Type |
LHD (RHD is optional) |
|
Cabin |
HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
|
Engine |
Make: SINOTRUK |
|
Transmission |
HW19710, 10F & 2R, with PTO |
|
Steering |
ZF power steering, modol ZF8118, hydraulic steering with power assitance |
|
Front Axle |
HF9,1x9000 KGS Steering with doubleT-cross section beam |
|
Rear Axle |
HC16, 2x16000 KGS |
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
Chassis |
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members |
|
Brake |
Service brake: dual circuit compressed air brake |
|
Electrics |
Operating voltage: 24 V, negative grounded |
|
Tyres |
12.00R20, radial tyres with one spare tyre |
|
Fuel Tank |
300L |
|
Cargo Body |
5400*2300*1500 mm, 18 CBM, Floor 8mm Side 6mm |
|
Overall Dimension |
8250*2550*3450mm |
Truck details
HOWO classic cab

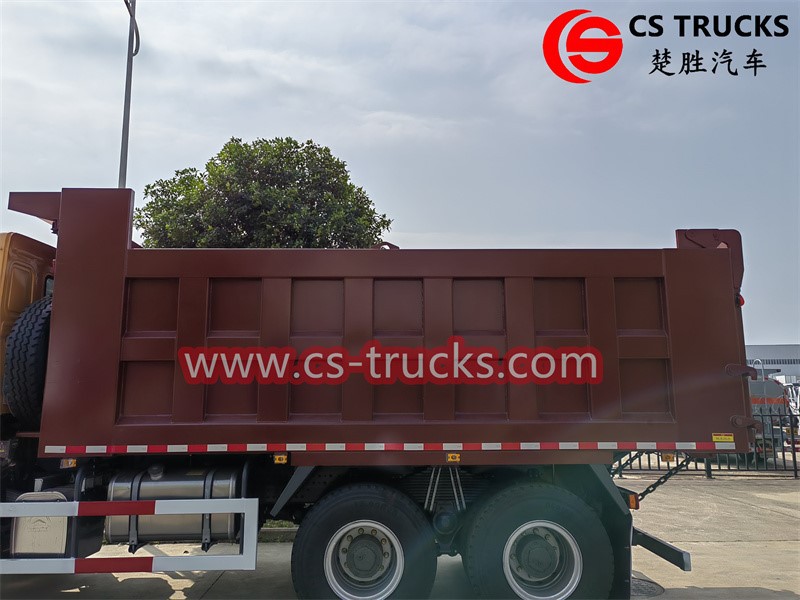

Large cargo body
Rear cargo body
20 cbm cargo body
side reinforced structure
Howo 371 hp engine truck chassis
How to export howo dumper to
The demand for dump trucks in the African market is growing day by day, so exporting dump trucks to Africa has become a business opportunity with huge potential. However, to successfully export dump trucks to Africa, we need to consider the following key factors.
1, understanding the needs and trends of the African market is essential. African countries have different levels of economic development and infrastructure construction, so the demand for dump trucks also varies. Understanding the demand characteristics of the target market can help us formulate correct market strategies and determine appropriate product specifications and models.
2, finding reliable partners is the key to exporting dump trucks to Africa. Establishing cooperative relationships with local dealers or suppliers can help us become familiar with the local market, solve logistics and after-sales service problems, and enhance the competitiveness of our products in the African market. By working with local partners, we can also better understand African business culture and regulations, thereby reducing export risks.
3, it is crucial to ensure the quality and reliability of export dump trucks. Road conditions in Africa are tougher, and repairs and spare parts may not be as readily available as in other regions. Therefore, dump trucks exported to Africa must have good quality and reliability to adapt to harsh environmental conditions and long-term use. Regular inspection and maintenance of dump trucks, and timely provision of required spare parts and technical support are the keys to ensuring that products gain a good reputation in the African market.
4, we also need to fully understand Africa’s import policies and regulations. Understanding the import requirements, tariff policies and trade agreements of African countries can help us avoid potential financial and legal risks. Work with a professional logistics company to ensure compliance with all import requirements and provide complete export documentation and certification to smoothly navigate customs duties and customs procedures.
Factory Production
Fuel tank welding
Fuel tank truck in production
Oil tanker installation
Oil truck accessories installation
Howo dump truck in africa country
Dump trucks play an important role in driving infrastructure in Africa.
1, Land development and road construction. Much of the continent suffers from inadequate roads, and dump trucks can efficiently transport construction materials and speed up road construction. In addition, dump trucks can transport large amounts of materials required for land development, such as stone, sand, etc., providing important support for infrastructure construction.
2, Construction of hydropower stations. The African continent is rich in hydropower resources, but many hydropower station projects have not been effectively developed due to a lack of advanced equipment and construction capabilities. Dump trucks can quickly advance these projects by transporting cement, steel and other building materials. In addition, dump trucks can also transport large amounts of sand and gravel, providing important support for the earthworks of hydropower stations.
3, Urban construction. The accelerating urbanization process on the African continent requires a large amount of construction materials such as cement, bricks, etc. Dump trucks can efficiently transport these materials to construction sites, providing important help in urban infrastructure construction. In addition, dump trucks can also transport large amounts of waste and construction debris, making it easier to clean up the urban environment.
To sum up, dump trucks play a very important role in promoting infrastructure construction in Africa. It plays a key role in land development and road construction, hydropower station construction and urban construction, accelerating the process of infrastructure construction and promoting the economic development of the African continent.
