HOWO 6 CBM street sweeper truck (also known as road cleaning vehicle, mechanical sweeper, or vacuum sweeper truck) is built for urban sanitation and street maintenance. Core applications involve sweeping up road debris, collecting dust and leaves, and spraying water to minimize airborne particles during the cleaning process.
Featuring a 6 CBM combined tank (4 CBM waste, 2 CBM water) and a 140 HP Euro III engine, this HOWO sweeper delivers a cleaning width of 2.85 meters and a sweeping capacity of 50,000 m³/h. It provides dependable service for city sanitation departments, municipal maintenance crews, and industrial park management teams.

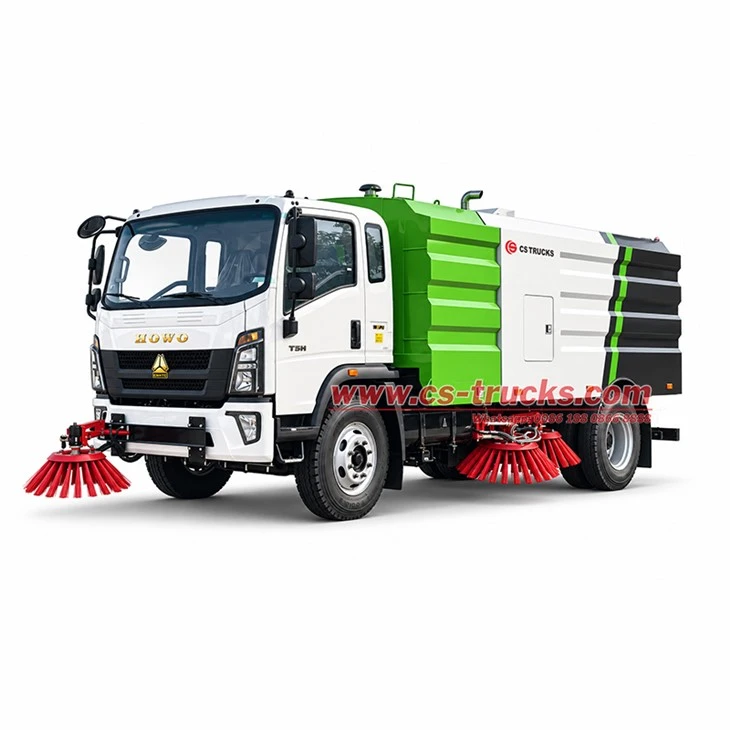

*HOWO 4x2 6CBM Street Sweeper Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
✦ Chassis: HOWO T3M 4×2 chassis with 140 HP ISF3.8s3141 Euro III diesel engine
✦ Dual Compartment Tank: 6 CBM total capacity (4 CBM garbage, 2 CBM water), water tank in carbon steel and garbage tank with stainless steel inner lining
✦ Sweeping System: 5 mechanical brushes and 1 full-floating suction disc achieving a 2.85m cleaning width and ≥95% sweeping efficiency
✦ Suction Performance: Double suction holes with hydraulic control and spring suspension, capable of picking up debris up to 100 mm in diameter
✦ Operation Scope: Municipal street cleaning, dust suppression, leaf collection, and urban sanitation maintenance
» II. Product Parameters for HOWO Road Sweeper Truck:
| Product Name | HOWO Small Street Road Cleaning Sweeper Truck | ||
| Overall | Vehicle Model | CS5070TSL | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 10300 kg | ||
| Curb Weight | 5630 kg | ||
| Maximum Speed | 100 km/h | ||

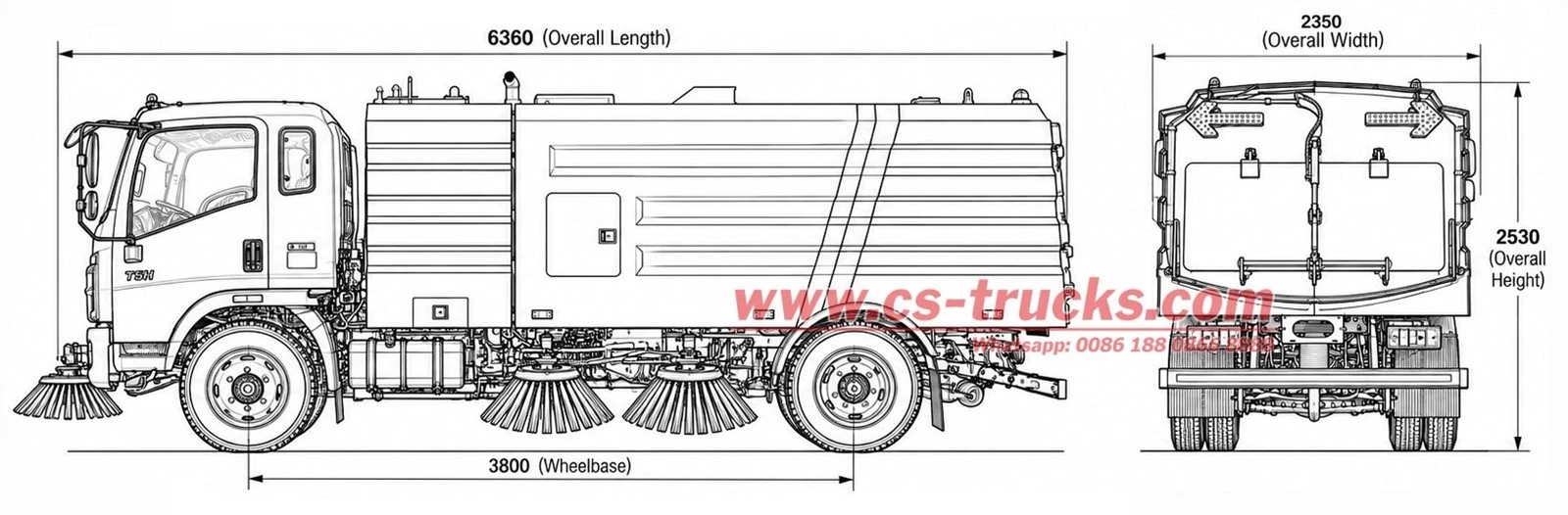

| Overall Dimensions L*W*H | 6360*2350*2530 mm | ||
| Engine | Engine Model | ISF3.8s3141 | |
| Fuel Type | Diesel | ||
| Power | 140 HP(103KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 6494 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | HOWO T3M | |
| Tire No. | 6+1 spare tire | ||
| Tire Specification | 7.00R16 14PR | ||
| Wheelbase | 3800 mm | ||
| Gear Box | WLY6TS55, 6 forward and 1 reverse speeds (Manual) | ||
| Steering Wheel | Left or right hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Superstructure | Overall Volume | 6 CBM | |
| Garbage Tank Volume | 4 CBM | ||
| Water Tank Volume | 2 CBM | ||
| Tank Material | Water tank: Carbon steel; Garbage tank: Inner stainless steel, outer carbon steel | ||
| Sweep Speed | 3–20 km/h | ||
| Max.Cleaning Width | 2.85 m | ||
| Tipper unloading Angle | >50° | ||
| Sweeper Brush | 5 pcs mechanical brushes + 1 sucking disc | ||
| Speed of Road Cleaning | 3–20 km/h | ||
| Max.Sweeping Capacity | 50000 m³/h | ||
| Suction Type | Double suction hole, hydraulic control, spring suspension; suction hole diameter 180mm | ||
| Max. Suction size | ≥100 mm | ||
| Sweeping Efficiency | ≥95% | ||

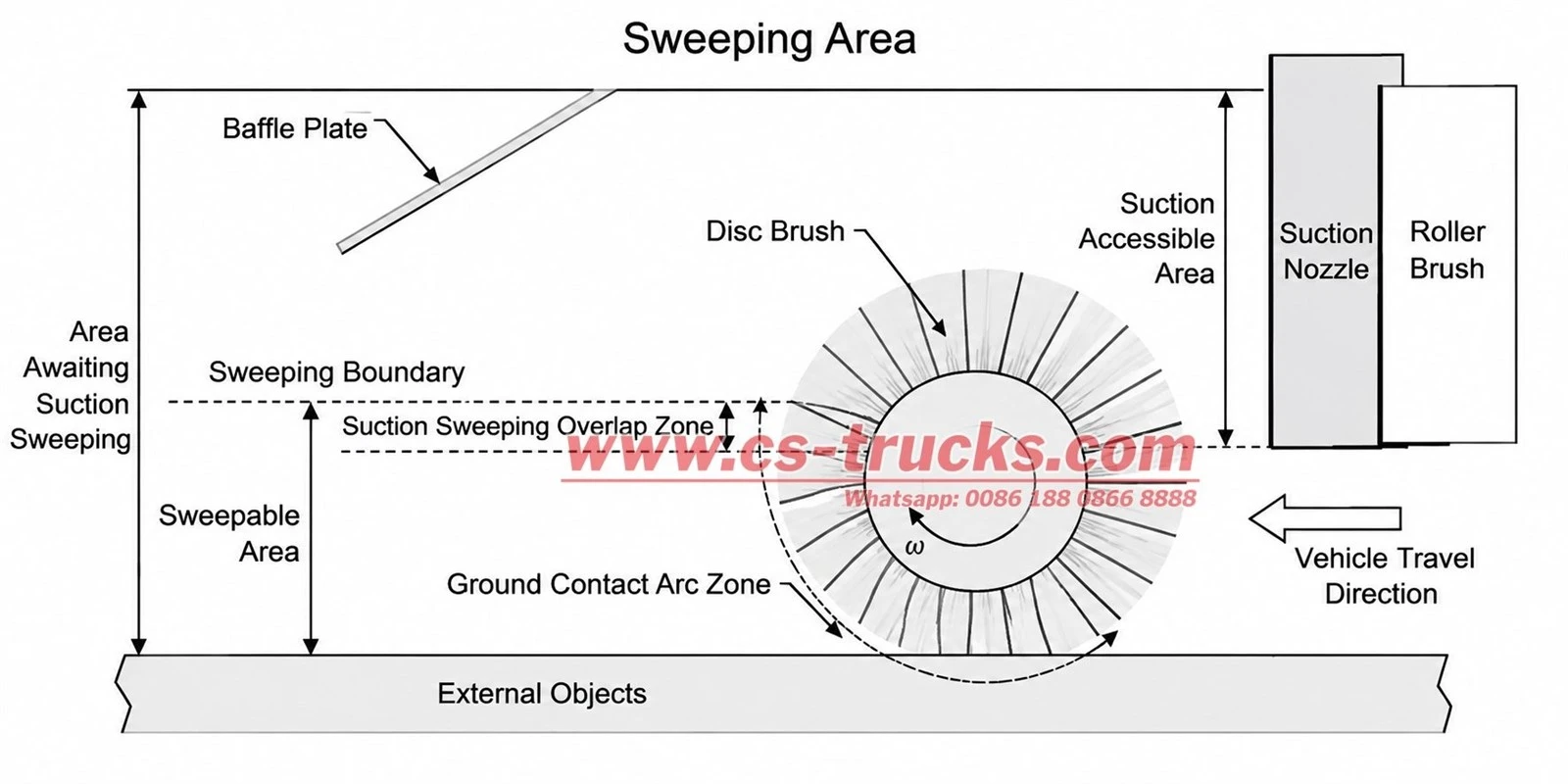

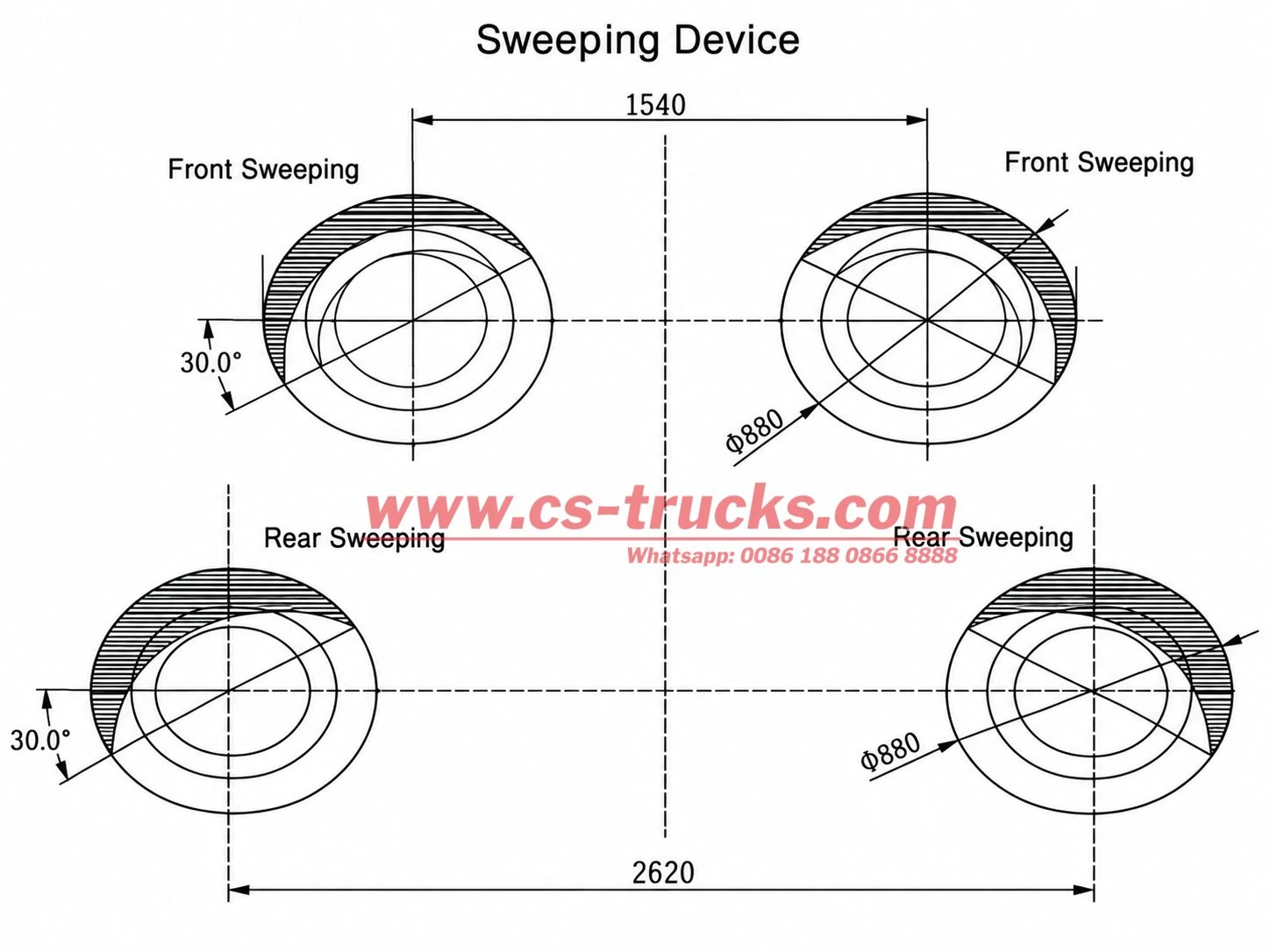

» III. How to Evaluate the Sweeping Capacity of a HOWO Road Sweeper:
1 CLEANING WIDTH
The sweeper achieves a maximum cleaning width of 2.85 meters, allowing it to cover a full lane in a single pass and reducing the need for multiple runs.
2 SWEEPING EFFICIENCY
With a sweeping efficiency of ≥95%, the system effectively collects dust, gravel, and debris, leaving the road surface visibly clean after one pass.
3 MAXIMUM CAPACITY
The combination of 5 mechanical brushes and a central suction disc delivers a maximum sweeping capacity of 50,000 m³/h, ideal for high-traffic urban roads.
4 SUCTION PERFORMANCE
The double suction hole with hydraulic control and spring suspension creates strong negative pressure, capable of picking up particles up to 100 mm in diameter.
» IV. How to Operate a Road Sweeper Truck:
1. System Initialization:
Power on the control box and adjust the control valve to the auxiliary engine position. Start the auxiliary engine and confirm stable operation.
2. Sweeping Mechanism Engagement:
Engage the auxiliary engine clutch control button to activate the suction fan.
Lower the dust collection hopper using its dedicated control button.
Deploy the left and right side sweeping brushes to the ground position via their respective controls.
Activate brush rotation, ensuring the left brush rotates clockwise and the right brush counter-clockwise for optimal coverage and debris collection.
3. Dust Suppression System Activation:
Turn on the front (left/right) and rear spray nozzles to dampen the surface and prevent dust dispersion.
Switch on the water pump to ensure a consistent water supply for spraying.
4. Commence Sweeping:
Drive the vehicle at an appropriate speed, typically between 5-20 km/h, to begin the sweeping process effectively.
» Ⅴ. Product Description:
HOWO 6 CBM Street Sweeper Chassis
➤ Cabin： HOWO T3M left- or right-hand drive cab, air brake system, and tropical climate radiator for stable operation.
➤ Engine：ISF3.8s3141, 140 HP, inline 4-cylinder, 6.494 L displacement, Euro III.
➤Transmission: WLY6TS55, 6 forward and 1 reverse manual gearbox.
➤Tires: 7.00R16 14PR, 6 wheels plus 1 spare.
➤Wheelbase：3800 mm

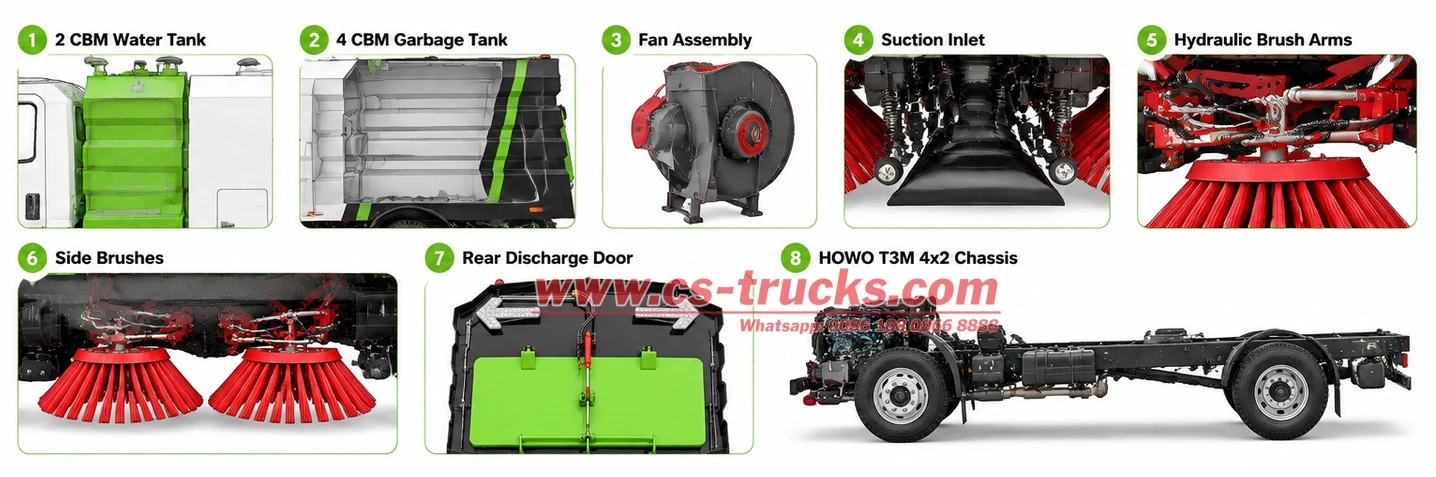

HOWO 6 CBM Combined Tank – Sweeping & Suction System
➤ Tank Structure: 6 CBM total capacity (4 CBM garbage, 2 CBM water), carbon steel and stainless steel construction for durability.
➤ Cleaning System: 5 mechanical brushes plus 1 full-floating suction disc, providing a 2.85 m cleaning width and ≥95% sweeping efficiency.
➤ Suction Performance: Double suction hole with hydraulic control, capable of picking up particles ≥100 mm at a sweeping capacity of 50,000 m³/h.
➤ Discharge System: Hydraulic tipping with an unloading angle >50° for complete garbage evacuation.
Product Details

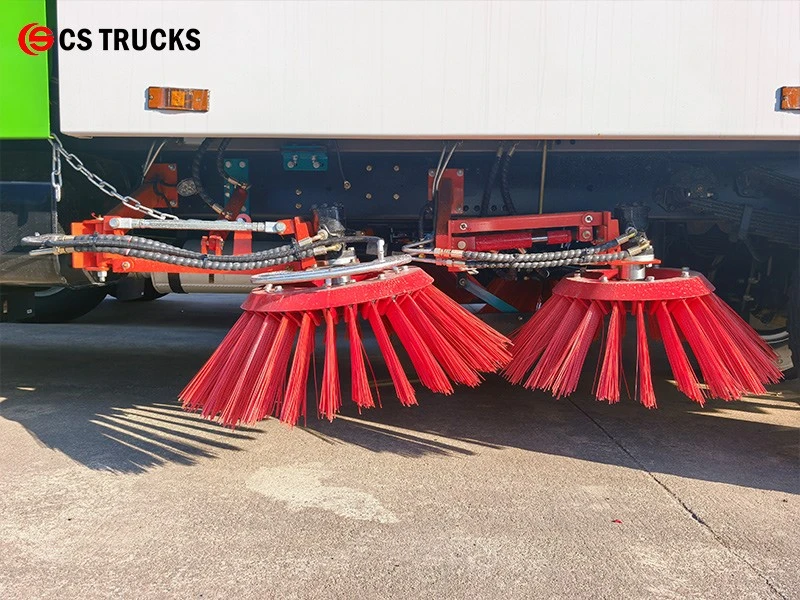

HOWO Sweeper Truck Side Dual Sweeping Brushes Assembly

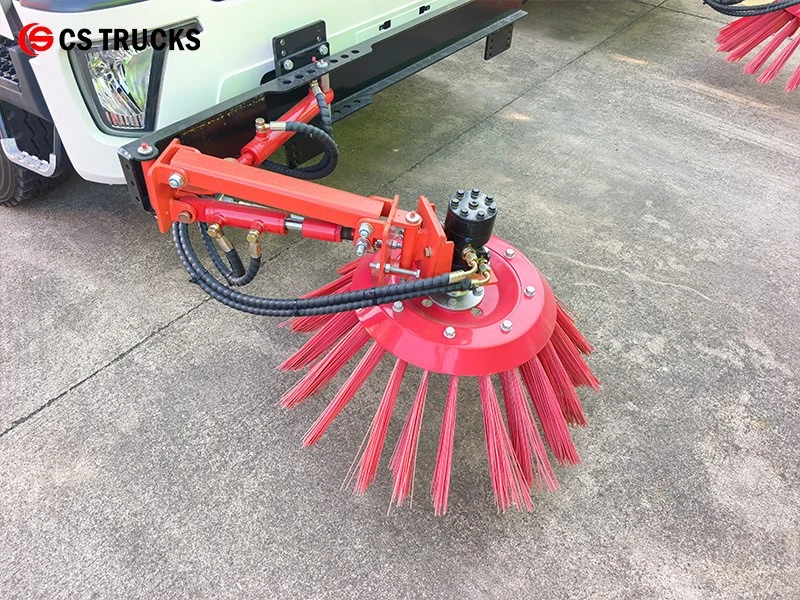

HOWO Sweeper Truck Front Sweeping Brush

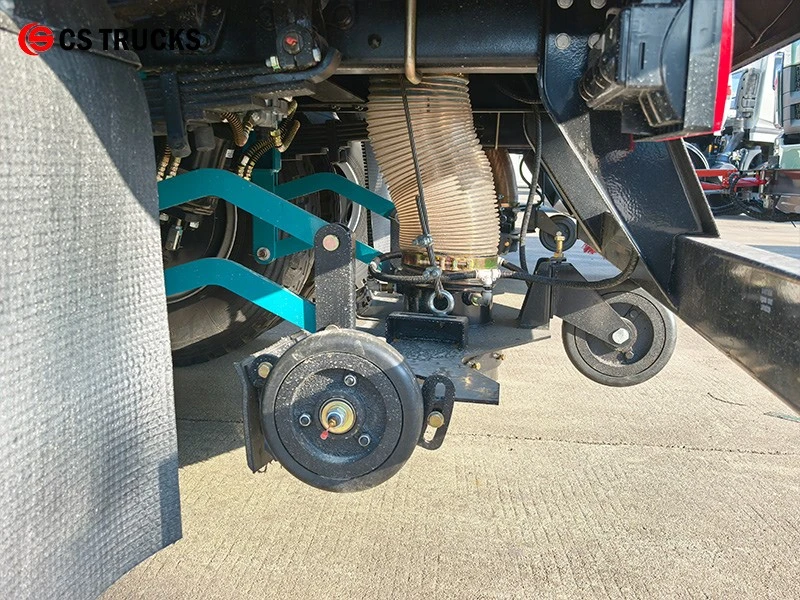

HOWO Sweeper Truck Suction Disc Caster Wheel With Spring Suspension

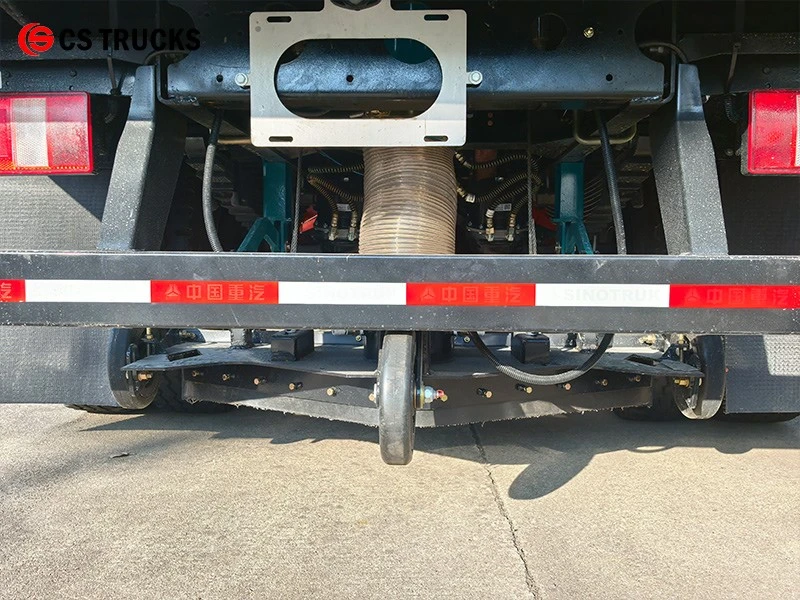

HOWO Sweeper Truck Rear Suction Disc Assembly & Tail Lights

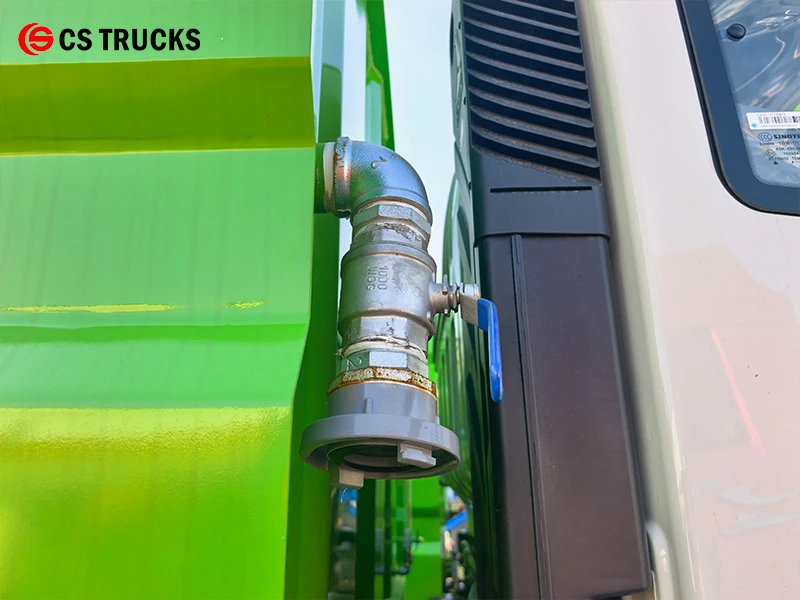

HOWO Sweeper Truck Side Water Filling Port With Ball Valve

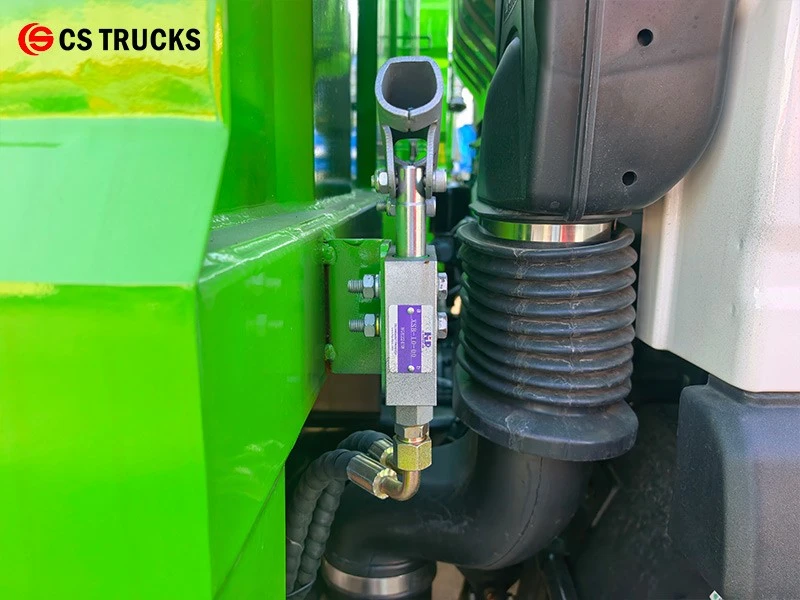

HOWO Sweeper Truck Pneumatic Pipe Fitting
» Ⅵ. HOWO 6 CBM Street Sweeper Truck Solutions:

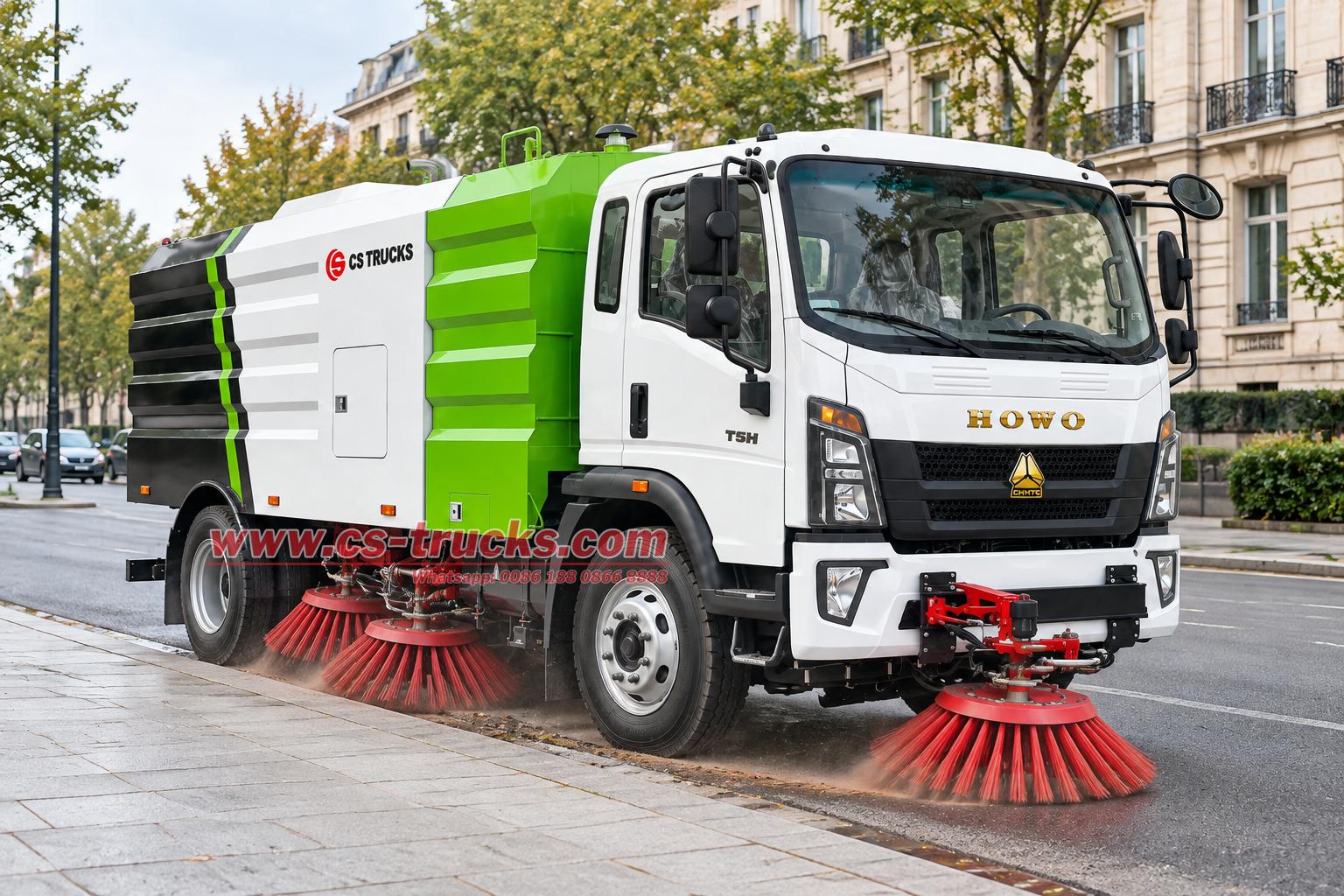

HOWO 140HP 6CBM 4x2 Municipal Street Cleaning Sweeper Truck

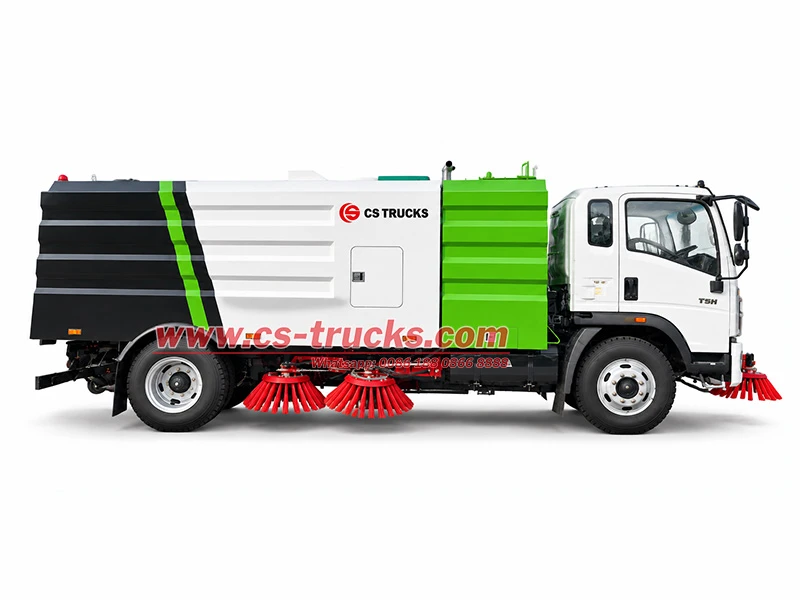

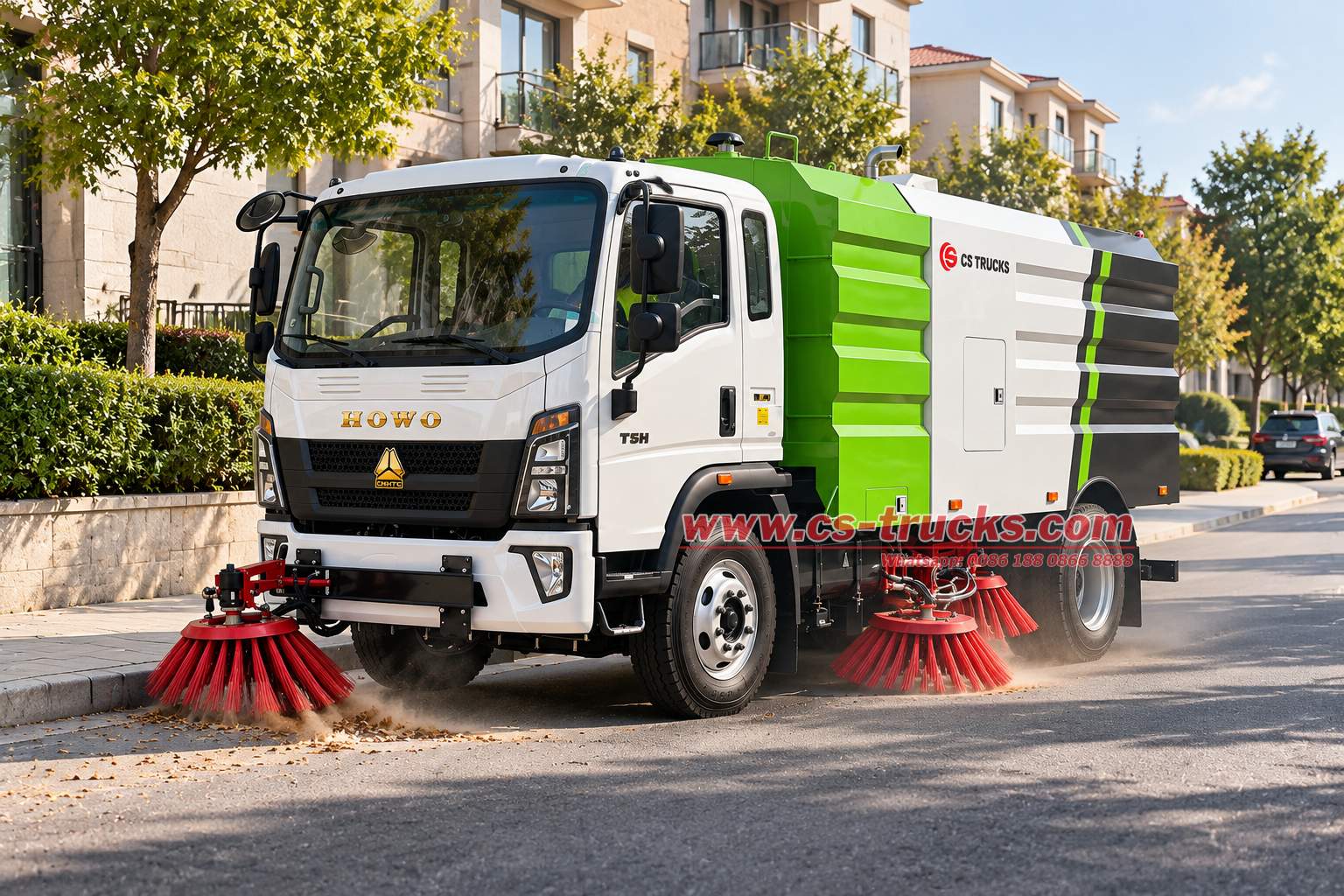

HOWO 6CBM 4x2 Residential Community Sweeping Truck
HOWO 140HP 6CBM 4x2 Commercial Parking Lot Sweeper Truck

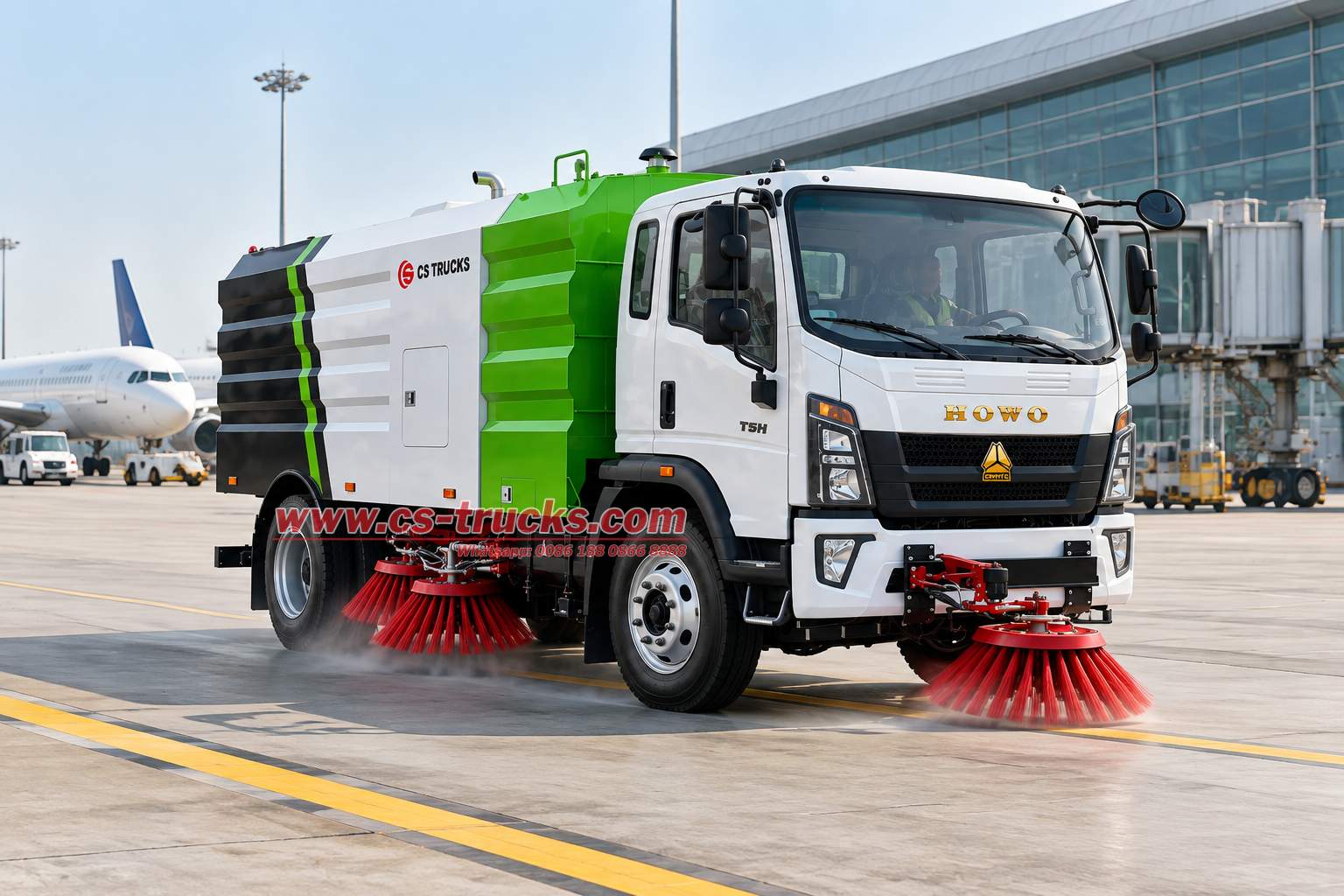

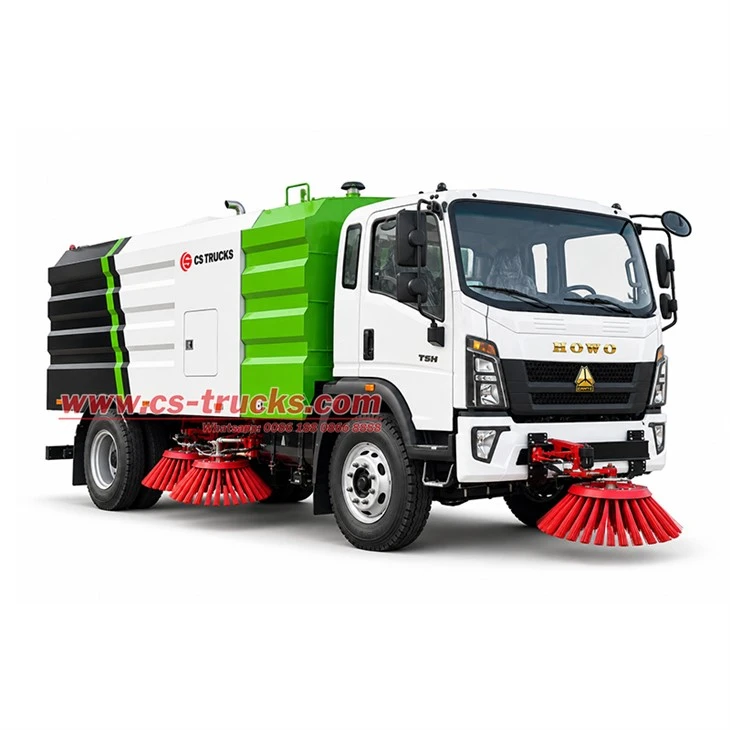

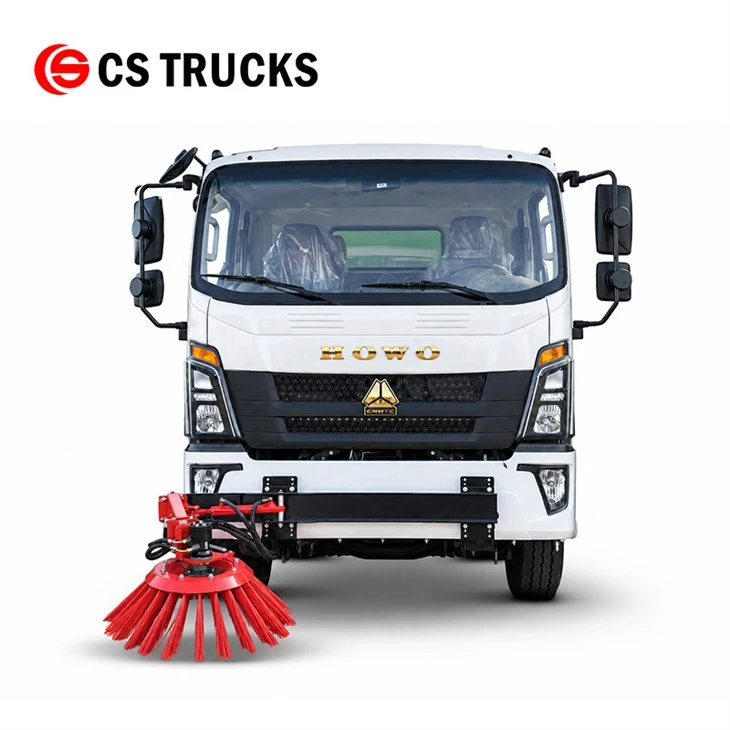

HOWO 140HP 6CBM 4x2 Airport Sweeping Truck
Ⅶ. HOWO 4X2 6CBM Street Sweeper Truck Views:

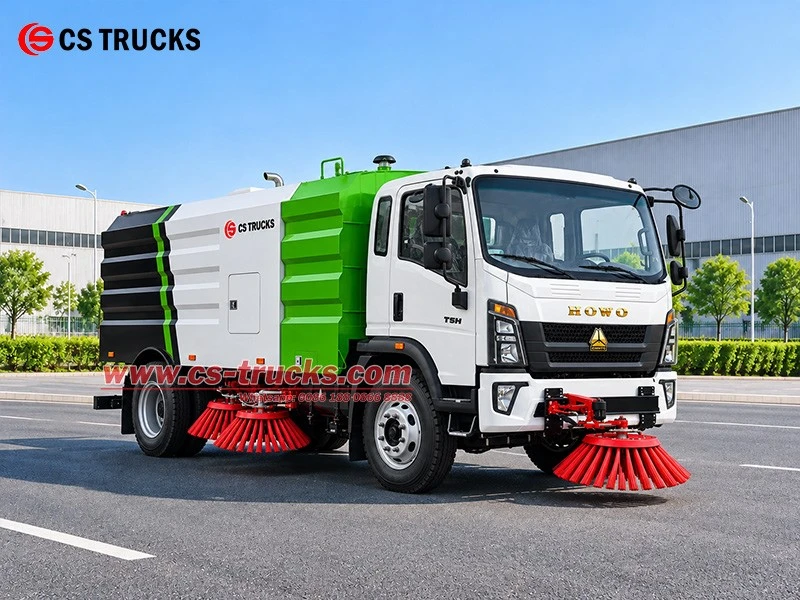

Front right view of HOWO 140HP Euro 3 small street road cleaning sweeper truck for city road

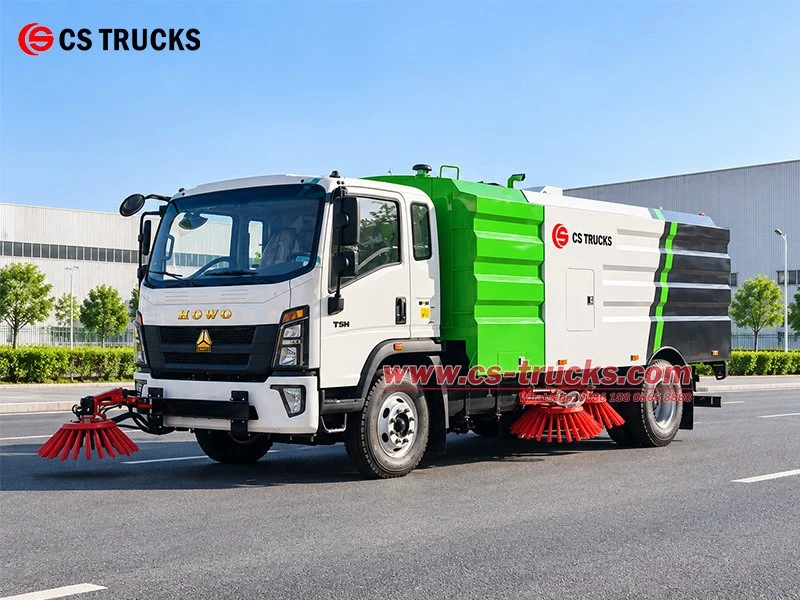

Front left view of HOWO T3M 4x2 6CBM street sweeper truck for municipal sanitation

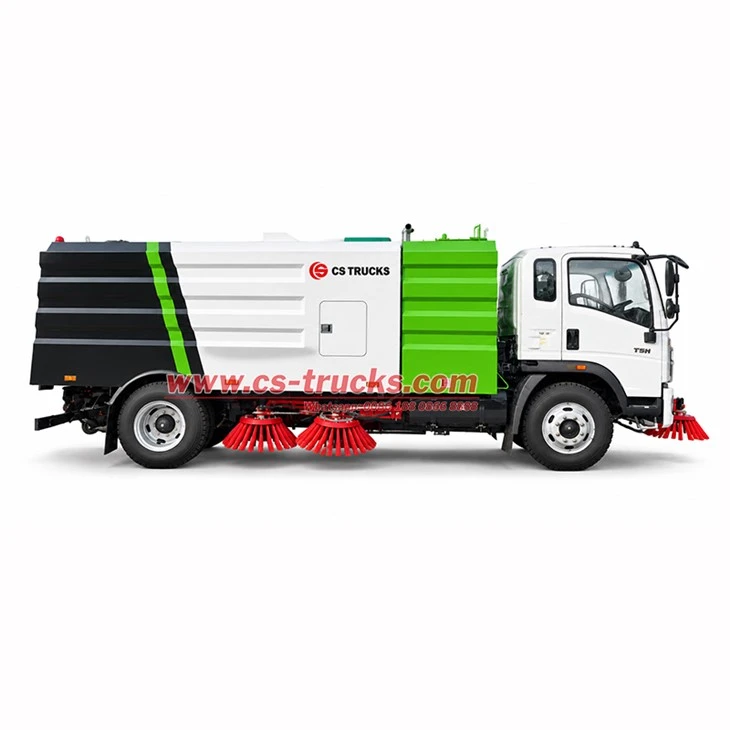

Right view of HOWO 140HP diesel vacuum sweeper truck for urban road cleaning

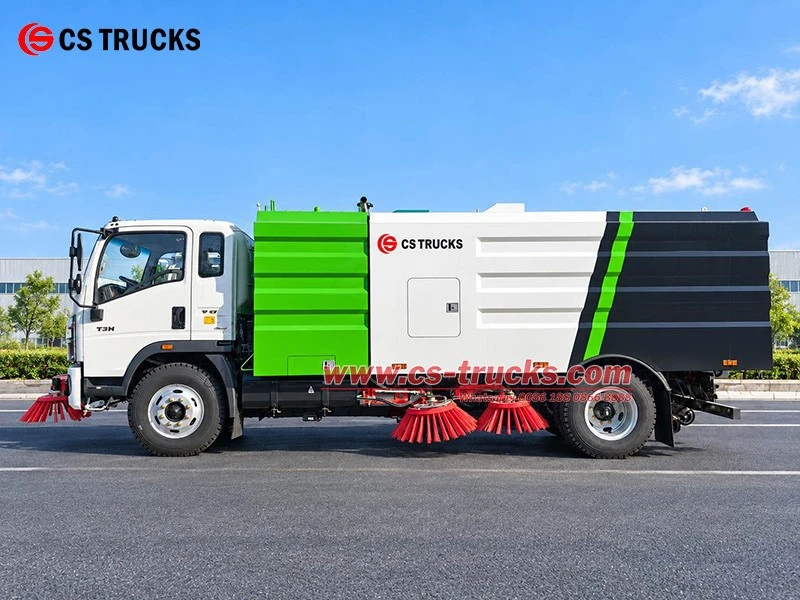

Left view of HOWO small road sweeper truck 4CBM garbage tank for city street

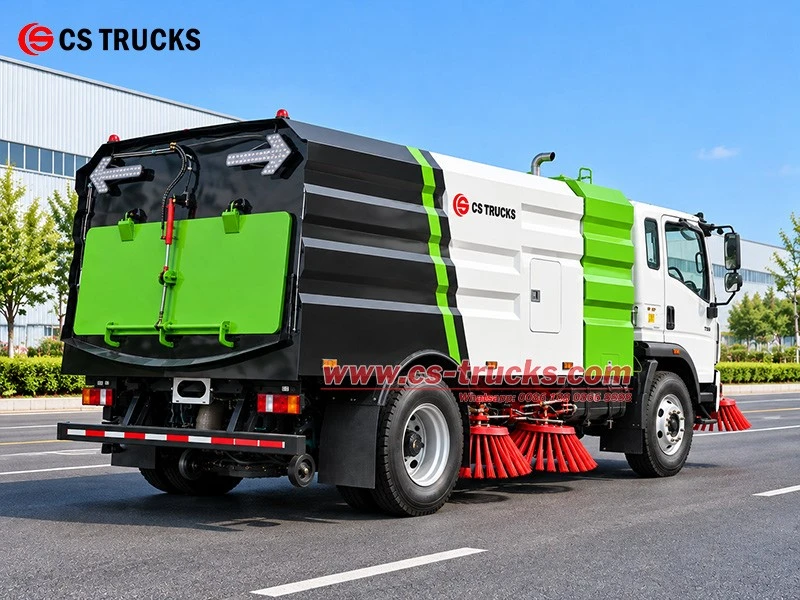

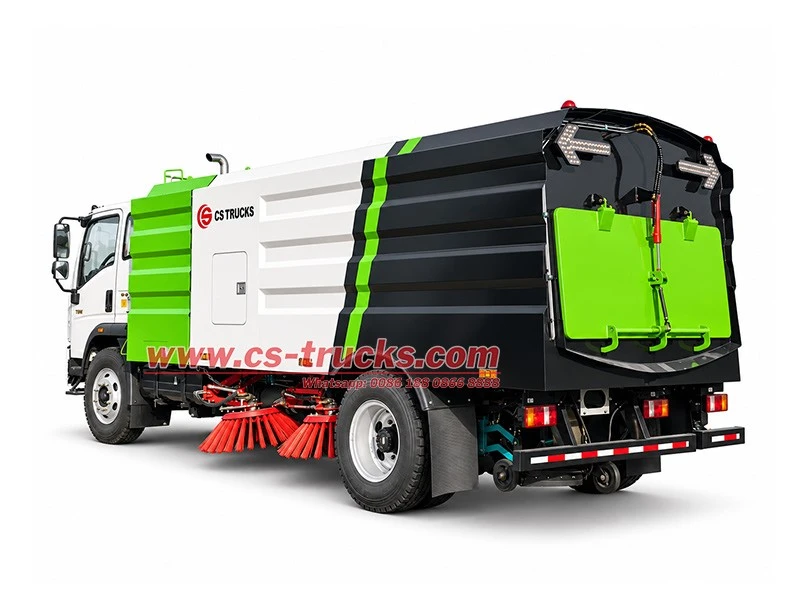

Rear Right view of HOWO 2.85m cleaning width street sweeper vehicle for highway shoulder

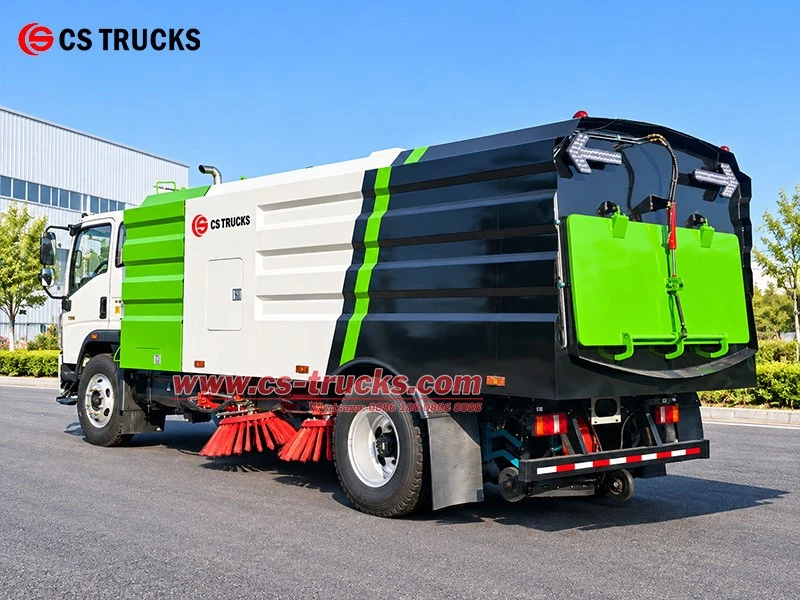

Rear Left view of HOWO Euro 3 mechanical sweeper truck with 5 brushes for parking lot

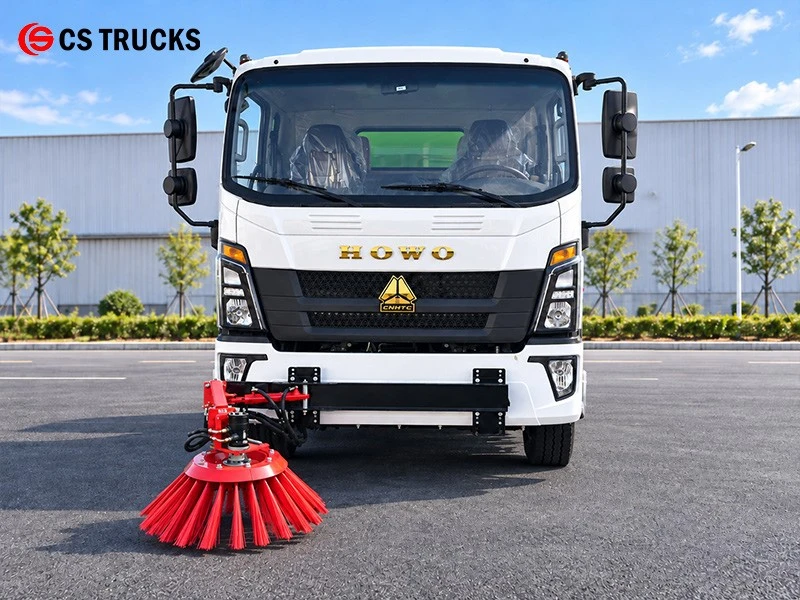

Front view of HOWO 140HP 4x2 road cleaning truck for municipal sanitation

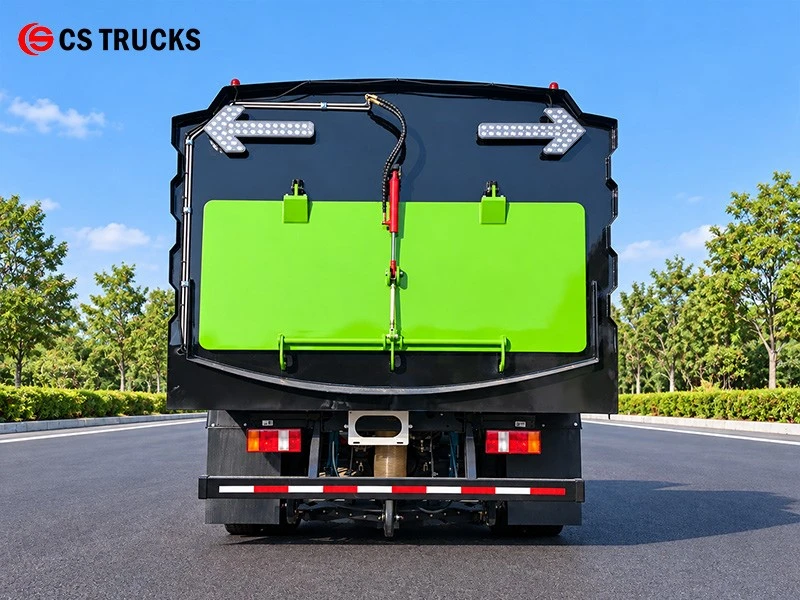

Rear view of HOWO T3M chassis street sweeper vacuum truck for airport apron

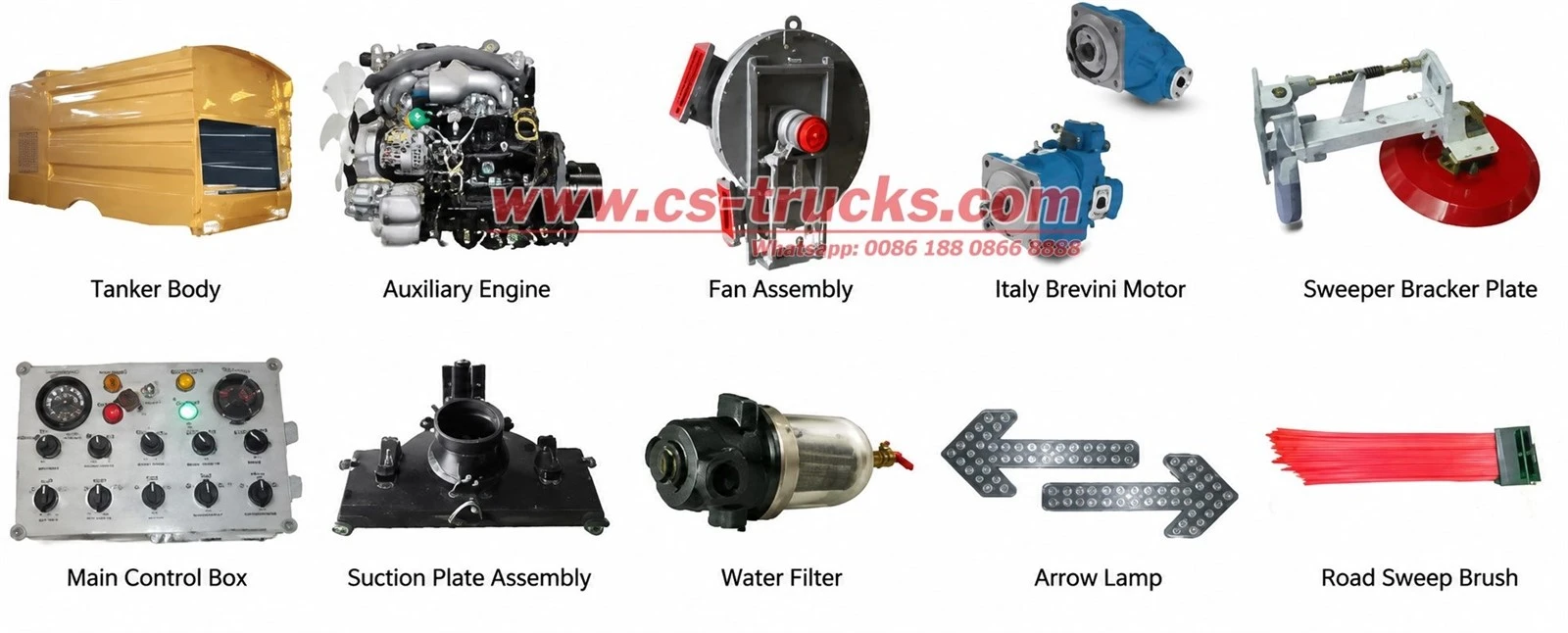

Road Sweeping Vehicle Spare Parts
FAQ
Q1: What is a HOWO 6 CBM street sweeper truck used for?
A: The HOWO 6 CBM street sweeper is designed for urban sanitation, combining mechanical sweeping and vacuum suction to clear dust, leaves, gravel, and debris from municipal roads, residential communities, parking lots, and airports.
Q2: What is the cleaning width and sweeping efficiency of this road sweeper?
A: This HOWO sweeper provides a maximum cleaning width of 2.85 meters and a sweeping efficiency of ≥95%, delivering high-performance cleaning for wide urban roads and tight commercial spaces.
Q3: How does the vacuum suction system handle large debris?
A: The sweeper features a full-floating suction disc with a 180 mm diameter double suction hole. It can pick up particles up to 100 mm, achieving a maximum sweeping capacity of 50,000 m³/h.
Q4: What are the tank capacities for water and garbage?
A: The truck has a total capacity of 6 CBM, split into a 4 CBM garbage tank (stainless steel inner lining) and a 2 CBM carbon steel water tank for dust suppression during sweeping.
Q5: What engine and transmission are equipped on this sweeper?
A: It is powered by an ISF3.8s3141 diesel engine delivering 140 HP (103 kW), meeting Euro III standards, and matched with a WLY6TS55 6-speed manual gearbox.
Q6: What is the tipping angle for unloading the garbage tank?
A: The hydraulic tipping system features an unloading angle of >50°, ensuring complete and efficient discharge of collected waste at disposal sites.
Products - 100% China HOWO factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. HOWO 6 CBM Street Sweeper Chassis: Built on the HOWO T3M 4×2 platform, powered by an ISF3.8s3141 diesel engine delivering 140 HP and a WLY6TS55 6-speed manual gearbox, designed for municipal street cleaning, residential sweeping, and commercial parking lot maintenance.
2. Combined Sweeping Tank: Constructed from carbon steel and stainless steel, featuring a 6 CBM total capacity (4 CBM garbage and 2 CBM water), equipped with a hydraulic tipping system (>50° angle) for efficient waste discharge.
3. Mechanical Sweeping & Suction System: Equipped with 5 mechanical brushes and 1 full-floating suction disc (180mm diameter), plus hydraulic controls, achieving a 2.85m cleaning width, 50,000 m³/h capacity, and ≥95% sweeping efficiency.
4. Safety & Urban Features: 4×2 drive with 7.00R16 14PR tires (6+1), air brake system, and a 3800 mm wheelbase for agile maneuvering. Cab with left or right-hand drive, tropical climate radiator, and 10300 kg GVW for demanding daily sanitation tasks.
