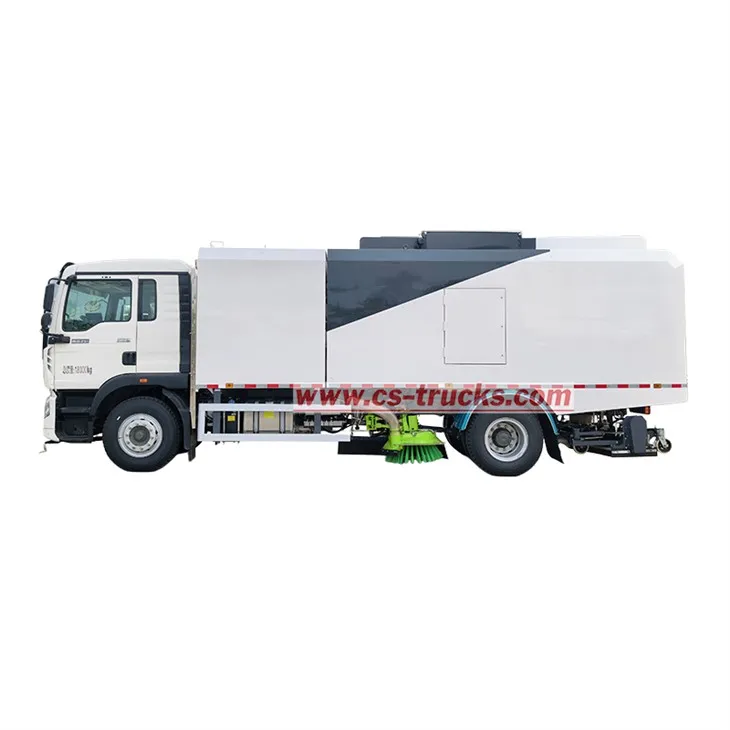

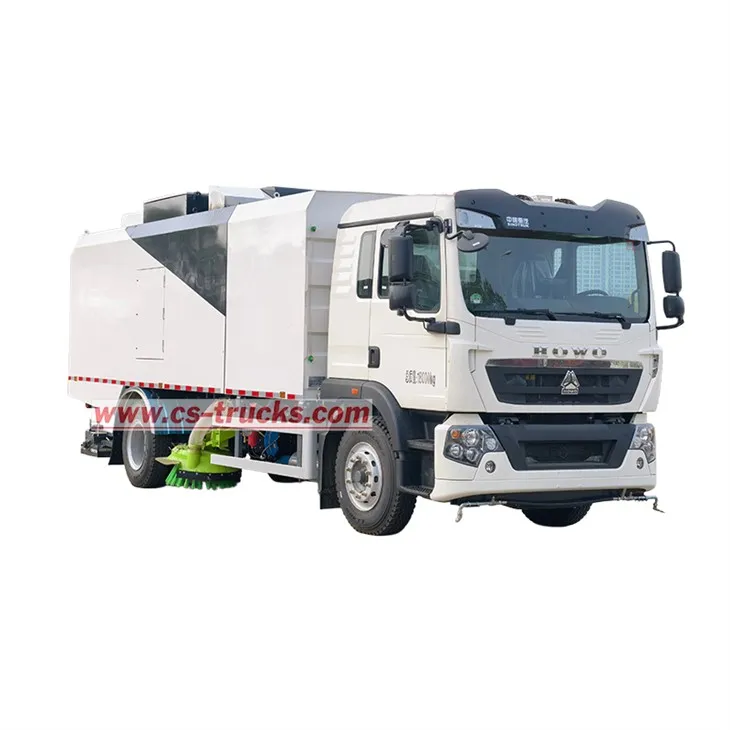

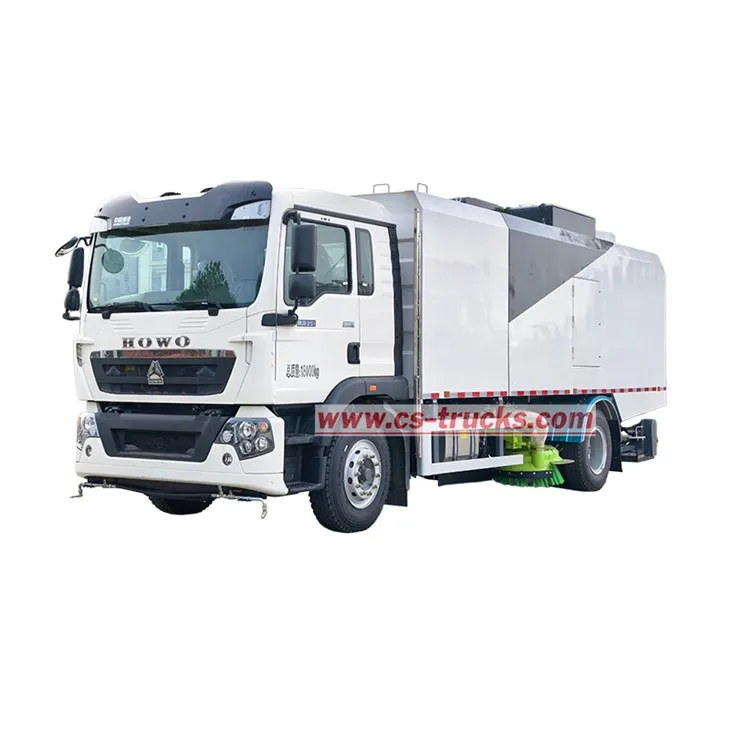

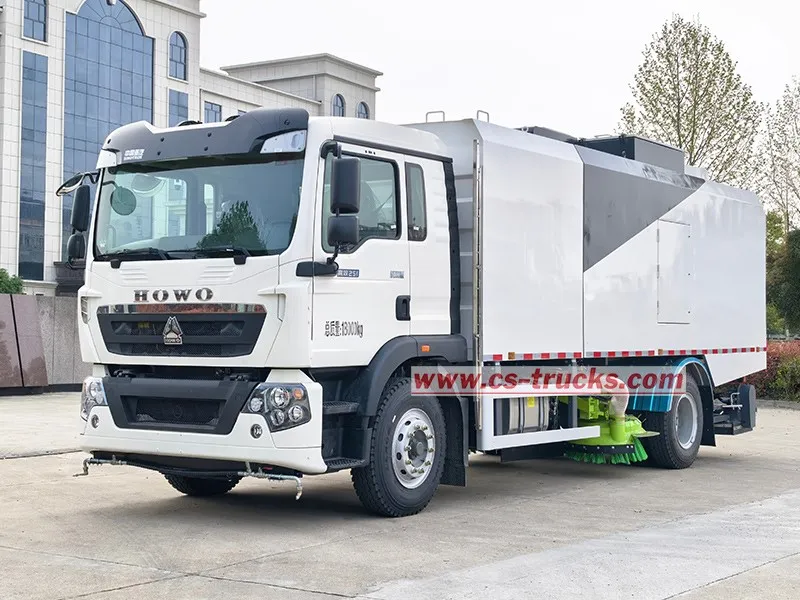

HOWO 16 CBM street sweeper vacuum truck (also called road sweeper truck, truck mounted sweeper, or road vacuum cleaner truck) is built for daily road cleaning, dust collection, and construction site watering. It carries a 9,000L water tank and a 7,000L waste hopper. The 250 HP engine and 4×2 chassis handle city streets and highways with ease. Sweeping width reaches 3.5 meters at 95% efficiency. A reliable choice for municipal crews and private contractors.
*Kenya HOWO Street Sweeper Truck With Broom*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guarantee all products Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: SINOTRUK HOWO 4×2 chassis with a 250 HP MC07.25-61 diesel engine
▶ Tank Capacity: Dual compartment 16 CBM total (9,000L water + 7,000L waste)
▶ Tank construction: Water tank stainless steel; garbage hopper inner stainless steel with outer carbon steel

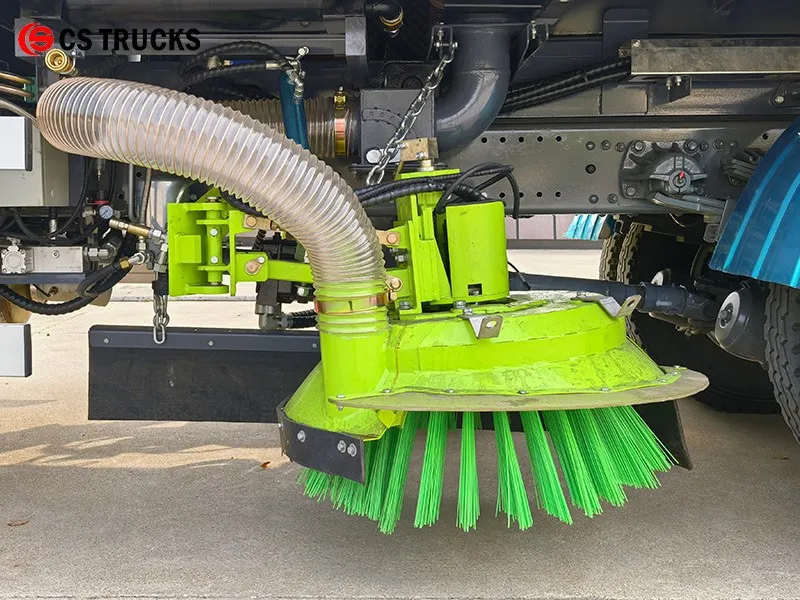

▶ Sweeping System: Two hydraulic disc brushes (one each side) + high pressure spray bar + central suction disc
▶ Operation Scope: Street sweeping, dust suppression, construction site watering, and municipal area cleaning
» II. Product Parameters for HOWO 16 CBM Vacuum Road Sweeper Truck
| Product Name | Kenya HOWO Street Sweeper Truck With Broom | ||
| Overall | Vehicle Model | CS5180TSL | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 18000 kg | ||
| Curb Weight | 12900 kg | ||
| Maximum Speed | 100 km/h | ||

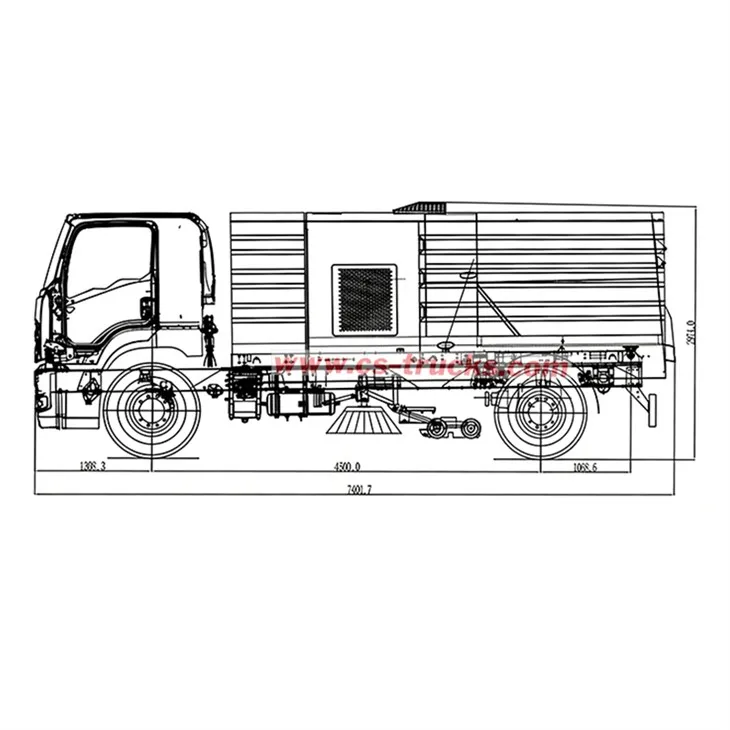

| Overall Dimensions L*W*H | 8360*2540*3660 mm | ||
| Engine | Engine Model | MC07.25-61 | |
| Fuel Type | Diesel | ||
| Power | 250 HP(190KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 6870 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINOTRUK HOWO | |
| Tire No. | 6 tires and 1 spare tire | ||
| Tire Specification | 10.00R20 | ||
| Wheelbase | 4600 mm | ||
| Steering Wheel | Left hand drive | ||
| Superstructure | Water Tank Capacity | 7000 Litres | |
| Dustbin Capacity | 9000 Litres | ||
| Water Tank Material | Carbon steel | ||
| Garbage Tank Material | Inner stainless steel, outer carbon steel | ||
| Hydraulic Valve | China famous brand | ||
| Hydraulic Motor | China top brand | ||
| Switch | Schneider control switch | ||
| Auxiliary Motor | Brand | Cummins | |
| Horsepower | 141 HP | ||
| Sweeping Technical | Max sweeping width (mm) | 3.5m | |
| Max. sweeping capacity | 70000m3/h | ||
| Sweeping speed | 3-20km/h | ||
| Cleaning efficiency | ≥95% | ||
| Max. particle inhalation | 110mm | ||
| Disc plate brush extension size | >400mm | ||
| Garbage tank door max. discharge angle | >50° | ||
| Sweeping System | Type | Total 2 pcs mechanical brushes with 2 pcs high-pressure water spray boom and 1 sucking disc mounted in the middle, it is driven by the hydraulic motor. The speed is adjustable, can be independently controlled,has an automatic avoidance function | |
| Sweeping brush diameter | ф 850mm | ||
| Sweeping disk speed | 1 10r/min high-speed,80r/min medium speed50r/min low-speed | ||
| Sweeping disk dip angle adjust | forward 4 ° ~ 6 ° extroversion 4 °~ 7 ° | ||
| Sucking Disc | Type | Double suction hole, hydraulic control, spring suspension | |
| Suction hole diameter | 180mm | ||
| Suction performance | Delivers air blast and suction | ||
| Hydraulic System | Type | Open type, electrical | |
| Main components | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve | ||
| Pressure | 16Mpa | ||
| Hydraulic oil volume | 60L | ||
| Oil temperature | 60°C | ||
| Water Spraying System | Components | Pump, nozzle, water filter, etc. | |
| Low Pressure Water System | Model | Hangzhou Weilong 60/90 | |
| Flow rate | 60m3/h | ||
| Water delivery distance | 90m | ||
| Washing width | 24m | ||
| Washing Road | Type | Front washing bar | |
| Electrical System | Type | DC24V, PLC control | |
| Volts | 24V | ||
| Battery | 2x12V | ||
| Tools | 2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker | ||
| Spare Parts | 88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal | ||
» III. Product Description:
1. Chassis Configuration:
♦ GVW rated at 18,000 kg with a curb weight of 12,900 kg. This HOWO 4×2 chassis is built to carry a full 16 CBM load (9,000L water plus 7,000L waste) across daily municipal routes.
♦ 4,600 mm wheelbase ensures stable handling under full or empty load. Reinforced frame withstands continuous heavy duty use without fatigue.
2. Powertrain System
♦ MC07.25-61 inline 6-cylinder turbo diesel engine delivers 250 HP, Euro VI, 6,870 ml displacement. Built for stop and go street sweeping.
♦ 6-speed manual transmission sends smooth power to the 4×2 driveline for sweeping operations and road travel.
3. Dual Compartment Tank
♦ 9,000L stainless steel water tank and 7,000L waste hopper share a single compact structure. The water tank resists corrosion, while the waste hopper uses stainless steel inside for easy cleaning and carbon steel outside for impact protection.
♦ 3.5 meter cleaning width covers a full lane in one pass. 95% efficiency means less dust left behind and fewer repeat runs.

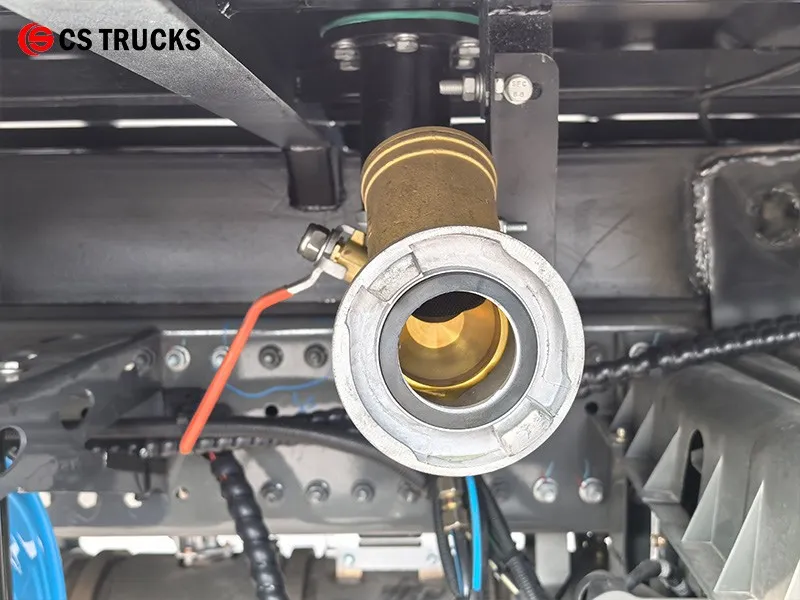

4. Water Filling & Drain Port
♦ This port serves as the main access point for filling the cleaner's 9,000L stainless steel water tank and can also function as a drain outlet when necessary.
♦ Designed for durability and ease of use, it ensures a secure connection for water supply hoses and facilitates efficient tank maintenance and fluid management.
» IV. HOWO Sweeper Vacuum Truck Operating Principle:
♦ Core Configuration: The sweeper is equipped with 2 main sweeping brushes and 1 full-floating suction nozzle, forming the core mechanical cleaning unit.
♦ Cleaning Performance: It efficiently cleans various road debris, including dust, gravel, and leaves, achieving a sweeping efficiency of up to 95%.
♦ Adaptability: The system offers a maximum cleaning width of 3.5 meters and an adjustable sweeping speed of 3-15 km/h, providing excellent flexibility to adapt to roads of different widths and debris loads.
♦ High Capacity: With a maximum sweeping capacity of 54,000 m²/h, it is designed for rapid and efficient cleaning of large urban areas.
Product Details

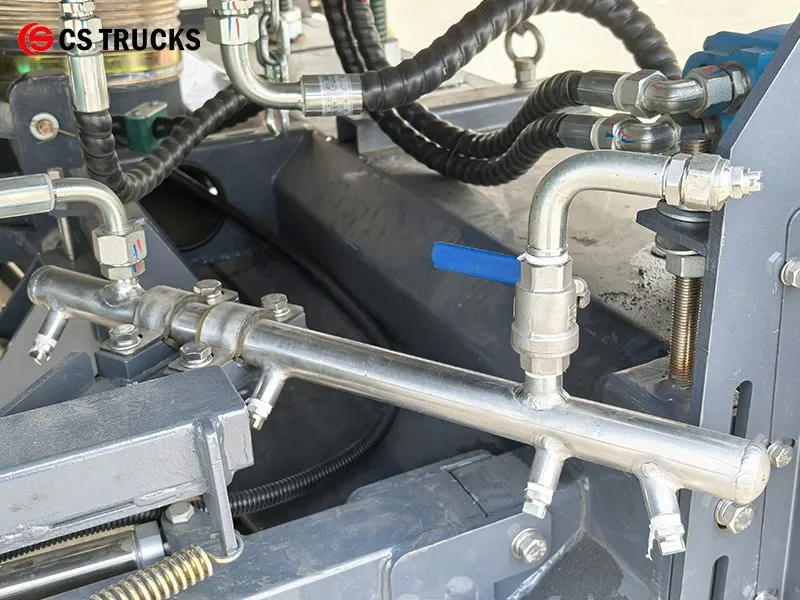

High Pressure Water Manifold

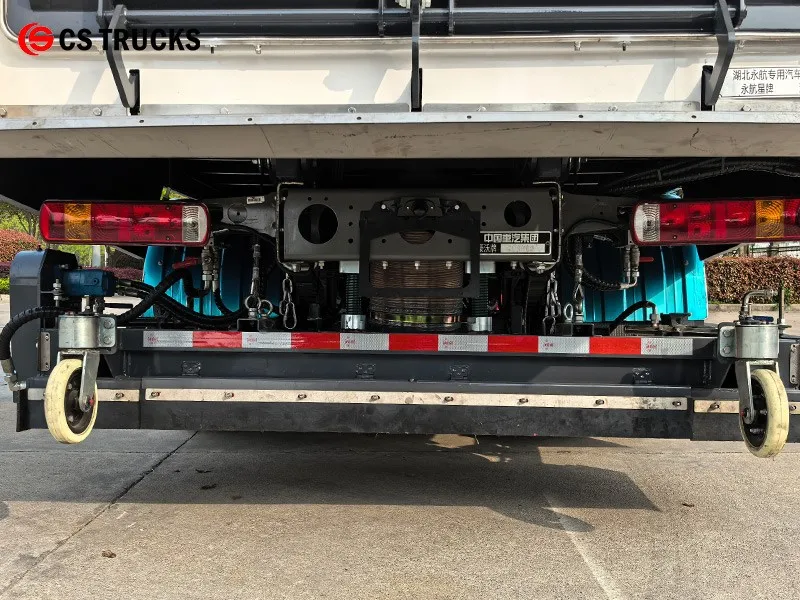

Anti-Collision Guide Wheel
High Pressure Hose Reel
» V.HOWO Street Sweeper Vacuum Truck Solutions:
HOWO Cesspit Vacuum Sucker Truck For Municipal Streets
HOWO Septic Tank Cleaning Truck For Industrial Parks
HOWO Super Sucker Vacuum Truck For Rivers
HOWO Cesspool Truck For Mining Sites
» VI. HOWO Road Cleaning Truck Exterior Views:
Front Right View of HOWO 8 CBM Cesspit Vacuum Sucker Truck
Right View of HOWO 8 CBM Cesspool Truck For Sale
Rear Right View of HOWO 8 CBM Sewage Disposal Trucks For Sale
Rear Left View of HOWO 8 CBM Sewage Vacuum Tanker

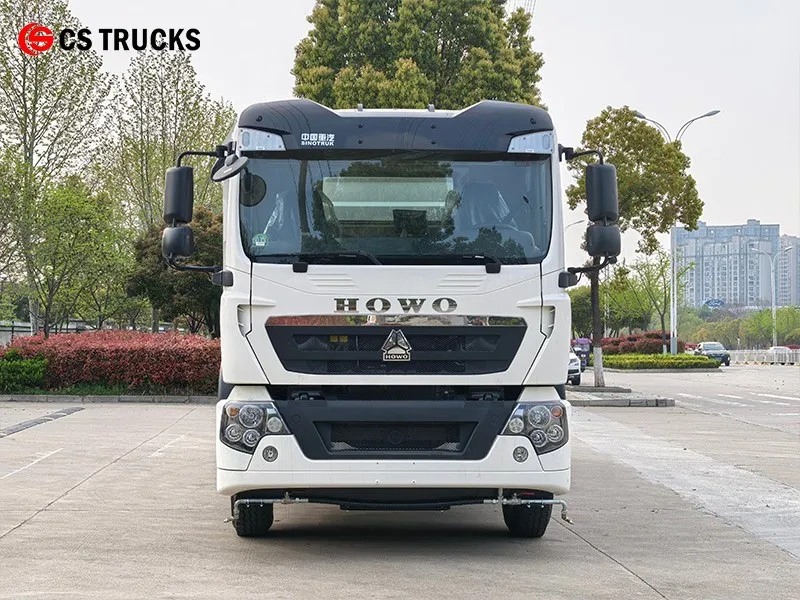

Front View of HOWO Sewer Jetter Cleaning Truck
Rear View of HOWO 8000L Sewage Suction Truck
Rear View of HOWO 8000L Sewage Suction Truck
Rear View of HOWO 8000L Sewage Suction Truck
» More HOWO sewage tank trucks
Products--100% China HOWO factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. HOWO 16 CBM sweeper vacuum truck Chassis Platform: SINOTRUK HOWO 4×2 chassis with MC07.25-61 engine rated at 250 HP and a 6-speed manual gearbox. Built for stop and go street sweeping routes in cities and towns.
2. Dual Compartment Tank: 16 CBM total capacity split into a 9,000L stainless steel water tank and a 7,000L waste hopper. Water tank resists rust. Waste hopper has stainless inner liner for easy cleaning.
3. Sweeping & Water System: Two hydraulic disc brushes (one per side) plus a central suction disc. Cleaning width hits 3.5 meters at 95% efficiency. Low pressure water pump delivers 60 m³/h with 90 meter reach for dust control.
4. Control & Durability: PLC controlled 24V electrical system with dual batteries. Hydraulic system runs at 16 MPa. Waste hopper door opens past 50° for full discharge. Disc brushes auto avoid obstacles to prevent damage.
