HOWO 20 CBM water bowser sprinkler tanker (also referred to as road watering vehicle, street sprinkler, or dust suppression tanker) is engineered for municipal road maintenance and environmental cleaning. Its primary functions encompass dampening dusty streets, irrigating urban greenery, and delivering water for emergency response or construction supply.
Equipped with a 20000L Q235 steel tank and a 370 HP Euro II engine, this HOWO water truck maintains stable performance across long-haul routes and heavy-load operations. It serves municipal sanitation teams, municipal landscaping departments, and infrastructure contractors requiring reliable daily water distribution capabilities.
*HOWO 6x4 20000L Water Sprinkler Bowser*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
✦ Chassis: SINOTRUK 6×4 chassis with 370 HP WD615.47 Euro II diesel engine
✦ Water Tank: 20000L capacity, 6mm Q235 carbon steel for structural integrity, equipped with galvanized piping and stainless steel outlets
✦ Water Pump: WEILONG 80QZF-60/90S delivering 60 m³/h flow, 90m head, and 1.5-minute self-priming at 4m suction
✦ Sprinkler System: 45m water cannon, 14m front spray, 13m rear spray, and 12m side spray for multi-directional coverage
✦ Operation Scope: Municipal road dust suppression, street washing, green belt irrigation, and emergency water supply
» II. Product Parameters for HOWO Water Spraying Truck:
| Product Name | HOWO 20000 Liters Water Bowser Sprinkler Tanker Vehicle | ||
| Overall | Vehicle Model | CS5250GSS | |
| Drive Type | 6*4 | ||
| Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 11500 kg | ||
| Front axle loading capacity | 7.5T (7500 kg) | ||
| Rear axle loading capacity | 2×16000 kg (16T×2) | ||
| Maximum Speed | 100 km/h | ||

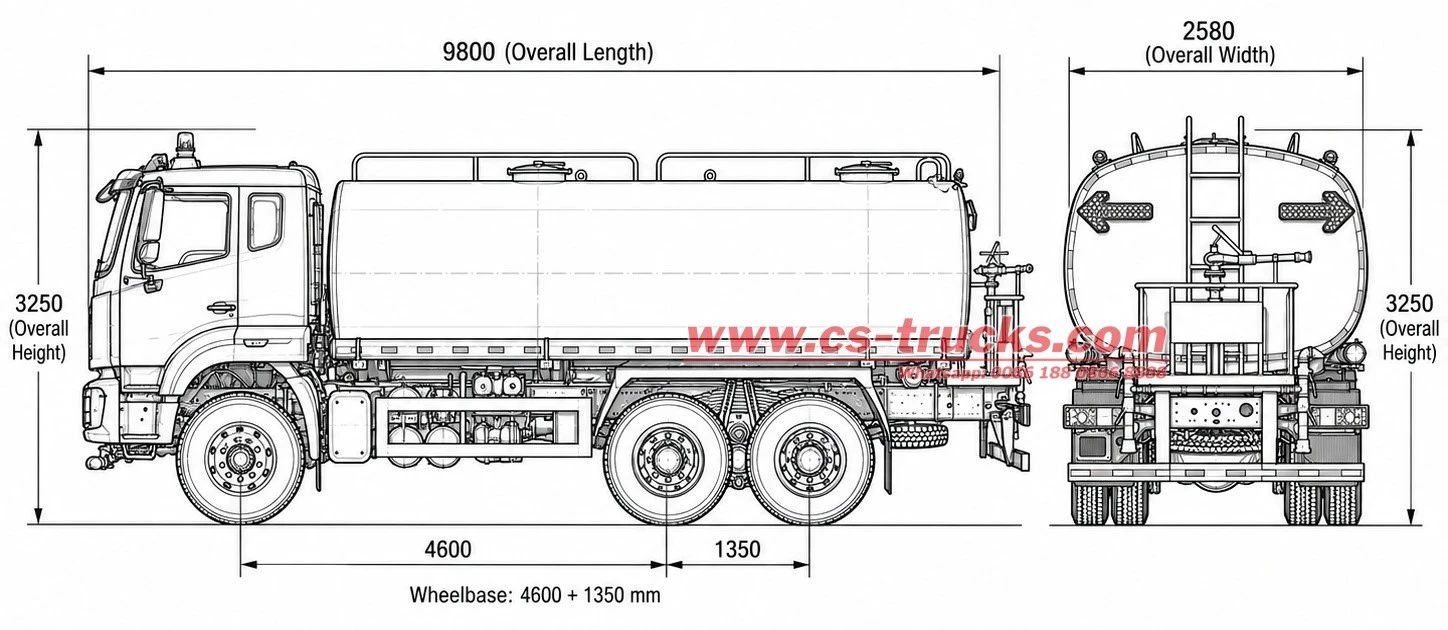

| Overall Dimensions L*W*H(mm) | 9800*2580*3250 mm | ||
| Engine | Engine Model | WD615.47 | |
| Fuel Type | Diesel | ||
| Power | 370 HP(273KW) | ||
| Emission Standard | Euro II | ||
| Displacement | 9726 ml | ||
| Engine Type | 6 cylinders in line, 4-stroke, supercharged, intercooled, water-cooled diesel engine | ||
| Chassis | Chassis Brand | SINOTRUK | |
| Gear Box | HW19710 transmission, 10 forward and 2 reverse | ||
| Wheelbase (mm) | 4600+1350 mm | ||
| Tire No. | 10+1 | ||
| Tire Specification | 315/80R22.5 | ||
| Gear Box | HW19710 transmission ,10 forward and 2 reverse | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Tank | Capacity | 20000L | |
| Structure | TANK MATERAIL | 6mm, Q235 steel | |
| Pipe | Galvanized pipe | ||
| Discharge nozzle | SS,at side bottom of tank,quick coupling | ||
| Discharge nozzle option | Stainless steel faucet | ||
| Water Pump | Model | WEILONG 80QZF-60/90S pump | |
| Flow rate(L/m): | 60m3/h | ||
| Head of delivery(m) | 90m | ||
| Self-priming function(min/4m) | 1.5 | ||
| Efficiency(%) | 0.95 | ||
| Related rotate speed(r/min) | 1180 | ||
| Matched power(kw) | 22 | ||
| Water Sprinkler System | Front sprinkler jet | 14m | |
| Rear sprinkler jet | 13m | ||
| Rear sprinkler nozzle range | 12m | ||
| Water cannon range | 45m | ||
| Water time | ＞5 minutes | ||
| Working condition | Flow≥60L/m, 1.55Mpa | ||
| Max working pressure | ≥0.9Mpa | ||
» III. Product Description:
HOWO 20 CBM Water Bowser Sprinkler Chassi
➤ Cabin：SINOTRUK left-hand drive cab, power steering and air brake system for stable control
➤ Engine：WD615.47, 370 HP, inline 6-cylinder, 9.726 L displacement, Euro II, 1500 N·m torque
➤Transmission: HW19710, 10 forward and 2 reverse
➤Tires: 315/80R22.5, 10 wheels plus 1 spare
➤Wheelbase：4600+1350 mm
HOWO 20 CBM Water Tank – Pump & Sprinkler System
➤ Water Tank: 20000L capacity, 6mm Q235 carbon steel, equipped with galvanized piping and stainless steel discharge nozzle.
➤ Water Pump: WEILONG 80QZF-60/90S pump, 60 m³/h flow, 90m head, 1.5-minute self-priming at 4m suction, 95% efficiency.
➤ Sprinkler System: 14m front spray, 13m rear spray, 12m side spray, and 45m water cannon for comprehensive coverage.

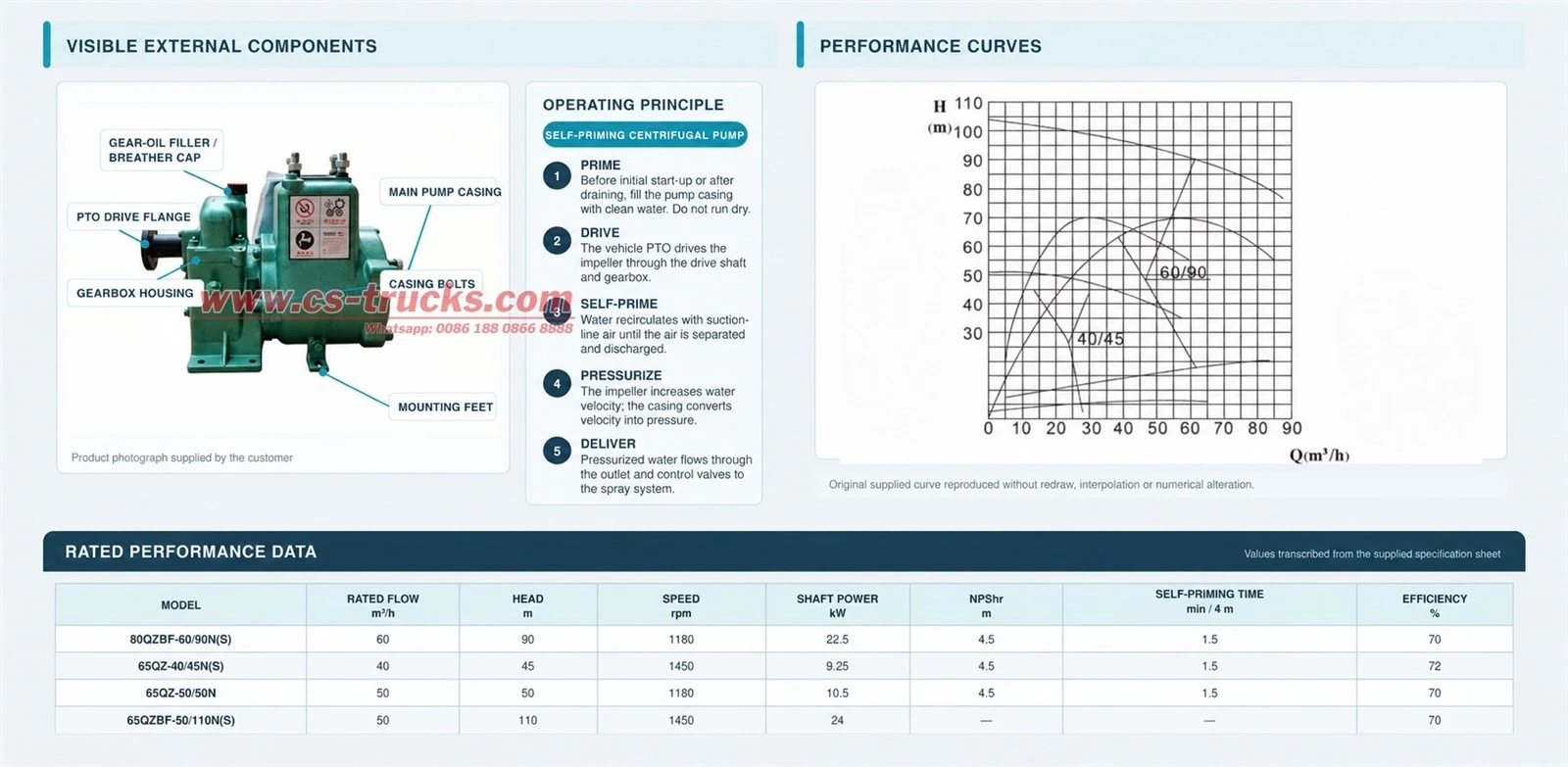

» IV. How to Operate HOWO Water Sprinkler Truck Pump:
OPERATING PRINCIPLE SELF-PRIMING CENTRIFUGAL PUMP
1 PRIME Before initial start-up or after draining, fill the pump casing with clean water. Do not run dry.
2 DRIVE The vehicle PTO drives the impeller through the drive shaft and gearbox.
3 SELF-PRIME Water recirculates with suction-line air until the air is separated and discharged.
4 PRESSURIZE The impeller increases water velocity; the casing converts velocity into pressure.
5 DELIVER Pressurized water flows through the outlet and control valves to the spray system.
Ⅴ. HOWO Water Sprinkler Truck Pump Filling & Piping Layout Diagram:

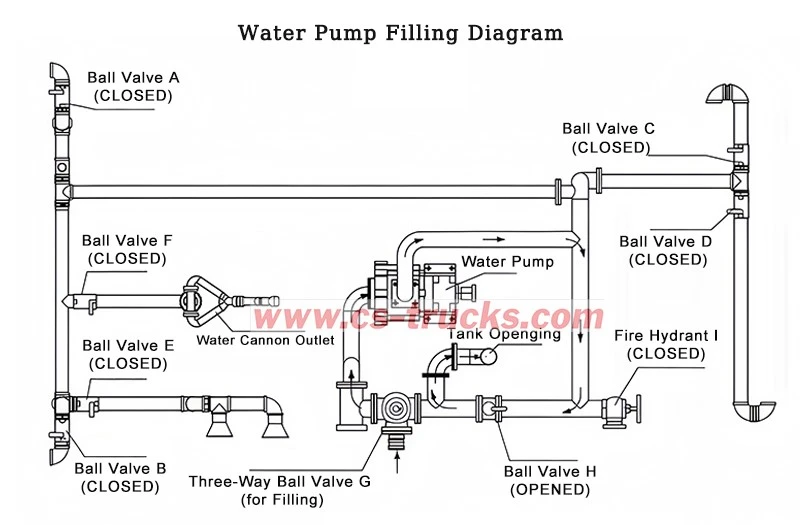

Water Pump Filling Diagram
This diagram illustrates the water intake step. To fill the tank or supply the pump, connect the hose to the Fire Hydrant I and ensure Ball Valve H (OPENED) is active. The Three-Way Ball Valve G directs the water flow into the pump. Crucially, all other output ball valves (A, B, C, D, E, F) must remain CLOSED to prevent pressure loss and ensure a smooth suction process.

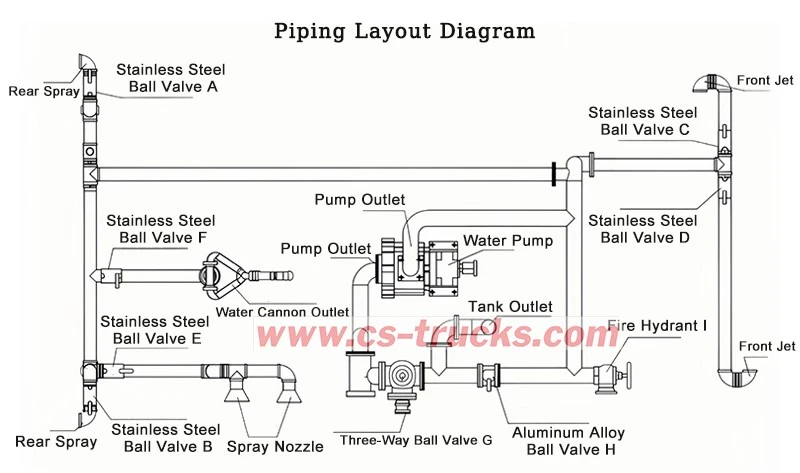

Piping Layout Diagram
This layout diagram highlights the operational phase where the Water Pump pressurizes the system for various applications. Note that Ball Valve H is now CLOSED. Operators can selectively open the Stainless Steel Ball Valves (A to F) to direct water to specific targets, such as the Water Cannon Outlet, Front/Rear Sprays, or Spray Nozzles, ensuring highly efficient and multi-functional water distribution.

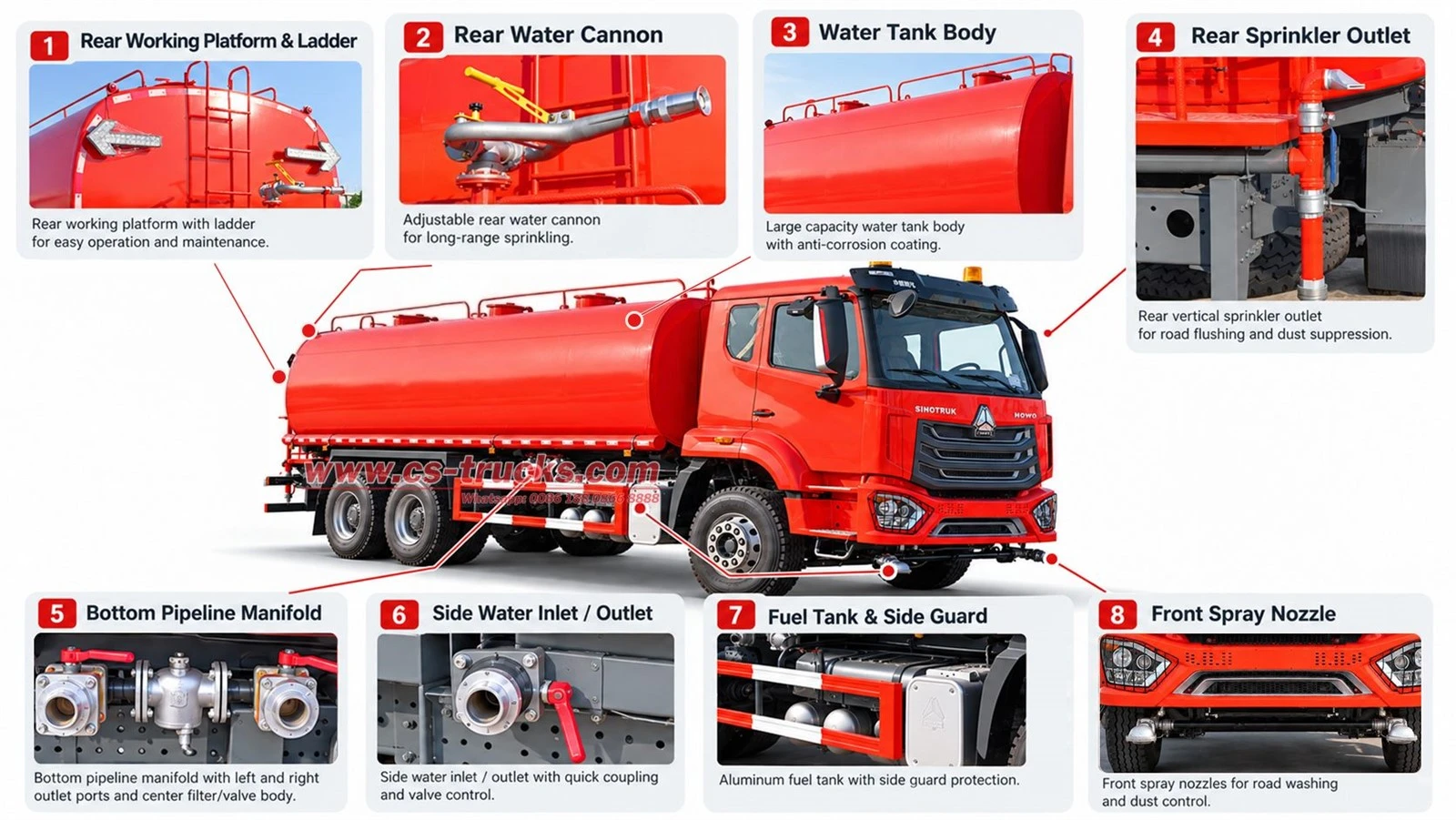

Product Details

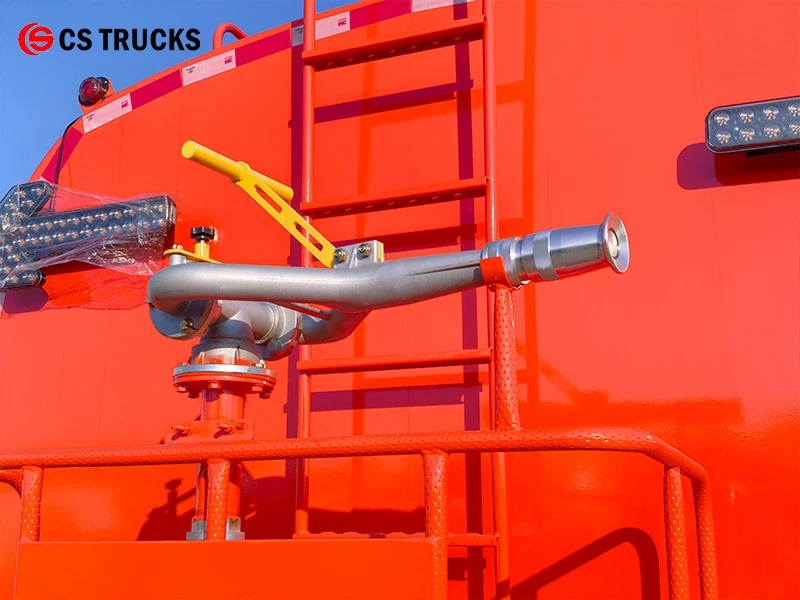

Water Sprinkler Truck Adjustable Water Cannon

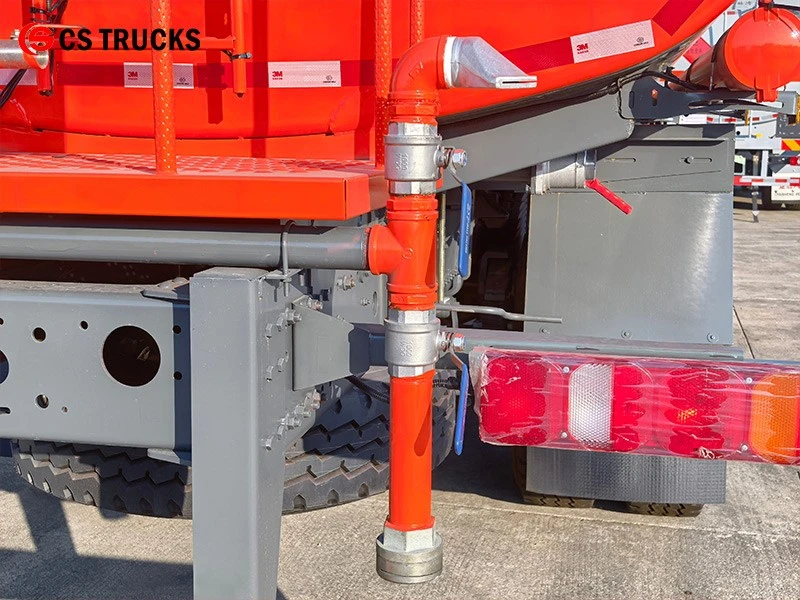

Water Sprinkler Truck Side Pipe With Ball Valve

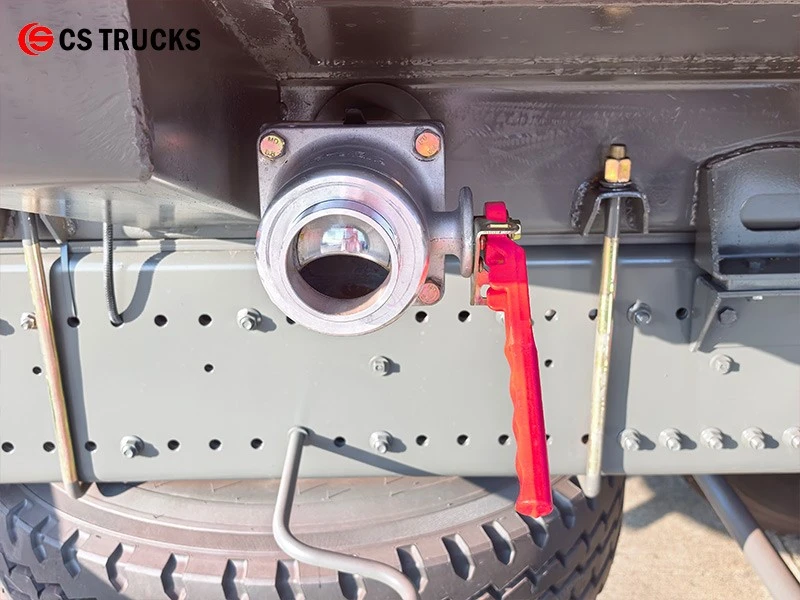

Water Sprinkler Truck Side Discharge Outlet

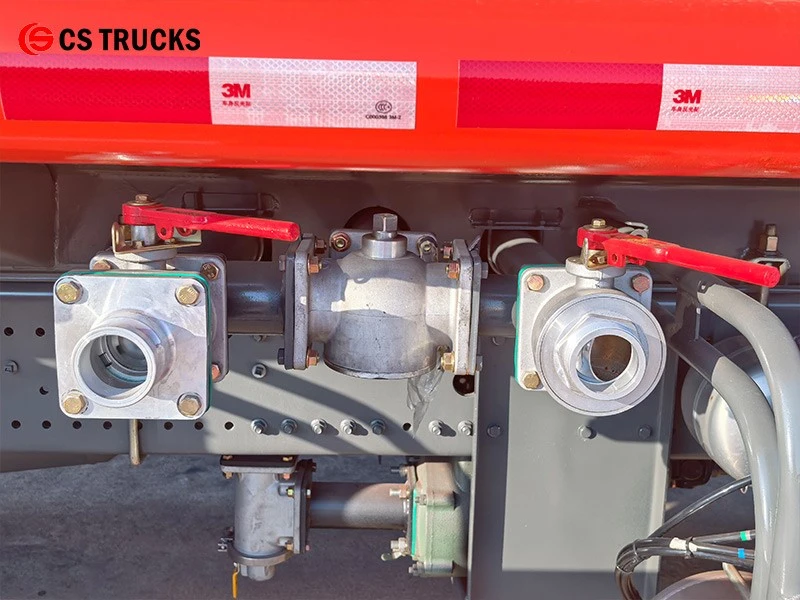

Water Sprinkler Truck Bottom Ball Valve Assembly

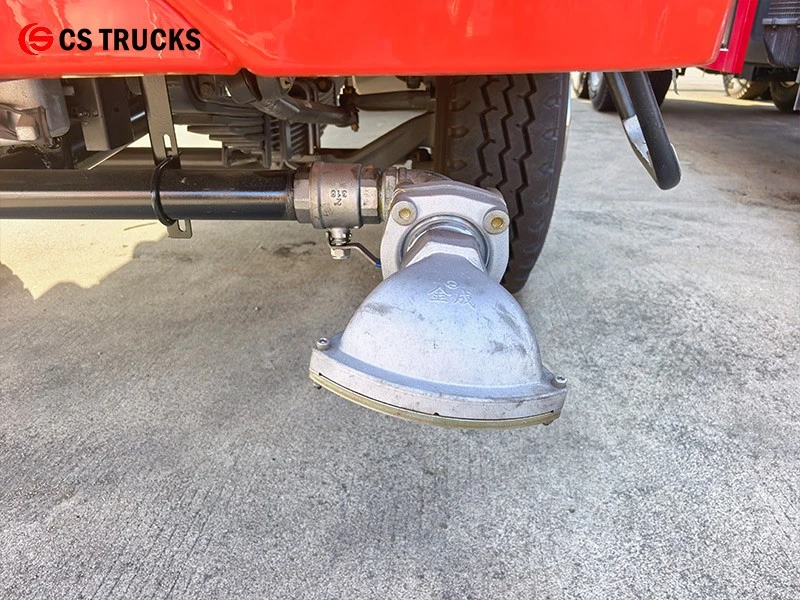

Water Sprinkler Truck Front Duck Mouth Sprinkler Nozzle

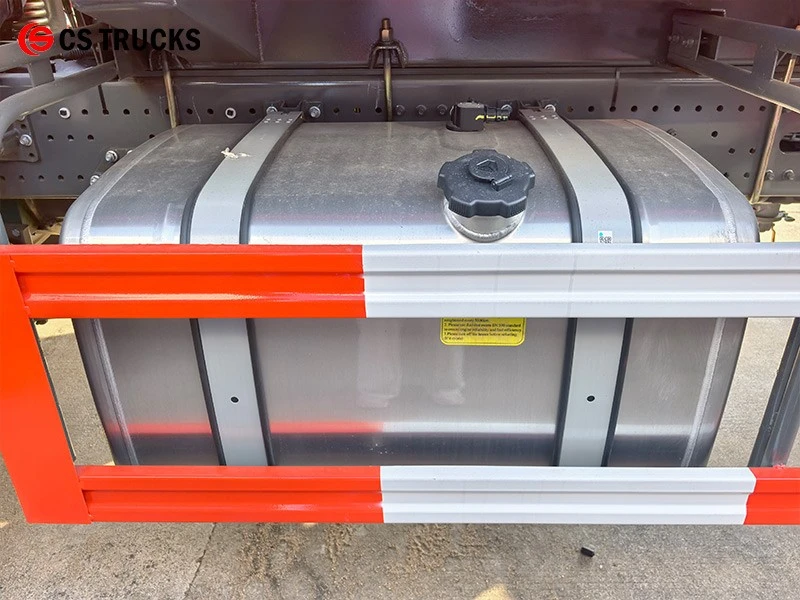

Water Sprinkler Truck Aluminum Fuel Tank
» Ⅵ. HOWO 20 CBM Water Sprinkler Truck Solutions:

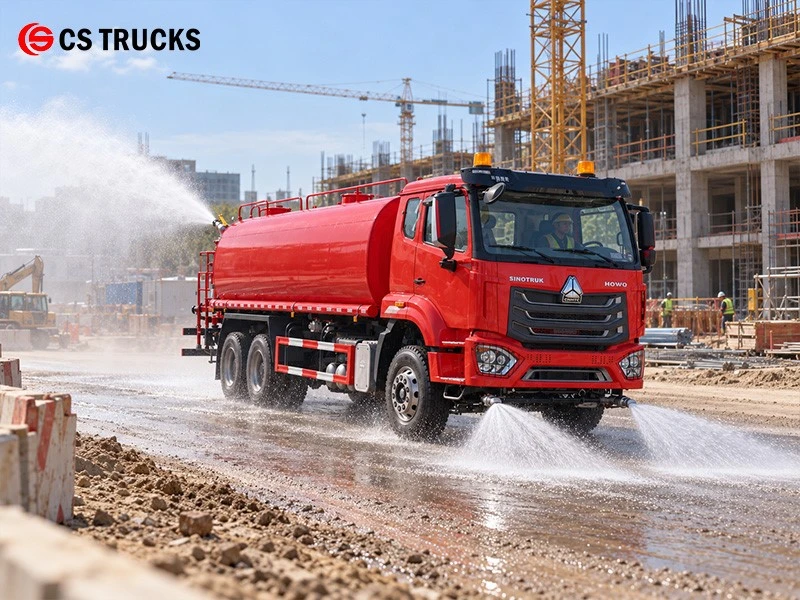

HOWO 370HP 20CBM 6x4 Construction Site Dust Control Water Sprinkler Truck

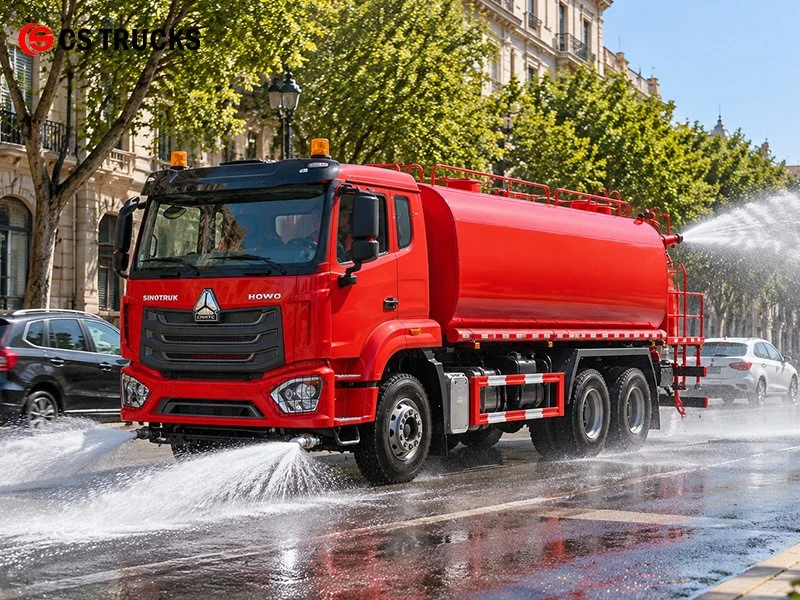

HOWO 370HP 20CBM 6x4 Municipal Road Dust Suppression Water Sprinkler Truck

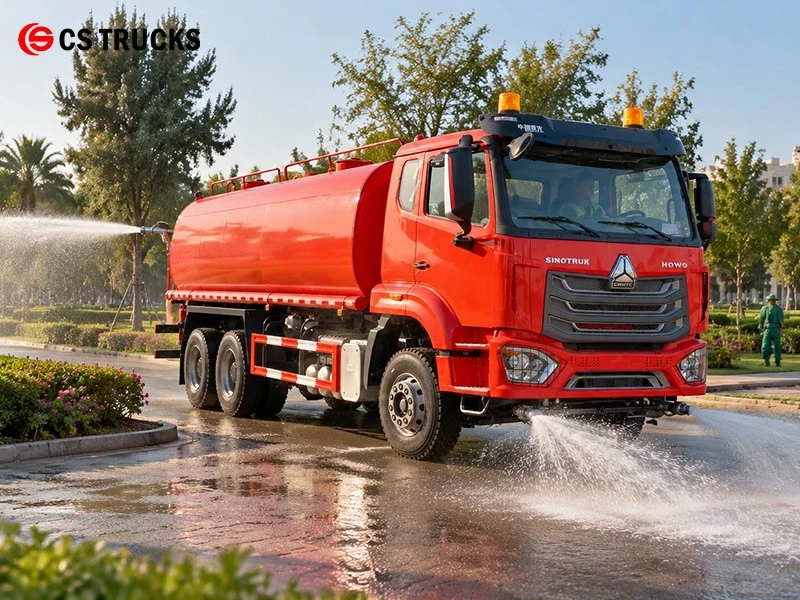

HOWO 370HP 20CBM 6x4 Landscaping Irrigation Sprinkler Truck

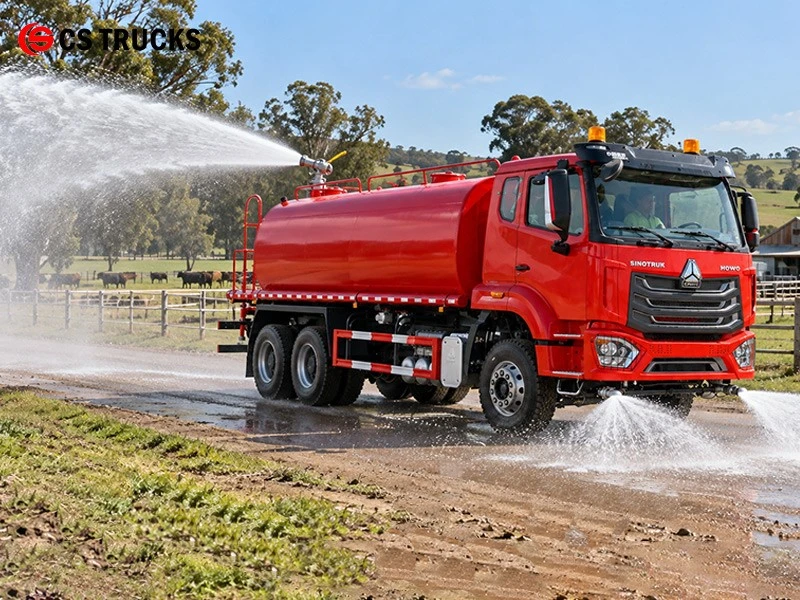

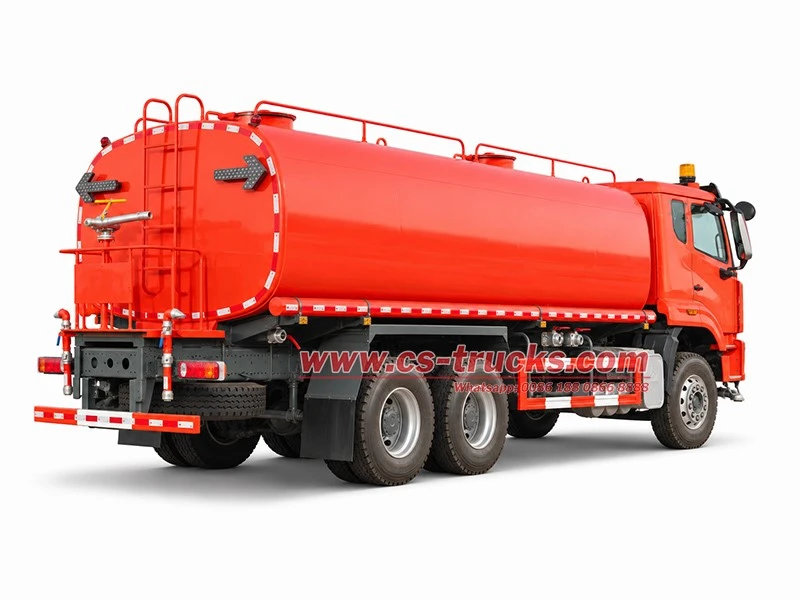

HOWO 370HP 20CBM 6x4 Agricultural and Pasture Irrigation Water Sprinkler Truck
Ⅶ. HOWO 6X4 20CBM Water Sprinkler Truck Views:
Front right view of HOWO 370HP 6x4 20CBM water sprinkler truck

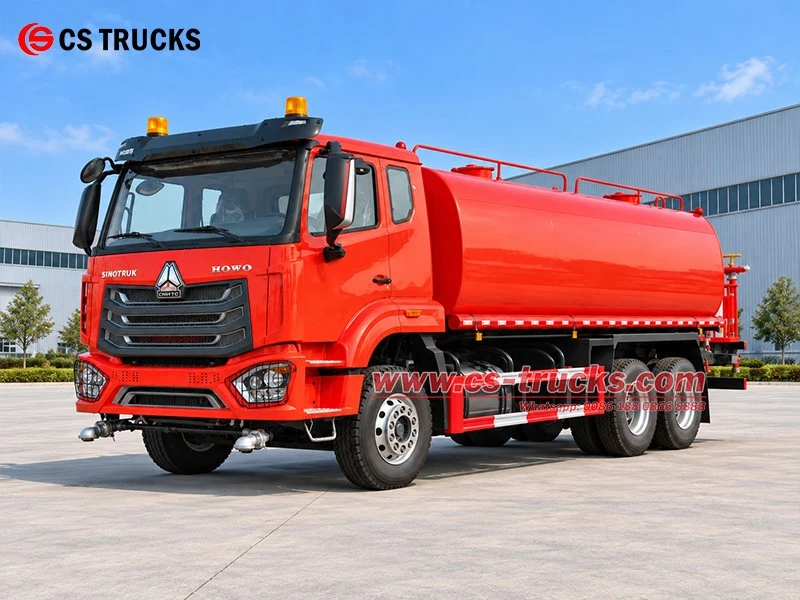

Front left view of SINOTRUK HOWO 370HP Euro II water bowser tanker

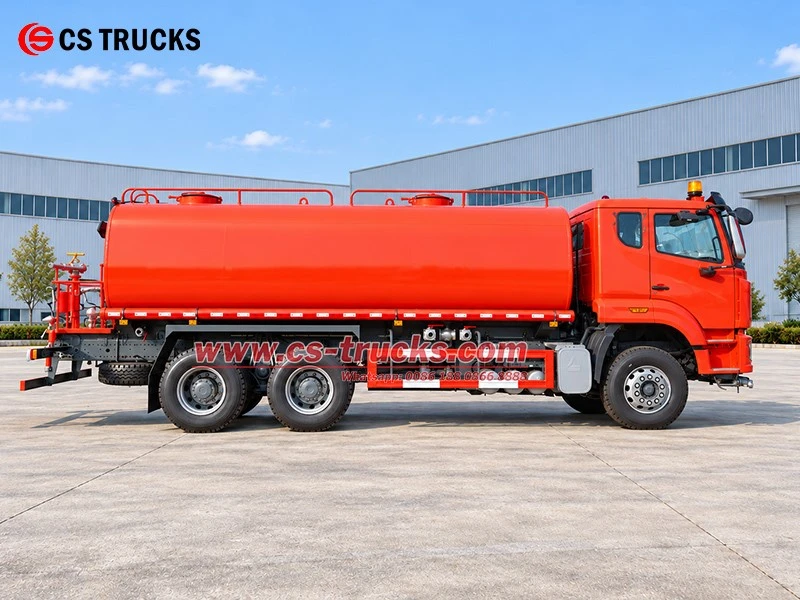

Right view of HOWO 370HP 20CBM street sprinkler truck

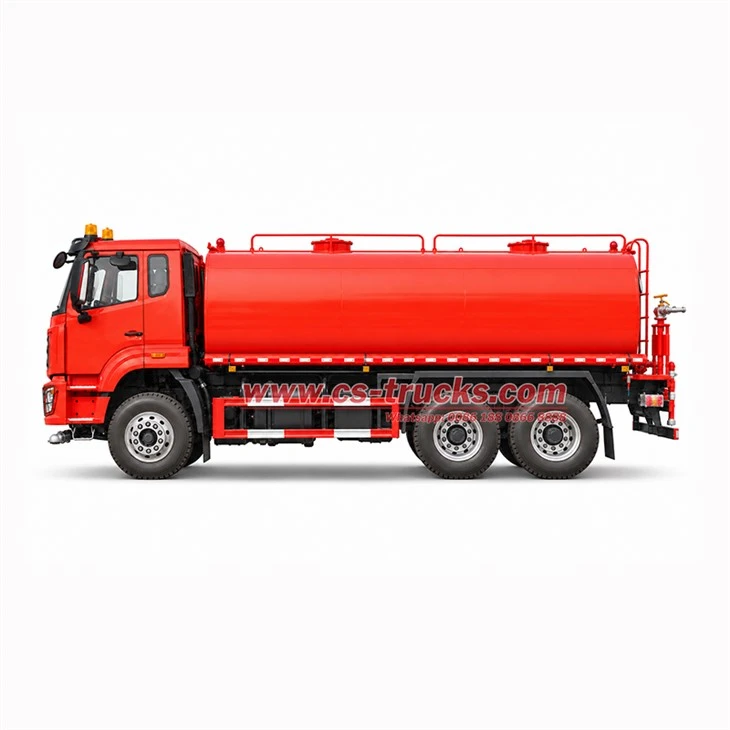

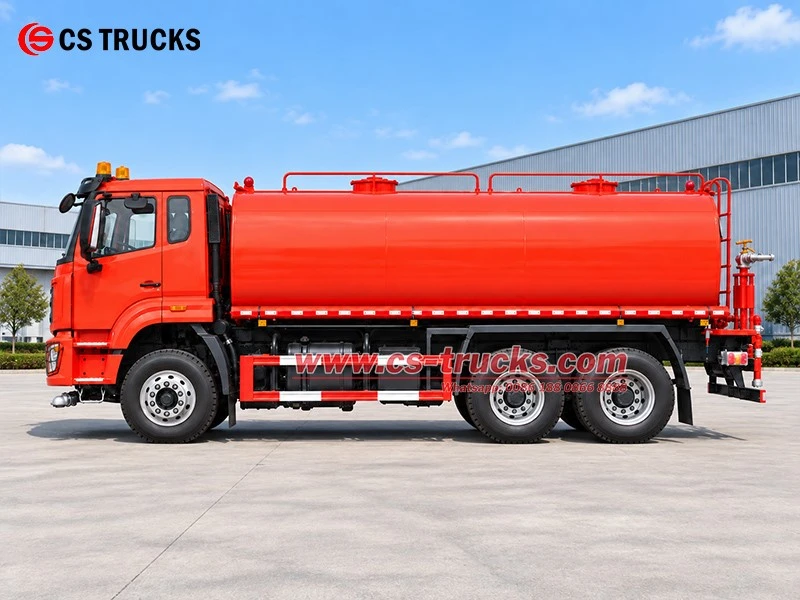

Left view of SINOTRUK HOWO 6x4 20CBM water tanker truck

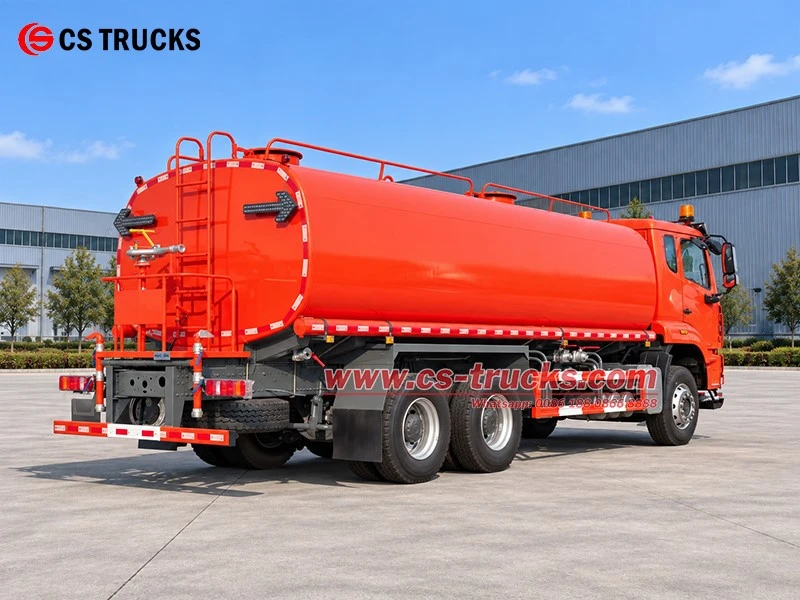

Rear Right view of HOWO 370HP Euro II dust suppression water truck

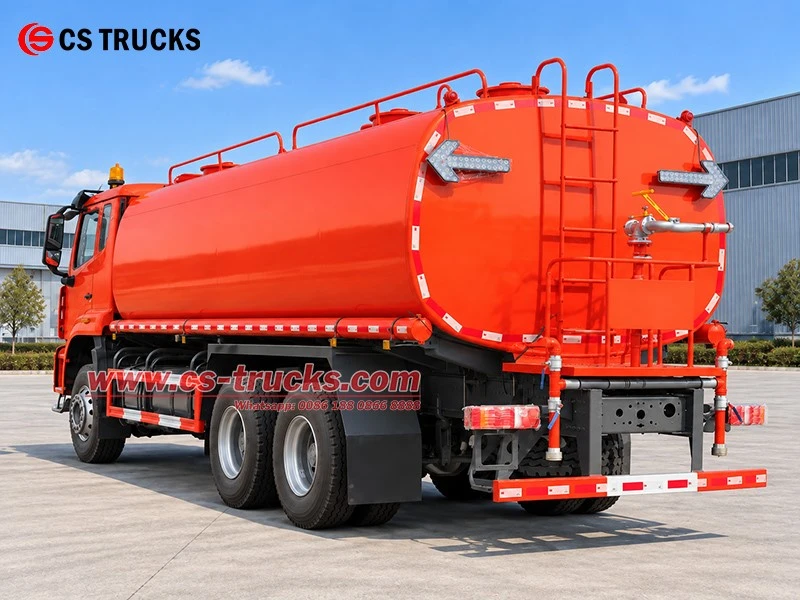

Rear Left view of HOWO 370HP 6x4 water bowser sprinkler vehicle

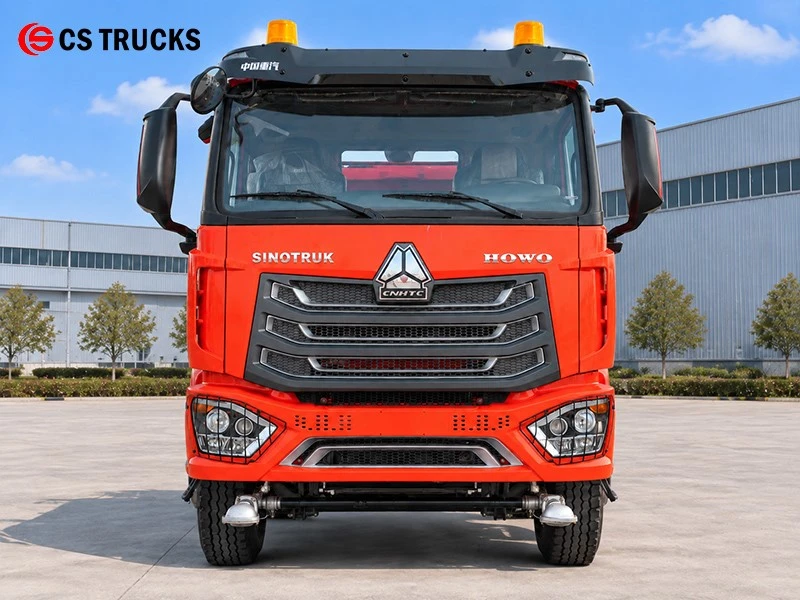

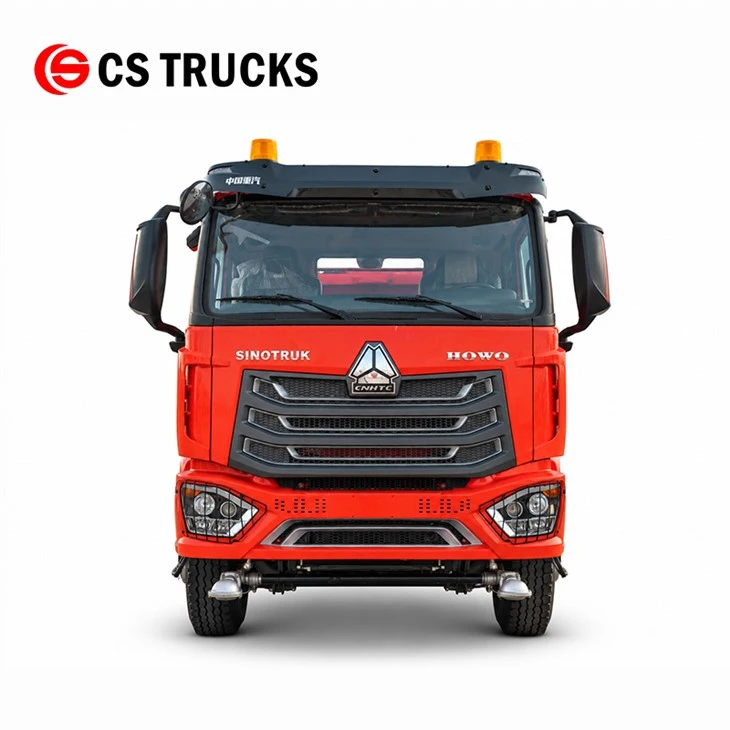

Front view of SINOTRUK HOWO 6x4 20CBM water distribution truck

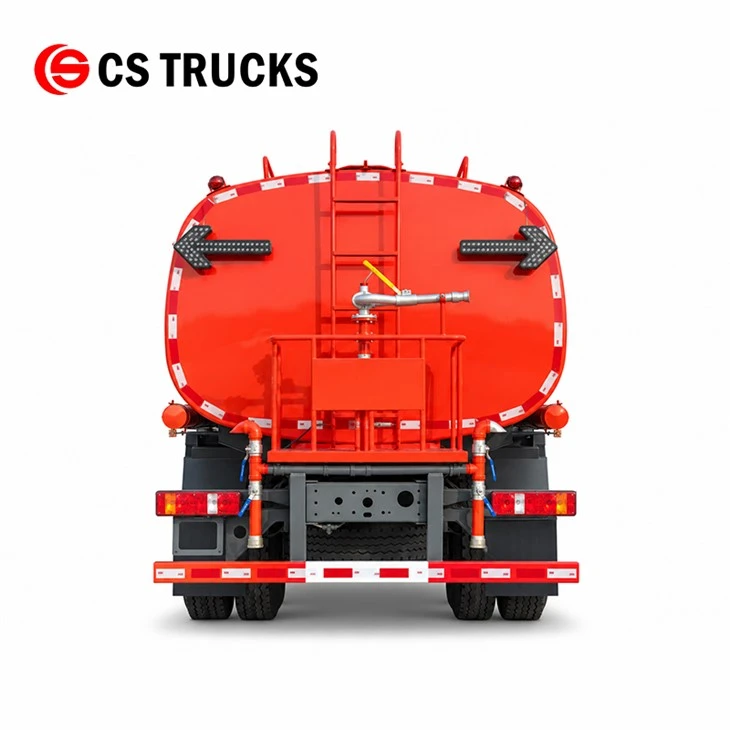

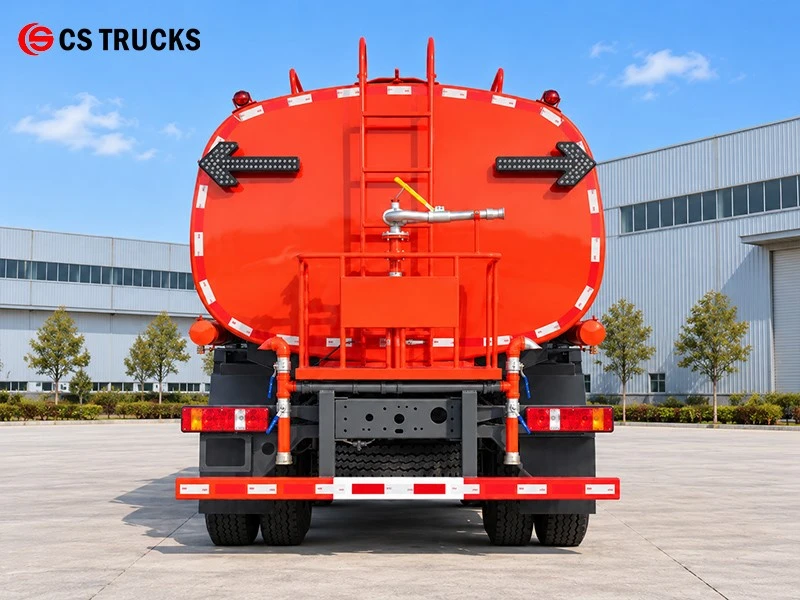

Rear view of HOWO 370HP Euro II diesel water sprinkler tanker
FAQ
Q1: What is the water tank capacity and material?
A: The tank has a capacity of 20,000 liters (20 CBM), made from 6mm Q235 steel. It features galvanized piping and a stainless steel discharge nozzle with a quick coupling for efficient water delivery.
Q2: What type of water pump does this truck use?
A: It is equipped with a WEILONG 80QZF-60/90S water pump, delivering 60 m³/h flow with a 90m head. The pump achieves self-priming within 1.5 minutes at a 4-meter suction height and operates at 95% efficiency.
Q3: What is the spray coverage and water cannon range?
A: The truck features a 45m water cannon, 14m front spray, 13m rear spray, and 12m side spray. This multi-angle system provides comprehensive coverage for road watering and dust suppression.
Q4: What engine and emission standard does this truck meet?
A: The truck is powered by a WD615.47 diesel engine rated at 370 HP (273 kW) with 1500 N·m maximum torque, meeting Euro II emission standards. It is paired with an HW19710 10-speed manual transmission.
Q5: How long can the truck spray water continuously?
A: The continuous spraying time is over 5 minutes under working conditions of flow ≥60 L/min and 1.55 MPa, with a maximum working pressure of ≥0.9 MPa.
Q6: What are the typical applications of this HOWO 20 CBM water sprinkler truck?
A: It is widely used for urban road watering, municipal street dust suppression, landscaping and greenery irrigation, construction site dust control, and agricultural or pasture irrigation.
Products - 100% China HOWO factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. HOWO 20 CBM Water Tanker Chassis: Based on the SINOTRUK 6×4 platform, equipped with a WD615.47 diesel engine producing 370 HP and 1500 N·m torque, paired with an HW19710 10-speed manual transmission, engineered for municipal road watering and construction dust suppression.
2. Reinforced Water Tank: Constructed from 6mm Q235 carbon steel, featuring a 20000L capacity, integrated with galvanized piping and a stainless steel quick-coupling discharge nozzle for durable and efficient fluid transport.
3. WEILONG Pump & Multi-Angle Sprinkler System: Equipped with a WEILONG 80QZF-60/90S pump (60 m³/h flow, 90m head, 1.5-min self-priming), plus a 45m water cannon, 14m front spray, 13m rear spray, and 12m side spray for wide-area coverage.
4. Safety & Heavy-Duty Features: 6×4 drive with 315/80R22.5 tires (10+1), air brake system, and a 4600+1350 mm wheelbase for stable handling. Left-hand drive cab with power steering and 25000 kg GVW to support demanding daily operations.
