ISUZU KV100 4000L water sprinkler truck (also called water bowser, street cleaning truck, or dust control vehicle) is designed for water delivery and spraying tasks. Jobs include watering roads for dust suppression, supplying water to construction sites, or irrigating green belts and gardens.
With a 4000L 304 stainless steel tank and 120 HP Euro 6 engine, this ISUZU light water sprinkler truck for municipal use handles narrow city streets and unpaved construction roads alike. It delivers reliable service for municipal sanitation departments, construction contractors, and landscaping operators around the Philippines.
*ISUZU 4 CBM water Sprinkler truck Vietnam*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: ISUZU KV100 4×2 chassis with 120 HP 4KH1CN6LB Euro 6 diesel engine
▶ Water Tank: 4000L capacity, 304 stainless steel, 4mm thickness for clean water delivery
▶ Pump System: 40/50 single stage centrifugal pump, electric or hand start, suction height ≥7m
▶ Hose Reels: Two hose pipes on each side of the tank for flexible watering and dust control
▶ Operation Scope: Road watering, construction dust control, green belt irrigation, municipal cleaning
» II. Product Parameters for ISUZU 4 CBM Water Spraying Truck:
| Product Name | 4000L Bulk Water Delivery Hauling Truck ISUZU Vietnam | ||
| Overall | Vehicle Model | CSC5070GSS | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 8280 kg | ||
| Curb Weight | 2560 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 5990*2050*2400 mm | ||
| Engine | Engine Model | 4KH1CN6LB | |
| Fuel Type | Diesel | ||
| Power | 120 HP(87KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 2999 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU KV100 | |
| Tire No. | 6 tires+1 spare tire | ||
| Tire Specification | 7.00R16 | ||
| Wheelbase | 3360 mm | ||
| Transmission | MSB 5 speeds ,5 forwards,1 reverse gear box, manual operation | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Superstructure | Water Tank Capacity | 4000 Litres | |
| Tank Material | 304 stainless steel(4mmm thickness) | ||
| Stainless Steel Water Pump | Model | 40/50 water pump | |
| Type | Single stage centrifugal pump | ||
| Starting method | Electric start/hand start | ||
| Horse Reels | Two hose pipes on each side of the tank | ||
| 1. Suction≥7m 2. Water Inlet & Outlet control valves 3. Equipped with pipeline storage box at the side of tank |
|||
» III. Product Description:
ISUZU KV100 4000L Water Truck Chassis
◉ Cabin：ISUZU KV100 4×2 standard cab, with A/C and power steering
◉ Engine：4KH1CN6LB, 120 HP, inline 4-cylinder, 2.999 L displacement, Euro VI
◉Transmission：MSB 5-speed manual, 5 forward and 1 reverse
◉ Front Axle Load：2.2 ton
◉ Rear Axle Load：4.5 ton
◉ Tires：7.00R16, 6 wheels plus 1 spare
◉ Wheelbase：3360 mm
ISUZU 4CBM Water Truck Pump System
◉ 304 Stainless Steel Tank: 4000L capacity, 4mm thickness, corrosion resistant for clean water delivery.
◉ 40/50 Centrifugal Pump: Single stage, electric or hand start, suction height ≥7m for pond or hydrant filling.
◉ Dual Hose Reels: Two hose pipes on each side of the tank for flexible watering and dust control.
◉ Brake & Safety: Air brake system with 7.00R16 tires and 3360 mm wheelbase for stable handling under full load.
◉ Compact Design: Overall dimensions 5990×2050×2400mm, fits narrow city streets and tight construction sites.
» IV. ISUZU Water Sprinkler Tanker Operating Principle :
♦ Water Delivery Capacity: 4000L per trip for construction sites, municipal watering, and agricultural needs. Reduces refill frequency and improves work efficiency.
♦ Easy Operation: Electric start pump with simple controls. Hand start backup ensures operation even when battery fails.
♦ Multi-Purpose Use: Road watering, dust control, green belt irrigation, construction site water supply, and fire hydrant filling.
♦ Low Maintenance: 304 stainless steel tank resists rust and corrosion. Simple pump design with easy access for cleaning and repair.
Product Details

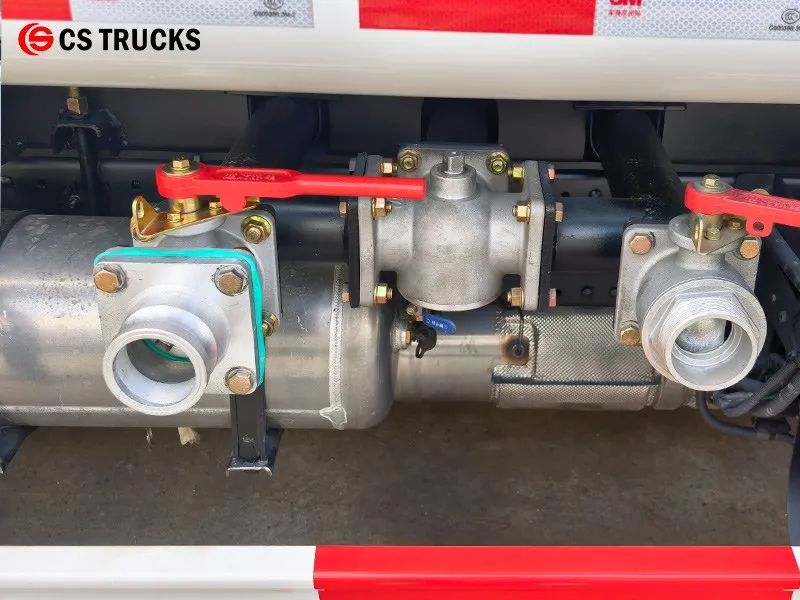

ISUZU KV100 Water Pump Inlet Outlet Valve
ISUZU 4CBM Water Truck Control Ball Valve & Discharge Piping
ISUZU KV100 Water Truck Front High Pressure Water Cannon

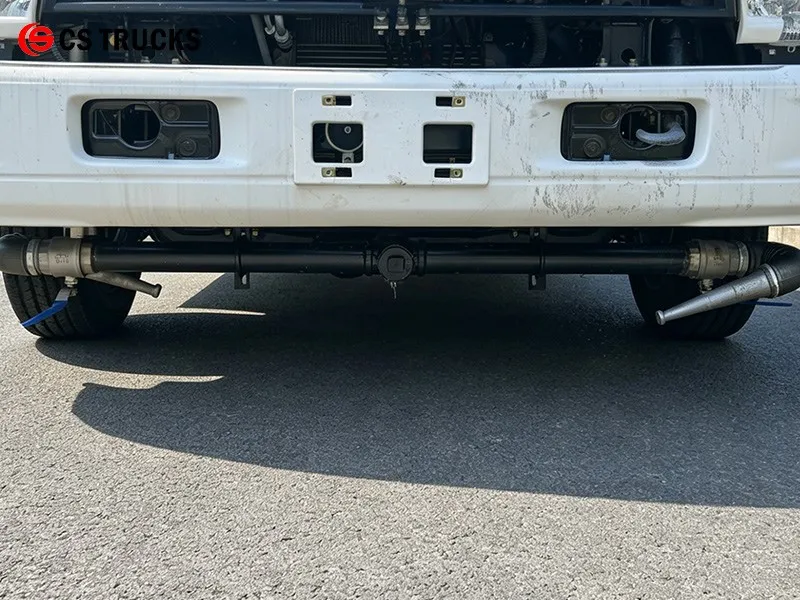

ISUZU 4000L Water Truck Front Spray Bar

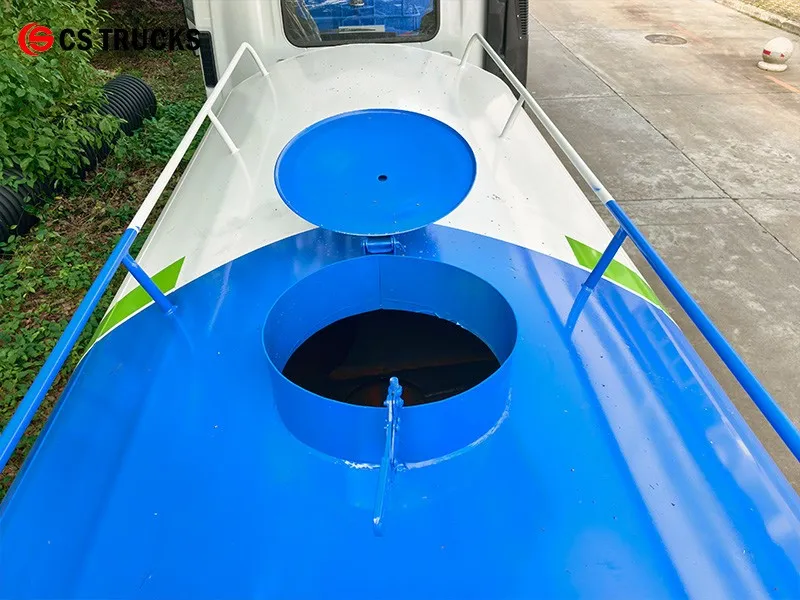

ISUZU KV100 Tank Manhole Cover

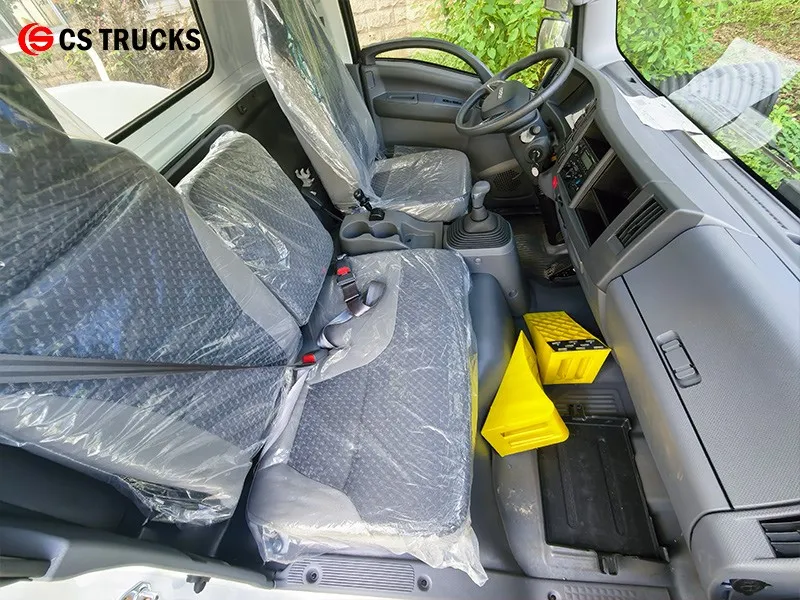

ISUZU KV100 Water Truck Driver Cab
» Ⅴ.ISUZU 4x2 Water Spreader Truck Solutions:

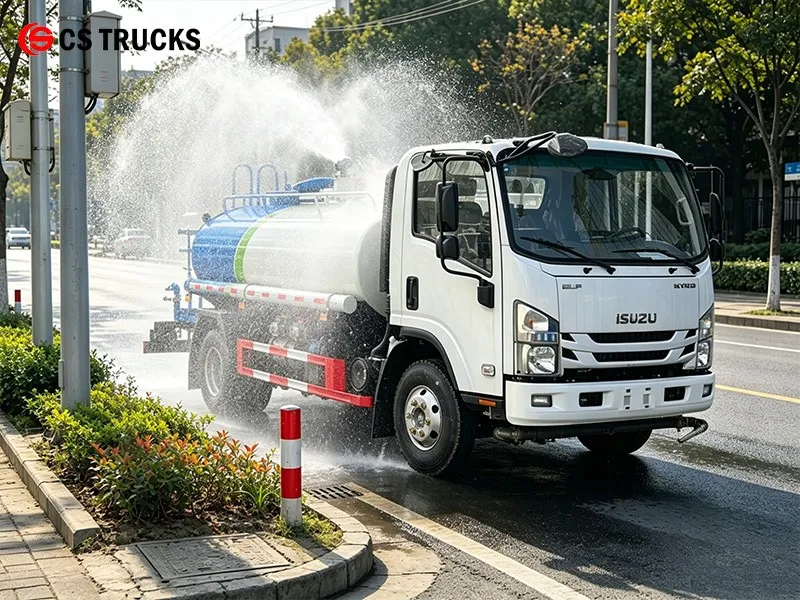

ISUZU KV100 4000L 4x2 Dust Control Water Spraying Truck for Municipal Use

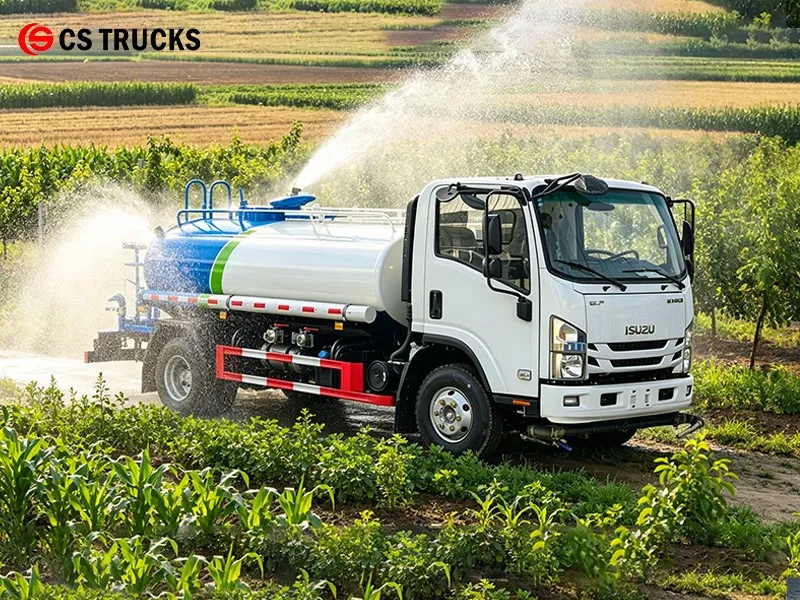

ISUZU KV100 4000L 4x2 Bulk Water Spreader Truck for Irrigation Vietnam

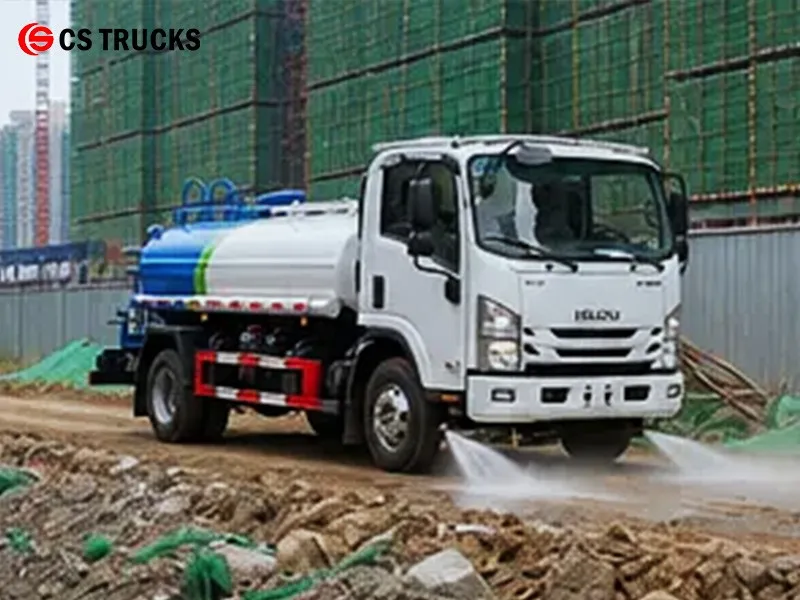

ISUZU KV100 4000L 4x2 Construction Water Spraying Truck
ISUZU KV100 4000L 4x2 Mobile Water Bowser for Mining Sites
» Ⅵ. ISUZU 4X2 4000L Water Sprinkler Tanker Views:

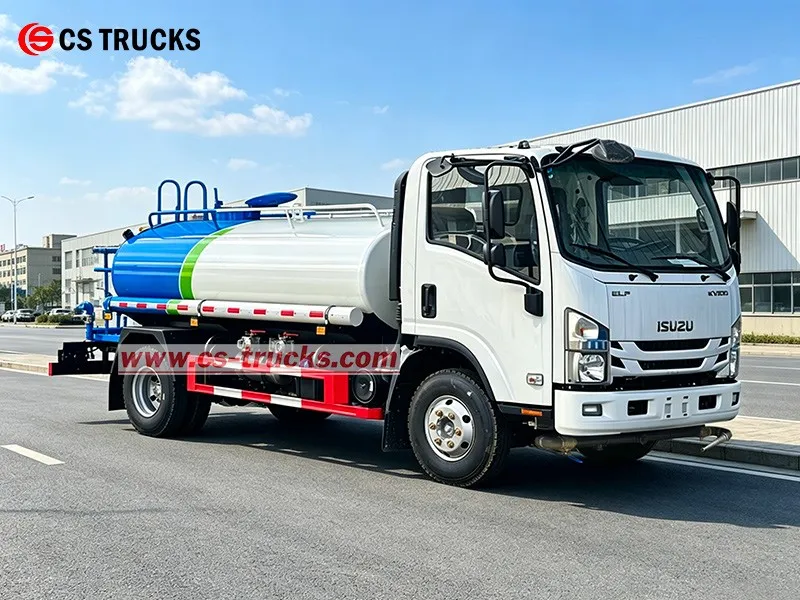

Front Left view of ISUZU KV100 4000L 4x2 water bowser truck for road construction
Right view of ISUZU KV100 4000L 4x2 water cannon truck for dust suppression

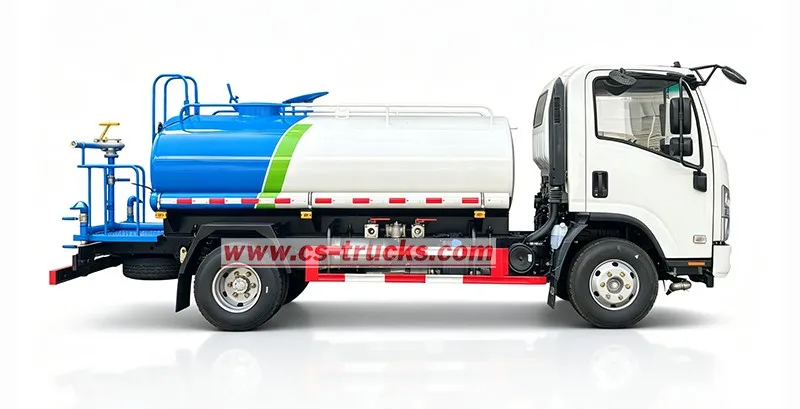

Left view of ISUZU KV100 4000L 4x2 water truck spraying water for dust control
Right right view of ISUZU KV100 4000L 4x2 water cart truck for road watering

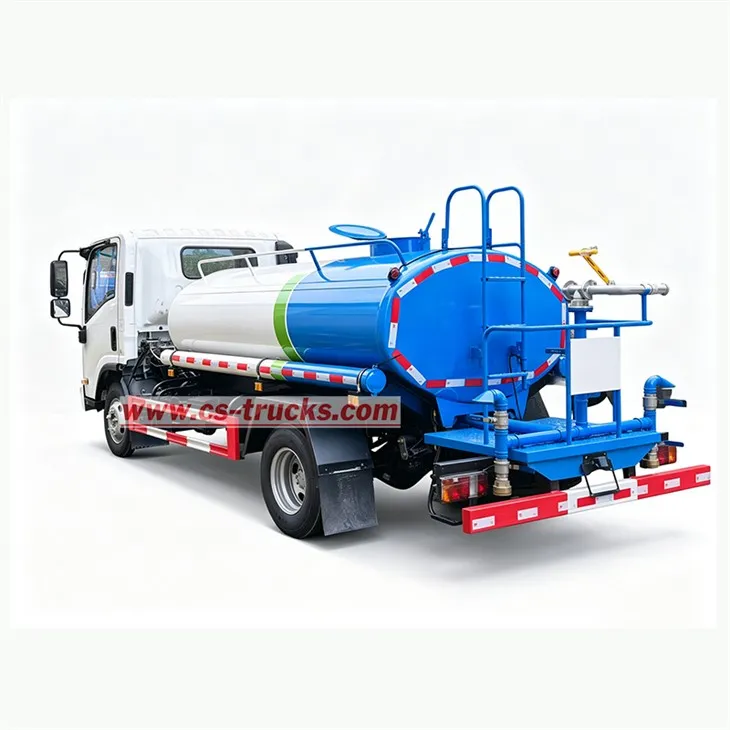

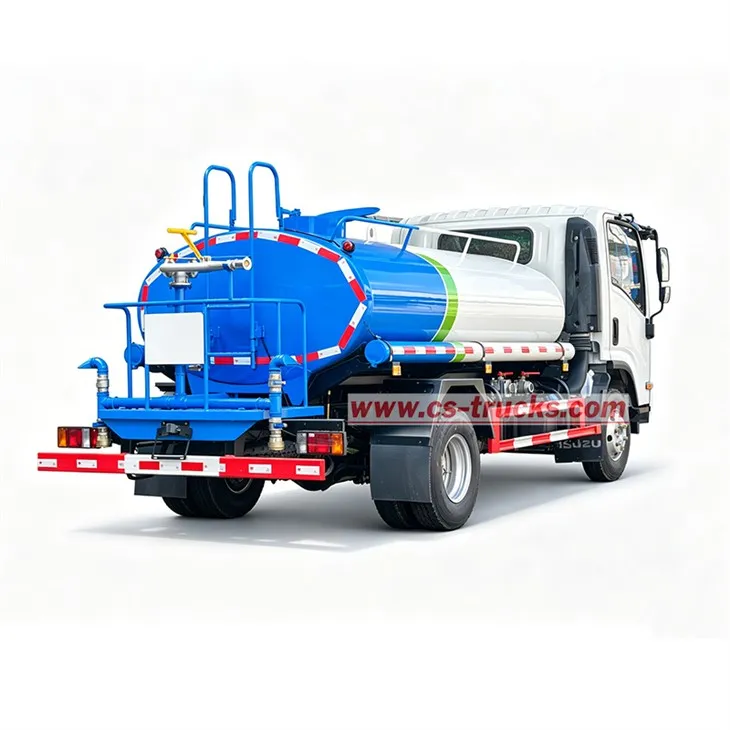

Rear left view of ISUZU KV100 4000L 4x2 water distribution truck for urban use

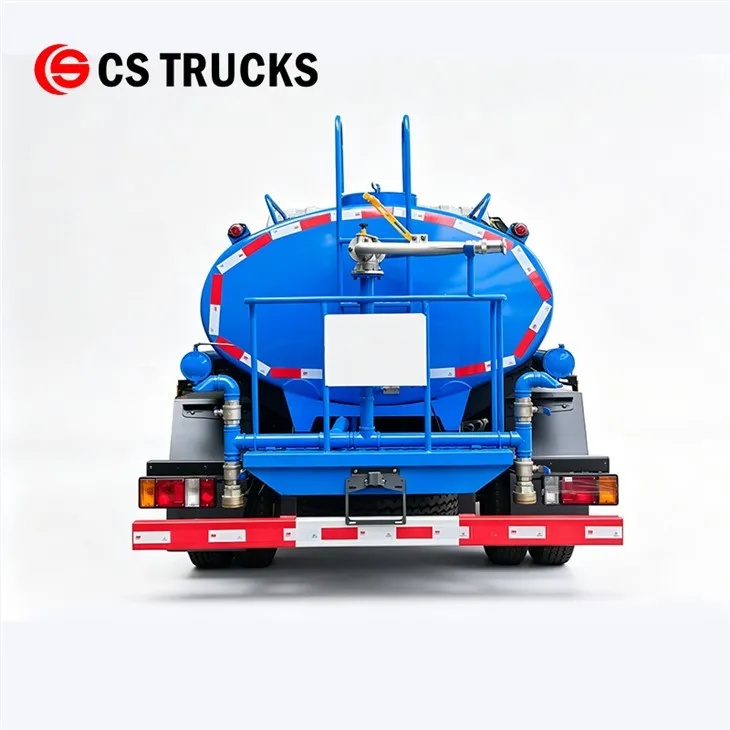

Rear view of ISUZU KV100 4000L 4x2 water hauler for construction site Vietnam
Products - 100% China ISUZU factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. ISUZU KV100 4000L Water Sprinkler Chassis: Built on ISUZU KV100 4×2 platform with 4KH1CN6LB diesel engine delivering 120 HP + MSB 5-speed manual transmission, designed for municipal watering, construction dust control, and landscaping tasks across the Vietnam.
2. 304 Stainless Steel Water Tank: Manufactured from 304 stainless steel, featuring 4000L capacity with 4mm thickness, finished with durable construction for clean water delivery in tropical and dusty conditions.
3. Water Pump & Hose System: Equipped with 40/50 single stage centrifugal pump (electric or hand start), suction height ≥7m, plus two hose pipes on each side of the tank for flexible watering and dust suppression.
4. Safety & Urban Features: 4×2 drive with 7.00R16 tires, air brake system, 3360 mm wheelbase for stable handling. Standard cab with A/C and power steering, plus compact dimensions (5990×2050×2400mm) for easy maneuvering on narrow city streets.
