Beiben 2638 water sprinkling bowser (also referred to as water spraying truck, water sprinkler tanker, or dust control tanker) is purpose-built for water hauling and spray operations. This Beiben 20000L water bowser handles everything from wetting down dusty roads, delivering water to active job sites, to irrigating landscaped areas and green belts.
This Beiben 6×4 heavy duty unit comes with a 20000L carbon steel water tank and a 420 HP Euro 3 diesel engine. It performs equally well on paved highways and rough construction access roads. A dependable choice for city sanitation teams, building contractors, and landscape maintenance crews.
*Beiben 20000 Liters Water Sprinkler Tanker Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: Beiben 6×4 heavy duty chassis with 420 HP WP12.420E32 Euro 3 diesel engine
▶ Water Tank: 20000L capacity, carbon steel, designed for road watering and dust suppression
▶ Water Pump: High flow pump with 1000 L/min capacity, PTO-driven, 6.5m suction height
▶ Spray System: Front spray bar with fan nozzles, spray range ≥20m for wide road coverage
▶ Operation Scope: Road watering, construction site dust control, green belt irrigation, municipal cleaning, fire hydrant filling
» II. Product Parameters for BEIBEN 2638 Water Sprinkling Bowser:
| Product Name | Beiben 2638 Water Sprinkling Bowser For CONGO | ||
| Overall | Vehicle Model | CSC5260GSS | |
| Drive Type | 6*4 | ||
| Gross Vehicle Weight | 26000 kg | ||
| Curb Weight | 9496 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 10576*2500*3430 mm | ||
| Engine | Engine Model | WP12.420E32 | |
| Fuel Type | Diesel | ||
| Power | 420 HP(309KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 11596 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | BEIBEN | |
| Tire No. | 10+1 | ||
| Tire Specification | 12.00R20 | ||
| Wheelbase | 5050+1450 mm | ||
| Gear Box | FAST 9JS150A, 9-speed forwards and 1 reverse | ||
| Steering Wheel | Left or right hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Superstructure | Water Tank Capacity | 20 CBM | |
| Electrics | Operating voltage:24V,negative grounded | ||
| Batteries:2x12 V,165 Ah | |||
| Horn,headlamps,fog lights,brake lights,indicators and reverse light | |||
| Option | Vertical Muffler,ABS,Automatic Break Clearance Adjusting Arm, | ||
| Traveling Data Recorder,Metal Pipeline,Engine Protective Board | |||
| Manhole Size | Man way access hole on top of tank; manhole diameter:¢500mm | ||
| Front Spray Function | Front spray bar with fan sprayer,spray range: ≥20m | ||
| Man Walk Way | With skid resistance man walk way on top of tank | ||
| Flow Rate | 1000 L/m | ||
| Head of Delivery | 60 m | ||
| Shaft Power | 22.5 | ||
| Suction Height | 6.5 m | ||
| Efficiency | 0.95 | ||
» III. Product Description:
Beiben 2638 Water Sprinkling Bowser Chassis
▶ Cabin：Beiben 6×4 standard cab, single cabin with sleeper, A/C and power steering
▶ Engine：WP12.420E32, 420 HP, inline 6-cylinder, 11.596 L displacement, Euro III
▶Transmission: FAST 9JS150A, 9 forward and 1 reverse
▶ Front Axle Load：7.5 ton
▶Rear Axle Load：13 ton × 2
▶Tires: 12.00R20, 10 wheels plus 1 spare
▶Wheelbase：5050+1450 mm
BEIBEN 20 CBM Water Tank – Pump & Spray System
▶ Ball Valve Control: DN80 full-bore manual ball valve with red handle for precise flow control and instant on/off operation
▶ Water Tank: 20000L capacity, carbon steel, designed for road watering and dust suppression
▶ Water Pump: High flow pump, 1000 L/min flow rate, PTO-driven, 6.5m suction height
▶ Spray System: Front spray bar with fan nozzles, spray range ≥20m for wide road coverage
» IV. Beiben Water Sprinkling Bowser Operating Principle :
Step 1 – Water Intake
The PTO engages the pump, drawing water through the suction hose into the 20,000L tank at 1,000 L/min.
Step 2 – Pressurization
The pump, driven by the 420 HP engine, pressurizes the water and pushes it toward the front spray bar.
Step 3 – Spraying
Water exits through fan nozzles on the spray bar, covering ≥20m width for thorough road coverage.
Step 4 – Flow Control
The DN80 ball valve gives the operator instant on/off control over the water flow.
Step 5 – Tank Emptying
Opening the discharge valve allows the tank to drain completely by gravity or pump pressure.
Product Details
Beiben Water Sprinkler Sight Glass Tube
Beiben Side Spray Nozzles for Road Watering Truck
Beiben Water Bowser Main Ball Valve Control Panel
Beiben Dust Suppression Truck Diesel Fuel Tank
Beiben High Pressure Duckbill Front Spray Nozzles for Water Spray Vehicle
Beiben 360° Rear High Pressure Water Cannon for Street Flusher
» Ⅴ. Beiben 2638 20 CBM Water Bowser Solutions:
Beiben 2638 20 Ton 6x4 Water Spraying Truck for Street Cleaning
Beiben 2638 20 CBM 6x4 Water Truck for Agricultural Irrigation
Beiben 2638 20000L 6x4 Water Truck for Construction Site
Beiben 2638 20 CBM 6x4 Water Bowser for Mining Dust Suppression
Ⅵ. Beiben 2638 20 CBM Water Spraying Truck Views:

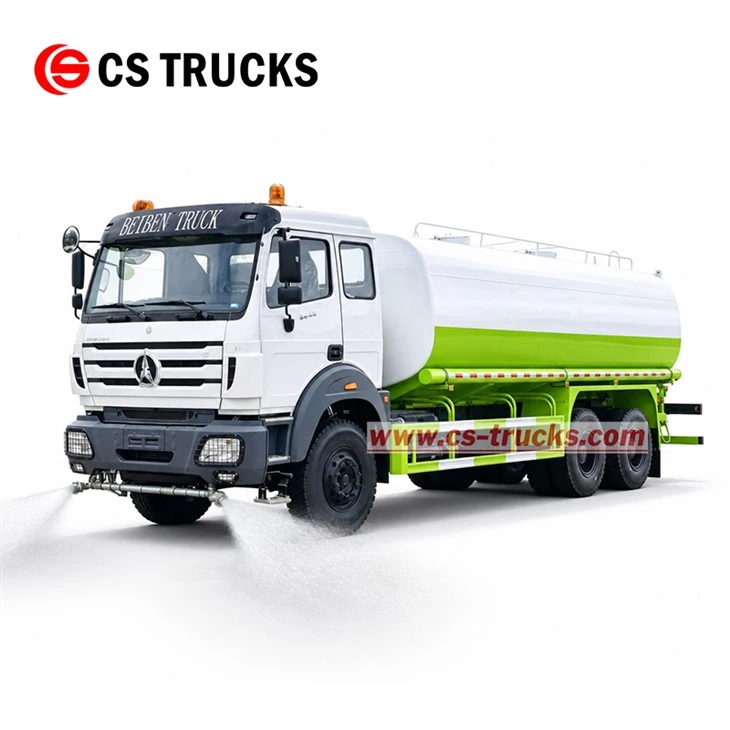

Front Left View of Beiben 2638 20 CBM 6x4 Water Bowser for Sale

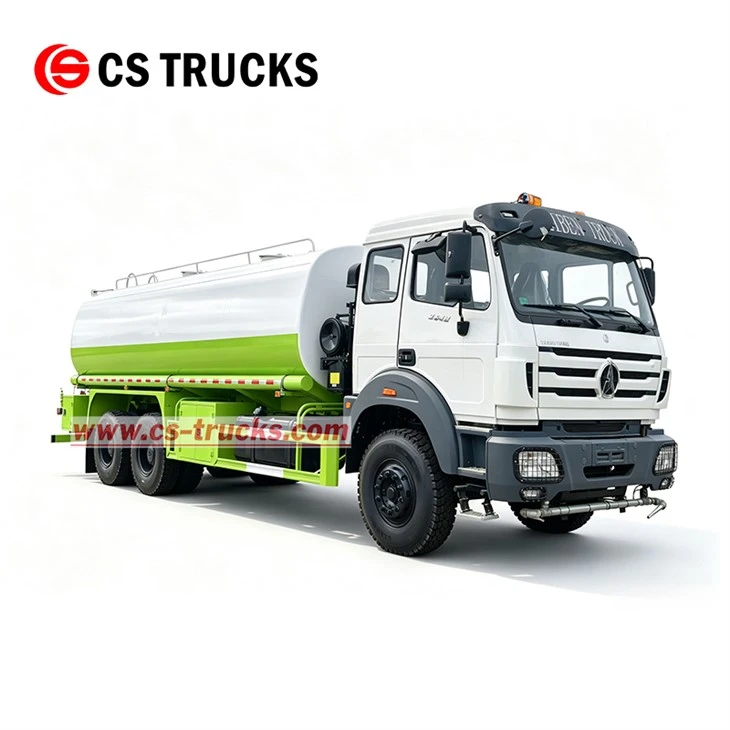

Front Right View of Beiben 2638 20 Ton 6x4 Water Sprinkler Truck Manufacturer

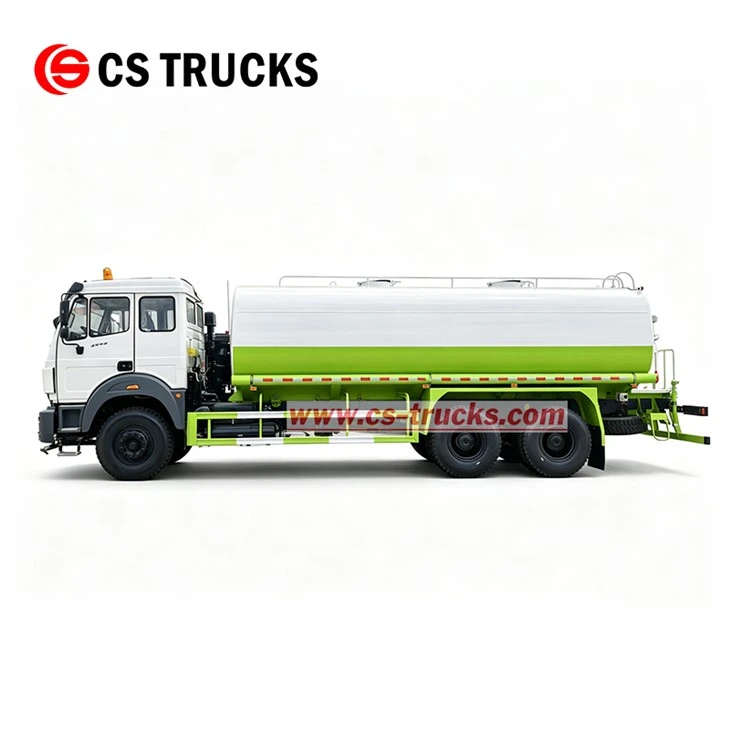

Left View of Beiben 2638 20000L 6x4 Water Bowser Wholesale

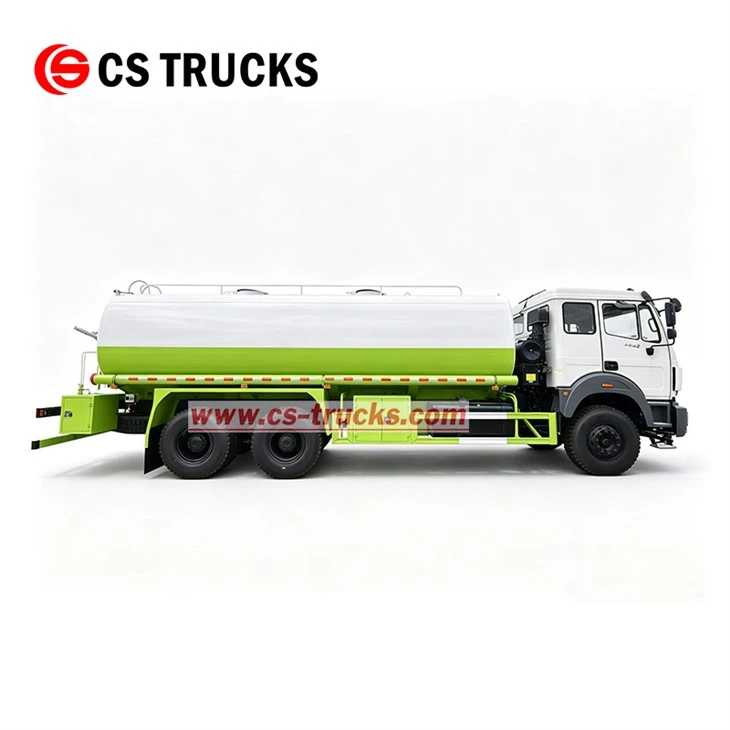

Right View of Beiben 2638 20 CBM 6x4 Water Bowser for Dust Control

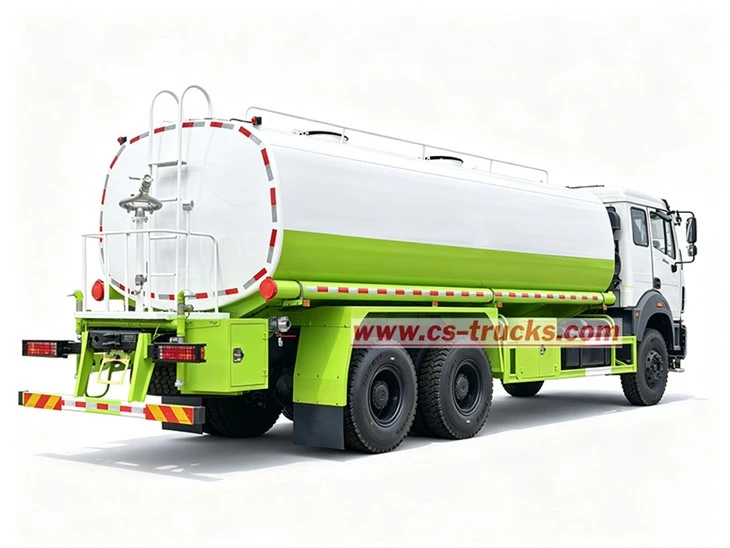

Rear Left View of Beiben 2638 20 CBM 6x4 Water Cannon Truck for Dust Control
Rear Right view of Beiben 2638 20000L 6x4 Water Bowser for Road Watering

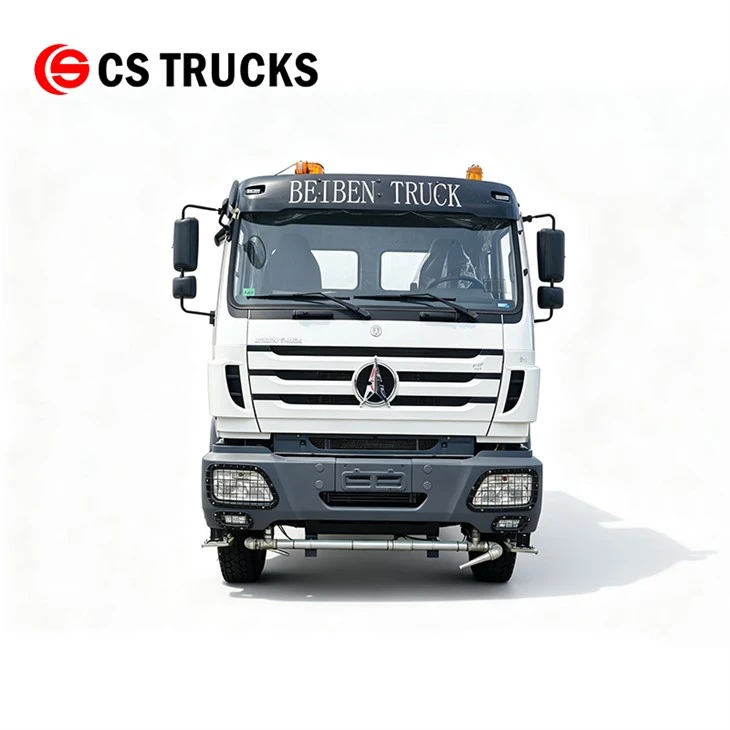

Front View of Beiben 2638 20 Ton 6x4 Water Bowser for Urban Street Flushing

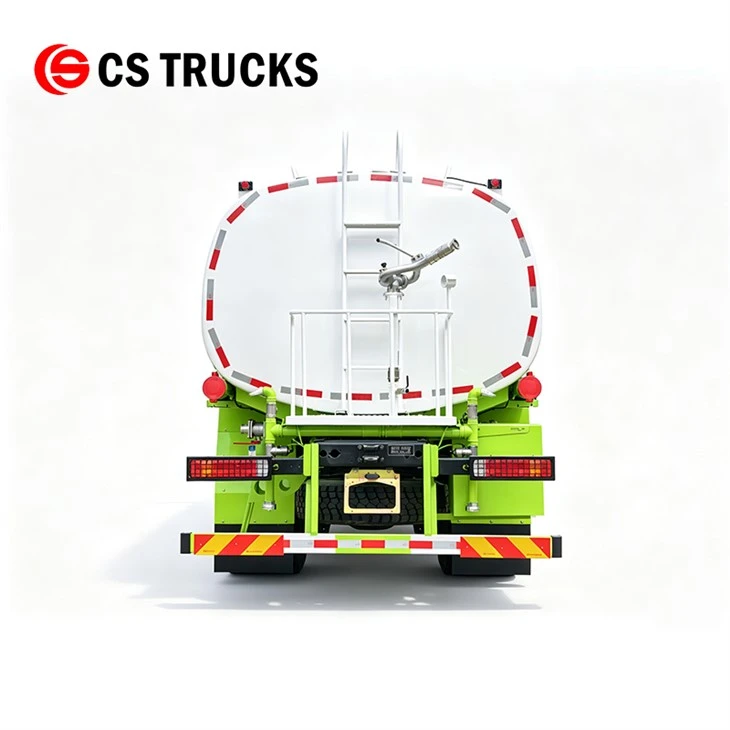

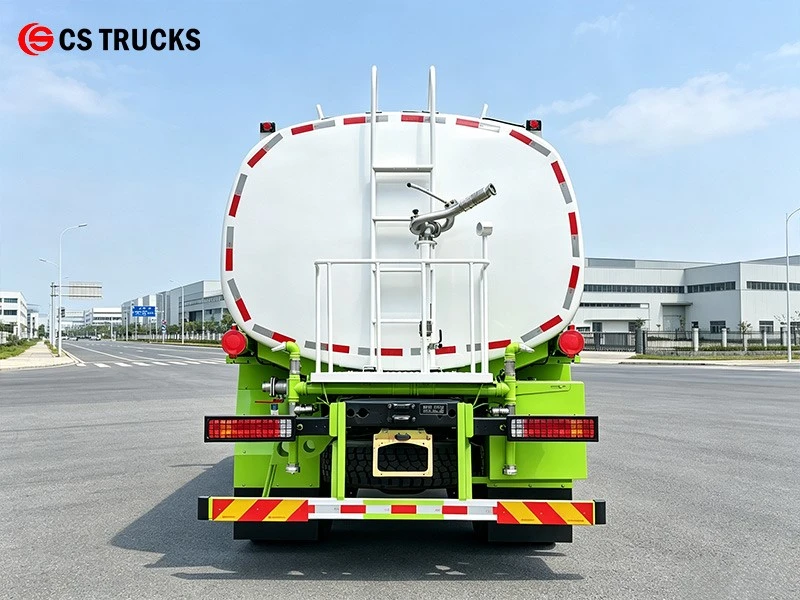

Rear View of Beiben 2638 20 CBM 6x4 Water Truck for Agricultural Irrigation
FAQ
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Q:1. Are you the manufacturer of this water sprinkling bowser?
A: Yes. We are the direct manufacturer based in Suizhou, China. We design, produce, and test each truck in our own facility. You get factory-direct pricing, full quality control, and customized options without middlemen.
Q:2. What is the total capacity of the Beiben water sprinkling bowser?
A: This water bowser has a total capacity of 20,000 liters (20 CBM), ideal for large-area road watering, dust suppression, and construction site spraying without frequent refills.
Q:3. What type of water pump does this truck use?
A: It is equipped with a high-flow centrifugal pump driven by the engine PTO, delivering 1,000 L/min flow with a suction height of 6.5 meters for fast and efficient water intake.
Q:4. How wide is the spray coverage?
A: The front spray bar with fan nozzles delivers a spray width of 20 meters or more, ensuring effective road wetting and dust suppression in a single pass.
Q:5. What is the suction height and how does it work?
A: The pump offers a 6.5 meter suction height, allowing water intake from open sources like ponds, rivers, or hydrants through the suction hose and DN80 ball valve.
Q:6. What control features does the truck include?
A: A DN80 manual ball valve with a red handle provides instant on/off flow control. The 24V electrical system with 2×12V 165Ah batteries supports all lighting and control functions.
Products - 100% China Beiben factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. Beiben 2638 Water Sprinkling Bowser Chassis: Built on Beiben 6×4 platform with WP12.420E32 diesel engine delivering 420 HP + FAST 9JS150A 9-speed manual transmission, designed for road watering, dust suppression, and construction site spraying across urban and rural areas.
2. Large-Capacity Water Tank: Manufactured from carbon steel, featuring 20000L capacity, equipped with DN80 manual ball valve for flow control, finished with durable coating for long service life in demanding environments.
3. High-Flow Water Pump & Spray System: Equipped with high-flow centrifugal pump (1000 L/min flow rate, 6.5m suction height), PTO-driven, plus front spray bar with fan nozzles achieving ≥20m spray width for effective road coverage.
4. Safety Features: 6×4 drive with 12.00R20 tires, air brake system, 5050+1450 mm wheelbase for stable handling. Cab with A/C, power steering, and sleeper, plus tropical climate radiator and 24V electrical system (2×12V 165Ah batteries) for demanding daily operations.
