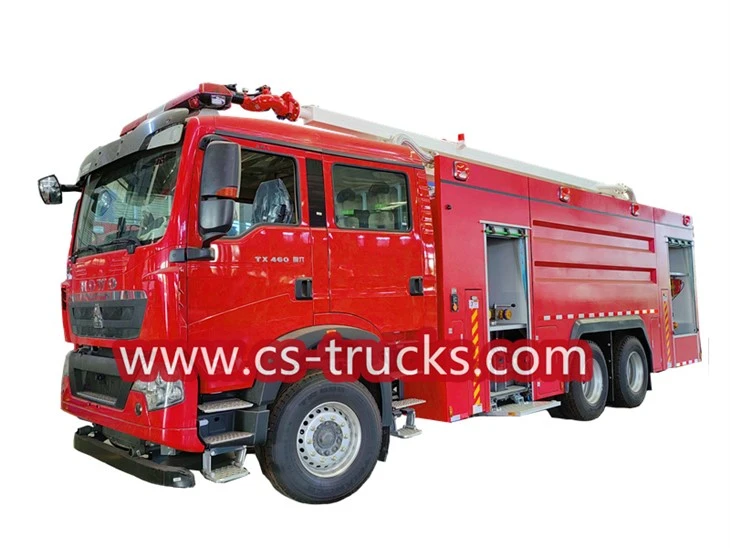

Howo High Reach Extendable Turre Fire Truck

1.Isuzu Howo water & foam with mounted high reach extendable turret has the function of high spray fire extinguishing, the outrigger and boom movement speed is stable and fast, and can reach the working state faster.

2.The design technology of this truck is advanced, the quality is safe and reliable, and the main technical performance parameters have reached the leading level of similar domestic products.

3.The whole machine adopts high-performance electro-hydraulic proportional control technology and hydraulic transmission, which is stable, reliable and easy to operate.

4.It adopts a folding arm structure. The lower arm can be lifted within 80°, and the lower arm and upper arm can be lifted within 150°. The cross-section of the arm adopts a quadrilateral box-type structure and is welded with high-strength steel.

5.The arm rotation has a buffer function, the arm rotation mechanism adopts a worm gear structure, and the hydraulic system is equipped with a buffer valve, which can achieve smooth and reliable starting and braking, and has good micro-motion performance.

The boom is welded from high-strength alloy steel. The boom consists of a lower boom and an upper boom. The lifting is driven by a hydraulic cylinder. The maximum operating range is 8.3 meters, 360-degree continuous rotation, the maximum working height is 20 meters, and the boom action time is <40S; the lower boom can be lifted at any angle between 0° and 80°. The lower and upper booms can be lifted at any angle between 0° and 150°.

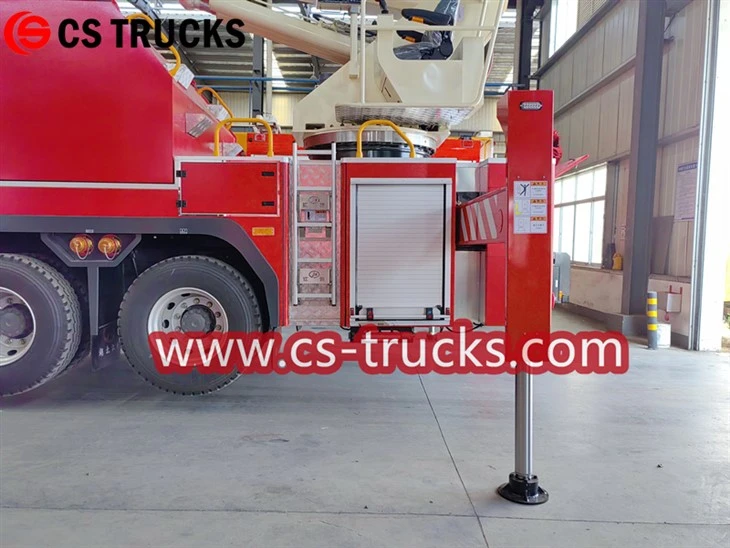

The slewing mechanism is completed by a hydraulic motor driving a worm gear, which makes the rotation smooth and self-locking; the luffing mechanism is realized by an optimized combination of the luffing hydraulic cylinder, the luffing balance valve and the two-way hydraulic lock, and its characteristics are good luffing synchronization and strong safety.

1.The fire cannon is manufactured by a well-known Chinese brand and uses a manual fire cannon for both water and foam.
Model: PLKD8/80.

2.Material: The cannon head is made of aluminum alloy and the cannon body is cast iron.

3.Fire cannon flow rate: 0-4800L/min; rated pressure ≤1.0MPa.

4.Range: water range ≥75 meters, foam range ≥70 meters;

5. Rotation angle: horizontal rotation angle 0 degrees ~ 340 degrees, elevation angle -30 degrees ~ +70 degrees;

The fire pump is produced and provided by a well-known Chinese brand, model CB10/100-TB, displacement 6000 liters per minute; water absorption depth greater than 7 meters; water diversion time less than 50 seconds; equipped with a computer automatic voltage stabilizing device with advanced technical performance. Automatic foam proportion mixer: mixing ratio 1%~10%.

The pipeline of the fire protection system is stainless steel pipeline + aluminum alloy pipeline. The water pipe reaches the upper vehicle through the central rotating body, which can meet the needs of water supply or foam. There is an electric remote-controlled water cannon at the upper arm head, which can change the water flow form (straight and water splash), and can spray water or foam. There is a water inlet at the bottom of the vehicle to meet the large flow fire extinguishing requirements of high-rise buildings.

1.Water control mode: electric control pneumatic;

2.Control panel location: rear of the vehicle body;

3.Stainless steel pipeline is used for getting off the vehicle;

4.Aluminum alloy water pipe + rubber steel wire hose is used for getting on the vehicle.
