ISUZU fire appliances are designed to enhance rescue efficiency through various features and technologies. Here, I will describe how ISUZU fire appliances improve rescue efficiency using 4 key points:
Quick Response and Mobility: ISUZU fire appliances are built to provide rapid response capabilities. These vehicles are equipped with powerful engines and advanced suspension systems, ensuring quick acceleration and maneuverability. The agile nature of ISUZU fire appliances allows them to navigate through traffic and reach the emergency site promptly. Their mobility enables firefighters to minimize response times, ensuring that they can begin rescue operations swiftly.
Efficient Equipment and Tools: ISUZU fire appliances are equipped with a wide array of efficient firefighting and rescue equipment. These include high-pressure water pumps, extended reach monitors, hydraulic tools, and cutting equipment. The efficiency of these tools enables firefighters to effectively control and extinguish fires, while also facilitating quick and safe rescues in emergency situations. Moreover, ISUZU continuously upgrades their equipment to incorporate the latest technological advancements, further improving rescue efficiency.
Enhanced Communication and Control: ISUZU fire appliances are equipped with integrated communication systems that enable seamless coordination between firefighters and command centers. Advanced radio systems, GPS trackers, and intercoms ensure efficient communication and real-time updates. This allows firefighters to receive instructions, share critical information, and collaborate effectively during rescue operations. Improved communication and control systems contribute to better decision-making and overall rescue efficiency.
Technical Specification

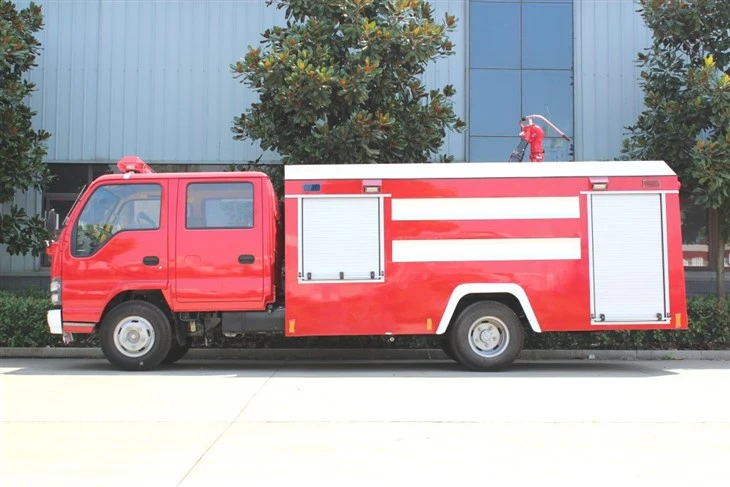

| ehicle | Vehicle name | ISUZU NKR 3 ton WATER Fire Truck | |||
| Dimensions | 5990×2300×2940(mm) | ||||
| Total quality | 4360kg | ||||
| Curb quality | 3335kg | ||||
| Load quality | 650kg | ||||
| Number of passengers | 2+3 people (double row) | ||||
| Approach/departure angle | 24/16 (°) | ||||
| Minimum turning radius | ≤6m | ||||
| Chassis | Brand | foton | |||
| Chassis model | QL1070 | ||||
| Cab | Double row | ||||
| Wheelbase | 3360mm | ||||
| engine | 120 hp | ||||
| Emission Standards | Eruo II EURO III EURO IV | ||||
| power | 88kw | ||||
| Displacement | 2999ml | ||||
| Torque | 290N.m | ||||
| Gearbox | fifth gear (5+1) | ||||
| Tire | 7.00R16 | ||||
| air conditioning | |||||
| other | Directional boost, functional LCD instrument panel, dual-circuit oil brake | ||||
| Special function | water tank | Carrier volume | Jug | WATER tank | |
| 3000kg (actual 3 square) | |||||
| Material | Carbon steel ( stainless steel or PP material can be selected as required ) | ||||
| Tank fixing | Flexible connection with chassis frame | ||||
| Manhole | 2 DN460 manholes with quick lock/open device | ||||
| Water inlet | There is a DN65 interface on the left and right sides of the water tank | ||||
| Inlet and outlet | 1 water tank to water pump inlet pipe, DN100 valve, manual control 1 foam tank to water pump inlet pipe, DN40 valve, manual control 1 water pump to water tank filling pipe, DN65 valve, manual control |
||||
| Drain | 2 DN40 water tanks to put the remaining water port, with manual control of the ball valve | ||||
| Overflow | 2 DN65 overflow ports | ||||
| Fire Pump | model | CB10/20-XZ low-pressure vehicle fire pump | |||
| form | Atmospheric centrifugal | ||||
| Installation location | Rear | ||||
| flow | 20L/s @1.0MPa | ||||
| Outlet pressure | 1.0MPa | ||||
| Maximum suction depth | 7m | ||||
| Water diversion device | Built-in sliding vane pump | ||||
| Diversion time | Maximum suction depth≤35s | ||||
| Fire monitor | model | PS20 | |||
| flow | 20L/s | ||||
| Rotation angle | 360° horizontal rotation | ||||
| Range | Water≥45m | Water ≥40m | |||
| Maximum elevation/depression angle | Elevation angle ≥+45° | Depression angle≤-15° | |||
| Power take-off and transmission system | structure type | Sandwich mechanical transmission | |||
| Clutch method | Hand control | ||||
| Lubrication method | Splash lubrication | ||||
| Transmission system | Cross shaft universal joint drive shaft | ||||
| Pipeline system | Pipe material | High-quality seamless steel pipe | |||
| Suction pipe | There is a DN100 suction port on the back side of the pump room | ||||
| Water injection line | There is a DN65 water injection port on the left and right sides of the water tank, and a DN65 water pump is installed in the pump room to inject water into the tank |
||||
| Outlet pipe | There is a DN8I0 water outlet on the left and right sides of the pump room, with a shut-off valve and a cover | ||||
| Cooling water pipeline | Cooling water pipeline and control valve with cooling power take-off | ||||
| Electrical Equipment | Fireplace lighting | 1 35W fire searchlight installed at the rear | |||
| Strobe light | Install red and blue strobe lights on both sides of the body | ||||
| Warning device | Install a long row of red warning lights on the top of the cab | ||||
| Siren | The control box is in front of and below the driver in the cab | ||||
| Auxiliary lighting | Firemen's room, pump room and equipment box are equipped with lights, and the control dashboard is equipped with bright and indicator lights | ||||
| Additional electrical | Set up an independent circuit | ||||
| Ladder and handle | Ladder | Aluminum alloy two-section flip ladder, when used, it should not exceed 450mm from the ground, | |||
| Get on the car | Using anti-slip round steel pipe with groove on the surface | ||||
| Equipment box and pump room | structure | The main frame structure is welded with high-quality square tubes, and the outer decorative plate is welded with carbon steel plates. The roof is non-slip and can walk. | |||
| Equipment box | The equipment box is located at the rear of the passenger compartment. The aluminum alloy rolling doors on both sides are equipped with lighting lamps. The equipment room is equipped with storage boxes according to needs. | ||||
| Pump room | The pump room is located at the rear of the vehicle, with aluminum alloy rolling doors on both sides and the back, with lights inside, and some common equipment can be placed on both sides of the pump room | ||||
| *Note: This parameter is standard for the manufacturer and can be customized according to customer needs. | |||||
Detail pictures
ISUZU fire appliances are specially designed vehicles used for firefighting and emergency response. Here are four key points to describe their functionality and development trends:
1. Advanced Firefighting Capabilities: ISUZU fire appliances are equipped with powerful water pumps, high-pressure hoses, and water tanks to quickly and efficiently extinguish fires. They also feature advanced firefighting equipment such as nozzles and monitors, which allow firefighters to control and direct water flow effectively. Additionally, these vehicles often have additional compartments to store necessary firefighting tools and gear, ensuring readiness during emergency situations.
2. Safety and Efficiency Improvements: ISUZU continuously works on enhancing the safety and efficiency of their fire appliances. By integrating advanced technologies, such as intelligent control systems and telematics, these vehicles offer better operational control and monitoring. This enables firefighters to respond more effectively, improves communication, and enhances overall operational safety during firefighting and rescue operations.
3. Environmental Considerations: ISUZU also focuses on developing fire appliances with reduced environmental impact. This involves incorporating eco-friendly technologies, such as low-emission engines and alternative fuel options. By reducing carbon emissions, noise pollution, and fuel consumption, ISUZU fire appliances contribute to sustainable firefighting practices and align with global environmental standards.
oUR ISUZU FIRE Appliance key features.
Original Isuzu double cabin
English control panel
Fire Pump room
Fire equipments
Fire pipe line
High performance fire monitor
4. Customization and Adaptability: ISUZU fire appliances are designed to be versatile and adaptable to various firefighting scenarios. They can be tailored to meet the specific requirements of different fire departments and emergency response teams. This customization includes options for water tank capacity, equipment storage, and specialized features. ISUZU continuously engages in research and development to offer solutions that can address evolving firefighting challenges, ensuring their fire appliances remain efficient and effective in different emergency situations.
