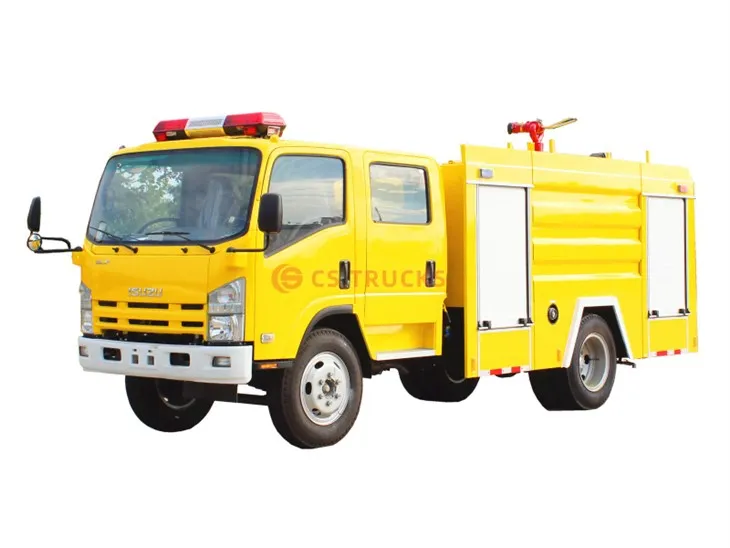

Isuzu NPR Yellow Fire Protection Truck

3,000L isuzu NPR fire truck chassis fire engine
Isuzu NPR industrial rescue fire truck Customized Isuzu NPR truck chassis QL1100A8MAY cabin fire tender fire fighting truck for sale,original Japan isuzu NPR fire truck chassis factory, produce good quality foam fire truck. Isuzu 4x2 6 wheels NPR fire truck chassis, 4HK1-TC51 190HP engine, MLD 6-shift gear box, 3000L fire tank capacity

Model: CSC5110GXF
Capacity: 3,000 liters
Drive: 4×2
Engine power: 190 HP
Engine type: 4HK1-TC51

Send Inquiry

Description

Products Description

Isuzu NPR yellow fire protection truck also called as ISUZU NPR fire brigade tender, Isuzu fire pump fire truck, isuzu NPR water fire tender, Isuzu NPR fire engine trucks. Isuzu Fire engine widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment.

Key Features

----► ISUZU NPR chassis,perfect performance

----► Diesel engine, extremely powerful
----► Powerful Fire pump & Fire monitor
----► 20 years Fire truck manufacturing and design
----► High standard crew cabin

----► Hugh rescue equipment on board

Technical Specification

Manufacturer	CS Trucks
Item	ISUZU NPR yellow Fire truck
Brand	ISUZU
Model	CSC5110XF
Production Time	55 days
truck chassis
Specification	Overall dimensions	750023003060 mm
	Gross weight	11,000 kg
	Kerb weight	6,800 kg
	Wheelbase	4175 mm
	Driving type	4*2
	Chassis model	ISUZU NPR
	Tire size	235/75R17.5
	Passengers in cab	6
Engine	Engine model	4HK1-TC51
	Type of fuel	Diesel
	Power	190 HP
Gearbox	ISUZU MLD 6-shift gearbox
upper body
Fire fighting performance	Water Tank Capacity	3,000L
	Foam Tank Capacity	NIL
	Dry powder Tank Capacity	NIL
	Fire Pump	Model: CB10-30
		30L/S @ 1.0Mpa
		Suction depth: 7M
	Fire monitor	Model: PS30W
		Water jetting distance: 50M
		Foam jetting distance: 45M
	Self-suction height	7 m
	Suction hose	7m length with DN 100 mm
	Rear cover	Hydraulic control
	Control Panel	English
	Discharging system	Gravity discharge or pump out from tank body.
	Painting	Two primers, and one final paint coating
	Color & LOGO	According to wish
Factory standard	“U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps...
Documents	English operation manual, Spare parts list, and all necessary export docs.
Optional equipment	1, Stainless steel tank, pp Tank 2, Traction wich 3, Breathing apparatus SCBA 4, Special fire rescue equipment

Truck detail

Isuzu NPR chassis cabin water tender for sale

Original NPR chassis cabin

Double cabin for 6 person

English control panel for giga fire truck

Easy control English panel

Powerful fire pump

Recuse tools

Huge fire guns

ISUZU NPR truck chassis for fire Application

What is the reason that NPR truck chassis are popular for Isuzu Fire truck application?

ISUZU NPR cabin truck chassis for fire application

Isuzu NPR truck chassis for fire engine application

UTB8VgvDktnJXKJkSaiyq6AhwXXaU

4HK1-TCG40 Engine and Transmission show

Product name	ISUZU 10tons NPR 16ft dropside trucks chassis for fire truck application
Engine	4HK1-TC51
wheelbase	3815mm, 4175mm, 4475mm
Power	190hp
Brake	Air brake
Displacement	5.193L

Factory production

Iuszu NPR cabin chassis industrial fire truck

Original Isuzu NPR cabin chassis

3000L water tank

Isuzu npr fire truck with CB10-30 fire pump

CB10/30 fire pump installed

English control panel

Customize your own truck

Q: What is the feature for CB10/30 Fire pump?

01 High capacity:

Fire pumps by Hale are designed to deliver high flow rates and pressure to efficiently combat fires.

2. Robust construction:

These pumps are built with durable materials to withstand harsh conditions and ensure long-lasting performance.

3. Efficient priming:

Hale fire pumps typically incorporate advanced priming systems that allow for quick and reliable priming, reducing the time required to start operation.

4. Energy-efficient design:

Hale focuses on developing pumps with optimal energy efficiency, allowing for improved performance while minimizing power consumption.

5. Easy maintenance:

The pumps often have user-friendly designs that facilitate routine maintenance, such as easy access to components and simplified serviceability.

You can also contact www.cs-trucks.com the fire pump catalog, user manual, or contact chusheng trucks directly for detailed information and specific features related to the CB10/30 model or any other specific model you are interested in.

CB10-30
