Isuzu FTR Diesel Foam Fire Pump
video
Isuzu FTR Diesel Foam Fire Pump

Isuzu FTR Diesel Foam Fire Pump

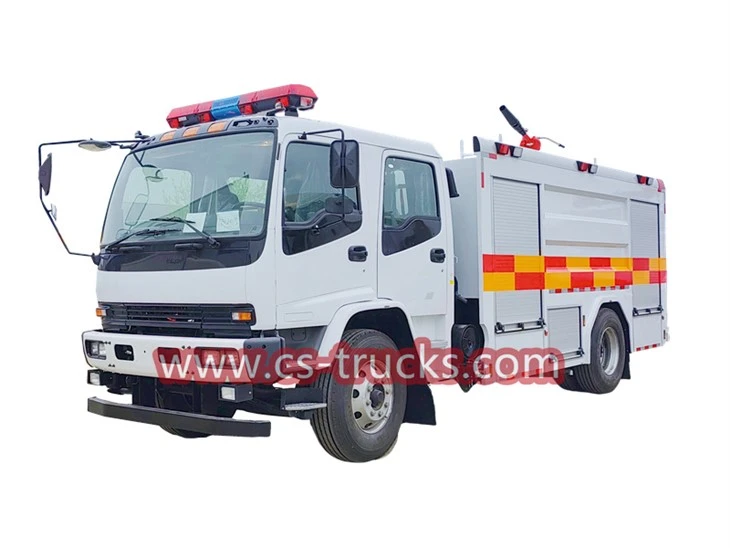

6,000 liters Isuzu FTR diesel foam fire pump
The Isuzu FTR International Fire Truck is built on a heavy-duty chassis, providing excellent stability and durability. It is equipped with a powerful engine that delivers superior horsepower and torque, ensuring quick response and efficient operation during emergencies. One of the outstanding features of this fire truck is its advanced firefighting equipment. It is equipped with a powerful water pump, capable of delivering a substantial amount of water to extinguish fires effectively. The water pump can be controlled from inside the cab, allowing the firefighters to operate while being protected.

Model: CSC5170GXF
Capacity: 6,000 liters
Drive: 4×2
Engine power: 205 HP
Engine type: 4HK1-TC60
Send Inquiry
Description
ISUZU fire fighting truck


The Isuzu FTR diesel foam fire pump is a rugged and reliable product designed for firefighting and rescue. The Isuzu FTR fire water truck is equipped with an Isuzu 4HK1 diesel engine with 205 horsepower and a maximum speed of 90 km/h. It is powerful, economical and durable. The body is 8 meters long and is equipped with a large-capacity water tank and foam tank of 6 cubic meters. It is equipped with a high-performance fire pump and a long-range water gun to ensure excellent fire extinguishing performance.The cabin is spacious and comfortable, and multimedia air-conditioning facilities are available, providing firefighters with a safe and efficient working environment.

ISUZU 6CBM fire fight truck


Products Description



Isuzu FVR diesel foam fire pump



Item

Unit

Description

Model



FTR Fire Fighting Truck with 6CBM water tank

Dimension

mm

8005*2380*3170

Tank Dimension

m3

Water Tank

Foam Tank

4

2

Material

Stainless steel

Stainless steel

Curb Weight

kg

9605

Wheel Base

mm

4500

F/R track base

mm

1960 / 1855

F/R Axled-Load

Kg

6300 / 13000

Approach/Departure angle

.

21/13

Traction system

Type

4*2

Max speed

Km/h

90

Tire Specification/Number

Type

295/80R22.5, 6+1 Spare Unit

Engine

Model

4HK1-TC60

Emission/Kw

5193 cc, 141 Kw / 2500 r

Horse Power

205 Hp

Power

640 N.m - 1600 r/min

Type

Diesel, 6 cylinder, turbocharge, water cooling

Brand

ISUZU

Gear box

model

MLD,6F&1R, Manual

Electronic

V

24

Cab

Person

6

Type

Reversable, Manual

Installing

Mp3 , Radio, Speaker

Air Conditioner

Hot wind / Cooling wind

Superstructure

Tank Capacity

4,000 L water tank+2,000 L foam tank

Tanker Material

Carbon Steel

Fire pump

CB10/60, 30L/S

Fire pump location

Center or rear

Fire monitor

Water jet distance: ≥55m / Foam jet distance: ≥45m

Control panel

English or Your language

All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** USA or Germany fire pump can be optional



Fire Fighting Technology

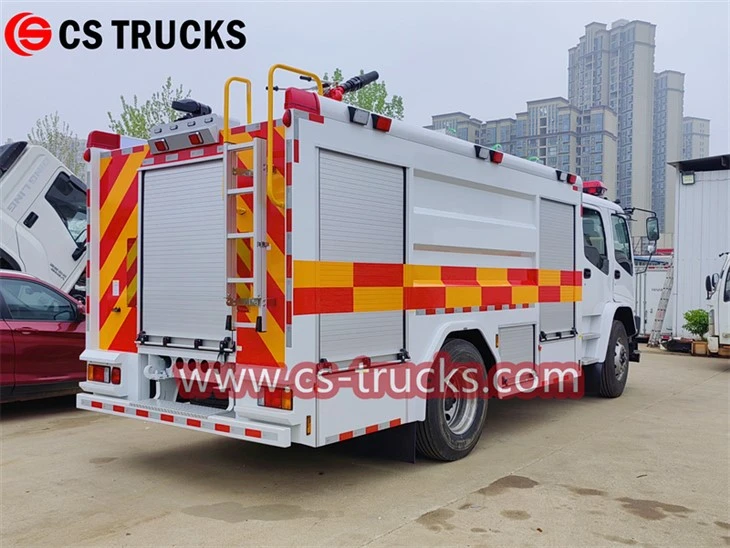

ISUZU 6CBM fire fight truck

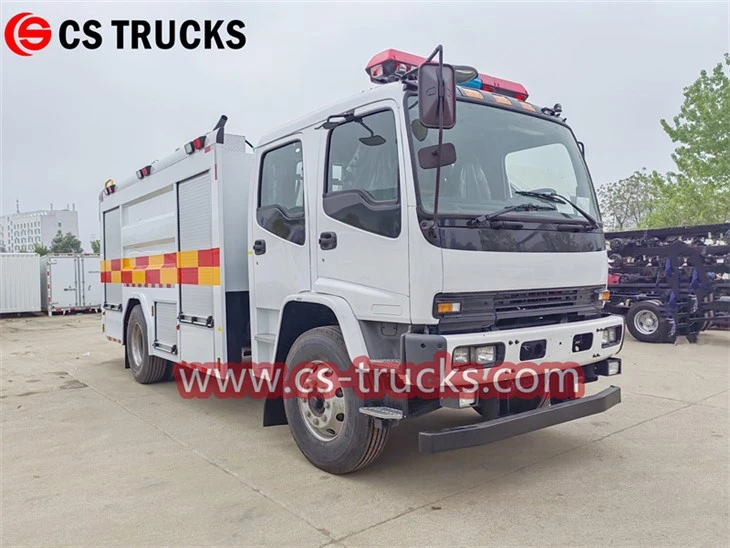

ISUZU FTR fire fighting truck
Isuzu fire foam tank truck

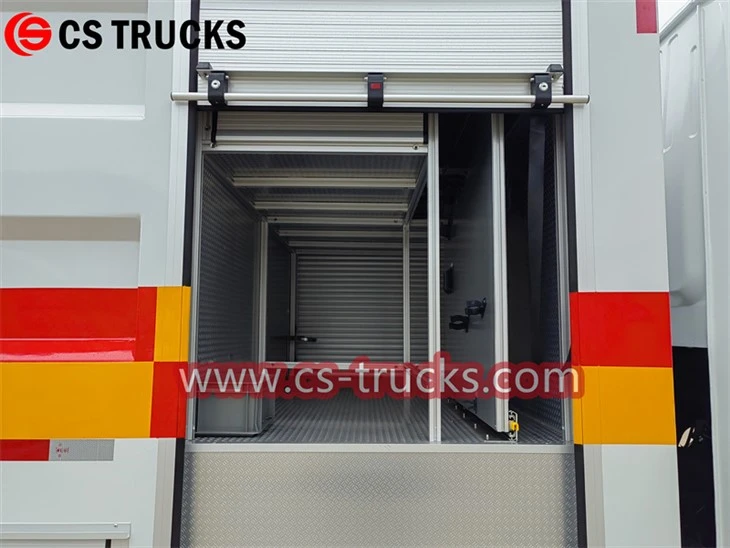

ISUZU FTR 6CBM fire water tank truck

1.Isuzu water gun fire extinguishing technology:The water gun is one of the most commonly used fire extinguishing lights on fire trucks. Water gun fire extinguishing technology is mainly divided into direct attack and indirect attack. Direct attack refers to the water gun spraying water directly at the fire point to directly extinguish the fire. Indirect attack uses water mist to suppress the heat and fire of the fire scene, creating conditions for fire extinguishing. The advantages of water gun fire extinguishing technology are simple operation, economical and practical, and it is a commonly used fire extinguishing technology.

2.Isuzu foam fire extinguishing technology:Foam fire extinguishing technology is a technology that extinguishes fires through the physical properties of foam. Foam can isolate oxygen and reduce temperature, thereby achieving the effect of extinguishing fire. Foam fire extinguishing technology is mainly used in oil fires, because oil fires are relatively difficult to extinguish, and the use of foam can effectively reduce the risk of oil fires.

3.Isuzu bottled gas fire extinguishing technology:Bottled gas fire extinguishing technology is a technology that uses chemical reactions to extinguish fires. It can extinguish fires in a short time and does not leave any residue. The difference between bottled gas fire extinguishing technology and other fire extinguishing technologies is that it does not require the use of water. Therefore, it is more appropriate to use bottled gas fire extinguishing technology in some water-sensitive equipment or venues, such as electronic factories, computer rooms, etc. However, it should be noted that the air gathered by bottled gas will cause certain damage to the human body, so it is necessary to pay attention to personnel safety when using bottled gas fire extinguishing technology.

4.Isuzu dry powder fire extinguishing technology:Dry powder fire extinguishing technology is a widely used fire extinguishing technology. It can play a role in fire extinguishing in various fire environments, and has the advantages of safety, speed and effectiveness. Dry powder can quickly reduce the temperature of the fire scene and suppress the fire. Changes in the composition of dry powder can achieve different fire extinguishing effects, such as ordinary dry powder, knock dry powder, composite dry powder, etc.

5. Isuzu CO2 fire extinguishing technology:CO2 fire extinguishing technology is a technology that uses carbon dioxide to extinguish fire. Carbon dioxide is a colorless, odorless, non-flammable, non-explosive, and non-residue gas that can quickly and effectively suppress the fire during the fire extinguishing process. CO2 fire extinguishing technology has the advantages of fast fire extinguishing speed, easy use, and good protection. However, it should be noted that when using C02 fire extinguishing technology, attention should be paid to the safety of personnel, because high concentrations of CO2 can cause suffocation of the human body.
