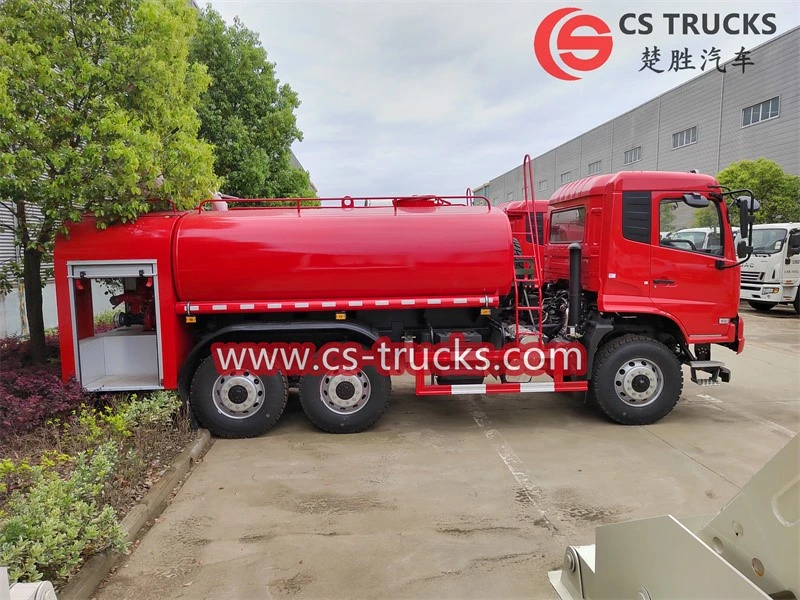

Shacman Water Fire Tender

Name

Standard configuration

♦ Model:

CSC5250GXF

♦ Chassis

SHACMAN F3000 chassis specially for Fire-fighting application

♦ Drive type:

6x4 Left hand drive

♦ Wheel base

4375+1400 mm

♦ Dimension size (LxWxH)

9250×2500×3860mm

♦ Curb Weight

12000 kg

♦ Cabin Structure:

The all-steel stamping parts welded structure, install double-row seat to rollover the double-cab hydraulic oil tanks overturned, can be moved overturned forward

♦ Inside cabin equipment

Automatic temperature control air conditioning system of environmental protection (R134A refrigerant, without Freon), Radio + MP3. In addition to the car equipment, the installation of P.T.O. controlled switches, siren, alarms lights, indicator lights, sign lights, profile signal controlled switches. Rear view mirror

♦ Number Of Seats

2+4 seats with Four-door, For six person.

♦ Air condition

Yes

♦ Engine

Model

WEICHAI engine WP10.300E22

Power

220 Kw (300Ps)

Displacement

9.726 L

Advantage

4 stork, 6 cylinder, New ultra high pressure common rail fuel injection system, strength of electronically controlled cooled EGR system, electronically controlled variable geometry turbocharger systems (VGS)

Fuel

Diesel

♦ Transmission gear:

FAST 10-speed gearbox, suitable to all kinds of roads

♦ Front axle:

Reverse Elliot, I-Beam

♦ Rear axle:

Single Reduction Banjo Design Full Floating

♦ Clutch

Single-plate dry coil-spring clutch, hydraulically operating with air assistance

♦ Fuel tank

300 L

♦ Tyres:

12.00R20

♦ Front tread:

1960mm

♦ Rear tread:

1855mm

♦ Brakes

Service brake: dual circuit compressed air brake

Parking brake: Spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

♦ Electrics

Operating voltage: 24V 120 AH Battery, negative grounded

♦ Maximum Speed:

95 km/h

♦ Max gradeability:

37 %

Name

Standard configuration

♦ Water tank volume

16000 L

♦ Tank material

High quality carbon steel plate, anti- treatment , thickness: 5 mm

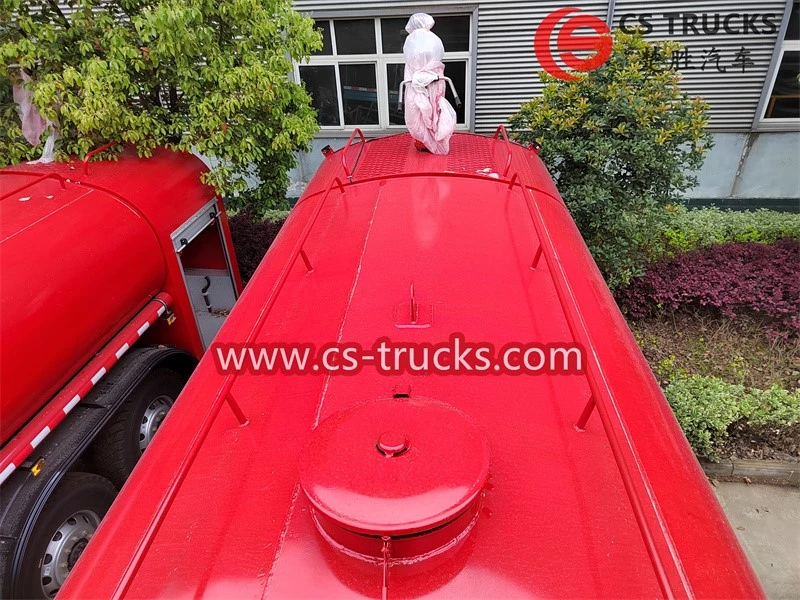

♦ Manhole

DN500mm, with quick lock/open device

Name

Standard configuration

♦ Fire pump

Model

CB10/60, mediuw-low pressure centrifugal pump,rear back mounted, with aluminum roller shutter door

Maker

XIONGZHEN (Top brand)

Flow

60L/s at 1.0MPa

Normal pressure

1.0 Mpa

Installation

Rear/Middle mounted

♦ Fire monitor

Model

PS50

Maker

China Famous brand

Location

Top of tank

Throw

Water throw≥50meter, Foam throw ≥45m

Rotation

360º rotation; elevation: 0-80°, depression -10°

Name

Standard configuration

♦ Location

On the rear or central of truck. (according to customer wish)

♦ Stucture

- There are pump system and pipeline, reasonable structure. Easily operate and operate-switch.

- The inside storage compartment to be aluminum plate.

- Convenient switch of roll shutter, with push-button locking handle

♦ Inlet

One DN125 suck inlet with strainer mesh at rear, and two DN65 for hydrant filling connections.

♦ Outlet

Two DN80 outlet be mounted on both rear side of truck.

Name

Standard configuration

♦ Material

Framework made out of the high-quality carbon steel, interior strake of the 2.5 mm aluminum jacquard card (anode treatment). Outside covered skin made out of high-quality carbon steel plate.

♦ Stucture

- The interior frame of storage compartment made out of welding structure, the top face to be 2.5 mm jacquard steel plate, high strength, rigid, and nice.

- The inside storage compartment to be aluminum plate.

- Convenient switch of roll shutter, with push-button locking handle

Name

Standard configuration

♦ Location

the panel mounted in the pump room

♦ Equipment on the panel

2 No. Level gauge

1 No. Rotation meter

1 No. Vacuum gauge

1 No. Lighting switch

1 No. pressure gauge

Name

Standard configuration

♦ Outside Sandblasting

All the steel and stainless steel parts are sandblasted before painting

♦ Painting

Using high-quality polyurethane paint, a long-term accretes, no chap, not falling, to prevent debris impact, corrosion resistance, and nice features.

♦ Bright red paint

Cabin, storage compartment, pump room, rims’ inner ring (except roll shutter)

♦ White

Rims’ outer ring, the bumper of front and rear.

♦ Logo

All logos are FREE according to our clients

Name

Standard configuration

♦ Factory inspection

The customer can inspect the production in manufactures factory when completed, then arrange the balance payment.

♦ Operation Manual

English Version (Option video also available)

♦ Training fee

Two FREE days training in CS TRUCKS factory

♦ Training type

Required training about using the equipment will be given by the manufacturer to the related workers in the superstructure area

♦ Tools

Equipped with standard tools

♦ Oil Filter

2 Nos

♦ Fuel Filter

2 Nos

♦ Air Cleaner

2 Nos

Item

Flow (L/S)

Outlet Pressure (MPa)

Rated Speed (r/min)

Shaft Power (Kw)

Suction Depth (m)

1

30

1.00

3890

52.5

3

2

21

1.30

4175

53.4

3

Item

Flow (L/S)

Outlet Pressure (MPa)

Rated Speed (r/min)

Shaft Power (Kw)

Suction Depth (m)

1

40

1.00

4305

66.7

3

2

28

1.30

4395

61

Item

Flow (L/S)

Outlet Pressure (MPa)

Rated Speed (r/min)

Shaft Power (Kw)

Suction Depth (m)

1

60

1.00

3388

92.7

3

2

42

1.30

3620

94.7

3

3

30

1.80

4151

116

3

Item

Flow (L/S)

Outlet Pressure (MPa)

Rated Speed (r/min)

Shaft Power (Kw)

Suction Depth (m)

1

80

1.00

3450

154

3

2

70

1.30

3660

141

3

3

40

1.80

4200

161

3

Item

Flow (L/S)

Outlet Pressure (MPa)

Rated Speed (r/min)

Shaft Power (Kw)

Suction Depth (m)

1

110

1.00

3750

167

3

2

80

1.30

3750

159

3

3

51

1.80

4300

184

3
