Products Description
Howo Swing arm garbage truck is a mechanical equipment specially used to collect and transport urban garbage. It adopts an advanced mechanical transmission system, is equipped with a swing arm and a large-capacity dustbin. This kind of skip garbage truck is efficient, fast and safe, and has become an important tool for modern urban garbage disposal.
The boom of the swing-arm garbage truck can swing left and right and has a wide operating range. It can lift and dump the garbage bin into the carriage, reducing the cumbersomeness and risks of manual operations. The boom of the swing-arm garbage truck is made of high-quality materials and has high strength and durability, which can meet repeated use for a long time.
howo skip loader refuse truck 4x4
HOWO refuse skip loading truck

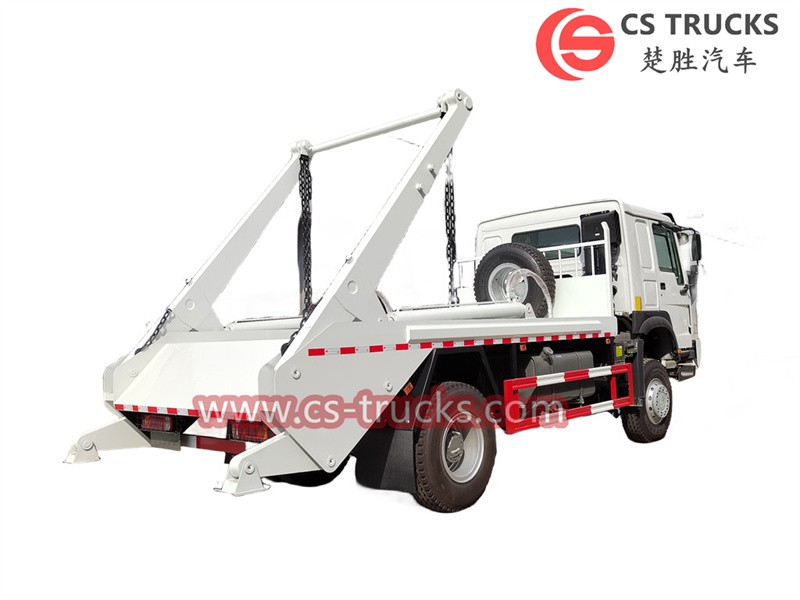

4x4 garbage skip loader
SINOTRUK HOWO 4x4 skip loader truck
Technical Specification
HOWO Skip loader garbage truck (also called swim arm truck, roll on and off garbage truck, refuse collection truck, refuse collection swing arm garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
The sinotruk howo skip loader garbage truck can be used in urban erea and suburb.The container on the rear of the truck can be put down on the ground to gather garbage at a fixed location .when the container gathers full.the truck lift it on the flat bed on the rear of the truck.then dump the garbage in the garbage center.
| HOWO swing arm garbage truck General Technical Parameters | |||
| Overall Dimension | 7850*2500*3550 (mm) | ||
| Gross Vehicle Weight | 16000(Kg) | ||
| Curb Weight | 6660(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Sinotruk Howo | ||
| Drive model | 4*4 off road model | ||
| Cabin | Single Row with Sleeper, LHD, with air condition. | ||
| Number of Passengers | 3 | ||
| Engine | Model | 340HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, with ABS. | |
| Power | 340HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 9720(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 6 Forwards & 2 Reverse, manual operation, with power steering. | ||
| Brake System | Air break | ||
| Wheel Base | 4600mm | ||
| Front/Rear Axle Loading | 7000/16000(Kg) | ||
| Approach/Departure Angle | 35/28(°) | ||
| Overhang | Mechanical Suspension, 9/11+8 | ||
| Tire | 12.00R20, 6pc with 1 spare tire | ||
| Max Driving Speed | 90(km/h) | ||
| Upperstructure Specification | ||
| Garbage Hopper | Dimension | 4000×1850×1400mm |
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
| Volume | Ground type, 10CBM | |
| Loading Capacity | 8Ton | |
| Thickness | 5mm, Carbon Steel Q235B | |
| Dump type | Hydraulic cylinder lifting and self-loading | |
| Dump angle | ≥45° | |
| Hydraulic system pressure | ≤16Mpa | |
| Protective Material | Q235A Carbon Steel | |
| Controlling Way | Three-way hydraulic control valve | |
| Other Configuration |
Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic multi-way valve control. |
|
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
Advantage of swing arm garbage truck
The swing-arm garbage truck is an engineering vehicle specially used for garbage removal. It has the following advantages.
1, swing-arm garbage trucks have high-efficiency garbage removal capabilities. Its swing arm design allows the trash can to be quickly lifted and dumped into the carriage without manual force, greatly improving the efficiency of cleaning. Compared with traditional garbage removal methods, swing-arm garbage trucks not only reduce the labor costs of the removal team, but also save removal time and improve removal efficiency.
2, the swing-arm garbage truck adopts a closed design, which reduces secondary pollution during garbage removal. The airtight design of the carriage effectively prevents odors and slag leakage from polluting the surrounding environment during garbage transportation. This not only protects the health of the removal personnel, but also conforms to environmental protection requirements and improves the overall hygienic level of urban waste disposal.
3, swing-arm garbage trucks have high adaptability and flexibility. It can adapt to different types and capacities of trash cans, including outdoor public places, industrial areas and residential areas. At the same time, the swing-arm garbage truck has a compact design and can be operated in narrow streets and alleys without causing traffic congestion, which is conducive to smooth urban traffic.
Howo 4x4 drive system mounted swing arm garbage truck
SINOTRUK Howo swing arm garbage trucks are of great significance and value to the construction of Southeast Asian countries. The following is a detailed summary:
- Garbage cleaning and disposal: SINOTRUK Howo swing arm garbage trucks can efficiently clean up and dispose of garbage, providing a clean living environment. In Southeast Asian countries, urbanization and population growth have led to increasingly prominent garbage problems. The use of swing-arm garbage trucks can improve the efficiency and quality of garbage cleaning and effectively reduce the health and environmental problems caused by garbage.
- Resource recycling: SINOTRUK Howo swing arm garbage trucks help promote the development of garbage resource recycling. It can classify and sort garbage, recycle recyclable and reusable items, reduce the consumption of natural resources, and promote environmental sustainable development.
- Improving the level of urban management: Using SINOTRUK Howo skip loader trucks can improve the level of urban management in Southeast Asian countries. It enables rapid collection and efficient processing of waste, reducing the risk of waste leakage and the spread of disease. By improving the efficiency and standardization of waste management, it helps to improve the urban environment and the quality of life of residents.
- Building a clean and beautiful city image: SINOTRUK Howo swing arm garbage trucks can help Southeast Asian countries build a clean and beautiful city image. It can quickly wash and clear garbage and pollutants on the streets, making the city tidier and more livable. Improving the urban environment not only improves the quality of life of residents, but also helps attract tourists and investment and promote economic development.
- Environmental protection and sustainable development: The use of SINOTRUK Howo swing arm garbage trucks can promote environmental protection and sustainable development in Southeast Asian countries. Proper disposal of garbage can help reduce the emission of pollutants and waste of land resources, protect the ecological environment, and create a good foundation for future sustainable development.
To sum up, SINOTRUK Howo swing arm refuse trucks are of great significance and value to the construction of Southeast Asian countries. It can improve the efficiency of garbage cleaning and processing, promote resource recycling, improve urban management, build a clean and beautiful city image, and promote environmental protection and sustainable development. The use of SINOTRUK Howo swing arm garbage trucks will improve residents' quality of life, promote economic development, and achieve sustainable development of cities and society.
Howo skip refuse truck in factory
Howo skip loader truck in factory
Howo 4x4 skip refuse truck
Howo 4x4 skip refuse truck
How to operate howo skip refuse truck
The swing-arm garbage truck is an efficient garbage disposal tool that has some special requirements for export in Africa.
1, due to the complex traffic conditions and difficult road conditions in Africa, swing-arm garbage trucks need to have sufficient maneuverability and adaptability. It should be able to navigate narrow streets and narrow lanes, and be able to handle the challenges of uneven roads and muddy areas. This requires the swing-arm garbage truck to have strong driving force and a stable suspension system to ensure smooth operation under complex road conditions.
2, since there are relatively few garbage treatment facilities in Africa, garbage trucks need to have a certain degree of self-sufficiency. Swing-arm garbage trucks should be able to carry sufficient garbage capacity and have efficient garbage compaction and sealing functions to reduce the number of transportation times and the emission of garbage odor. In addition, the swing-arm garbage truck should also have a reasonable intelligent control system, which can intelligently schedule according to the garbage filling situation and transportation route, so as to improve the operating efficiency and resource utilization of the garbage truck.
3, due to the harsh environmental conditions in Africa, swing-arm garbage trucks need to be durable and corrosion-resistant. Africa's climate is variable, with large fluctuations in temperature and humidity, so the mechanical components and exterior coatings of garbage trucks need to withstand the test of time and harsh environments. In addition, there are risks of biodiversity and disease transmission in Africa. Swing-arm garbage trucks need to have certain protective measures to prevent garbage, dust or germs from affecting workers and the environment.
SINOTRUK HOWO skip loader swing-arm garbage truck ahve below advantages:
HOWO 76 classic cabin
10 cbm skip body
Front axle drive system
4x4 drive system
Hydraulic lifting system
Howo skip refuse truck
