Products Description

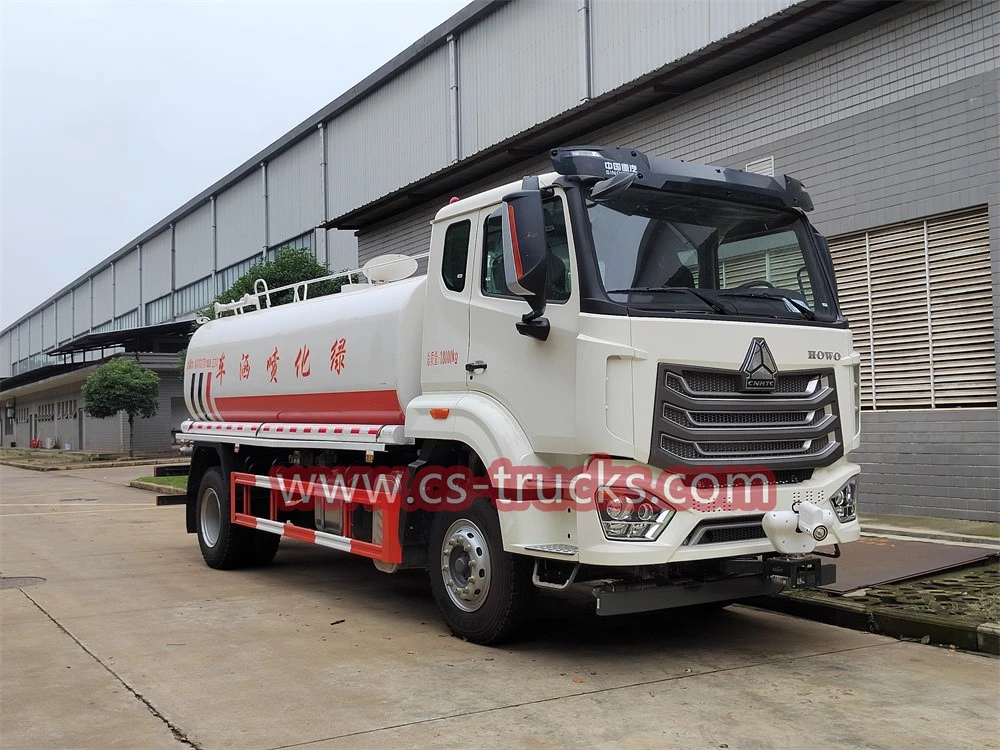

Howo tandem water truck is a type of vehicle used for transporting large quantities of water to construction sites, mining operations, or other places where water is needed. It is typically a heavy-duty truck equipped with a large water tank mounted on the back.
The howo tandem water truck is designed to carry a significant amount of water, usually ranging from 2,000 to 5,000 gallons or more, depending on the specific model and requirements. The tank is made of durable materials, such as steel or polyethylene, and is fitted with baffles to prevent water from sloshing around during transport.
The water truck is equipped with a pump and a spray system, allowing the water to be sprayed or distributed as needed. It can have various types of nozzles and hoses to accommodate different applications, such as watering dusty roads, suppressing dust on construction sites, or filling water tanks or pools.
Key Features
1. Large capacity: Sprinkler trucks generally have a large water tank capacity and can carry a large amount of water.
2. Good cleaning effect: The sprinkler truck is equipped with a high-pressure spray device, which can spray water onto the ground or buildings to generate strong momentum.
3. High flexibility: The water spray system of the sprinkler truck has an adjustable function, and the spray angle and water flow intensity can be adjusted as needed.
4. Easy to use: The sprinkler truck is simple to operate. You only need to add the water source to the water tank and adjust the working status of the sprinkler and sprayer through the control panel to start working.
5. Environmental protection and energy saving: The sprinkler truck adopts efficient and energy-saving water spray technology, which can reduce water waste and energy consumption.
Technical Specification
The CS trucks supplies water tanker lorries based on various chassis, such as ISUZU, HOWO, FAW, Shacman, FOTON, JAC, IVECO, etc. According to the different needs of customers, we can customize tanks of different materials, such as carbon steel, stainless steel and aluminum alloy.
| Overview | |
| Name | HOWO 4*2 12-15Ton Water Tank Truck |
| Dimension(LxWxH) | 8600,8400,8100×2480×3100,3300 |
| Total Mass | 18000kg |
| Rated Payload | 10550kg |
| Curb Weight | 7320kg |
| Passenger | 3 |
| Approach/Departure Angle | 19/12(°) |
| The Parameters of Chassis | |
| Model | ZZ1187 |
| Driving Type | 4X2 left/right hand drive |
| Wheelbase | 4700mm |
| Gearbox | 8speed forward and 2 reverse, manual |
| Tire | 10.00R20 18PR |
| The Number of Tires | 6+1(spare tire) |
| Front/Rear Suspension | 1980/1860 |
| Brake system | Service brake:dual-circuit pneumatic brake Parking brake:energy storage spring air cutoff brake Auxiliary brake:engine exhaust brake. |
| The Parameters of Engine | |
| Manufacturer/Model | WP4.6NQ220E61 |
| Rated Power | 220Hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 4580ml |
| Emission Standard | Euro3 |
| The Parameters of Equipment | |
| Tank Capacity | 12-15m3 |
| Tanker Material | Carbon steel |
| Front flushing water spraying width | 15-20m |
| Rear platform sprinkler anti-aircraft gun lift | 30-35m |
| Vertical suction head of sprinkler pump | 6m |
| Standard Configuration | Front flushing, rear spraying, side spraying, S-type water spraying anti-aircraft gun, fire interface |
| Optional | 30-120m spray |
Howo 4x2 drive water bowser truck
What is the meaning of howo water truck in mining area?
Howo water sprinkler truck
Howo water truck
Sprinklers are of great significance in mines. A mine is a place where ore or other materials are mined, and the working environment is harsh and dusty. The sprinkler truck reduces the dust in the mine by spraying water mist, purifying the air and protecting the health of workers.
1, sprinklers can effectively control dust in mines. In open pit mines, mining operations generate large amounts of dust. These fine particles not only pollute the air, but also cling to equipment, roads and buildings, causing visible pollution.
Dust poses a serious threat to human health, can easily cause respiratory diseases, and may irritate workers' eyes. The sprinkler truck sprays water mist to moisten the dust and make it settle to the ground, reducing suspended particles in the air and greatly reducing the harm of dust to workers.
2, sprinklers also contribute to mine firefighting efforts. Fire hazards are often encountered in mines because the ore contains some combustible substances, and once out of control, the fire will spread quickly. The sprinkler truck can quickly reach the fire source and reduce the risk of fire spread by spraying large amounts of water mist. Sprinklers can also provide additional fire-extinguishing agents to rescuers, increasing the success rate of fire-fighting efforts.
3, sprinklers can also improve the working environment of mines. The roads in the mines are dusty due to frequent transportation vehicles. The visibility of the roads is low and traffic safety problems are prominent.
By spraying water mist on the road, the sprinkler truck can not only reduce the flying dust and improve the visibility of the road, but also reduce the friction coefficient of the road and reduce the occurrence of slip accidents. By improving road conditions, sprinklers provide guarantee for the mine's transportation work.
