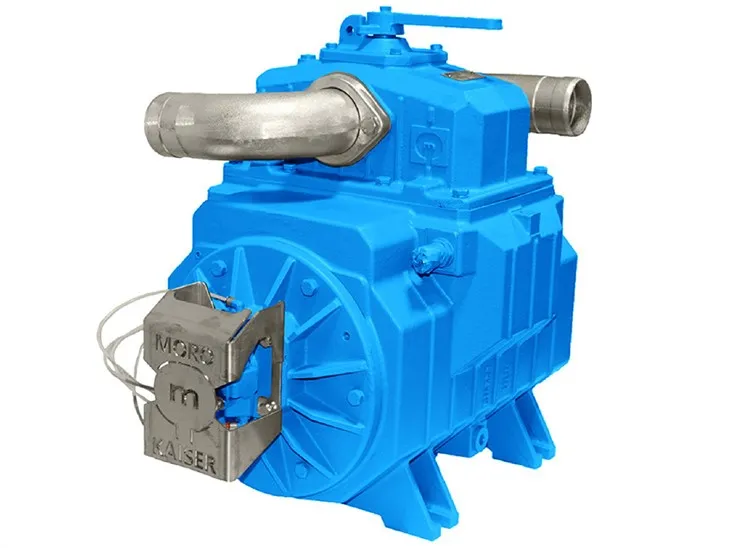

MORO Vacuum Pumps And Parts

MORO vacuum pump air series PM70A PM80A

MORO vacuum pump water series PM80W PM110W

Wooden package for safety transportation

Customized New MORO AIR series radiant cooled vacuum pumps represent the most elevated standard in the technology of the vacuum suction and they are studied on a purpose for an employment in the industrial or agricultural sector. The applied technology is the one of the radial rotary vanes pump. The AIR flow range is currently constituted by various base pumps models, with different air courses, for which they are available various versions in accordance of the capacity required. The body pumps, realized in cast iron to tall resistance, had been projected to guarantee the maximum reliability and to favor the heat exchange. The air entry and exit lights have been studied in the optics of the noise and heat produced reduction. The correct operation of the pump is insured by the forced lubrication with oil pump. The oil tank is incorporated. The vanes are realized for standard applications. A special inspection hole practiced in the body pump allows to make its usury with a visually check. The no return valve and the 4 ways valve are integrated in the pump. The entry and exit elbows are flange coupling and can be directed in accordance of the requirements of the final use. The New AIR series models are predisposed for the upgrade with in-jet system to improve the heat exchange of the pump in the heavy duty use. Thanks to the industrialization of the product, the New AIR range vacuum pumps share the almost totality of the components.

1. Automatic lubrication with pistons pump.
2. Kit Tall Resistance for high temperature, foresees resistant vanes and special Viton oil seals.
3. Exit curves predisposed for receiving the pressure relief valve, vacuum relief valve and gauge.
4. Hydraulic or pneumatic actuator change over type for the 4 way valve.

Customized New MORO Water series liquid cooled vacuum pumps represent the most elevated standard in the technology of the vacuum suction and they are studied on purpose for an employment in the agricultural or industrial sector. The applied technology is the one of the radial rotary vanes pump. The WATER range is currently constituted by 3 base pumps models, with different air courses, for which there are several versions available in accordance of the required capacity. The pump’s body, realized in high-resistant cast iron, has been projected to guarantee the maximum lasting reliability and to favor the heat exchange. The air inlet and outlet ports have been studied to reduce both noise and heat produced. The increase of heat exchange has been granted by the introduction of a liquid-cooling circuit, which improves the time of the pump use. The vacuum pump is standard fitted with a water-recirculating pump. The correct operation of the vacuum pump is insured by the forced lubrication with piston pump. The oil tank is incorporated. The vanes are of a high-heat-resistant composite material. A special inspection hole in the flanges allows the visual check of their wear. The Viton seals grants a better resistance of the pump to high temperatures. The non-return valve and the 4-ways valve are integrated in the pump. The inlet and outlet elbows are flanged and can be directed in accordance of the requirements of the final use.

1. Outlet curves predisposed for the mounting of pressure relief valve, vacuum relief valve and manometer.
2. Hydraulic or pneumatic actuator change over type for the 4-way valve.
