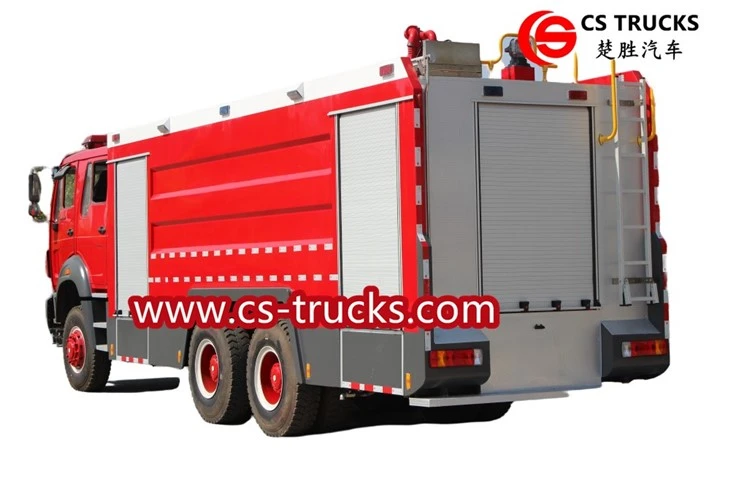

The Beiben GP80 foam and water fire truck is our multi-function combined fire truck which adopts our new technologies, new processes, new materials, independent research and development, using Beiben 2634 truck cabin chassis, Shanghai CB10 / 80-XZ fire pump, 2000kg foam and 10000L water tank system and the use of Chinese reducing valves, and PL64 fire monitor. It is suitable for large and medium-sized cities public security fire brigade, petrochemical companies, ports, wharfs and other professional fire brigades.
Technical Specification
Vehicle
| G.V.W | 34000 kg |
| chassis weight | 9400 kg |
| Max speed | 90km/h |
| Seat (inc. driver) | 6 |
| Max. power | 283kw/380Hp |
Chassis
| Brand | BEIBEN |
| Drive type | 6x4 |
| Cab | double cabin with four doors |
| Wheelbase | 4325+1350mm |
| Max. speed | 90km/h |
| Min. turning diameter | 18.6m |
| Engine type | inline six-cylinder, four-stroke, water cooled, turbocharged and intercooled engine |
| Model | WEICHAI |
| Max. power | 283kw/380Hp |
| Clutch | Monolithic, dry |
| Gearbox model | Manual, |
Cab
| Structure | Rotatable type |
| Seat | 1+1+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded air breathing apparatus fixed mount in the seats |
Fire pump
| Manufacturer | Chinese brand |
| Model | CB10/80 |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Foam proportioner | PH64x3 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Fire monitor
| Model | PL64 |
| Position | Rear roof |
| Flow | 64L/s |
| Pressure | 0.8 MPa |
| Range | water≥70m ,foam≥60m |
| Rotation angle |
horizontal: 360°, Pitching: -15° to 80° |
| Operation type | Manual |
Training and Capacity Building: The Police foam fire truck Beiben serves as a platform for training and capacity building for firefighting personnel. The vehicle is equipped with simulation systems, allowing firefighters to practice various scenarios under controlled conditions. These training exercises enhance the skills, knowledge, and confidence of firefighters, preparing them to tackle complex emergency situations effectively. The truck's training capabilities contribute to the overall professionalism and efficiency of the Fire Brigade.
Detail pictures
Police foam fire truck Beiben plays a crucial role in the emergency response and rescue operations conducted by the Fire Brigade of the Republic of Congo. The vehicle is equipped with modern firefighting and rescue equipment, specifically designed to combat fires and hazardous incidents effectively. Its positive impact on the emergency management of the Fire Brigade of the Republic of Congo extends to various aspects:
1. Fire Suppression: The Police foam fire truck Beiben is equipped with a high-capacity foam extinguishing system. Foam is highly effective in extinguishing flammable liquid fires by creating a blanket on the surface, cutting off the oxygen supply and suppressing the flames. This capability is essential in dealing with incidents involving petroleum products, chemical spills, or other combustible materials. The truck's foam system enhances the firefighting efforts of the Fire Brigade, enabling them to rapidly and effectively suppress fire outbreaks.
2. Mobile Command Center: The Police foam fire truck Beiben serves as a mobile command center for emergency response operations. It is equipped with advanced communication systems, enabling real-time coordination and communication between firefighters and incident commanders. The truck is equipped with a command desk, display monitors, and a comprehensive communication network, allowing for efficient management of rescue operations. This enhances situational awareness and facilitates effective decision-making during emergencies.
3. Rescue Capabilities: In addition to firefighting capabilities, the Police foam fire truck Beiben is equipped with specialized rescue equipment. This includes hydraulic tools, such as spreaders and cutters, for extrication during vehicle accidents or collapsed structures. The truck also carries emergency medical equipment, including stretchers and first aid supplies, enabling firefighters to provide immediate medical assistance on-site. The integration of these tools allows the Fire Brigade to swiftly respond to various emergency situations, ensuring the safety and well-being of individuals involved in accidents or disasters.
4. Enhanced Mobility and Accessibility: The Police foam fire truck Beiben is designed with off-road capabilities, enabling response to incidents in diverse terrains, including urban areas and remote regions. Its powerful engine, sturdy tires, and high ground clearance ensure mobility in challenging environments. The truck's robust construction allows it to navigate through debris, flooded areas, or uneven terrain, providing prompt and effective emergency response wherever needed. This enhances the Fire Brigade's ability to reach incident locations quickly, minimizing response time and reducing potential hazards.
