ISUZU 30 CBM rear loading compactor (also known as waste collection truck, waste compactor vehicle, or garbage packer truck) is built for municipal solid waste collection and transport. This ISUZU 30 cbm garbage compactor truck handles daily tasks like collecting household waste from residential areas, picking up commercial refuse from shopping centers, or compacting bulk waste at transfer stations. With a 30 CBM body and 380 HP Euro 6 engine, its 6×4 chassis handles both city streets and access roads to landfill sites with ease. It delivers dependable service for municipal sanitation departments, private waste contractors, and industrial facility operators.
*ISUZU 30 cBM Rear Loading Compactor Vehicle *
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guarantee all products Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
➤ Chassis: ISUZU GIGA 6×4, 380 HP 6UZ1-TCG61, Euro 6, FAST 12-speed gearbox
➤ Compactor Body: 30 CBM sealed carbon steel body, 1:3–1:4 compression ratio, horizontal ejection discharge
➤ Loading System: Rear loading with bucket lifting mechanism (≥800 kg capacity), 8–10s fill time, 20–25s compression cycle
➤ Hydraulic System: 16 MPa pressure, CAN-BUS electrical control, manual hydraulic backup
➤ Application: Municipal waste collection, commercial refuse handling, industrial waste transport, landfill operations
» II. Product Parameters for ISUZU 6X4 Rear Loader Truck:
| Product Name | ISUZU 30 CBM Rear Loading Compactor Vehicle | ||
| Overall | Vehicle Model | CS5350ZYS | |
| Drive Type | 6*4 | ||
| Gross Vehicle Weight | 35000 kg | ||
| Curb Weight | 9200 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 9900*2550*3550 mm | ||
| Engine | Engine Model | 6UZ1‑TCG61 | |
| Fuel Type | Diesel | ||
| Power | 380 HP (279 kW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 9839 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU | |
| Drive Type | 6X4 (left hand drive) | ||
| Tire No. | 10 tires and 1 spare tire | ||
| Tire Specification | 12R22.5 | ||
| Wheelbase | 4600+1370 mm | ||
| No. of Axle | 3 | ||
| Transmission | FAST 12 speed levers with 2 reverse | ||
| Cabin | Cab Capacity | 3 persons allowed | |
| Air Conditioner | Heating/cooling air conditioner | ||
| Superstructure | Garbage Tank | 30 CBM | |
| Filling Time | 8-10s | ||
| Compression Cycling Time | 20-25 s | ||
| Discharging Type | Horizontal Ejection | ||
| Control System | Electrically Hydraulic control Manual hydraulic control |
||
| Hydraulic System Pressure | 16Mpa, 160Bar | ||
| Plat Form | 2 side for 2 worker for foot transport | ||
| Ways of Loading | Rear loading with optional bucket lifting style | ||
| Lifting Capacity of Turnover Mechanism | ≥800KG | ||
| Garbage Compact Ratio | 1/3 - 1/4 | ||
| Optional | ** Back alarm and Camera can be equipped. | ||
| ** Italy mulit-valve can be choose. | |||
| ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose. | |||
» III. Product Description:
ISUZU GIGA 10T Crane Truck Chassis
● Cabin: GIGA VC61, 3 seats with A/C, power windows, radio, USB, LHD
● Engine: 6UZ1-TCG61, 380 HP, inline 6-cylinder, 9.839L, Euro VI
● Transmission: FAST 12-speed manual (12F+2R)
● Body: 30 CBM sealed carbon steel, 1:3–1:4 compression ratio
● Tires: 12R22.5, 10 + 1 spare
● Hydraulics: 16 MPa, CAN-BUS control
● Loading: Rear loading with bin lifter, ≥800 kg capacity
ISUZU 30 CBM Rear Loading Compactor
● Compaction Performance: High-strength carbon steel body with 30 CBM capacity, compression ratio reaches 1:3 to 1:4. Filling takes 8–10 seconds, compression cycle 20–25 seconds.
● Hydraulic System: Operates at 16 MPa with CAN-BUS electric control and manual backup. Smooth and reliable for compaction, bin lifting, and horizontal ejection.
● Loading & Discharge: Rear loading with bin lifter (≥800 kg capacity). Horizontal ejection system ensures stable, safe discharge without tipping risk.
● Efficiency & Control: 12-speed FAST transmission and 380 HP engine for stop-and-go routes. Side control panels allow operator to manage all functions from the roadside.
» IV. ISUZU 30 CBM Trash Compactor Truck Operating Principle:
♦ High-Efficiency Compaction: The hydraulic system runs at 16 MPa, driving the compaction mechanism to reduce waste volume by 1:3 to 1:4. Each compaction cycle takes 20–25 seconds, with fill time as quick as 8–10 seconds per load.
♦ Powerful Loading Capacity: Rear-loading design handles standard 240L, 660L, and 1100L bins. The bin lifter delivers ≥800 kg lifting capacity, making it suitable for both residential and commercial waste collection routes.
♦ Stable Discharge System: Horizontal ejection pushes the entire compacted load out of the body in one smooth operation. No hydraulic tipping required, eliminating the risk of overturning on uneven ground at landfill sites.
♦ Smart Control & City Performance: CAN-BUS control system with roadside operation panels keeps the operator safe on busy streets. The 6×4 chassis with 380 HP engine and 12-speed FAST transmission handles stop-and-go collection routes and highway travel to disposal sites with equal ease.
Product Details
ISUZU rear loader electrical control panel
Garbage compactor vehicle hydraulic control valve assembly
Rear load trash truck hydraulic oil tank with level gauge
Side emergency operation push‑button box
Compactor lorry loading hopper hydraulic cylinder
ISUZU refuse compactor truck compression ram
» Ⅴ. ISUZU 30 CBM Compactor Truck Solutions:
ISUZU 6x4 30 CBM Rear Loader Garbage Truck For Municipal Streets
ISUZU 6x4 30 CBM Solid Waste Garbage Truck For Residential Communities
ISUZU 6x4 30 CBM Waste Compaction Truck For Waste Transfer Stations
ISUZU 6x4 30 CBM Rear Load Trash Truck For Industrial Parks
» Ⅵ. ISUZU 30 CBM Refuse Compactor Truck Exterior Scenes :

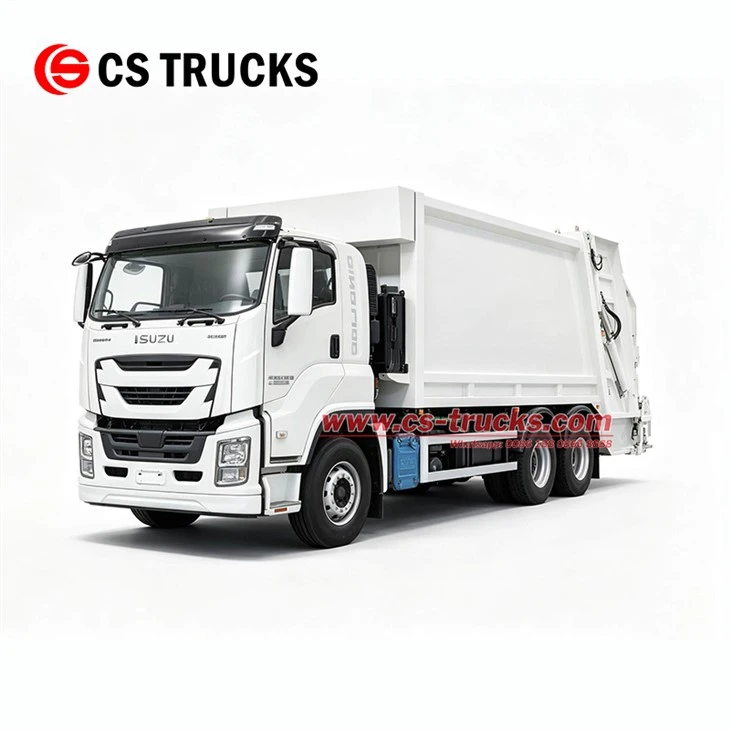

Front Right view of ISUZU 30 CBM Rear Loader Trash Compactor Truck 380HP Euro 6
Front left view of ISUZU 30 CBM 380HP 6x4 Rear Loading Compactor Vehicle
Right view of ISUZU 380HP 30 CBM Rear End Loader Garbage Truck

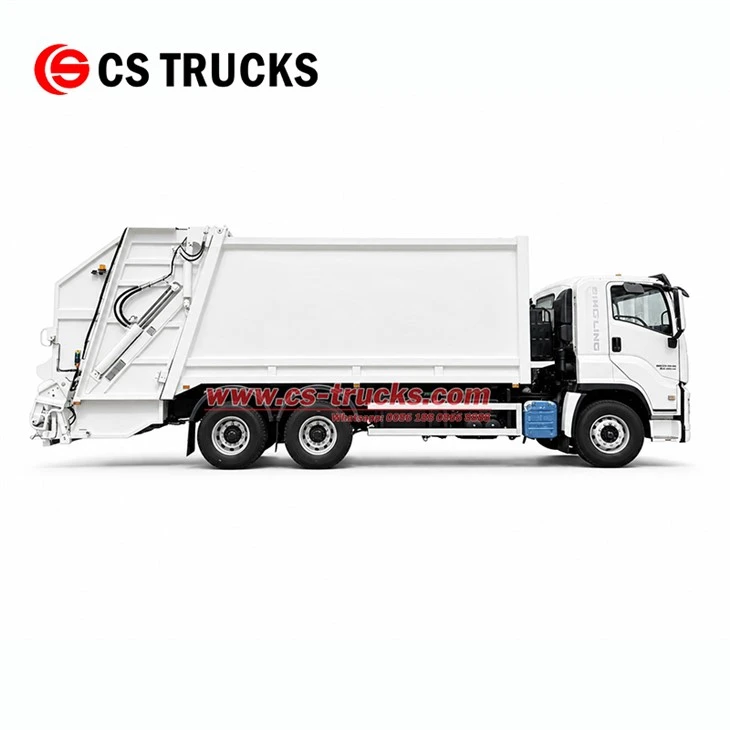

Left view of ISUZU 6UZ1-TCG61 380HP 30 CBM 6x4 Rear Packer Garbage Compactor

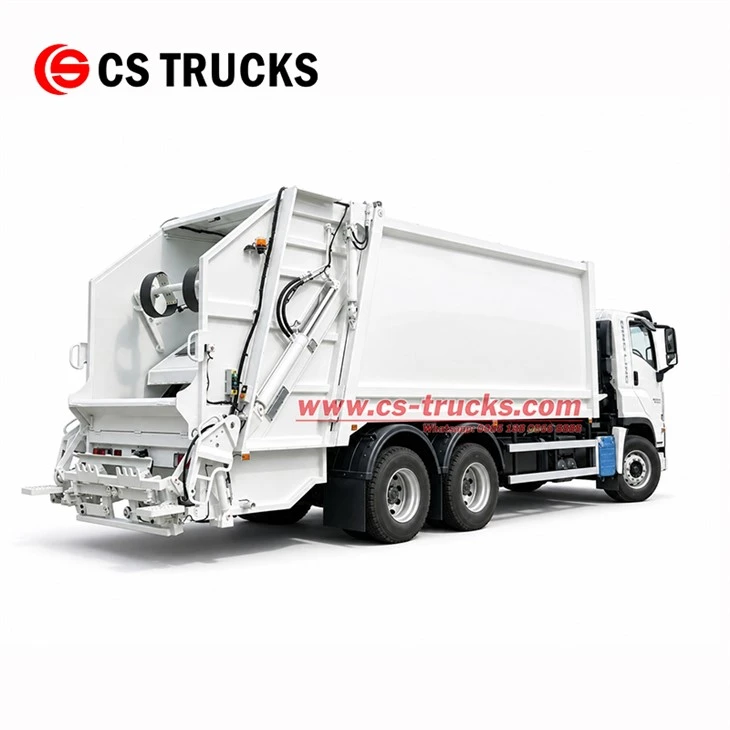

Rear right view of ISUZU 30 CBM 380HP Rear Load Refuse Compactor Truck

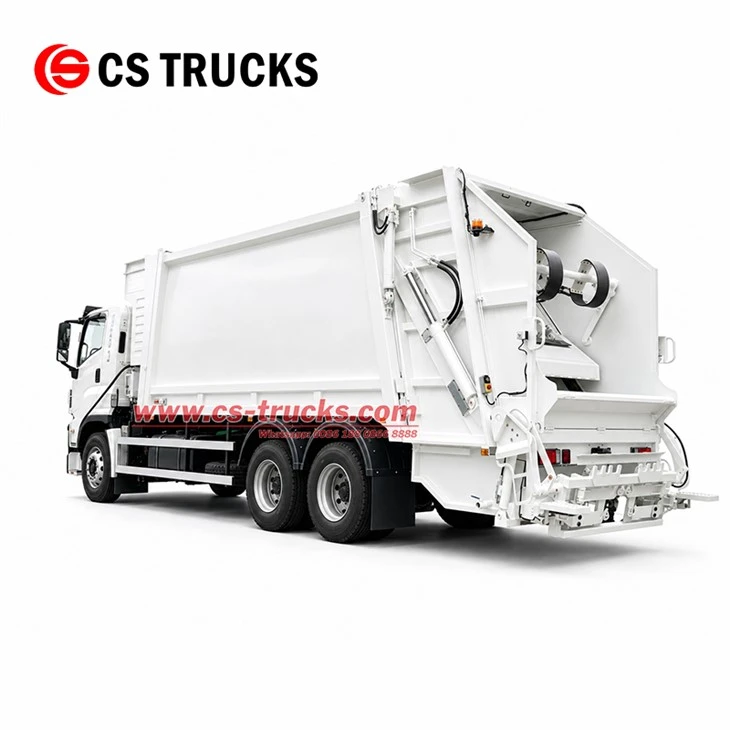

Rear left view of ISUZU Euro 6 380HP 30 CBM Rear Loading Trash Packer Vehicle

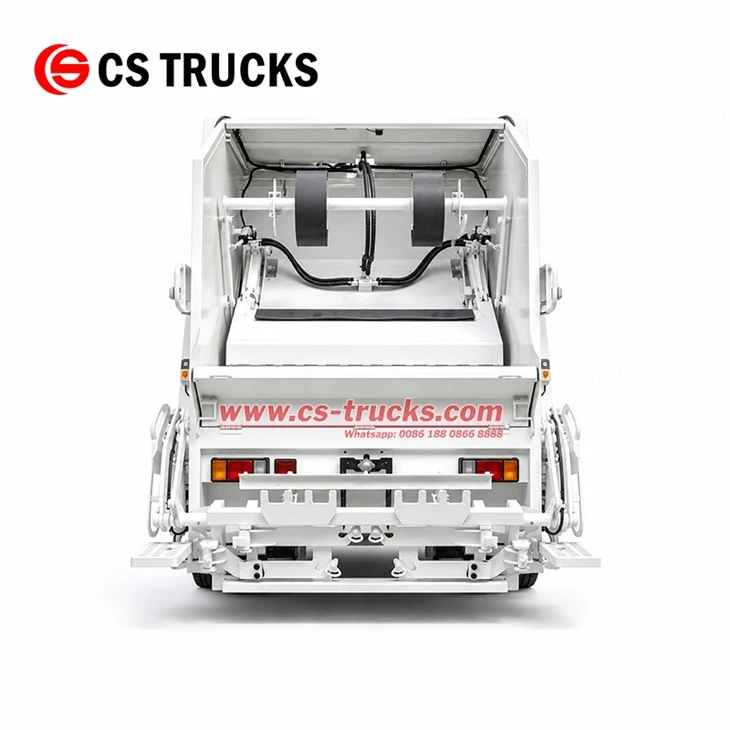

Rear view of ISUZU 6x4 380HP 30 CBM Rear Loader Garbage Compactor
Products--100% China ISUZU factory trucks!
Shipping-- 100% fast, Convenient, Efficient!
Guarantee --7 days + 24 hours Safety Service!
1. ISUZU 6×4 Compactor Truck Chassis: Built on ISUZU GIGA 6×4 platform with 6UZ1-TCG61 diesel engine delivering 380 HP + FAST 12-speed manual transmission, designed for municipal waste collection, commercial refuse transport, and landfill operations in urban and industrial settings.
2. High-Capacity Compactor Body: Manufactured from high-strength carbon steel, featuring 30 CBM sealed body with 1:3–1:4 compression ratio, 8–10s fill time, and 20–25s compression cycle, finished with anti-corrosion coating for long service life in demanding sanitation environments.
3. Rear Loading & Bin Lifting System: Equipped with rear-loading mechanism and bin lifter, compatible with 240L, 660L, and 1100L standard bins, ≥800 kg lifting capacity, with CAN-BUS electric control and manual hydraulic backup for reliable operation.
4. Stability & Safety Features: 6×4 drive with 12R22.5 tires (10+1), 16 MPa hydraulic system, 8T front axle and 13T×2 rear axles. Air brake system with dual-circuit pneumatic brake, and leaf spring suspension for reliable performance on city streets and access roads to disposal sites.
