Mobile Refuse Compactor

Name: Mobile Refuse Compactor - China Mobile Refuse Compactor Manufacturers Suppliers Factory - CS Trucks
Brand: CS Trucks
SKU: 222507894

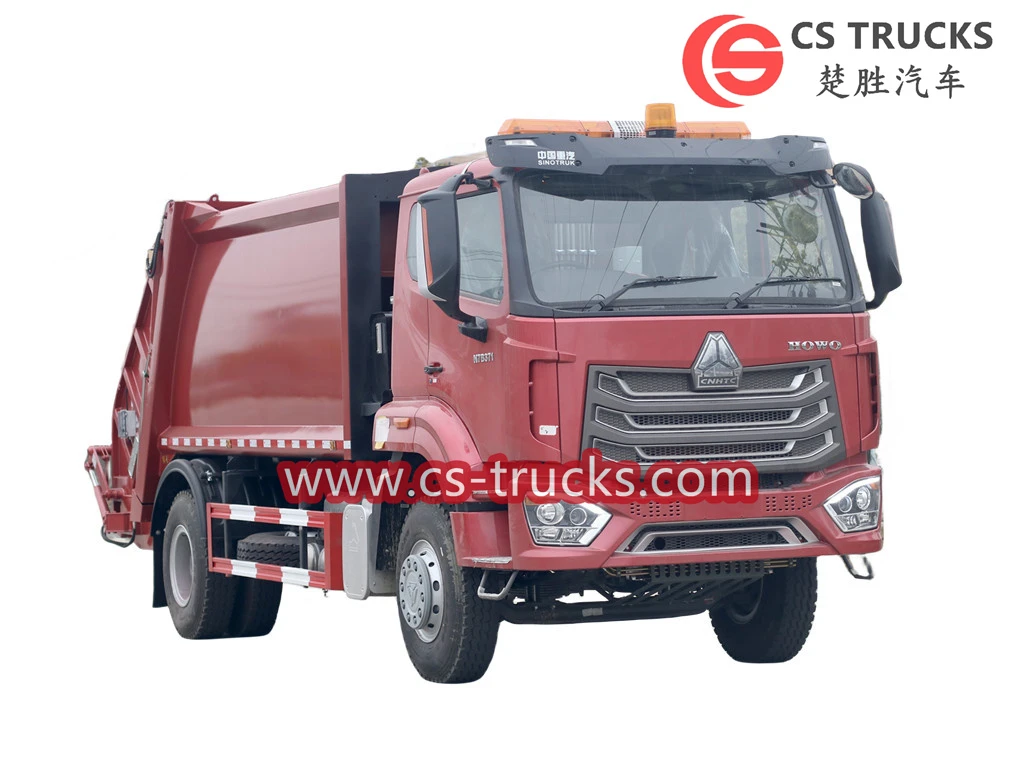

RHD Sinotruk HOWO 14m3 garbage truck compactor work
Our factory is professional manufacturer in truck area, and guarantee all goods Brand-New and High-quality.This Howo RHD 14cbm garbage compactor truck, based on HOWO 6x4 truck chassis and mounted with WEICHAI diesel engine 300HP, HW19710 model 10shift manual gearbox, 10 forward and 2 reverse, curve shaped with reinforce frame compactor body, 14 cbm loading capacity, CAN-BUS electric control system, both can be optional inside cabinet or at rear hopper, foot stand and handle can help workers collecting garbage on the street in Africa.Painting and Logos 100% customized.

Model: CSC5160ZYS
Capacity: 14 CBM
Drive: 4×2
Engine power: 300 HP
Engine type: WEICHAI

Send Inquiry

Description

Products Description

Sinotruk HOWO Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage. It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times. CS TRUCKS is world famous and professional garbage compactor truck manufacturer.

TECHNICAL SPECIFICATION FOR HOWO 14CBM REFUSE COMPACTOR TRUCK
Main specification	Chassis brand	SINOTRUK HOWO
	Chassis model	ZZ1167
	Overall dimension(LWH)	8680×2500×3170mm
	Gross / Curb weight	16,000kg / 9,200kg
Chassis	Drive modle	4x2 Right hand drive
	Wheel Base	4600 mm
	Tyre size & number	12.00R20 radial tires , 10+1 with one spare tyre
	Fuel/Engine type:	6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
	Engine model	WP10.300E22
	Engine horse power	300HP
	Emission	Euro II
	Cab	HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers ,with A/C
	Transmission	HW19710, 10 speed forward 2 reverse.
Garbage tank	Waste box capacity	14 cbm
	Thickness	Side: 5 mm ; Bottom: 5 mm
	Material	Carbon steel, inner epoxy anticorrosive
	Function	Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket; The imported computer control system, automatic compression and dumping function, and manual operation to guarantee and improve the usage of truck. Full sealing garbage box design can make the dirty water flow into water box directly when compressing, completely avoid secondary pollution while transporting.Also rear rolling garbage bucket or rolling garbage hopper tilting device are optional according to customers' de

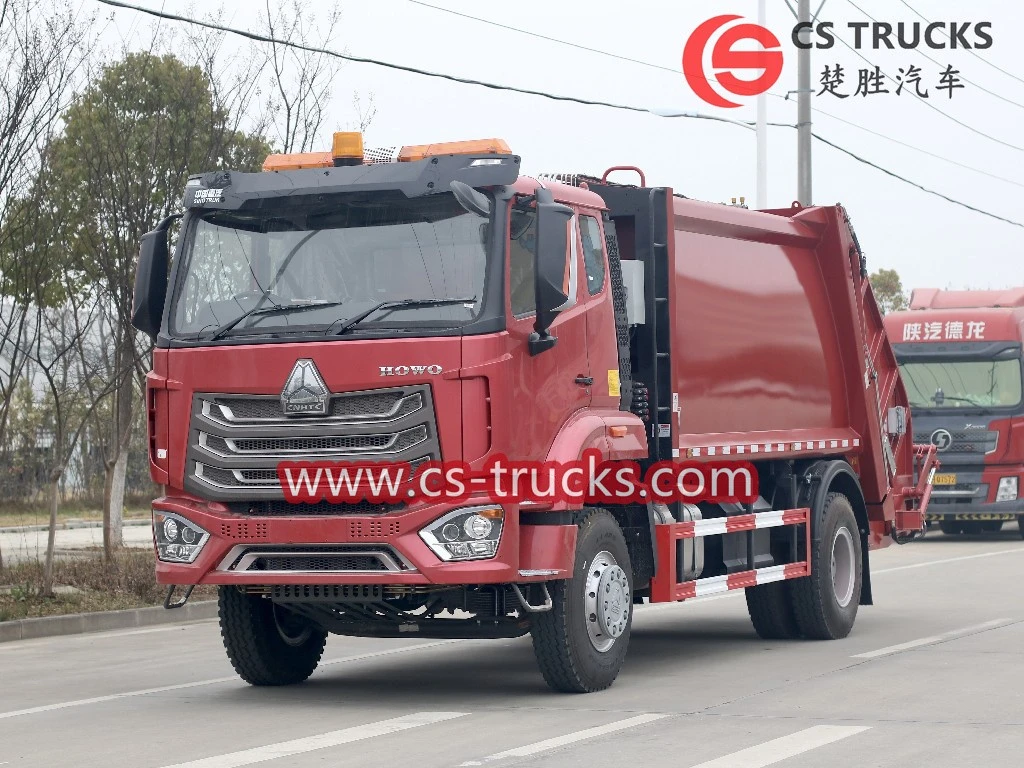

Howo garbage truck with compactor

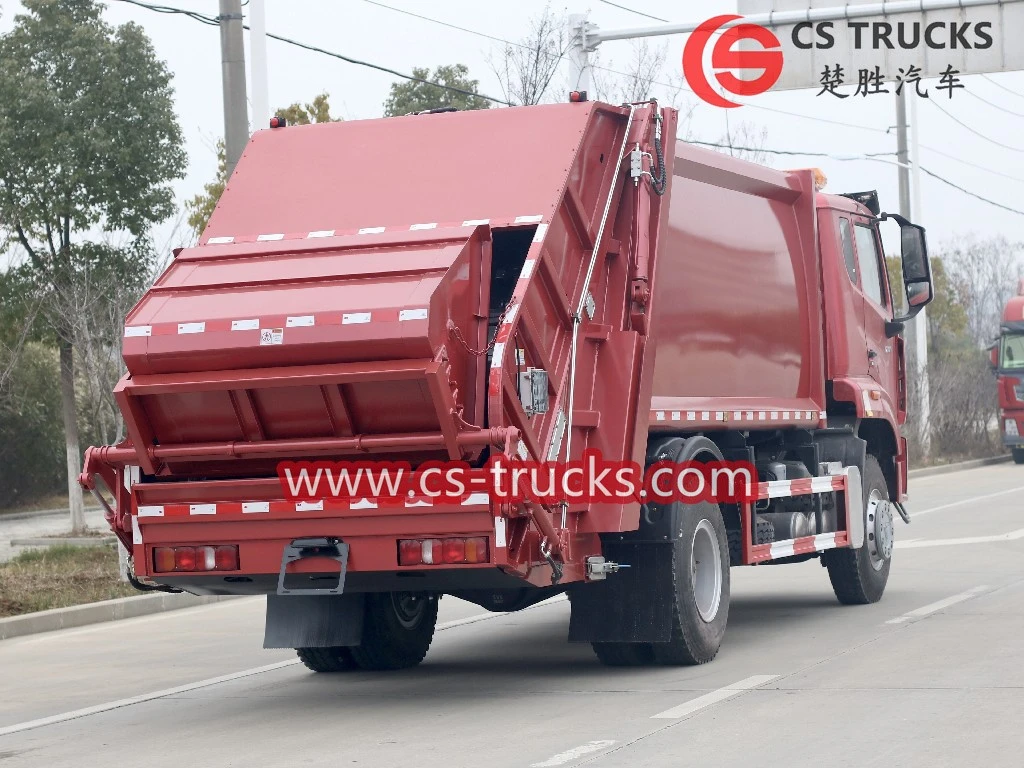

10 yards rear loader compactor truck

main features for howo rear loader garbage compactors

Hydraulic system key units of valve, cylinder and pipeline have advantages of easy to operation and maintenance, advanced structure and reliable performance.
Advanced electric controlled system, imported of PLC integrated controls, machine-electric-liquid control integration, the level of automation is high.
Push plate valve are equipped with balance valve which can made push plate move forward to the front of the container during double compressing garbage, thus providing a big space for loading garbage.
Beautifully outward appearance, upper vehicle adopt high-strength antirust steel plate which can prolong the vehicle’s operation life.
It is convenient to operate; control boxes are separately installed in the cab and vehicle end. The control box installed in the cab can control the operation of dumping garbage and selective mode (such as automatic or hand-operated); the control box installed on the vehicle end can control the operation of stuff mechanism and overturn bucket mechanism.
Accelerator control can realized full-automatic control by control electric system, which meet the power needs of operation of compressing and dumping garbage; in other working condition, engine get into idle state automatically that can reduce power wasting and faults rate.
Rearview monitor system of optional is offered, It is very convenient to perform visible load and unload operation in the cab.
Two controls of automatic control and hand-operated control are offered, greatly increased vehicle utilized rate.
The machine was installed with emergency stop which can stop working whatever state and position stuffing mechanism reached, ensure that the staff and equipment are safety.
Basket equipment and overturn mechanism are optional, user can select collecting mechanism of optional according to the way of collecting garbage.

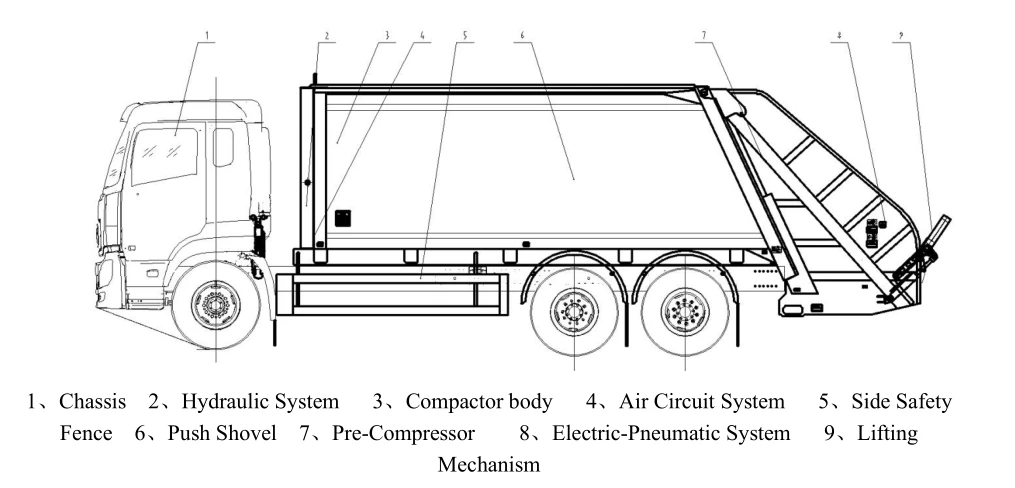

CS TRUCKS garbage compactor features

How to operate the garbage compactor trucks

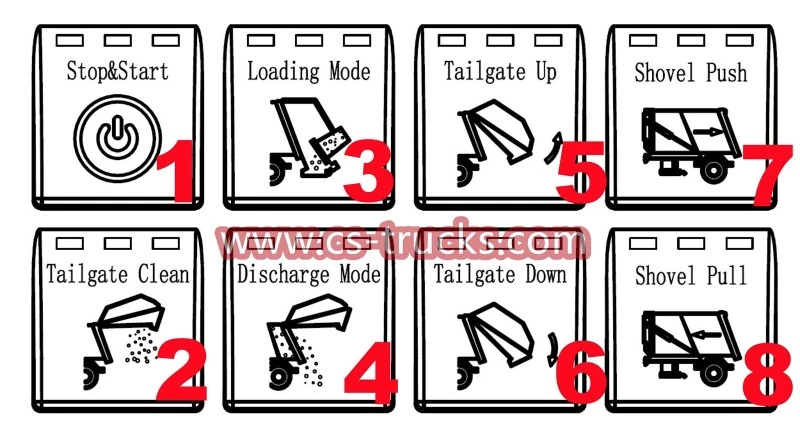

1. The control panel in the cab is located on the upper left side of the control console in the cab, as shown as below, which have totally 8 buttons and makes it possible for the operator to unload garbage without getting off the truck.

CS TRUCKS in cabin control box

Serial number	Button name	Function description
1	Panel start-stop	Press this button, the panel is powered on, and the button indicator light turns green
2	Clean-up	Press this button, the compressing-filling mechanism will carry out one "Compression cycle" and clean up all garbage inside the pre-compress when the pre-compressor is in the lift state.
3	Loading mode	Press this button, the truck is switched to loading mode and the operator can control the loading operation button at the rear of the truck for loading operation.
4	Unloading mode	Press this button, the truck is switched to the loading mode and the operator can control the unloading operation button inside the cab to carry out the unloading operation, while the loading operation is not accessible.
5	Pre-compressor lift	Press this button when the truck is in the unloading mode, the pre-compressor begins to lift up; release this button, the pre-compressor stops lifting
6	Pre-compressor drop	Press this button when the truck is in the unloading mode, the pre-compressor begins to fall down; release this button, the pre-compressor stops falling
7	Push Shovel push-out	Press this button when the truck is in the unloading mode, the push shovel starts to push out; release this button, the push shovel stops pushing
8	Push Shovel retract back	Press this button when the truck is in the unloading mode, the push shovel starts to retract back; release this button, the push shovel stops retracting

2. The rear control panel is installed on both sides of the end of pre-compressor, as shown as below. Wherein, the right button box can be used by the operator to carry out the functions of lifting and tilting can (bucket), compressing and filling; the left manual valve can control the opening and closing of the pneumatic pre-compressor cover (this function is only applicable for vehicles equipped with bucket-tilting mechanism as the feeding mechanism); and the left single-hole button is the emergency stop button.

CS TRUCKS rear hopper control box

Serial number	Button name	Function description
1	Once-through cycle	Press this button, the compressing-filling mechanism carries out the compressing-filling cycle with scraper opened, slider downwards; scraper closed and slider upwards
2	Working Light	Press this button, light up indicator in the rear of the pre-compressor; press it again, the indicator light off
3	Continuous cycle	Press this button, the compressing-filling mechanism carries out multiple "Once-through cycle"; press this button again, the compressing-filling mechanism stops after completing this cycle; press the "Emergency stop" button, the compressing-filling mechanism can stop at the current position immediately.
4	Manual control	Press this button, every action of the compressing-filling mechanism can be manually controlled :"Scraper open", "Scraper closed", "Slider upwards", "Slider downwards"
5	Scraper open	Press this button in manual mode, the scraper open; release this button, scraper stops
6	Scraper closed	Press this button in manual mode, the scraper close; release this button, scraper stops
7	Slider upwards	Press this button in manual mode, the slider goes upwards; release this button, slider stops
8	Slider downwards	Press this button in manual mode, the slider goes downwards; release this button, slider stops.
9	Down/up	This Knob can be used to control the action of the lifting mechanism. When switching the knob to “down”, the lifting mechanism performs the descending action; when switching the knob to “up”, the lifting mechanism performs the ascending action; when loosening the knob, the lifting mechanism stops.
10	STOP	Press this button and all actions stop at the current position
