Isuzu Giga 22cbm compact garbage truck, also call Giga rear load garbage trucks, CS trucks is the industry leader in Isuzu Giga garbage truck body design and specialized refuse body manufacturing. Since 2005, we have built a reputation for quality, durability, and innovation in the solid waste industry.
Features
1.The truck is equipped with domestic advanced Isuzu chassis, imported hydraulic and electrical components, which are stable and reliable performance. The drum shape structure is simple and elegant, and made of high-strength manganese, which is strong and durable.
2.Big carriage volume, two-way compression technology, horizontally compression cylinder, high compressed capacity and strong loading capacity.
3.Using composite seal and good anti-acid EPDM seal, they are both good sealing performance. There are sewage tanks to collect water in front and rear compartments, to prevent secondary pollution.
4.It’s easy and flexible to joint operate with manual and PLC control. All operating actions can be completed in the cab, which enhance reliability and improved safety and comfort.
5.Engine power output is automatic, lower fuel consumption and more economy.
6.Stuffing box has a safety valve lift mechanism and explosion-proof valve, which can improve the safety and also double insurance.
7.The feeding mechanism can choose bucket mechanism (with 330L steel or 240L plastic barrel), the arm mechanism (with 5 m³ ship-shape bucket) .
Local display
Technical Specification
-
CS TRUCKS is a leader in the waste industry with an excellent reputation for customer service and reliable rebuilt refuse trucks and packer bodies. We specialize in reconditioning used roll-off trucks, rear loaders, front loaders and other types of trash, garbage and recycling trucks. If you are in the market for new, used or refurbished refuse equipment give CS TRUCKS a chance to earn your business.
-
We build from 6 cbm up to 25 cbm Compact garbage truck Giga Isuzu
Procompactor Type CS 6 m³ CS 7 m³ CS 10 m³ Capacity 6+1 m3 7+1 m3 10+1 m3 Compression Ratio 1:3 1:3 1:6 Loading Capacity 6 m3 7 m3 10 m3 Body Material St-52 St-52 St-52 Hopper Capacity / Materials 1 m3 / Q345 1 m3 / Q345 1 m3 / Q345 Loading Manual / Automatic Manual / Automatic Manual / Automatic _________________________________________________________________
Procompactor Type CS 13 m³ CS 14 m³ CS 15 m³ Capacity 13+1,5 m3 14+1,5 m3 15+1,5 m3 Compression Ratio 1:6 1:6 1:6 Loading Capacity 13 m3 14 m3 15 m3 Body Material St-52 St-52 St-52 Hopper Capacity /Materials 1 m3 / Q345 1 m3 / Q345 1 m3 / Q345 Loading Manual / Automatic Manual / Automatic Manual / Automatic _________________________________________________________________
Procompactor Type CS 18 m³ CS 20 m³ CS 22 m³ Capacity 18+1,5 m3 20+1,5 m3 22+1,5 m3 Compression Ratio 1:6 1:6 1:6 Loading Capacity 18 m3 20 m3 22 m3 Body Material St-52 St-52 St-52 Hopper Capacity / Materials 1 m3 / Q345 1,5 m3 / Q345 1,5 m3 / Q345 Loading Manual / Automatic Manual / Automatic Manual / Automatic

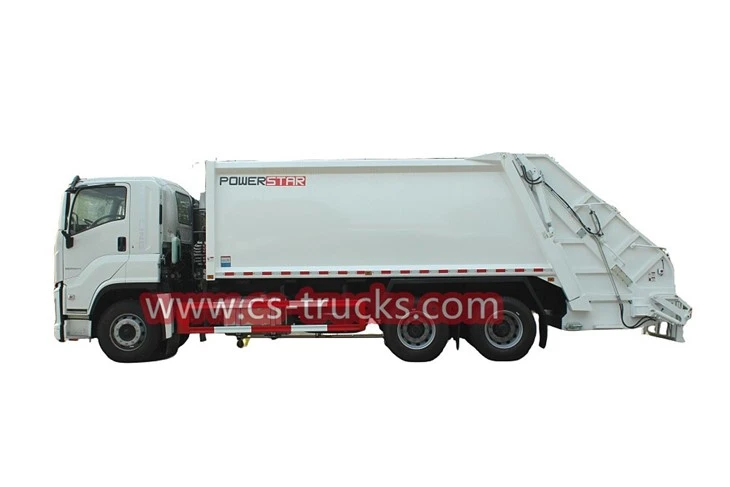

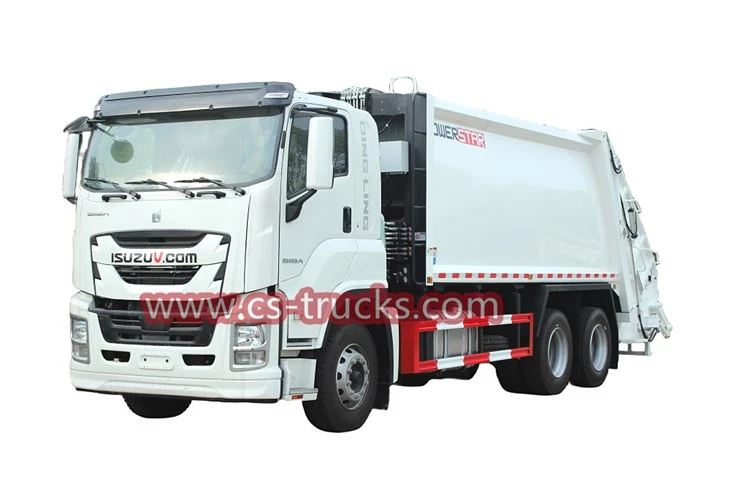

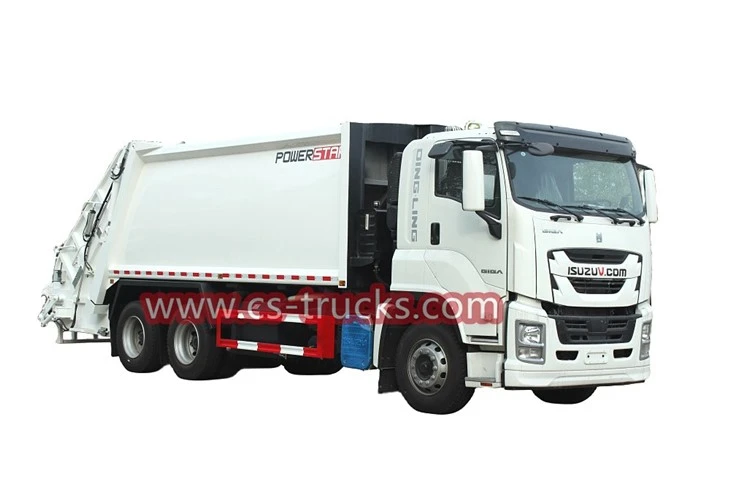

Detail pictures
