BEIBEN 2642 Hook Lift Garbage Dump Truck (also known as hook lift refuse truck, hook arm dump truck, telescopic arm loader truck, container carrier truck, or mobile waste transfer unit) is specifically engineered for comprehensive urban solid waste management, with wide applications in municipal garbage transfer stations, residential community collection points, industrial waste disposal, and construction material recycling operations. Featuring 20-ton payload capacity and 420HP power output, its 6×4 drive chassis ensures powerful performance under demanding waste handling conditions, delivering effective container lifting and transportation solutions for modern waste management requirements.
The lifting capacity of the BEIBEN 2642 hook lift truck is 20 tons, constructed with high-strength Q355 steel as the primary manufacturing material. The hook arm structure employs reinforced steel plates with optimized structural design in high-stress pivot areas. This hook lift truck is equipped with professionally engineered hydraulic lifting systems, control valve assemblies, and container locking mechanisms, integrated with efficient waste transfer components.

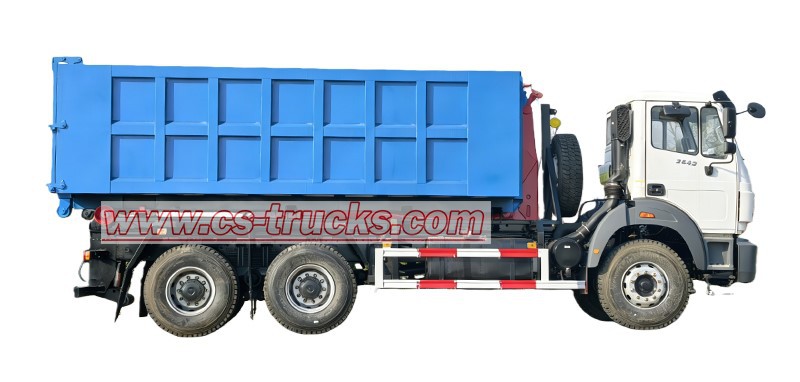

*BEIBEN 420HP Roll on Roll off garbage truck*
-----------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
I.Product Defination and Introduction
Manufacturer: CS TRUCKS
Features:
1.BEIBEN 2642 Hook Lift Truck Chassis: Powered by WP12.420E32 diesel engine with rated output of 420HP (308KW), paired with FAST 12-speed manual transmission system, specifically calibrated for heavy-duty waste collection and urban transportation applications.
2.Hook Arm Lifting Structure: Manufactured from Q355 high-strength steel, featuring telescopic arm design with dual hydraulic cylinders and integrated rear outriggers, with professionally applied protective coating treatment.
3.Hydraulic Lifting System: Custom-configured complete hydraulic system designed for 20-ton container handling, delivering 50-second lifting cycle time with reliable operational performance under 30MPa system pressure.
4.Container Handling Equipment: Standard 5600×2300×1500mm open-top container system with dual operational modes (dump-type and detachable-type), with optional remote control systems, multiple container configurations, and intelligent safety modules for diversified waste management scenario adaptation.
5.Safety Control System:
- Integrated mechanical safety locks and overload protection valves ensuring operational safety during lifting procedures.
- Configured with dual control systems (in-cab electrical control and wireless remote control) providing operational flexibility and safety during container exchange operations.
II.Product Parameters for BEIBEN 2642 Hook Loader Dumpster Garbage Truck
| Product Name | BEIBEN 2642 Hook Lift Garbage Dump Truck | ||
| Overall | Vehicle Model | CSC5250GB | |
| Drive Type | 6*4 | ||
| Gross Vehicle Weight | 26000 kg | ||
| Curb Weight | 9400 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 9500*2500*3500 mm | ||
| Engine | Engine Model | WP12.420E32 | |
| Fuel Type | Diesel | ||
| Power | 420 HP(308KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 11596 ml | ||
| Max.torque | 1750N·m | ||
| Engine Type | 6 cylinders, in-line, 4-stroke, water-cooled,turbo inter-cooling, 4-valve, diesel engine | ||
| Chassis | Chassis Brand | BEIBEN | |
| Chassis Model | BEIBEN 2642 | ||
| Tire No. | 10+1 spare tire | ||
| Tire Specification | 13R22.5 | ||
| Wheelbase | 4100+1450 mm | ||
| Gear Box | FAST 12 gears frowards and 2 reverse | ||
| Steering Wheel | Left hand drive | ||
| Radiator | Suitable for tropical climate | ||
| Cabin | Configuration | Beiben NG80B single air suspension cab, with air conditioner, allowable 3 passengers, with ABS, with air suspension seat | |
| Color | White,other color is optional | ||
| Lifting System | Dumper | All-metal,size L*W*H (5.6m*2.3m*1.5m), about 20 cubic meters | |
| Sidewalls | Sheet carbon steel (thickness: 5 mm) | ||
| Bottom | Sheet carbon steel (thickness: 6 mm) | ||
| Discharge Time | 40S-50S | ||
| Discharge System | lifting/dump type | ||
| Dump Angle | 50 degree | ||
| Hydraulic System Pressure | 30 Mpa | ||
| Standard Equipemnt | ITALY BRAND Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. Operation way: Manual and Wireless remote control operation. Five 20m3 dumper box. |
||
III.Product Details
1.Hook Arm & Container System
♦ The 20-ton hook arm system is constructed with Q355 high-strength steel and designed for efficient lifting and transportation of standardized waste containers.
♦ The hydraulic cylinder housing features integrated pressure relief valves with automatic locking mechanisms, and all load-bearing structures comply with international CE safety standards.
♦ The container bottom is equipped with reinforced structural design, and the rear hydraulic tilting mechanism supports complete 50-degree dumping of waste contents.
2.Powertrain System
♦ The WP12.420E32 in-line 6-cylinder water-cooled turbocharged intercooled diesel engine delivers 420HP (308KW) peak power, achieving Euro 3 emission standards with 11,596ml displacement.
♦ The FAST 12-speed manual transmission paired with 4,100+1,450mm wheelbase chassis configuration provides powerful traction and reliable operational performance for heavy-duty hook lift truck operations in diverse waste handling conditions.
3.Hydraulic Control System
♦ The hook arm system achieves efficient container handling through professional multi-circuit valve design, with the hydraulic control unit ensuring precise extension/retraction of rear stabilizers and lifting/lowering of the telescopic arm.
♦ The CE-certified hydraulic control valve block is equipped with integrated pressure gauge that provides real-time system monitoring, ensuring safe operation during all loading and unloading procedures.
♦ The control system integrates dual operation modes (in-cab & wireless remote) and safety interlock functions, allowing flexible adjustment of lifting speed and angle to meet various operational requirements.
4.Beiben 2642 Roll Off Container truck Electric Control box
♦ The control panel features a logically arranged switch interface, where each dedicated control switch corresponds to a specific hydraulic function-including hook arm lifting/lowering and container locking/unlocking-enabling centralized remote operation of the vehicle's core waste-handling systems.
♦ Designed for operational clarity and efficiency, this console allows the driver to execute all essential dumping, lifting, and securing tasks directly from the cab, streamlining the workflow for various container transfer and waste discharge operations.
IV.vacuum pump Operating Principle
Manufacturer: CS TRUCKS
This hook lift truck is equipped with a 20-ton high-capacity telescopic-arm hook loader kit, where a heavy-duty hydraulic system paired with dual-stage lifting cylinders serves as the core components for achieving powerful loading performance. The system supports both synchronized container lifting and independent stabilizer extension, and all operations can be completed via the integrated control interface in the cab. It can efficiently handle various standardized waste containers, including open-top bins, roll-off boxes, compactors, and industrial bulk containers. The independent control design of the telescopic arm and stabilizer system further enhances operational precision, adapting to loading scenarios of different ground conditions and spatial constraints.
Product Details
BEIBEN 2642 Cabin
Pressure Gauge And Air Valve
BEIBEN Truck With Manual Gearbox
Hydraulic Hook Loader Arm Device
Front Mounted Spare Tire
Hydraulic Oil Tank
Main Hydraulic Cylinder
Manual Globe Valve
BEIBEN Engine
v.Application Scenarios & Solutions
Hook Lift Garbage Dump Trucks for Industrial Park
Hook Loader Garbage Trucks for Waste Transfer Stations
hooklifts for Construction Sites
Hook Loader Dumpster Garbage Trucks for Municipal Streets
vI.Exterior Views
Front Right View of BEIBEN 2642 Hook Loader Dumpster Garbage Truck
Front Left View of BEIBEN 2642 Heavy Duty Hook Loader Garbage Truck
Right View of BEIBEN 20 Tons Hooklifts
Left View of BEIBEN 420HP Roll On Roll Off Garbage Truck
Rear Right View of BEIBEN 2642 Hook Lift Dumpster Truck
Rear Left View of BEIBEN 2642 Hook Lift Dump Truck
Front View of BEIBEN 2642 Hook Lift Trucks For Sale
Rear View of BEIBEN 2642 Hook And Lift Truck
vII.Discharge Operation Demonstration
Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price.
3.we can offer your a reliable after-sell service.
4.we have skilled professinal design team.
5.promptly delivery. any order is welcome.
We CS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
