Products Description
Super Sucker Vacuum Truck, named as super vacuum tank truck, super vacuum pump truck. It is a powerful municipla waste management equipment used for city living and industrial field. In normal situation, it utilizes italy MORO PM80A vacuum system to quickly collect and delivery liquid solids, sludge, and debris.
This howo off road 10 wheeler vacuum truck is equipped with advanced filtration systems to ensure that only the desired substances are retained . Its innovative design and engineering make it suitable for handling hazardous materials, reducing the risk of exposure to harmful substances. The super sucker truck is also built to withstand harsh and demanding environments, guaranteeing its durability and long service life.
Key Features
----►Weichai 400Hp engine, super reliable.
----►6x6 drive system, compete with tough road
----►ZF8098 steering system, military assurance.
----►HC16 double rear axle, Germany technology
----►Italy MORO PM80A pump, super assurance.
Technical Specification
The howo 6x6 off road drive Super Sucker Vacuum Truck is a powerful and efficient industrial italy moro vacuum pump, which specializes in removing liquid and solid waste from various environments. With a capacity to contain up to 8,000 gallons of material, howo 6x6 drive vacuum suction truck is an essential tool for any heavy-duty cleaning operation.
|
Manufacturer |
CS Trucks |
|
|
Item |
HOWO |
|
|
Brand |
ZZ5257 |
|
|
Model |
CSC5280XW |
|
|
Production Time |
40 days |
|
truck chassis |
||
|
Specification |
Overall dimensions |
8900×2500×3300 mm |
|
Gross weight |
42,000 kg | |
|
Kerb weight |
12,500 kg | |
|
Wheelbase |
4325+1350 mm | |
|
Driving type |
6*6 |
|
|
Chassis model |
HOWO | |
|
Tire size |
12.00R20 | |
|
Passengers in cab |
3 |
|
|
Engine |
Engine model |
WD615 |
|
Type of fuel |
Diesel |
|
|
Power |
400 HP | |
|
Gearbox |
Fast 9-shift gearbox |
|
upper body |
||
|
Water Tanker performance |
Tank Capacity |
20,000L |
|
Tank Material |
6 mm carbon steel with antiseptic treatment |
|
|
Vacuum Pump |
WEILONG |
|
| MORO PM80A | ||
|
Suction Time |
250 s |
|
|
Maxium vacuum |
≥ 95° |
|
|
Free air flow |
720 m /h | |
|
Suction hose |
7m length with DN 100 mm |
|
|
Rear cover |
Hydraulic control |
|
|
Control Panel |
English |
|
|
Discharging system |
Gravity discharge or pump out from tank body. |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Color & LOGO |
According to wish |
|
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent |
|
Cesspool truck detail

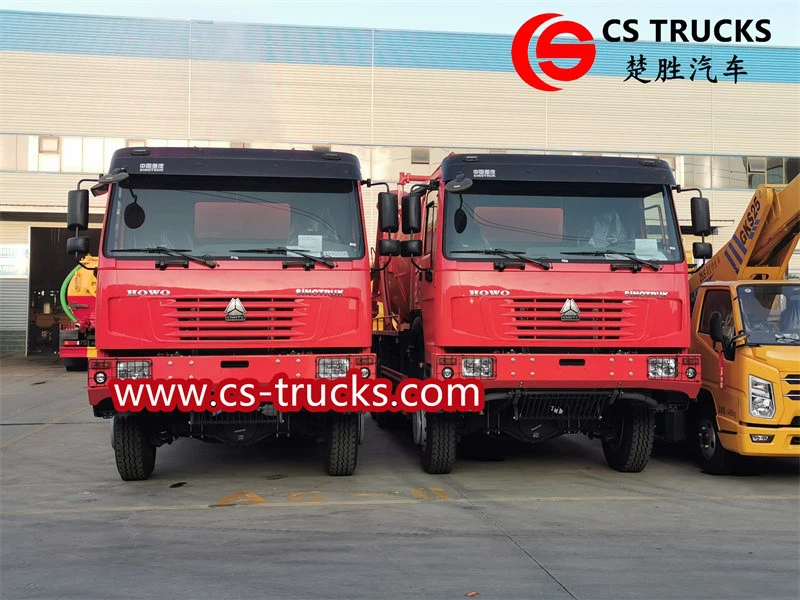

Howo classic cabin
6x6 drive system
Vacuum tanker body
drive axle
Moro PM70A vacuum pump
Hydraulic cylinder
Septic vacuum truck knowledge
HOWO off road 10 wheeler Sewage suction truck is a special vehicle for cleaning and transporting sewage, sludge and other wastes. It has the following 4 characteristics:
1, Strong vacuum pump : Italy Moro vacuum rotary pump supply with efficient vacuum pump and negative pressure system, which can generate strong suction, absorb sewage and sludge, and store them in the sealed sewage tank inside the body.
2,Off road drive system: The sewage tank of HOWO sewage suction truck is with 6x6 drive system, which can easily use in africa tough road, forest , sand area.
3,Multifunctional use: In addition to cleaning up sewage and sludge, HOWO sewage suction truck can also be used to clean up rainwater and sewage outlets on the road, keeping the streets clean and hygienic.
4,Efficient transportation: HOWO sewage suction truck adopts an optimized chassis design, which makes it have better maneuverability and stability. It is suitable for various road conditions and working environments.

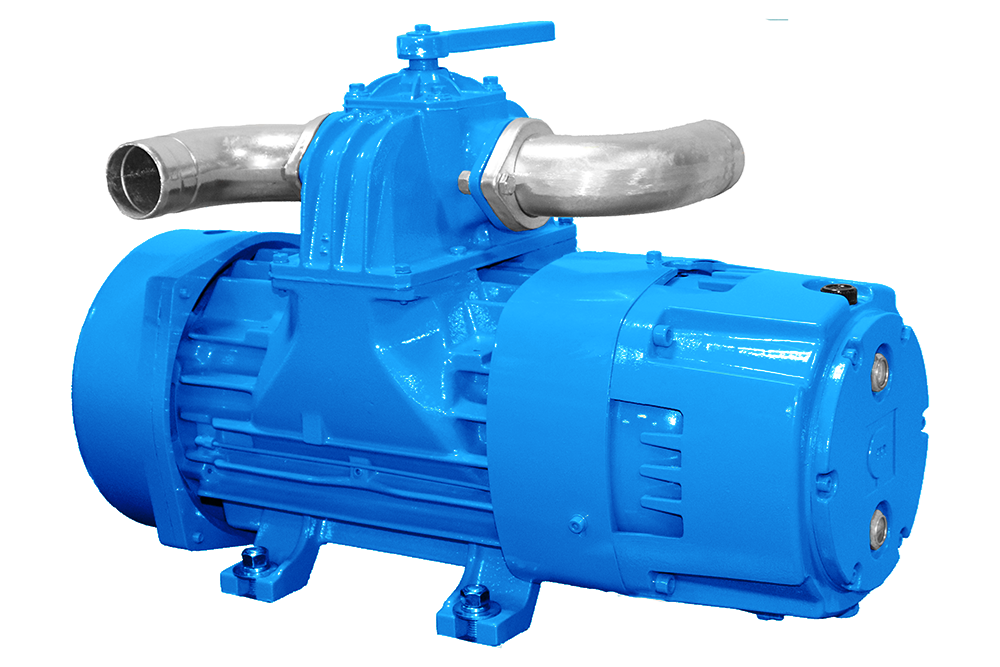

Moro PM80A vauum tank pump
Moro PM80A sewer tank pump
Moro PM80A vauum suction pump
Factory production
Super Sucker Vacuum Truck howo
Super Sucker Vacuum tank Truck howo
Super Sucker suction Vacuum Truck
Septic vacuum Truck Howo
Customize your own truck
Q: What is the advantage of howo 6x6 drive truck?
Howo 6x6 truck is a truck with unique design and powerful performance, the following are 5 main features about this truck:
1,Srong engine system: Howo 6x6 trucks are equipped with an efficient and reliable power system, equipped with advanced engines and high-performance transmission systems.
2,Strong off-road capability: The truck adopts a 6x6 drive system and has excellent off-road performance. Whether it is a rough mountain road, a muddy area or a steep slope, the truck can drive stably to ensure the safe transportation of goods.
3,Comfortable cab: The cab of the Howo 6x6 truck is designed to be spacious and comfortable, equipped with a humanized control system and advanced seats. The driver can maintain a good physical and mental state during long-time driving and improve work efficiency.
4,Large Load Capacity: The design and structure of this truck makes it have an excellent load capacity. Whether it is transporting construction materials, heavy machinery equipment or large cargo, Howo 6x6 trucks can easily handle it and meet various logistics needs.
Customized howo septic tank trucks
