Products Description
Septic Tank Cleaning Truck, is also named as septic tanker cleaner truck, septic vacuum tank truck. It is a speical tool truck that used for cleaning and deliverying septic tanks. It is usually converted from a large truck with two axles or 3 axles in order to carry and transport large quantities of water and waste. Howo septic vacuum tank truck have plenty of horse power and engine power , and enough load capacity to handle heavy-duty cleaning jobs.
The Septic Tank Cleaning Truck usually has a large steel material container, usually located in the rear of the howo truck chassis, that stores waste water and sludge waste. This carbon steel or stainless steel container has special sealing technology to prevent leaks and the smell of rotten meat. In some situation, when to clean septic tanks, this tightness is crucial to avoid contamination of the environment with harmful substances. This septic cleaning vehicle typically has a powerful pumping system that efficiently draws water and waste out of the septic tank.
Key Features
----►Weichai diesel engine, super reliable.
----►Howo own 12 shift transmission, good quality
----►ZF8098 steering system, military assurance.
----►HC16 double rear axle, Germany technology
----►400L fuel tank, suitable for long drive.
Technical Specification
The howo ZZ1257N4641W Septic Tank Cleaning Truck is also equipped with a professional exhaust and filtration system, to deal with odors and harmful substances from waste and to ensure that the air emitted is clean. In addition, some howo special septic tanker truck vehicles are equipped with metering systems, which can maximumly accurately measure and record the amount of water and waste used in the cleaning process.
Septic Tank Cleaning Truck Through an efficient cleaning process, it can regularly clean and maintain the septic tank to ensure its normal operation and reduce pollution to the environment. It is an important tool used to protect public health and keep the environment clean and healthy.
|
Manufacturer |
CS Trucks |
|
|
Item |
HOWO |
|
|
Brand |
ZZ1257N4641W |
|
|
Model |
CSC5260XW |
|
|
Production Time |
35 days |
|
truck chassis |
||
|
Specification |
Overall dimensions |
9900×2500×3300 mm |
|
Gross weight |
41,000 kg | |
|
Kerb weight |
12,500 kg | |
|
Wheelbase |
4600+1350 mm | |
|
Driving type |
6*4 |
|
|
Chassis model |
HOWO | |
|
Tire size |
12.00R20 | |
|
Passengers in cab |
3 |
|
|
Engine |
Engine model |
WD615.69 |
|
Type of fuel |
Diesel |
|
|
Power |
336 HP | |
|
Gearbox |
Fast 9-shift gearbox |
|
upper body |
||
|
Water Tanker performance |
Tank Capacity |
18,000L |
|
Tank Material |
6 mm carbon steel with antiseptic treatment |
|
|
Vacuum Pump |
WEILONG |
|
| Jurop PN106D | ||
|
Suction Time |
250 s |
|
|
Maxium vacuum |
≥ 95° |
|
|
Free air flow |
720 m /h | |
|
Suction hose |
7m length with DN 100 mm |
|
|
Rear cover |
Hydraulic control |
|
|
Control Panel |
English |
|
|
Discharging system |
Gravity discharge or pump out from tank body. |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Color & LOGO |
According to wish |
|
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent |
|

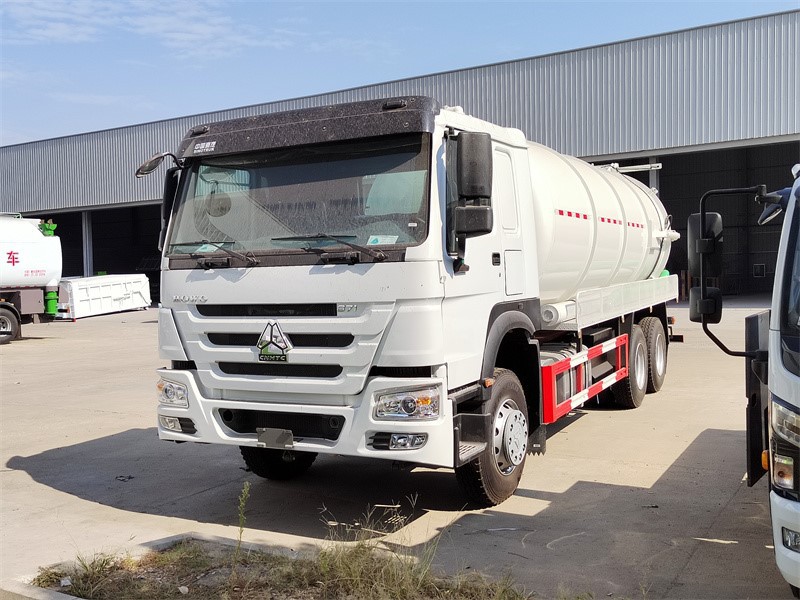

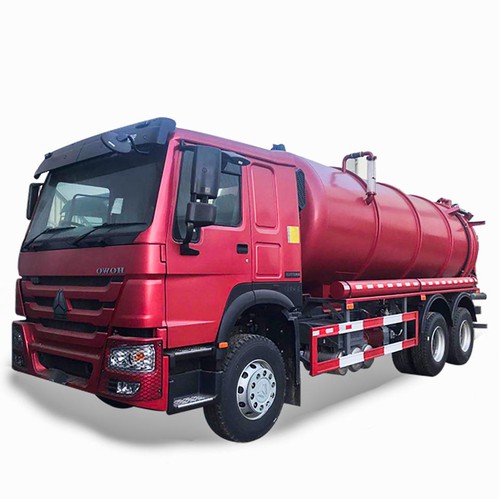

Cesspool truck detail
Howo heavy duty truck chassis
Classic front cabin face
Vacuum tanker body
Rear tank cover
Side protector and staroage box
Hydraulic cylinder
Septic vacuum truck knowledge
ⅰ,How are the howo brand vacuum tanker trucks working?
The Howo septic Vacuum Tanker Truck makes use of the PTO to get the power from truck engine, and the power drive the vacuum system working. Operation the valves to control the truck suction liquid sewage, adjust the throttle knob to make suction speed faster and slowly. After suction working, using Manual Operated Valves to control rear door Open/Close, and sewage tanker Rise/Fall. After working, cleaning the sewage tank, and ready for next time operation.
ⅱ,What is the main component for sinotruk vacuum pump truck?
The vacuum tanker truck is refitted based on the ISUZU GIGA 6x4 LHD chassis. The refit part includes Vacuum suction assembly, actuator device and operation system.
Vacuum suction assembly: One round shape vacuum sewage tank. 1 unit suction pipeline, whole suction system, including vacuum pump and system.
Actuator device: includes PTO, drive line, etc., which can pass the power to the pump.
Operation system: helps come to all special functions’ convert.
ⅲ, How to operate howo vacuum tanker trucks?
(1) Suction operation preparation
A, Keep the sewage tank rear door closed
B, Carefully check whether the lubrication of vacuum pump gas-oil separator working normally.
C, Press the clutch pedal and pull out PTO button to make PTO, Vacuum Pump and Gear Pump Working.
(2) Operations sequence (Detail figure)
A, Press the clutch pedal, adjust the PTO button, to get power from the truck engine and start the vacuum pump, then slowly release the pedal.
B, Start the safety alarm (in the cab)
C, Adjust the hand throttle joystick to largest position, and keep the revolution meter point to 500-600r/min (already has been set before out the factory)
D, Adjust the four-way valve to suction position (Front to LEFT POSITION and Rear to RIGHT POSITION), carefully check the released air, the vacuum pump sound, the vacuum meter.
Septic Tank Cleaning Truck is a truck specially designed for cleaning septic tanks. Its operation steps can be summarized in the following five points:
Preparation: Before starting the operation, the operator needs to put on proper protective equipment, such as gloves and a face mask, to protect himself from odors and pollutants. In addition, the location and surroundings of the septic tank need to be prepared to ensure that the work area is clear of obstructions.
Connecting the Line: The operator connects a line to the outlet pipe on the septic tank, making sure the connection is tight and there are no leaks. The other end of the line is connected to the sewage suction equipment on the cleaning truck, so that the sewage is sucked into the sewage storage tank of the truck.
Sewage suction process: The operator activates the sewage suction equipment of the cleaning truck, and pumps the sewage from the septic tank into the sewage storage tank of the truck through the principle of negative pressure. At this point, you need to wait patiently to ensure that the truck has sucked up all the sewage in the septic tank.
Cleaning the septic tank: Once the sewage in the septic tank has been sucked, the operator can use a high-pressure water gun to clean the dirt in the septic tank. The high-pressure water gun can generate a strong water flow to help wash away the dirt attached to the wall of the septic tank. During the cleaning process, the spray angle and water spray intensity of the water gun can be adjusted as needed.
Discharging Wastewater: Once the cleaning truck's sewage storage tank is full, the operator needs to discharge the wastewater to a suitable treatment site or sewage treatment facility. The discharge process must comply with environmental regulations and ensure that the waste water is treated safely to prevent environmental pollution.
The above is a summary of the operation steps of the Septic Tank Cleaning Truck. The five steps of preparation, connecting pipelines, suction process, cleaning the septic tank and discharging wastewater help to ensure the effective operation of the cleaning truck and keep the septic tank clean and hygienic .
Factory production
Septic Tank Cleaning Truck Howo
Septic Tanker Cleaning Truck Howo
Septic vacuum cleaning Truck Howo
Septic vacuum Truck Howo
Customize your own truck
Q: How to maintenance howo septic cleaning truck?
A:
Howo Septic Tank Cleaning Truck is a special vehicle for cleaning and maintaining septic tanks. When servicing howo Septic Tank Cleaning Truck, there are several key points to pay attention to:
Regularly check and change the hydraulic fluid of the hydraulic system: The hydraulic system of the howo Septic Tank Cleaning Truck is a critical part of its proper operation. Regularly check the quality and level of the hydraulic oil in the hydraulic system to ensure it is within the specified range. If the hydraulic oil has impurities, contamination or reduced levels, it should be replaced in time.
Cleaning and Maintaining the Vacuum Pump: The vacuum pump of the howo Septic Tank Cleaning Truck is a key component used to suck up and drain septic tank waste. Clean and maintain the vacuum pump regularly to ensure its good operation. When cleaning the vacuum pump, it should be operated correctly to avoid damage to key parts.
Check and clean the radiator: Howo Septic Tank Cleaning Truck generates a lot of heat during operation, and the radiator is responsible for dissipating this heat to maintain the normal operating temperature of the engine. Regularly check and clean the radiator to ensure that it can work properly and dissipate heat in time.
Regularly check and replace filters: Septic Tank Cleaning Truck's filters are used to keep solids and impurities out of critical components such as the engine and vacuum pump. Check and replace the filter regularly to avoid the accumulation of impurities and cause failure.
Check the tightness of the pipes and valves: The pipes and valves of the Septic Tank Cleaning Truck are responsible for drawing the waste from the septic tank into and out of the vehicle.
Regularly check the tightness of pipes and valves to ensure that there are no leaks. If leakage is found, it should be repaired in time. Servicing a Septic Tank Cleaning Truck requires an experienced service technician who is familiar with how this vehicle is built and works.
Customized howo septic tank trucks
