Products Description

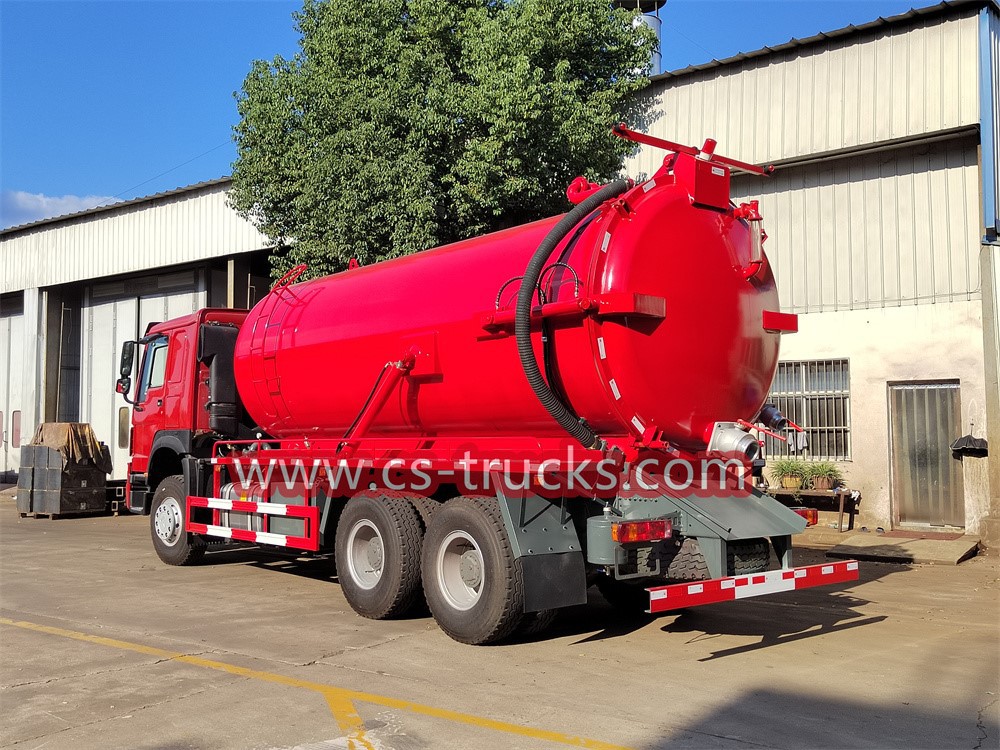

The vacuum pump sewage truck is a special engineering vehicle mainly used to absorb, transport and discharge sewage. It consists of a chassis, vacuum pump system, sewage storage tank and control system. the chassis of howo vacuum pump sewage trucks often uses heavy-duty truck chassis, which has large load-bearing capacity and good maneuverability. This kind of chassis usually adopts a four-axle and six-axle structure, which can adapt to long-term and high-intensity work requirements.
vacuum pump is the core component of the sewage truck. The vacuum pump system consists of a vacuum pump, discharge pipeline, valves, etc. It uses the principle of negative pressure to suck sewage from the storage tank into the vacuum pump system through the cyclic working process of suction and discharge, and then discharges or transfers it to a designated place.
Key Features
----► Howo 6x4 drive truck chassis.
----► Vacuum Sewer Truck tanker material optional for carbon steel or stainless steel 304;
----►Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;
----►Sewage suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;
----►Suction speed less than 10min and and discharge speed less than 8 min;
----►horizontal suction distance: within 80 meters;
Sewage tank specification
| Cabin |
Driving type 6*4 LHD/RHD Model ZZ HW76, 1bed, AC |
|
| Special device |
Chinese brand double pump, with HYVA hrdaulic system Tank material: carbon steel, 5mm |
|
| Overall Size(mm) | 9760*2500*3500 | |
| Tank capacity(mm) | 15,000liters | |
| Wheel base(mm) | 4600+1350 | |
| GVW(kg) | 25000 | |
| Front axle loading capacity(kg) | 1*7000 | |
| Rear axle loading capacity(kg) | 2*16000 | |
| Engine | Brand | Sinotruk |
| Model | WD615.47 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Displacement | 9.726L | |
| Bore*Stroke | 126*130mm | |
| Hose Power(HP) | 336HP | |
| Emission standard | Euro 2 | |
| Max speed | 82km/h | |
| Tire | 12.0-20, 12.00R20, 295/80R22.5, 12R22.5, 315/80R22.5 optional | |
| Transmission | HW19710 transmission, 10 forward and 2 reverse | |
| Steering | Z F81188 | |
| Fuel tank | 400L Aluminum alloy fuel tank | |
| Brake system |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
| Options |
Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data; Z F Gearbox PTO ADR |
|
How to train your vacuum truck driver
Vacuum sewage suction truck driver is a professional and technical position that requires special training and education to be qualified for this job. To train a qualified vacuum sewage truck driver, you need to pay attention to the following aspects:
1, driving skills are the basic requirements for training vacuum sewage truck drivers. Drivers must have proficient vehicle driving and operating skills, including familiarity with the use and maintenance of various vehicle equipment, good driving habits and a high degree of driving safety awareness.
2, drivers also need to understand various road traffic rules and have emergency response capabilities and crisis awareness. Secondly, learning about environmental protection and sewage treatment knowledge is also an important part of training vacuum sewage truck drivers. Drivers need to understand sewage treatment laws, regulations and related policies, master environmental monitoring and sewage treatment technology, be familiar with the use of various sewage pipelines and treatment equipment, and be able to perform reasonable operations according to different work scenarios.
3, communication and teamwork skills are also abilities required of a vacuum sewage truck driver. Drivers need to communicate effectively with customers, colleagues and superiors, understand customer needs, and collaborate with team members to complete various tasks. Therefore, drivers need to develop good communication skills and teamwork spirit and enhance their interpersonal skills.
4, the cultivation of safety awareness is also very important. Vacuum suction truck drivers need to maintain a high degree of safety awareness at all times, abide by traffic rules, and strictly implement work procedures. Drivers also need to regularly learn and train on safety knowledge to improve their accident emergency response capabilities and ensure safety and stability during work. In order to cultivate vacuum sewage suction truck drivers who meet the requirements, the drivers' skills and knowledge can be comprehensively improved through regular training and assessment.
In recent years, with the increasing awareness of environmental protection, export sewage suction trucks have been widely used as an environmentally friendly cleaning equipment. In the next 10 years, the development of export sewage suction trucks will develop towards the following trends.
