Products Description
The ISUZU FVR 14CBM Rear Load Garbage Truck is professionally modified based on the ISUZU FVR chassis, incorporating modern technology. Its cab adopts the new ISUZU 5X-level VC61 design, which not only boasts a fashionable and atmospheric exterior but also features luxurious and comfortable interior configurations. The thoughtful design of two seats and one berth provides drivers with an excellent working environment and resting space.

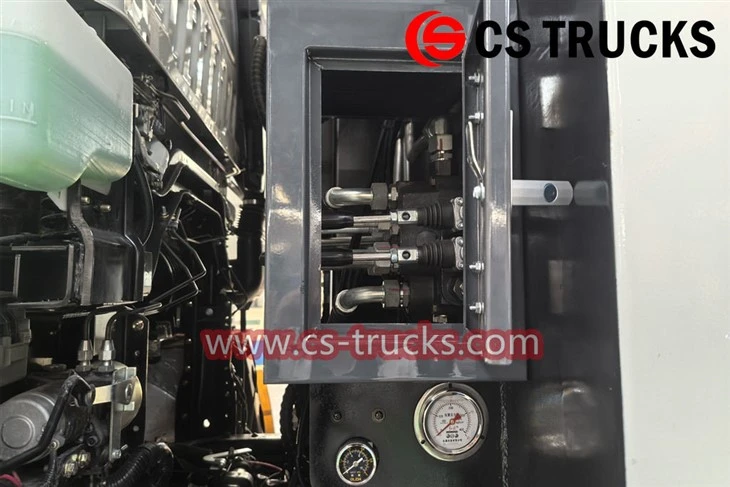

The ISUZU FVR Waste Compactor Truck employs an advanced hydraulic compression system, utilizing high-pressure cylinders to drive the compression plate and forcefully compress the garbage, minimizing its volume. This process not only enhances loading efficiency, reduces transportation frequency and costs, but also effectively saves storage space. Additionally, the vehicle is equipped with a bi-directional balancing valve and a back-pressure valve, ensuring smooth and safe compression operations.
The garbage bin of the ISUZU FVR 14CBM Rear Loader is welded with high-strength steel plates, and its sturdy chassis structure can withstand the challenges of high-intensity compression operations and complex road conditions. Furthermore, the vehicle is equipped with an ABS anti-lock braking system and a dual-circuit air brake service braking system, enhancing driving safety. The cab also includes various safety features such as seat belts and airbags, providing comprehensive protection for the driver.
The ISUZU Rear End Loader is suitable for various scenarios including urban streets, communities, public places, industrial areas, schools, hospitals, and more. Its advantages such as efficient compression technology, eco-friendly and energy-saving design, safe and reliable performance, comfortable and convenient operation, and intelligent monitoring system make it highly promising and competitive in the field of urban waste management.
Technical Parameters
|
Vehicle Description |
||
|
Overall dimension |
9100*2550*3350mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
11000kg |
|
|
Chassis brand |
ISUZU |
|
|
Traction type |
4*2, left hand drive |
|
|
Chassis Description |
||
|
Chassis model |
ISUZU FVR |
|
|
Cab |
ISUZU GIGA VC61 one and a half row cab, forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, manual windows, manual lock, air conditioner. |
|
|
Wheelbase |
4500mm |
|
|
Tire specification |
295/80R22.5 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
6HK1-TCG61 |
|
Emission level |
Euro 6 |
|
|
Displacement/output |
7790ml/177kw |
|
|
Horse power |
240hp |
|
|
Gear box |
Brand |
FAST, manual |
|
Number of gears |
9 forward gears& 1 reverse |
|
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake |
|
|
Axle |
Front |
6.5T- Elliot type, I beam section |
|
Rear |
11.5T-Single reduction, ratio 5.571 |
|
|
Suspension |
Front |
9- Leaf spring with shock absorber |
|
Rear |
7+7-Leaf spring |
|
|
Fuel tanker |
Type |
Aluminum alloy fuel tank, with lockable cap |
|
Capacity |
400L |
|
|
Upper body description |
||
|
Compactor body volume |
14cbm |
|
|
Control system |
CAN-bus |
|
|
Compression ratio |
2.5 |
|
|
Loading cycle time |
≤25s |
|
|
Unloading cycle time |
≤110s |
|
