Products Description
The vacuum sewage suction truck mainly consists of a chassis, vacuum pump or compressor, sewage storage tank, suction head, dust removal device and water spray system. The chassis is the support structure of the vehicle, usually a heavy-duty truck or a special chassis; the vacuum pump or compressor provides negative pressure and is responsible for sucking and discharging dirt;
The dirt storage tank is where dirt is stored, and the capacity can be adjusted as needed; the suction head is responsible for The dirt is sucked into the dirt storage tank through vacuum force; the dust removal device is used to filter dust in the air to avoid secondary pollution to the environment; the water spray system is a spray device for flushing the cleaning agent.
Key Features
----► Light truck chassis, suitable for narrow road
----► Diesel engine, extremely powerful
----► China famous pumpsystem, cheaper price
----► 12 months spare parts guarantee
----► Local traing for foreign customer.
Technical Specification
Customized Combined Sewer Jetting Vacuum Tank
A sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.
Our factory could produce different brand like Sinotruk HOWO, FOTON, DONGFENG, FAW etc with different sizes ranged from 3000Liters to 16000Liters as well as big size sewage suction trailers
| Cabin | Driving type 4x2. Right hand driven | |
| ISUZU NKR Light-duty | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5970*2500*3400 |
| Wheel base (mm) | 3360 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 16/18 | |
| Weight in KGS | Tare Weight | 7,300 kg |
| Payload | 5000 | |
| Front axles loading capacity | 3000 kgs | |
| Rear axles loading capacity | 5000 kgs | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | Isuzu |
| Model | 4KH1CN5HS | |
| Type | 4-stroke direct injection, 6-cylinder in-line, turbo-charging and inter-cooling | |
| Horse Power(HP) | 130 | |
| Emission standard | Euro 3 | |
| Gearbox | ISUZU MLD 6-shift gearbox | |
| Tire Model | 6.5R16 radial steel tires, 10 pieces with one spare |
|
| Steering | ZF8118 | |
| Fuel Type | Diesel | |
| Sewage Tank | Color | As requirements |
| Effective Tank Volume | 6000L | |
| Tank Thickness | Tank body 4 mm, seal is 5 mm | |
| Tank Material | Carbon Steel Q235-B | |
| Vacuum Pump | Pump brand | Weilong |
| Pump model | 65QZXDG-68/400 | |
| Rotation speed | 500(r/min) | |
| Absolute working pressure | 400Pa (99.6%) | |
| Pumping speed | 68L/s | |
| Exhaust diameter | 65mm | |
| Power | 5Kw | |
| Quantity | 2pcs | |
Suction Pipe |
Length(m) | 6 m |
| Quantity(pcs) | 2pcs | |
| Main Parts | 1. Water-gas separator. 2. Oil-gas separator. 3. Tank body with pipe boxes on both sides. 4. Both sides with protective nets. 5. Multi-way valve. 6. Anti overflow valve. 7. Pressure gauge. 8. Floating ball alarm. 7. Hydraulic control rear cover, manual lock. 8. There is a ball valve (DN100MM) at the end of the tank. |
|
| Remarks | Tank without lifting, tank installation requirements high in front and low in back. | |
| Warranty | One Year for key parts: engine, gearbox and axle , tank body and Vacuum Pump | |
The video of ISUZU ELF 100P 5000L sewage suction truck:

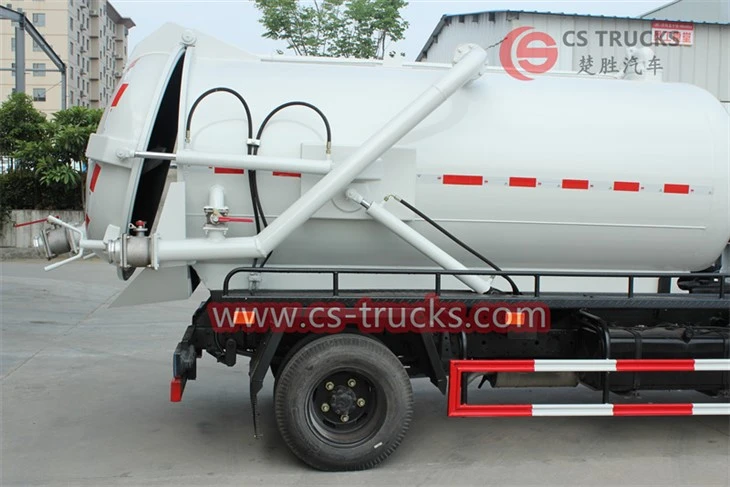

Truck detail
Stainless DN65 outlet
hydraulic cylinder system
original pump system
strong cylinder for rear cover
super filtering system
Protector for vacuum tank
Operation method
|
Model : |
HT.80QZ-60/90N |
Flow rate : |
60 m3/h |
|
Lift head: |
90m |
Rotate speed: |
1450r/min |
| Power: | 22.5kw |
Self-suction height: |
6.5m |
|
Casing material: |
Ductile iron |
Self-suction time: | 1.5min/4m |
|
Shaft seal: |
Mechanical seal |
Impeller material : |
Ductile iron |
| Impeller structure: | Closed type | Impeller suction type: | Single suction |
|
Pump shaft position: |
Horizontal |
Type of connection: |
Flange |
| Drive : |
Vehicle or electric motor |
Rotate direction: |
Left |
|
Type of pump: |
Centrifugal pump |
Inlet caliber: |
80mm |
|
Outlet caliber: |
72mm | Brand of bearing: | HRB bearing |
How to classify vacuum tank truck
A sewage suction truck is a special vehicle designed to clean and absorb dirt or wastewater. According to their different functions and characteristics, sewage suction trucks can be divided into the following five categories:
1. High-pressure flushing sewage suction truck: This type of sewage suction truck is mainly used for cleaning roads, drainage ditches, sewers and other areas. It is equipped with a high-pressure water pump that can spray high-pressure water jets to clean dirt and suck dirt into the tank through a sewage suction pump. This type of vehicle is suitable for cleaning solid garbage, oil stains, mud, etc.
2. Garbage suction truck: This type of sewage suction truck is mainly used to clean up solid waste. It is equipped with a vacuum pump or a pressure pump that can suck up garbage, waste, etc. and store it in the tank. This type of vehicle is suitable for cleaning trash cans, urban garbage dumps, etc.
3. Sewage suction truck: This type of sewage suction truck is mainly used to clean sewage. It is equipped with a vacuum pump and a sewage storage tank, which can suck sewage, wastewater, etc. and transport them to designated treatment facilities. This type of vehicle is suitable for cleaning sewage pipes, sewage stations, etc.
4. Oil sewage suction truck: This type of sewage suction truck is mainly used to clean up oil or chemical leaks. It is equipped with an oil suction pump, separation equipment and storage tank, which can absorb leaked oil and separate, store or transport it to a garbage disposal center. This type of vehicle is suitable for emergency response, oil depot leakage, etc.
5. High vacuum sewage suction truck: This type of sewage suction truck is mainly used to clean high-concentration dirt or solid waste. It is equipped with high-pressure blower and high vacuum pump, which can suck heavy impurities, mud, sand and gravel, etc., and store or transport them to treatment facilities. This type of vehicle is suitable for urban construction, construction site cleaning, etc.
