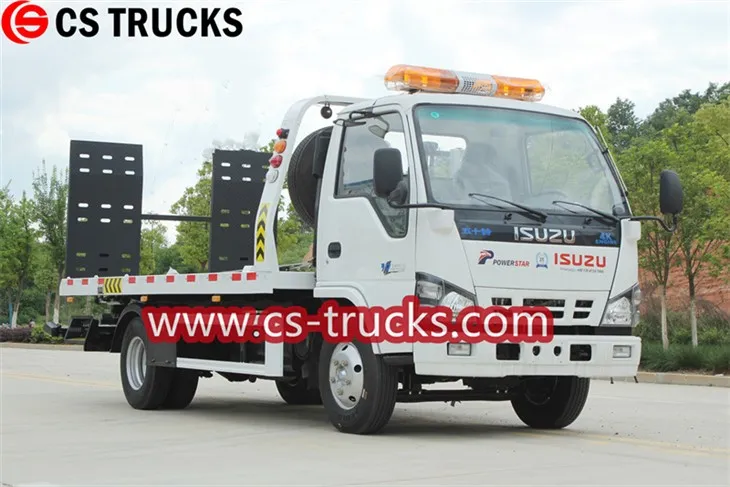

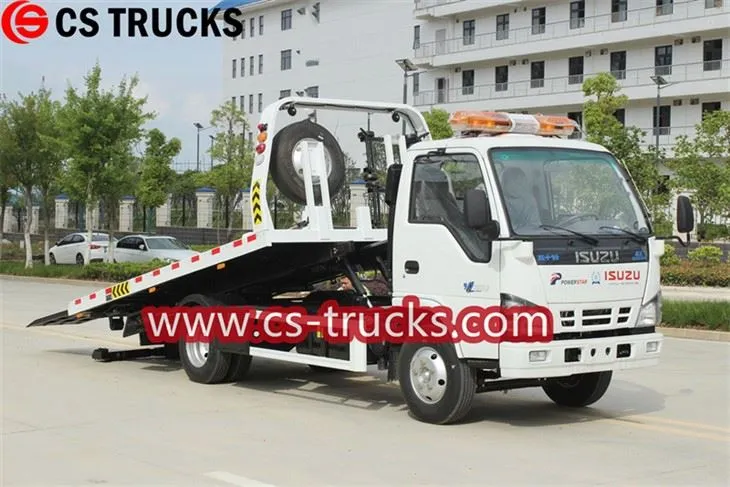

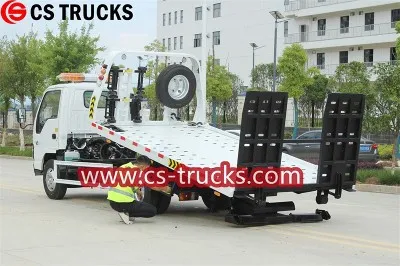

The Isuzu light-duty tow truck adopts ISUZU classical chassis (NKR model). The overall vehicle size is 6280*2330*2350mm and the total weight is 4495kg. It is light and flexible and has strong load capacity. Equipped with ISUZU 4KH1CN6LB engine with an output of 120HP, it has sufficient power to cope with most rescue situations. The tow truck is equipped with skateboard towing and wheel hoisting devices. The flatbed length is 4200mm and can carry 3 tons of cargo. It is equipped with a 4-ton trailer winch and 25-meter steel wire rope to meet a variety of trailer needs. In addition, the vehicle is also equipped with standard configurations such as a two-way linkage operating device, forks, fork base fixing mechanisms, towing mechanisms, chains, auxiliary wheels, tool boxes, straps, LED lights, etc. Optional rear flaps, retractable panels, and middle extensions are available. and full-lowering board configurations. The vehicle is reasonably configured and easy to operate. It is suitable for urban road clearing and towing operations. It is a small towing vehicle with stable performance, practicality and reliability.
Products Description
|
Isuzu light-duty 4X2 Isuzu Flatbed Wrecker Towing Truck |
|||||
|
Brand |
POWERSTAR |
||||
|
Model |
PT07TQZ |
||||
|
Production Time |
25 days |
||||
|
Vehicle Description |
|||||
|
Overall dimensions |
6280*2330*2350mm |
||||
|
GVW |
4495kg |
||||
|
Curb weight |
3590kg |
||||
|
Chassis brand |
ISUZU |
||||
|
Up-parts Specification |
|||||
|
Towing type |
Slide bed with wheel-lift |
||||
|
Flatbed |
Length |
4200mm |
|||
|
Loading capacity |
3T |
||||
|
Winch |
Quantity |
1 unit |
|||
|
Towing capacity |
4T |
||||
|
Wire rope |
25m |
||||
|
Under lifting |
Fully extended capacity |
5500/2500 |
|||
|
Fully extracted capacity |
8800/4000 |
||||
|
Standard configuration |
Bilateral linkage operate device, fork, fork seat holding mechanism, drag mechanism, chain, auxiliary wheel, toolbox, binding belt, LED light, etc. |
||||
|
Optional configuration |
Back flip plate; retractable plate; intermediate extension; full landing |
||||
|
Chassis Description |
|||||
|
Cab |
ISUZU NKR,single row, with A/C |
||||
|
Wheelbase |
3360mm |
||||
|
Tire specification |
7.00R16 |
||||
|
Tire quantity |
6+1 units |
||||
|
Engine |
Engine model |
ISUZU 4KH1CN6LB |
|||
|
Emission level |
Euro 6 |
||||
|
Displacement |
2999ml |
||||
|
Horse power |
120HP |
||||
|
Gear box |
Model |
MSB |
|||
|
Number of gears |
5 forward gears & 1 reverse |
||||
|
Axle |
Front |
2.5T |
|||
|
Rear |
4.8T |
||||
|
Suspension |
Front |
Leaf springs |
|||
|
Rear |
Leaf springs |
||||
|
Fuel tanker |
Type |
Steel tanker, with lockable cap |
|||
|
Capacity |
120L |
||||
The Isuzu light-duty tow truck has the following five major advantages:
1.Reliable chassis and power system: Isuzu NKR Rollback Tow Truck uses ISUZU NKR chassis and ISUZU 4KH1CN6LB engine, which provides the vehicle with reliable power support and stable driving performance.

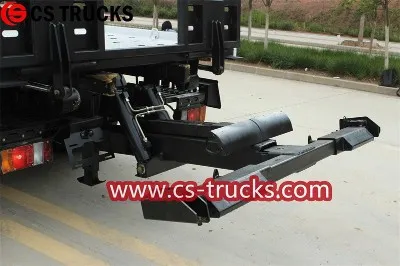

2.Multifunctional trailer device: Isuzu NKR Rollback Tow Truck is equipped with a skateboard tow and wheel hoist device. The flatbed length is 4200mm and can carry 3 tons of cargo. It is equipped with a 4-ton trailer winch and 25-meter steel wire rope to meet a variety of trailers. need. This multifunctional towing device makes the tow truck more flexible in actual operations and can adapt to different types of towing tasks.
3.Comprehensive standard configuration: Isuzu NKR Rollback Tow Truck is equipped with standard configurations such as a two-way linkage operating device, forks, fork seat fixing mechanisms, towing mechanisms, chains, auxiliary wheels, tool boxes, strapping straps, and LED lights to provide operators with It provides a convenient operating environment and necessary tool support, improving operating efficiency and safety.
4.Flexibility of optional configurations: Isuzu NKR Rollback Tow Truck can be equipped with rear flip panels, retractable panels, middle extension panels, and full-lowering panels, allowing users to customize according to actual needs to meet the needs of different operating scenarios. , improving the applicability and flexibility of the vehicle.
5. Comply with environmental standards: The ISUZU 4KH1CN6LB engine installed in the Isuzu NKR Rollback Tow Truck complies with Euro VI emission standards. It has lower emissions and higher fuel economy, meets modern environmental protection requirements, and also reduces operating costs. These advantages make this Isuzu small tow truck competitive in the market and can meet users' needs for tow truck performance, reliability and flexibility.
