Products Description

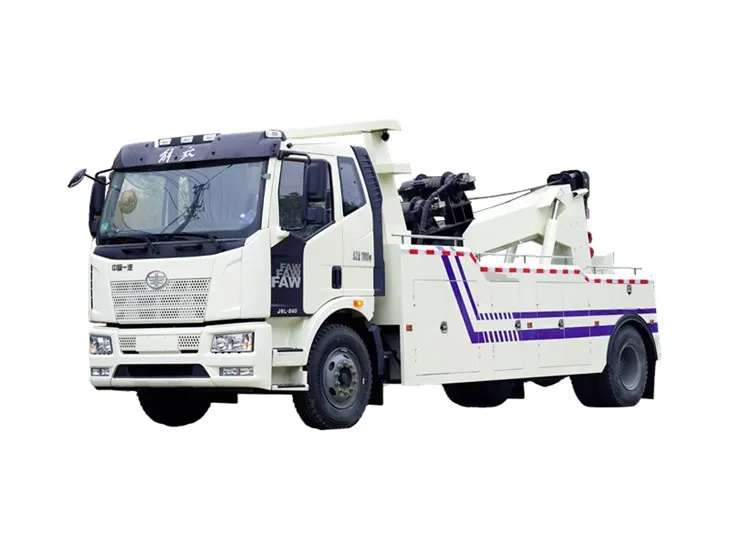

Road Wrecker Truck based on type II FAW truck chassis, also can be named as recovery truck, which consist of combined rescue platform and towing system, mainly used for road rescue working and the working aerial can be City Street, factory and other areas of need.
The rescue truck designed to fully rely on the advantages of the original FAW 4*2 long wheelbase chassis, fully consider the product's convenience and features. The customized 10T16D or 13T16D rescue platform can be laid down to deliver all kinds of vehicles, with wire rope and tape to fasten the vehicle during delivery, which is multifunctional enough to cover all customers’ requirement.
Key Features
----► FAW truck with XICHAI 220HP engine
----► Flat roof cabin with sleeper
----► Optional 10T16D or 13T16D wrecker kit
----► Original Import Italy hydraulic valves
----► 8Tons towing winch two sets, 35m rope with diameter 16mm
----► All necessary rescue equipment
----► Painting and logos 100% customized
Technical Specification
The FAW 4x2 model 10tons combined wrecker truck is refitted based on the FAW 4*2 left hand drive chassis. The refit part mainly included combined platform, towing winch and rear lifting system. The engine power transit from PTO on gearbox to hydraulic oil pump, then hydraulic oil through the pump start from all control valves to hydraulic cylinders and hydraulic motors, which can make all system working normally.
|
Main Technical Parameter |
||
|
Model Name |
FAW 4x2 6 wheeler towing truck |
|
|
Driving Type |
4x2,left hand drive |
|
|
Weights |
||
|
Gross weight(kg) (G.V.M) |
18000 |
|
|
Tare weight(kg) |
Appro 10000 |
|
|
Dimensions |
||
|
Wheelbase(mm) |
4350 |
|
|
Overall Dimension(mm) |
Appro 8000×2500×3300 |
|
|
Max speed(km/h) |
90 |
|
|
Engine |
||
|
Engine model |
XICHAI CA6DF2D-22 |
|
|
Emission standard |
Euro III |
|
|
Engine type |
Diesel 4-storke Inter-cooling, water-cooled,ecological high pressure common rail |
|
|
No. of cylinders |
6 cylinders |
|
|
Displacement(L) |
6.557 |
|
|
Rated power ((Kw) |
162 kw (220HP) |
|
|
Rated speed (rpm) |
2300 |
|
|
Maximum torque N.m@rpm |
780 N.m @1400 |
|
|
Drive Line |
||
|
Transmission |
FAST 8 forward gears , 1 reverse gear, manual operation,two-stage tranfer box with inter-axle locked deferential |
|
|
Steering |
Power steering, left hand drive |
|
|
Brake system |
With WABCO air actuation Service Brake: drum type, double circuit with ABS |
|
|
Cab |
||
|
cabin |
FAW, All metal three-seater |
|
|
Standard configuration |
Air container, Sound, USB, electrical windows, oil pressure gauge, air pressure, fuel level indicator, battery charge indicator, Temperature indicator, thermometer, and so on |
|
|
Axle |
||
|
Front axle |
6.5 tons |
|
|
Rear axle |
13 tons |
|
|
Tire specification |
||
|
Tire specification |
11.00R20 |
|
|
Tire quality |
6 tires+1 spare tire |
|
|
Others for chassis |
||
|
Fuel Tank |
200L capacity |
|
|
Estimated fuel consumption @60km :18L/100km: |
||
|
Max.cruising range at 60km/h: >1000km |
||
|
Overall turning radius |
10.7m |
|
|
Electric System |
2 storage batteris, each 12V |
|
|
alternator: voltage 24V, output 1.4kW (acoording to chassis supplier final choose) |
||
|
starter: DC power 8.2kW(acoording to chassis supplier final choose) |
||
|
Wrecker up-structure |
||
|
Boom吊臂 |
Number of manipulator boom section: at least 2 |
|
|
Underlift |
Towing Capacity: 16 tons |
|
|
Others |
a pair fork, two type A auxiliary wheel,a warning lamp |
|
Truck details
FAW road wrecker truck side view
Rear view for recovery truck
Rear lifting device
Lighting system
Rea supporting arm
Rear hydraulic legs
How to choose the best Combined Recovery Truck Superstructure Kit
There are many different terms and specifications used when you are building a new wrecker truck or even when you are looking at a pre-owned wrecker or tow truck. Additionally, it’s important to be familiar with the formulas that determine the ideal build for your tow truck.
Kindly checking below 4 key custom built tow truck terms to understand:
- Front Axle weight (FAW) is the actual amount of weight on your front axle when it is being weighed.
- Gross Axle weight rating (GAWR) is the rating the manufacturer has given the axle and its components and should not be exceeded.
- Wheelbase (WB) is the length between the center of the front axle and the center of the rear axles. For a tandem rear axle unit you would measure to the center space between the two axles or wheels, for a tri axle you would measure to the center of the middle axle. Twin steer units are measured between both front axles.
- Overhang is the length from the center of the rear axle or axles to the point on your under lift that you are lifting. i.e. the center of the forks or the center of the tire lift.
How to build best wrecker truck kit?
★ Suitable for 4x2 heavy duty model truck chassis
★ Newly designed 10T16D or 13T16D model
★ High strength channel steel material device
★ Italy brand hydraulic valves
★ English guidance control device for easy operation
★ 360°rotation crane as standard
★ Detailed equipment for wrecker superstructure:
1. Wrecker body 1 set
2. Hydraulic arm assembly 1 set
3. Joystick control device 1 set
4. Towing winch assembly 2 set
5. Wire rope with hook 2 set
6. Engine speed control device 1 set
7. Safety lamp at two side and pillow lamp on top
8. Heavy duty hydraulic landings
painting and logos 100% customized
Main component for recovery truck
FAW brand truck towing and recovery mainly have above key features:
Boom: Boom is the spinal structure that allows towing accessibility from diffifult positions. Which can be 2 section booms or 3 section booms
Tow Bar: Also named as towing winch, which equipped on the rotation seat, with 2 sets 8Tons winch mounted together, easy and convenient for daily usage and maintenance.
Outriggers:Located at the rear end of the wrecked trucks, provide stability working position.
Lighting System: Which located in the front of wrecker kit and two sides of body, with LED light for safety.
Wrecker Recovery truck
A tow truck is a road recovery truck specifically designed to remove obstacles and broken down vehicles from the road. For Africa, the introduction and use of tow trucks will have the following five important improvements:
- Smooth roads: Infrastructure construction in many parts of Africa is still relatively lagging behind, and obstacles to road access are common. The introduction and purchasing of road wrecker towing trucks can clear obstacles on the road more quickly, ensure smooth roads, and improve traffic efficiency.
- Traffic safety: In Africa, due to the lack of wrecker equipment, broken down vehicles and road obstacles may lead to traffic accidents. With a tow truck, faulty vehicles can be removed in time, reducing the risk of traffic accidents and ensuring traffic safety.
- Emergency relief: Africa's transportation conditions and infrastructure construction levels are unstable, and disasters and emergencies occur from time to time. Wreckers not only remove road obstructions but also provide emergency rescue services, transporting people and supplies to disaster areas or emergency scenes.
- Economic development: Road traffic is an important infrastructure that promotes economic development. Obstacles that hinder the smooth flow of road traffic will affect economic growth. By introducing road tow trucks, road repair and maintenance can be accelerated, trade flows can be facilitated, and economic growth can be promoted.
- Technical training and employment opportunities: The introduction of tow trucks will provide opportunities for training and technical consultation, helping to improve the technical level and employment opportunities of local people. The maintenance and operation of tow trucks requires professionals. Training local residents to become tow truck operators and maintainers will help promote the cultivation and employment of local talents.
Overall, the introduction of tow trucks is of great significance to Africa, as it can improve road smoothness, promote traffic safety, provide emergency rescue, promote economic development, and provide employment opportunities and technical training for local talents.
