Loader cranes help to load and unload trucks and other vehicles. Shacman loader cranes make an impression thanks to their operator friendliness and high level of cost efficiency. Various equipment (rope winch, rotator, gripper, crane fork) expands the loader crane's field of application.
With more than 100 models the company is the world market leader in this segment. The most important industries include: construction, transport logistics, emergency services, local authorities, waste management, mining and the inspection/maintenance/cleaning of structures, buildings and large machines as well as leasing and rental business.
CS TRUCKS produced SHACMAN truck loader cranes have Landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.
Products Parameters
| Truck Specification for Shacman loader crane | ||
| Model | CSC5310JSQ | |
| Cab | One and a half row sear cab, ABS | |
| Driving Type | 8*4 Left hand driving | |
| Max Speed (km/h) | 90 | |
| Overall Dimension (mm) | 12000*2500*3950 | |
| GVW ( kg) | 31000 | |
| Truck Tare Weight (kg) | 18300 | |
| Wheelbase (mm) | 2100+4575+1400 | |
| F/R Track Base (mm) | 2065/1860 | |
| F/R Overhang (mm) | 1450/2745 | |
| Approach/Departure Angel(°) | 20/11 | |
| Tire | Type of Tire | 12.00R20 |
| NOs of Tire (pieces) | 12 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Gear Box | 10JSD180 | |
| Bridge | NOs of Axle | 4 |
| Front axle load-bearing (kg) | 7500 | |
| Mid. axle load-bearing (kg) | 7500 | |
| Rear axles load-bearing (kg) | 16000+16000 | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Standard | Europe II | |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke, direct injection, turbocharged | |
| Exhaust (ml) | 9726 | |
| Max output power/rotate speed (hp /rpm ) | 340/2200 | |
| Max torque/rotate speed (N.m/rpm) | 1250/1400-1600 | |
| Braking System | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary Brake | Engine exhaust brake | |
| Electric System | 24v | |
|
Boom Crane Upper Part Specification
|
||||||||||
| Model | SQZ330 | |||||||||
| Weight (kg) | 5100 | |||||||||
| Match the truck | Above 16 tons loading truck | |||||||||
| Assembling space (mm) | 1500 | |||||||||
| Max lifting weight (t) | 16 | |||||||||
| Max lifting torque(kN.m) | 330 | |||||||||
| Lifting height (m) | 18.5 | |||||||||
| Max working radius (m) | 16.37 | |||||||||
| Cross section form | Pentagon | |||||||||
| Number of arms | 6 | |||||||||
| Length(m) | 4395-16395 | |||||||||
| Extending speed(m/s) | 0.19 | |||||||||
| Range (°) | 1-72 | |||||||||
| The arm angular velocity (°/s) | 3.2 | |||||||||
| Hook speed (m/min) | 8.03 | |||||||||
| Diameter of wire rope (mm) | 12 | |||||||||
| Length of wire rope (mm) | 115 | |||||||||
| Slewing mechanism | Rotating speed (r/min) | 2 | ||||||||
| Rotating range (°) | 360 | |||||||||
| Leg | Type | H | ||||||||
| Span(m) | 2.28-5.9 | |||||||||
| Hydraulic system | Pressure (M pa) | 24 | ||||||||
| Capacity(l) | 120 | |||||||||
| Safety device | Overwind alarm | |||||||||
| Lifting capacity | ||||||||||
| Working radius (m) | 2.5 | 4.4 | 6.24 | 8.16 | 10.14 | 12.14 | 14.21 | 16.37 | ||
| Rated loading (kgs) | 13200 | 7500 | 5100 | 3750 | 2930 | 2410 | 2025 | 1700 | ||

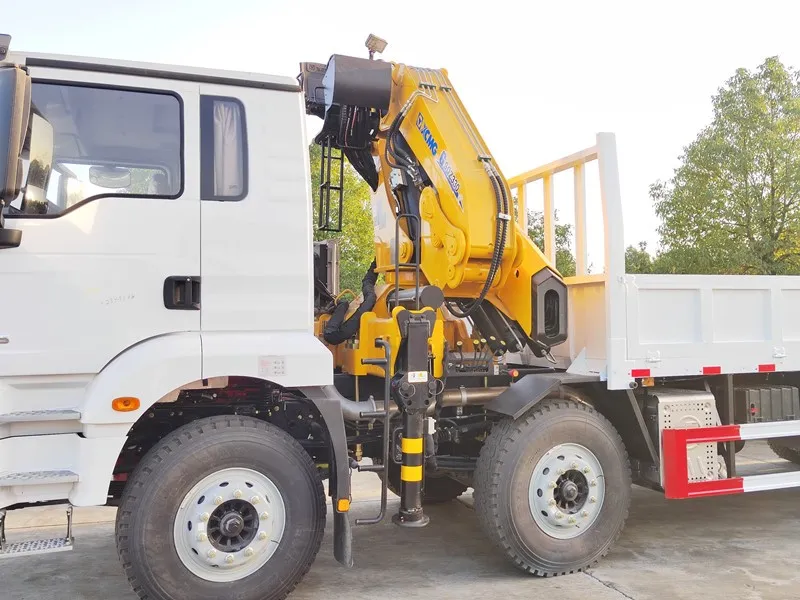

SQZ330 Crane
XCMG model SQZ330 folding arm boom crane 16tons
Dropside Cargo body
Dropside cargo body with length 7m, size of body can be 7000x2300x550mm, thickness for side 3mm and floor 4mm

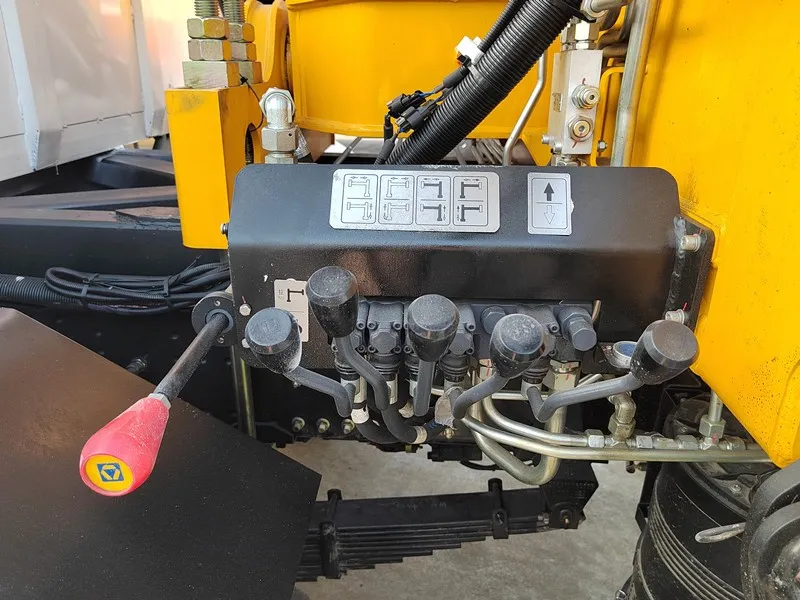

Hydraulic Control Valve
Italy brand hydraulic control valve, with English plate for operaiton guidance
CS TRUCSK produced loader cranes for Russian-Speaking countries
XCMG SQZ 330— мощный, надежный и экономичный манипулятор.
Модель SQZ 330 имеет максимальные вылеты от 12,0 м до 16,37 м, на которых поднимает от 2685 кг до 1700 кг. Максимальная грузоподъемность составляет — 13460 кг, на вылете стрелы — 2,5 м. Вес КМУ составляет от 4775 кг до 5100 кг. Все краны-манипуляторы имеют возможность использования с дополнительным навесным оборудованием — люлька оператора, гидробур, грейферные захваты.
|
Схема крана-манипулятора
|
| Технические характеристики XCMG | SQZ 330-4 | SQZ 330-5 | SQZ 330-6 |
|---|---|---|---|
| Грузовой момент, тм: | 33,8 | 33,3 | 33,3 |
| Максимальная грузоподъемность, кг: | 13460 | 13320 | 13200 |
| Максимальный вылет, м: | 12,0 | 14,11 | 16,37 |
| Максимальная высота подъема, м: | 13,85 | 15,85 | 18,5 |
| Вес, кг: | 4775 | 4945 | 5100 |
| Угол поворота, град.: | 400 | 400 | 400 |
| Рабочее давление, бар: | 310 | 310 | 310 |
| Объем масляного бака, л: | 200 | 200 | 200 |
| Расход масла в гидросистеме, л/мин.: | 63 | 63 | 63 |
| Ширина опор, м: | 5,8 | 7,8 | 7,8 |
|
Габаритные размеры |
|
|
| Размеры, мм | SQZ 330-4 | SQZ 330-5 | SQZ 330-6 |
|---|---|---|---|
| A | 4250 - 12000 | 4300 - 14110 | 4400 – 16370 |
| B | 2420 | 2420 | 2420 |
| C | 809 - 1369 | 809 - 1369 | 809 - 1369 |
| D | 971 | 971 | 971 |
| E | 2312 - 5750 | 2342 - 7782 | 2342 - 7782 |
| F | 2500 | 2500 | 2500 |
| G1 | 1212 | 1354 | 1354 |
| G2 | 1381 | 1523 | 1523 |
| G3 | 1387 | 1519 | 1519 |
