This ISUZU 5000 liters water sprinkler truck is precisely positioned to meet the flexible operational needs of urban side roads and rural areas. Its 5000L tank balances range and maneuverability, while its 4×2 drive system, coupled with a 190HP 4HK1-TCG61 engine, provides reliable and economical power. Breaking away from the conventional thinking that "large tonnage equals high efficiency," it offers a differentiated solution for confined spaces, combining mobility and operational efficiency with moderate capacity and powerful performance.
Model: CS5100GSS
Capacity: 5000L
Drive: 4×2
Engine Power: 190HP
Engine Type: 4HK1-TCG61
Send Inquiry
Description
The ISUZU 190HP potable water truck for sale is built on a Qingling 4×2 right hand drive chassis and equipped with an Isuzu 4HK1-TCG61 Euro VI engine, providing ample power and a top speed of 110km/h. Its compact and agile design makes it suitable for urban municipal sanitation operations.
The vehicle features a 5000L thickened 304 stainless steel water tank, matched with a 65QZBF-40/50 self-priming centrifugal pump. This pump offers high pumping efficiency and excellent corrosion resistance, enabling multifunctional operations such as road washing, dust suppression, and green space irrigation. It is stable and durable in operation.
ISUZU Water Tanker Key Features
Optimal Capacity
A 5000 liters tank, suitable for both urban side streets and rural areas, offering a balance of range and flexibility.
High Efficiency Power
Equipped with a 190 horsepower 4HK1-TCG61 engine, delivering ample power and quick response.
Economical Drive
The 4×2 drive configuration features a simple design, excellent fuel economy, and reduced operating costs.
Precise Maneuverability
Specifically designed for operations in confined spaces, striking a balance between maneuverability and operational efficiency.
Technical Parameters
SGS standard Urban Street Watering Sprinkler
Overall
Vehicle Model
CS5100GSS
Drive Type
4×2
Gross Vehicle Weight
10550 kg
Curb Weight
3240 kg
Maximum Speed
110 km/h
Overall Dimensions
6220×2250×2650 mm
Engine
Engine Model
4HK1-TCG61
Fuel Type
Diesel
Power
190HP/139kW
Emission Standard
Euro 6
Displacement
5193 ml
Engine Type
Inline 4 cylinder, turbocharged, intercooled, high pressure common rail diesel engine
Chassis
Chassis Brand
Qingling
Tire No.
6+1
Tire Specification
235/75R17.5
Wheelbase (mm)
3360 mm
Gear Box
6-speed manual
Steering Wheel
RHD
Brake
Air
Superstructure
Material
304 stainless steel
Capacity
5000 L
Tank thickness
5 mm
Sprinkler Pump
Model
65QZBF-40/50
Type
Self-priming centrifugal pump
Flow Rate
40 m³/h
Head
50 m
Rated Speed
1450r/min
Shaft Power
9.25 KW
Self-priming Height
6.5 m
Self-priming Time
≤1 min
Performance and Advantages
01.
Powertrain and chassis systems
🔹Solid Powertrain: ISUZU 4HK1-TCG61 diesel engine, 190HP/139kW, Euro 6 emission, powerful and fuel efficient.
🔹Stable Driving: 4x2 RHD, 10550kg GWW, 6-speed manual gearbox and air brake, reliable for urban driving.
🔹Compact Size: 6220×2250×2650mm, 3360mm wheelbase, flexible for narrow city roads.
02.
Advantages of tank structure
🔹Anti-corrosion Tank: 5 mm thick 304 stainless steel, great rust resistance for long term use.
🔹Practical Capacity: 5000L volume, well balanced load weight and working endurance.
The vehicle is equipped with a 65QZBF-40/50 self-priming centrifugal pump with a flow rate of 40 m³/h, a head of 50m, and a self-priming height of 6.5m. It can pump water directly from ponds and ditches within one minute without prefilling, making it very convenient for field operations. It has a low failure rate and is suitable for long term, high frequency municipal operations.
Sprinkler Pump Operation Requirements：
Before starting, check that the transmission fluid level is sufficient. Note: After one week of use, completely drain the old gear oil and replace it with new gear oil.
Ensure there is sufficient fluid in the pump and confirm that the drain valve is closed.
Slightly open the outlet valve and fully open the inlet valve.
To prevent air intake, the pump inlet should be submerged at least 30cm below the fluid surface. The inlet filter mesh should not be too fine and must not be clogged.
✅Sprinkling Function
This water truck is equipped with multiple water spraying devices, including waist spray, rear spray, and side spray, which can complete road washing and dust suppression; it is also equipped with a stainless steel greening cannon with a maximum spray distance of 28m, which can be used for high altitude greening irrigation and emergency dust suppression. One set of equipment can realize multiple sanitation operations.
Water Cannon
Stainless steel cannon, max 28m range. For long distance tree irrigation and dust control.
Side Spray
Spray toward roadside, water curbs and roadside green belts.
Rear Sprinkling
Wide fan shaped water output at rear, for large area road dust suppression and humidifying.
Side Flushing
High pressure nozzles at vehicle mid section, flush dirt and silt off road surface.
✅Working Principle
The power take off unit transmits engine power to the water pump. The water pump draws water into the tank, pressurizes it, and delivers it to various nozzles for road washing, sprinkling, and irrigation. Valves control all operational functions.
Maintenance and Care of ISUZU Water Bowser
✅Daily Maintenance
The gear oil in the sprinkler pump needs to be changed every three months, and should be replaced with "medium-load industrial closed gear oil" according to the season.
Regularly check the fixing of the U-bolts (or connecting plate bolts) on the tank sub beam, pump frame, and bracket. All nuts should be tightened to ensure a secure and reliable connection.
The medium passing through the ball valve should not be too dirty, so as not to damage the sealing ring and reduce the service life of the ball valve. Ball valves should not be operated in a half open state for a long time, otherwise the sealing ring may be deformed.
The inlet filter screen should be removed and cleaned frequently to prevent dirt from clogging the screen and affecting the water pump pressure.
✅Troubleshooting and Troubleshooting Methods
Fault Details
Troubleshooting Methods
Inlet pipe not sealed
Check and eliminate leaks section by section
Engine speed too low to achieve the required vacuum
Adjust the throttle to bring the pump speed to its rated speed
The water tank is too dirty, the filter is clogged, and ice forms inside the tank and in the pipes during winter
Flush the water tank, clean the filter to remove debris, and melt the ice with hot water or steam
Application Scenarios
The water trucks are no longer simply "sprinkling" tools, but versatile vehicles with multiple functions, applicable to various fields such as urban management, landscaping, engineering construction, and emergency rescue:
Road Cleaning and Cooling: Washes road surfaces, removes stains, and cools surfaces in summer.
Dust Suppression and Air Purification: Sprays water mist to suppress road dust and increase air humidity.
Greenery Irrigation: Waters flowers, trees, and shrubs along roadsides.
Construction Site and Factory Operations: Suppresses dust at construction sites and cleans roads in mining or factory areas.
Emergency Firefighting Assistance: Can serve as a mobile water source in the early stages of a fire, using high pressure water cannons to assist in firefighting.
Special Functions: With added equipment, it can be used for spraying pesticides or cleaning building exteriors.
Exterior Views
Front Right View of ISUZU Water Tanker 5000 Liters Price
Front Left View of ISUZU 5000 Liters Water Sprinkler Truck
Rear Right View of ISUZU 190HP Water Truck Delivery Cost Near Me
Rear Left View of ISUZU 190HP Potable Water Truck for Sale
Right View of ISUZU 4×2 Water Well Drilling Truck for Sale

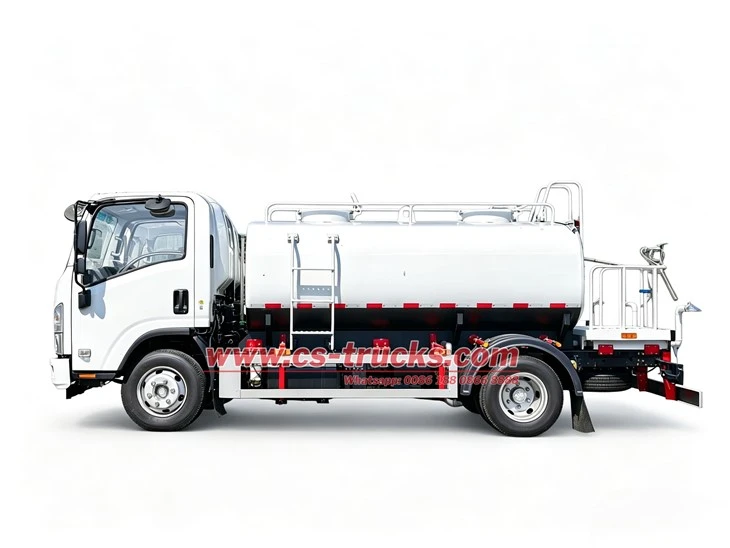

Left View of ISUZU 4×2 Water Truck for Sale By Owner

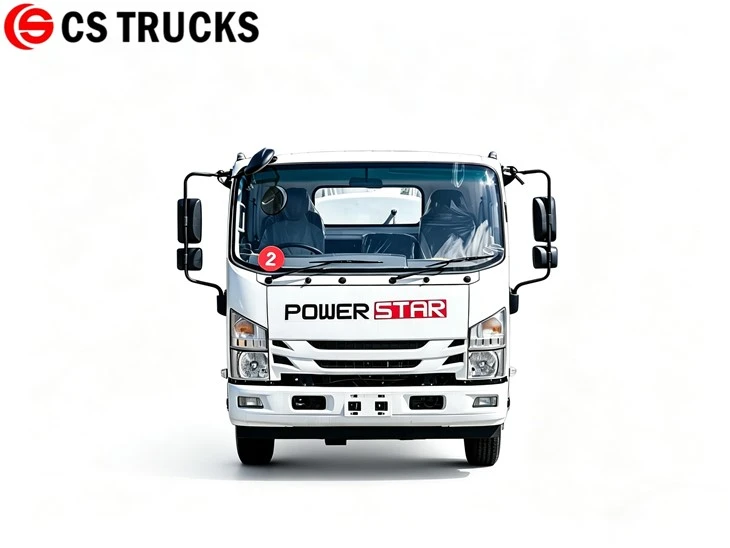

Front View of ISUZU 5000 liters Potable Water Truck
Rear View of ISUZU 4×2 Waste Water Tank for Food Truck
Performance Testing
why choose us?
This vehicle utilizes a proven Euro VI chassis and a corrosion resistant tank, making it versatile. We provide comprehensive support, from customs clearance documents to English manuals, and offer a full range of after sales spare parts. It is specifically designed for overseas municipal greening projects.
