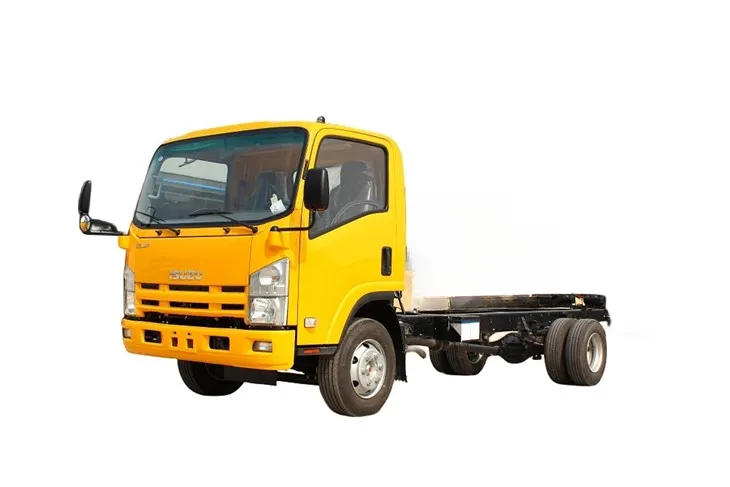

New & Used Isuzu ELF NPR NQR 700P light duty truck chassis for cargo/van/tanker/Fire/flatbed truck Philippines. Isuzu Truck chassis cab is a vehicle that is generally equipped to be upfitted with equipment of your choice. Service utility bodies or tanker truck bodies are installed by an upfitter after a chassis cab truck is purchased. When you purchase this vehicle, you may have a truck and nothing more than bare frame rails.
Our main products include full series products of ISUZU cab truck chassis,Buses, trailers, including dump truck Isuzu, tractor truck Isuzu, concrete mier truck, sprinkler truck,Water/Oil tank truck, truck mounted crane, concrete pump truck.Etc, low bed semi-trailer,Flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
Technical Specification
-
Isuzu NPR NQR ELF cab chassis truck looks incomplete - because it is. Cab chassis trucks Isuzu serve as the base for many different commercial work trucks. A cab chassis is purchased with the intent of adding a dump body, flatbed, service body or other upfit onto the back.
Isuzu cabin chassis trucks have always been renowned for their reliability. Now with the updated N Series, an intelligent system of safety features means that, more than ever before, you can rely on Isuzu trucks to protect you and other road users. Standard features on 4x2 models include autonomous emergency braking that can recognise pedestrians, a lane departure warning that sounds if the truck starts to drift, and a distance warning system to alert the driver if they’re getting too close to the vehicle in front. All this means Australia’s number one light truck is an even smarter choice.
ISUZU 700P/NQR/NPR/ELF 4x2 Chassis Specifications (Euro V)
Chassis Model:
QL1100A8KAY
Chassis Dimensions and Parameters
Overall Dimension(L x W x H)
6980×2170×2330mm
Wheelbase:
3815mm
Front/ Rear Wheel Distance:
1680/1650mm
Front/Rear Suspension
1110/2055mm
Rear Axle Ratio:
4.1
Approach/Departure Angle:
17/14°
Leaf Spring:
8/10+6
Weights and Capacities
Curb Weight:
3180kg
Payload:
kg
GVW:
10000kg
Axle Loads:
3350/6650kg
Engine
Engine Model:
4HK1-TCG51
Max output:
141kw
Displacement:
5193ml
Horsepower:
190ps
Exhaust Gas Treatment Technology：
DPF
Transmission
Transmission:
MLD-6Q
Forward Gear:
6 Speed Gear
Backward Gear:
1 Speed Gear
Brake
Air Brake
Front Drum Back Drum
With Exhaust Brake
Generator
12V- 80A
Cab
Number of Seats:
3
Chassis
Drive Type:
4x2
Tires:
7 (Including Spare Tire)
Tire Model:
8.25R20
Fuel Tank
Number:
1
Capacity:
100L
Configurations:
1
Power Steering System
2
Air Conditioning
3
ABS
4
Tubeless Tire
5
Retro-Reflective Marking
6
Free Maintenance Battery
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly；
Medium Duty Truck：ISUZU ELF/NPR/NQR/700P Parameter Comparison
Item
Parameter 1
Parameter 2
Parameter 3
Truck name
Cargo Truck Chassis
Cargo Truck Chassis
Cargo Truck Chassis
Truck No.
QL1110ANKA
QL1100A8KA
QL1100A8LA
Engine Model No.
4HK1-TCG61
4HK1TC51
4HK1TC51
Fuel type
0 # or - 10 # national V diesel (s content ≤ 10ppm)
0 # or - 10 # national V diesel (s content ≤ 10ppm)
0 # or - 10 # national V diesel (s content ≤ 10ppm)
Displacement
5193
5193
5193
Engine power
139
141
141
Torque
510
513
513
Drive Speed Ratio
4.1
Transmission Model
MLD-6Q
Gross Mass(kg)
10550
9995
10055
Curb Mass(kg)
4310
3920
3980
Load Mass(kg)
6045
5880/5680
5880/5680
Towering mass (kg)
Wheel base(mm)
3815
3815
4175
Cab type
Single row
Single row
Single row
Passenger
3
3
3
Overall dimension Length (mm)
7020
7020
7450
Overall dimension Width (mm)
2380
2260
2260
Overall dimension Height (mm)
2520,2600,2460,2540
2460
2480
Container volume
Container internal dimension length (mm)
5058
5058
5508
Container Internal dimension width (mm)
2300
2150
2150
Container Internal dimension height (mm)
450
450
450
Front wheel track(mm)
1680
1680
1680
Rear wheel track(mm)
1650
1650
1650
Leaf spring
8/10+6
8/10+6
8/10+6
Front suspension (mm)
1110
1110
1110
Rear suspension (mm)
2095
2095
2165
Axle load(kg)
3500/7050
3350/6645
3360/6695
Max. speed
110
110
110
Medium Duty Truck：700P Parameter Comparison
Item
Parameter 1
Parameter 2
Parameter 3
Truck name
Truck Chassis
Truck Chassis
Truck Chassis
Truck No.
QL1111ANKAY
QL1100A8KAY
QL1100A8LAY
Engine Model No.
4HK1-TCG61
4HK1TC51
4HK1TC50
Fuel type
0 # or - 10 # national V diesel (s content ≤ 10ppm)
0 # or - 10 # national V diesel (s content ≤ 10ppm)
0 # or - 10 # national V diesel (s content ≤ 10ppm)
Displacement
5193
5193
5193
Engine power
139
141
141
Torque
510
513
637
Drive Speed Ratio
Transmission Model
Gross Mass(kg)
10550
10000
10055
Curb Mass(kg)
3400
3180/3380
3200/3400
Load Mass(kg)
Towering mass (kg)
Wheel base(mm)
3815
3815
4175
Cab type
Single row
Single row
Single row
Passenger
3
3
3
Overall dimension Length (mm)
6980
6980
7430
Overall dimension Width (mm)
2170
2170
2170
Overall dimension Height (mm)
2370/2450
2330/2410
2330/2410
Front wheel track(mm)
1680
1680
1680
Rear wheel track(mm)
1650
1650
1650
Leaf spring
8/10+6
8/10+6
8/10+6
Front suspension (mm)
1110
1110
1110
Rear suspension (mm)
2055
2055
2145
Axle load(kg)
3500/7050
3350/6650
3360/6695
Max. speed
110
110
110
-
Detail pictures
An incomplete vehicle that has no cargo bed and can be upfit with manufactured bodies of all kinds Isuzu Cab Chassis Truck come in various sizes, weight capacities and with varying features. This diagram calls out some of the key features of a cab chassis including 4-wheel drive, cab-to-axle, and rear wheels. Other considerations include fuel type which depends on distances, frequency of stops and times of use. Cab type and comfort level are invaluable for safety and productivity.
