Products Description
During urban maintenance and construction, pavement cleaning and drainage system cleaning are crucial. However, previous cleaning and suction equipment usually required separate operations and could not achieve cleaning and suction at the same time, resulting in low efficiency and cumbersome operation. Therefore, there is an urgent need for a device that can simultaneously achieve cleaning and dirt suction. In this case, the combination sewer jetting truck came into being.

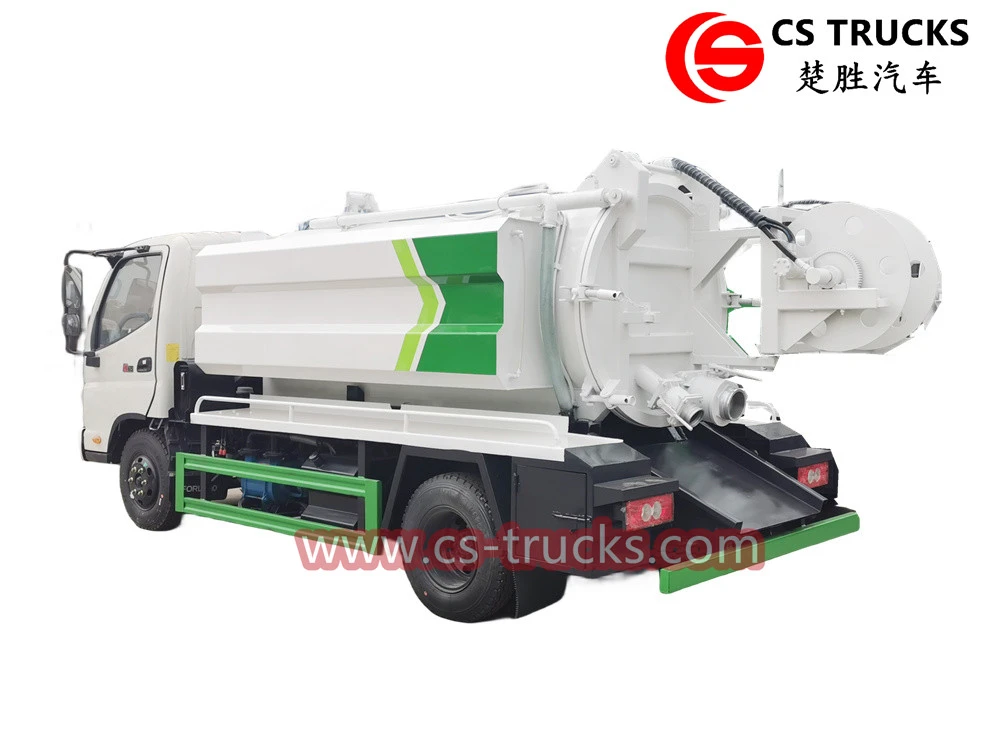

The FOTON mini vacuum jetting truck is an efficient cleaning and suction equipment, including a chassis, a jetting device and a suction device. The jetting device includes a high-pressure nozzle and a driving device, and the high-pressure nozzle is connected to the driving device through a pipeline. The driving device is an electric motor or a gear pump. The sewage suction device includes a vacuum pump and a sewage tank, and the vacuum pump is connected to it through a pipeline. The tank has a discharge port for discharging sewage after cleaning and suction.
Products parameters
|
Item |
Unit |
Parameter |
|
Vehicle model |
|
CSC5070GQW |
|
Chassis brand |
|
FOTON |
|
Overall dimensions |
mm |
5900×2000×2600 |
|
Gross vehicle weight |
kg |
7000 |
|
Curb weight |
kg |
2000 |
|
Front/rear axles |
kg |
5000 |
|
Engine brand |
|
QUANCHAI |
|
Engine model |
|
N490QB |
|
Power |
HP |
65 |
|
Torque |
N.m |
140 |
|
Speed |
RPM |
2100 |
|
Displacement |
ml |
2540 |
|
Gearbox |
|
5-speed, manual |
|
Sewage tank volume |
L |
3000 |
|
Sewage tank material |
Q235A Carbon steel |
|
|
Sewage tank material thickness |
mm |
5 |
|
Water tank volume |
L |
1000 |
|
Water tank material |
Q235A Carbon steel |
|
|
Clean water tank material thickness |
mm |
6 |
|
High pressure water pump |
PF30 (German brand) |
|
|
High pressure pump maximum flow |
L/min |
106 |
|
High pressure pump maximum pressure |
MPa |
20 |
|
High pressure pump speed |
RPM |
1000 |
|
High pressure water pipe specifications |
30 meters ¢19 high pressure hose |
|
|
High pressure pipe retraction |
Hydraulic retraction |
|
|
Retracting and retracting winch pulling force |
KN |
≥10 |
|
Reeling speed |
m/min |
0-25 |
|
High pressure nozzle |
10 types of carbon steel cleaning nozzles (with an additional box) Note: the style needs to be changed |
|
|
Hose reel |
180° rotation |
|
|
Reel layout position |
rear of tank |
|
|
Vacuum sewage pump model |
SK-6 |
|
|
Vacuum pump flow |
M3/min |
6 |
|
Speed |
RPM |
1460 |
|
Ultimate vacuum |
Mpa |
-0.093 |
|
Maximum power |
KW |
11 |
|
Maximum suction depth |
m |
≥7 |
|
Sewage tank unloading method |
Hydraulic lifting |
|
|
Tank lifting angle |
° |
≥45 |
|
Suction pipe diameter |
mm |
100 |
|
Suction time |
min |
5~7 |
|
Hydraulic system pressure |
MPa |
16 |
|
Control method |
Manual/electronic control |
|
|
Hydraulic motor |
China famous brand |
|
|
Multi-way valve |
China famous brand |
|
|
Gear pump |
Hebei Weiguo Hydraulic Parts Factory |
|
|
Hydraulic cylinder |
Well-known Chinese brand |
Products features
1. FOTON RHD chassis with short wheelbase
2. 2000 liters sewage tank and 1000 liters water tank
3. Tank body can be lifted by hydraulic cylinders
4. The head of the openable rear cover is made of 6mm thick high-quality steel plate
5. A hose reel that can rotate 180° is installed at the rear of the tank.
6. 10 units nozzles for high pressure water jetting.
