Products Description

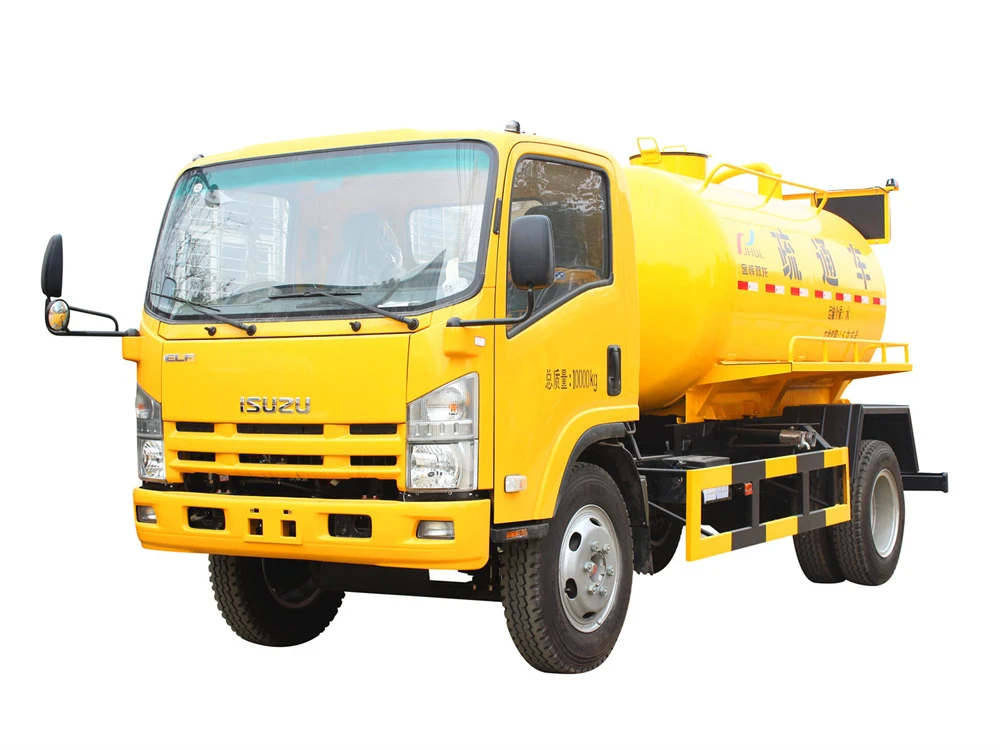

The Isuzu Hydro Fluid Plumbing truck operates on a unique mechanism that allows it to efficiently and effectively perform its tasks. The truck combines the principles of hydraulic power and fluid dynamics to ensure smooth and reliable plumbing operations.
At the heart of the system is a powerful hydraulic pump, which is responsible for generating the necessary pressure to move the fluid through the entire plumbing system. This pump is usually driven by the truck's engine, ensuring a constant supply of power to support the plumbing operations.
The plumbing truck is equipped with a large tank that holds the hydro fluid, which is a special type of hydraulic fluid designed specifically for plumbing applications. This fluid is highly pressurized by the pump and sent through a series of pipes and hoses, effectively creating a hydraulic network within the truck.
Technical specification
| Chassis parameters | |||
| Cabin | ISUZU 700P cabin/Left hand drive/4x2 | ||
| Chassis | Loading weight(kg) | 6000kg | |
| Wheelbase(mm) | 3815 mm | ||
| Dimensions(mm) | 7800*2400*2800mm | ||
| Front/Rear Axle loading(kg) | 4000/7000 kg | ||
| Wheel track (front/rear) (mm) | 1770/1586 mm | ||
| Front/Rear overhang(mm) | 1210/1490 mm | ||
| Approach/Departure angle(°) | 24/12 ° | ||
| Max. driving speed(km/h) | 100 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 235/75R17.5 | ||
| Gear box | Manual type,ISUZU MLB transmission/ 6 forward & 1 reverse | ||
| Brand | ISUZU engine | ||
| Engine | Model | 4KH1-TCG51 | |
| Fuel type | Diesel | ||
| Displacement(ml) | 2999ml | ||
| Power(kw) | 139 kw | ||
| Horsepower(HP) | 190 HP | ||
| Max. Torque(N.m) | 220 | ||
| Emission standard | Euro V | ||
| Sewage Suction Tanker | |||
| 1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm. | |||
| 2)Equipped with 60m high pressure tube,diameter 19mm. | |||
| 3) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. | |||
| 4) Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m. | |||
| 5)Vacuum water pump | |||
| Model : SK-6 | |||
| Type : water circulation pump | |||
| Vertical suction: 9m | |||
| Flow : 1.5m3/min | |||
Features:
a.Cylinder vacuum tank can be lifted hydraulically to ≥ 45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.
How to operate hydro fluid plumbing truck?
The Isuzu Hydro Fluid Plumbing truck is a specialized vehicle designed for efficient and effective handling of plumbing operations. It plays a crucial role in the smooth running of plumbing tasks such as pipe installations, repairs, and maintenance. This truck's workflow consists of several steps, ensuring a seamless and streamlined process.
The first step in the workflow is the loading of equipment and tools onto the truck. The vehicle is equipped with spacious storage compartments to accommodate all the necessary plumbing tools, including wrenches, pipe cutters, fittings, and various types of pipes. Additionally, it carries a large water tank, pumps, and hoses, crucial for hydro-jetting and other water-based plumbing operations.
Once the truck is fully loaded, the next step involves reaching the designated worksite. The truck's compact size and powerful engine make it easy to maneuver through busy city streets and narrow residential areas. Once at the worksite, the plumbing team begins by assessing the plumbing issue and formulating a plan of action.
The third step involves the actual plumbing work. For pipe installations, the team utilizes the truck's onboard water tank and pumps to ensure a constant supply of water during the process. The hydro-jetting equipment is then utilized to remove debris, clogs, and any potential blockages in the plumbing system. The truck's high-pressure water jets effectively clean the pipes, ensuring optimal water flow and preventing future recurring issues.
In case of pipe repairs, the plumbing team utilizes the truck's advanced pipe-cutting and fitting tools to replace or repair damaged sections. The truck's well-organized storage compartments allow quick access to the required tools, minimizing downtime and maximizing efficiency.
Once the plumbing work is completed, the team conducts a thorough inspection to ensure optimal functionality and quality workmanship. Any remaining debris or residue is flushed out using the hydro-jetting equipment.
