Built on the Sinotruk HOWO 6×4 chassis, this HOWO 6×4 high pressure jetting truck is equipped with a 371HP WD615.47 engine, providing strong power suitable for heavy loads and complex road conditions. With a tank capacity of 10000 liters, it combines cleaning and sewage suction functions, positioning itself as a medium sized professional work vehicle for municipal sanitation and industrial pipeline dredging, emphasizing a balance between mobility and operational efficiency.
Model: CSC5250GXW
Capacity: 10000 Liters
Drive: 6×4
Engine Power: 371HP
Engine Type: WD615.47
Send Inquiry
Description
This HOWO 6×4 water jet vacuum truck is equipped with a large displacement diesel engine, providing strong power. The vehicle has a high load bearing capacity, a mature and reliable chassis configuration, and is adaptable to various complex municipal road conditions. The tank has a capacity of 10000L, with separate compartments for storing clean water and waste, integrating sewage suction and high pressure dredging into one unit, offering dual functionality.
The vehicle is equipped with two independent operating systems: a water ring vacuum pump with strong suction capacity, capable of quickly extracting sludge and septic tank sewage; and a three cylinder plunger high pressure cleaning pump, whose high pressure water flow can break down stubborn scale in pipes, efficiently dredging municipal sewage networks.
HOWO Combination Sewer Cleaning Truck Key Features
Heavy duty chassis
6×4 drive configuration, strong load bearing capacity, adaptable to complex road conditions and heavy duty operations.
Powerful engine
Equipped with a 371HP WD615.47 engine, providing ample power reserves to ensure efficient suction and cleaning.
Medium capacity
10000 liters tank, combining cleaning and vacuuming functions, suitable for medium sized municipal and industrial applications.
Dual function integration
One vehicle simultaneously possesses high pressure cleaning and vacuuming capabilities, enhancing operational flexibility.
Technical parameters
HOWO 10000 Liters Combined Vacuum Jetting Vehicle
Overall
Vehicle Model
CSC5250GXW
Drive Type
6×4
Gross Vehicle Weight
25000 kg
Curb Weight
9500 Kg
Capacity
10000 L
Maximum Speed
80 km/h
Overall Dimensions
9200×2550×3400 mm
Engine
Engine Type
WD615.47
Fuel Type
Diesel
Power
371HP/272kW
Emission Standard
Euro 2
Displacement
9726 ml
Engine Type
Inline six cylinder, water cooled, four stroke, turbocharged, intercooled, direct injection diesel engine
✳️Load Capacity: Utilizing a Sinotruk 6×4 chassis, the vehicle boasts a gross vehicle weight capacity of up to 25000 kg, providing strong load bearing capacity and a robust overall structure.
✳️Transmission Performance: The HW19710 is a 10 speed manual transmission with 10 forward gears and 2 reverse gears, providing strong heavy duty climbing ability.
✳️Driving Safety: Air brakes, 315/80R22.5 tires, suitable for various road conditions such as municipal roads and construction sites.
Powertrain
✳️Engine Configuration: Equipped with a WD615.47 inline six cylinder, water cooled, four stroke diesel engine with a displacement of 9726ml and a power output of 371HP, providing ample power reserves.
✳️Emissions Compatibility: Meets Euro 2 emission standards, suitable for use in many overseas countries, boasts high reliability, and is suitable for long term continuous operation.
Tank
✳️Compartmental Design: The tank has a total volume of 10 000L, with separate compartments for clean water and wastewater, ensuring no interference between cleaning and wastewater treatment processes.
✳️Operating Efficiency: The large capacity reduces the need for multiple transfers, making it suitable for cleaning long distance, large-scale pipeline networks.
✳️Overall Vehicle Dimensions: 9200×2550×3400mm, with a compact layout that balances loading capacity and maneuverability.
HOWO Vacuum Jetting Truck Operating System
Vacuum Pump
The vehicle is equipped with a VTP-3200 water ring vacuum pump with a speed of 1200r/min and a maximum pumping speed of 53m³/min. It has strong and stable suction power and can quickly remove sludge and sewage from septic tanks.
Working Principle
The VTP-3200 water ring vacuum pump relies on the rotation of the impeller to form a closed water ring, which continuously draws air from the inside of the cleaning tank of the sewage suction truck to create negative pressure. It then uses atmospheric pressure to suck sewage and sludge into the tank, thus completing the suction operation.
High Pressure Cleaning Pump
This vehicle is equipped with a three cylinder plunger high pressure pump with a rated pressure of 16MPa and a maximum pressure of 22MPa. It outputs high pressure water at a high flow rate of 215L/min, which powerfully breaks up the hardened dirt in the pipes and achieves pipe dredging and cleaning.
Working Principle
The high pressure cleaning pump uses a power driven plunger to pressurize clean water through reciprocating motion, and outputs a high pressure water flow to break up the hardened dirt inside the pipe, thus completing the pipe dredging and cleaning operation.
Product Details
Multi-way Valve
Water Vapor Separator
Driver's Cab
Gear Box
Diesel Tank
Suction Port
Application scenarios
HOWO 6×4 Vacuum Jetting Truck for Municipal Drainage Pipe Network
Dredging and clearing silt and debris from sewers, storm drains, and inspection wells along the city's main and secondary roads.
HOWO 371HP Water Jet Vacuum Truck for Property and Community
Regular pumping and high pressure flushing of septic tanks and grease traps in residential areas.
HOWO 1000L High Pressure Jetting Truck for Industrial Plant Area
Pumping and flushing of wastewater pipelines and sedimentation tanks in chemical, pharmaceutical, and food processing plants.
Exterior Views

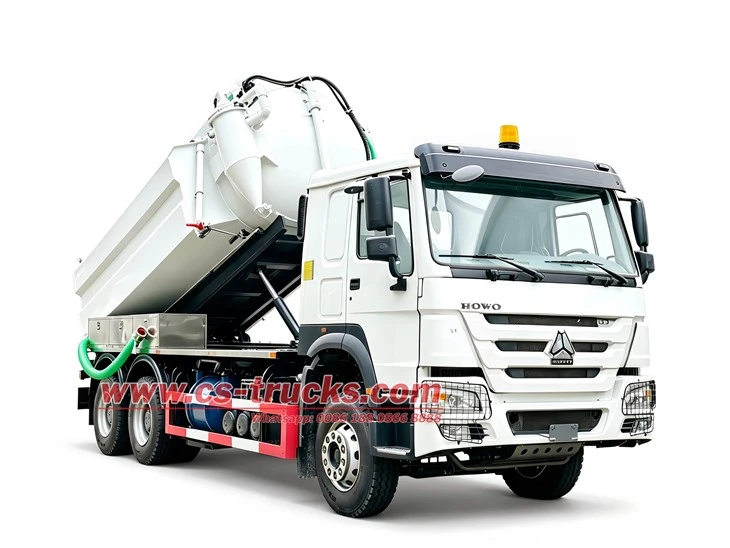

Front Right View of HOWO 6×4 Sewer Flushing and Cleaning Truck

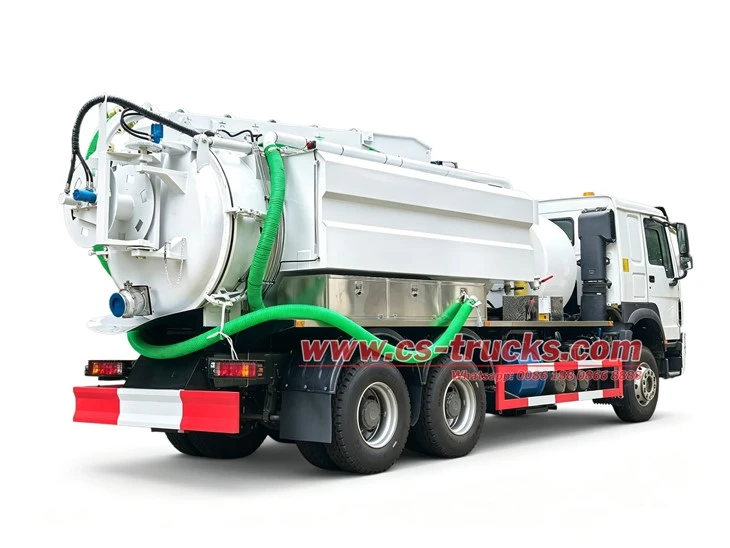

Rear Right View of HOWO Sewer Vacuum Truck Service Near Me

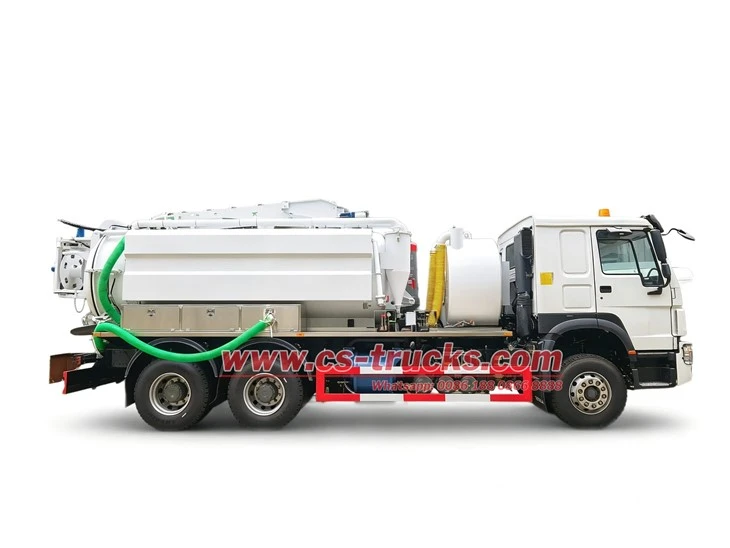

Right View of ISUZU 10000L Sewer Vacuum Truck for Sale

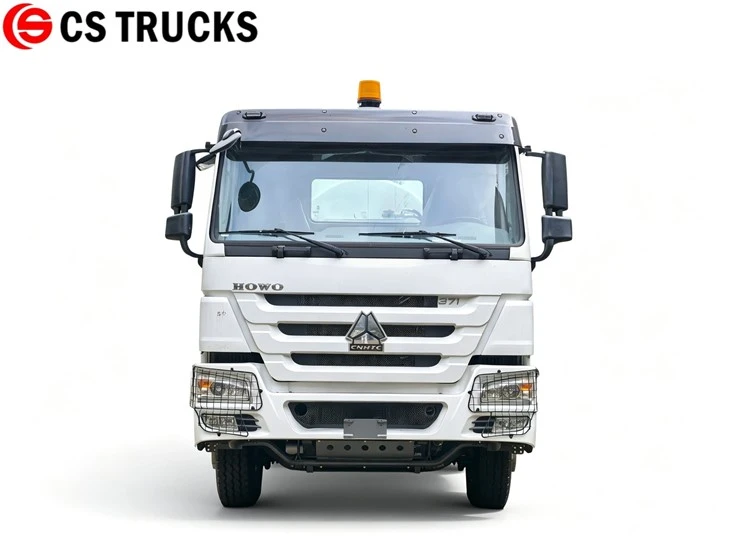

Front View of HOWO 371HP Sewer Flushing and Cleaning Truck

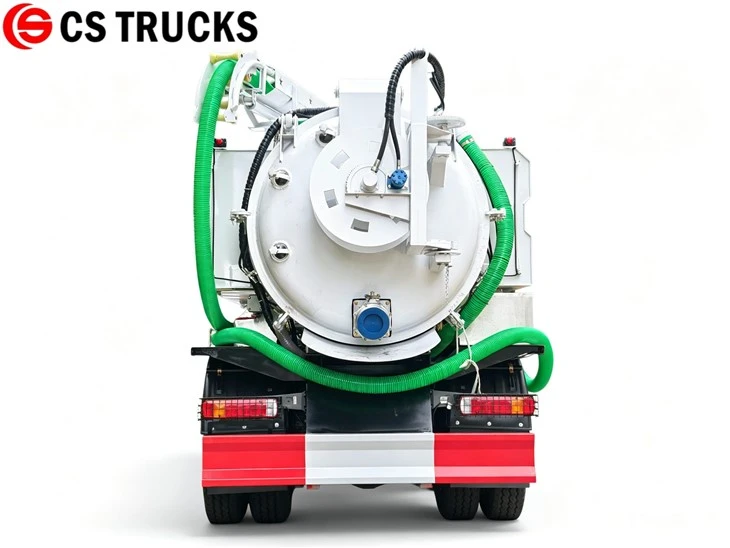

Rear View of HOWO 10000L Combination Sewer Cleaning Truck
Frequently Asked Questions
Q1: What's the difference between a cleaning vacuum truck and a sludge suction truck? A: A cleaning vacuum truck has both high pressure cleaning and vacuum suction functions, while a sludge suction truck can only suction and cannot unclog pipes.
Q2: Can the clean water tank and the sewage tank be fully loaded at the same time? A: No. The two tanks are independently designed with a fixed total volume. The volume of clean water and sewage fluctuates, requiring careful allocation of workload.
Q3: What are the functions of the high pressure pump and the vacuum pump? A: The high pressure pump is responsible for using high pressure water jets to unclog pipes; the vacuum pump is responsible for negative pressure suction of sewage and sludge. They work together to complete the cleaning operation.
Q4: Is a larger tank volume always better? A: Not necessarily. A larger volume reduces the number of trips, but increases the overall size and weight of the vehicle. The choice should be based on traffic conditions and operational needs.
Q5: What routine maintenance is required for a cleaning vacuum truck? A: Regularly check the high pressure pump seals, vacuum pump oil level, and the sealing of pipeline valves. After operation, promptly empty the tank and flush it.
