Customer Combination Tanker Trucks Made By HOWO

The HOWO 16CBM sewer vacuum truck service near me uses a Sinotruk chassis and is equipped with an MC07H.35P-61 Euro VI diesel engine, matched with an HW19710 manual transmission, providing ample power reserves. The tank body is made of Q235 carbon steel and is divided into independent clean water and wastewater tanks. The entire vehicle adopts an air brake configuration, ensuring stable and reliable chassis performance, and can adapt to various work sites and long distance relocation needs.

This vehicle is equipped with an SK-12 water ring vacuum pump and a TJ3D2 high pressure cleaning pump, its vacuum pump has a pumping speed of 12m³/min, enabling it to pump and discharge sludge, sewage, and wastewater. The tank supports hydraulic lifting for unloading, integrating high pressure cleaning, sludge suction, and liquid waste transfer functions. It is suitable for municipal pipeline maintenance, septic tank cleaning, and industrial and mining liquid waste collection.





Customer Combination Tanker Trucks Made By HOWO
Overall	Vehicle Model	CSC5250GXW
	Drive Type	6×4
	Gross Vehicle Weight	25000 kg
	Curb Weight	17700 kg
	Capacity	Clean Water Tank	7m³
		Sewage Tank	9m³
	Maximum Speed	89 km/h
	Overall Dimensions(L*W*H)	10100×2550×3800 mm
Engine	Engine Type	MC07H.35P-61
	Fuel Type	Diesel
	Power	350HP/257kW
	Emission Standard	Euro 6
	Displacement	7360 ml
	Engine Type	Inline 6 cylinder, water cooled four stroke, turbocharged and intercooled, high pressure common rail
Chassis	Chassis Brand	SINOTRUK
	Tire No.	10+1
	Tire Specification	11.00R20
	Wheelbase (mm)	4300+1350 mm/4600+1350 mm
	Gear Box	HW19710(10 forward gears, 2 reverse gears)
	Steering Wheel	LHD
	Brake	Air
Material	Q235 Carbon Steel
Vacuum Pump	Model	SK-12
	Air Extraction Rate	12 m³/min
	Power	18.5 kW
	Pump Speed	970 rpm/min
	Compressor Pressure	0-1 Mpa
	Water Consumption	40~50 L/min
High Pressure Pump	Model	TJ3D2
	Max Flow	370 L/min
	Max Pressure	160 MPa
	Speed Ratio	2.96









The vehicle is equipped with a TJ3D2 high pressure pump, which has a pressure of 160MPa and a flow rate of 370L/min, it is paired with an SK-12 vacuum pump with a pumping speed of 12m³/min. It has strong high pressure dredging capabilities and stable and reliable vacuum suction, it can realize the synchronous and coordinated operation of the two pumps, which greatly improves the efficiency of pipeline dredging construction.









The vacuum jetting truck integrates high pressure cleaning and vacuum suction, performing simultaneous flushing and suction. It is mainly used in the following operational scenarios:

1️⃣Municipal Pipeline Services: Dredging urban drainage pipes, storm drains, and inspection wells; removing sludge and grease; restoring drainage.

2️⃣Septic Tank Cleaning: Pumping out liquid waste from septic tanks, sewage wells, and grease traps in residential areas, hospitals, factories, etc.

3️⃣Industrial Wastewater Discharge: Collecting and transporting industrial wastewater, waste oil, and liquid waste from factories, mines, and farms.

4️⃣Emergency Response: Quickly handling emergencies such as pipe blockages and sewage overflows; also cleaning paved surfaces such as plazas and parking lots.



Comparison Projects	HOWO 16CBM High Pressure Jetting Truck	Ordinary Vacuum Truck
Core Configuration	Equipped with a dual pump set of high pressure cleaning pump + vacuum pump	Only a vacuum pump is provided; a high pressure flushing pump is not included
Operating Mode	High pressure water flushing + vacuum suction, with dual pumps capable of simultaneous flushing and suction	It relies solely on negative pressure suction and lacks a high pressure flushing function
Processing Conditions	It can handle hardened sludge, grease, and stubborn pipe blockages, and is suitable for municipal pipe network dredging	It can only pump out liquid and loose sludge; it cannot handle hardened and clump like debris
Tank Partitioning	It has a dual compartment structure with a clean water tank and a wastewater tank, and comes with its own clean water supply.	Single wastewater tank, requires external water source for flushing during operation
Operating Efficiency	Simultaneous flushing and suction ensures high efficiency in pipeline dredging	Clumping and siltation require manual pretreatment, which takes longer
Unloading Method	Hydraulic opening of rear cover + tank lifting and self unloading	Some models rely solely on differential pressure for wastewater discharge and have weak self-unloading capabilities
Applicable Scenarios	Municipal sewer and pipe network dredging, septic tank cleaning	Septic tank and sewage tank loose sludge suction







📌Standard Configuration

1. Q235 carbon steel asymmetrical double compartment tank, physically isolating clean water and wastewater.

2. SK-12 water circulating vacuum pump assembly, large diameter vacuum pipeline, heavy duty ball valve.

3. TJ3D2 high pressure pump assembly, hose reel, high pressure hose, multi specification unclogging nozzles.

4. Hydraulically fully opening rear cover + large angle hydraulic lifting and self-unloading system for the tank.

5. Coordinating hydraulic valve group, dual pressure gauges, manhole access port, multiway operating interface.

6. Guardrails, warning lights, rear lighting, toolbox, complete set of onboard tools.



📌Optional Upgrades

304 stainless steel tank body, wireless remote control operating system, winter antifreeze kit, RHD right hand drive chassis, and operation monitoring camera.





Front Right View of HOWO 6×4 Combination Sewer Cleaning Truck

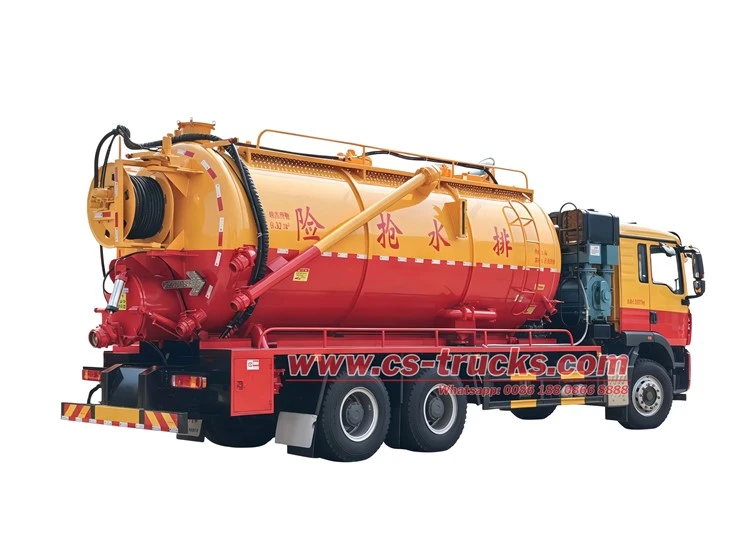

Rear Right View of HOWO Sewer Vacuum Truck Service Near Me



Rear Left View of HOWO 16CBM Sewer Vacuum Truck for Sale



Right View of HOWO 6×4 Vacuum Jetting Truck



Front View of HOWO Water Jetting and Sewage Suction Truck



Rear View of HOWO 350HP Sewer Flushing and Cleaning Truck





Q1: Will simultaneous operation of dual pumps constitute overload or damage to the equipment?
A: The vehicle's hydraulic power distribution has been specifically optimized. Dual pump linkage heavy load testing has been completed at the factory. Long term simultaneous operation under rated conditions is within the design capacity and does not constitute overload.



Q2: Is there a risk of instability in the 7+9 asymmetrical tank structure?
A: The tank structure has undergone mechanical simulation. The vehicle meets the 25 tons gross vehicle weight regulation and has passed full load road tests, proving stable and reliable operation.



Q3: Will a large amount of sludge remain in the tank during unloading?
A: The fully opening hydraulic rear cover and large angle lifting ensure clean unloading of sludge and sand, significantly reducing residue compared to models with small angle lifting.



Q4: Is customized modification supported?
A: Yes, it is supported. Tank material, pump model, wireless remote control, antifreeze kit, right hand drive, and warning configuration can all be customized as needed.
