ISUZU 15000Liters Sludge Suction Water Jetting Truck
ISUZU 15000L Combination Sewer Cleaning Truck
The ISUZU 4×2 high pressure jetting truck is equipped with a 240HP 6HK1-TCG61 engine and a large 15000L tank, providing ample power and high efficiency. Integrating suction and dredging, it is suitable for municipal pipeline dredging, road flood drainage, and oil and debris removal. Its robust and durable structure balances operational efficiency and battery life, making it a cost effective mainstay for sanitation and engineering maintenance companies.
The ISUZU 240HP Sewer Flushing and Cleaning Truck is built on an Isuzu 4×2 chassis and equipped with a Euro 6 6HK1-TCG61 six-cylinder diesel engine and integrates an SK-12 water ring vacuum pump and a high pressure jet pump, combining the functions of high pressure flushing of pipelines and vacuum suction of sludge. It is suitable for municipal pipeline dredging, septic tank cleaning, construction site mud transportation, and livestock manure transportation, etc., making it a dual purpose vehicle that significantly reduces operating costs.
The vehicle's dual system operates in sync: the high pressure pump discharges water to break up debris in the pipes, while the SK-12 vacuum pump creates negative pressure to simultaneously suck away the debris. Upon completion, the tank is hydraulically lifted to discharge the sludge. With a wheelbase of 5000 mm, the vehicle offers excellent maneuverability. The water ring pump is resistant to sewage backflow and is easy to maintain, enabling sustained and stable operation even under complex sanitation conditions.
Core features
☑️Tank: 15000 Liters large capacity, allowing for high throughput and reducing the frequency of transfers.
☑️4×2 Flexible Chassis: Convenient for urban road traffic, suitable for municipal street and alley operations.
☑️Multi-functional Integrated Operation: Integrates pipe dredging, flood drainage, and oil and waste collection.
Technical parameters
ISUZU 15000Liters Sludge Suction Water Jetting Truck
Overall
Vehicle Model
CSC5180GXW
Drive Type
4×2
Gross Vehicle Weight
18000 kg
Curb Weight
10690 kg
Capacity
10000L vacuum tank+5000L cleaning water tank
Maximum Speed
105 km/h
Overall Dimensions(L*W*H)
8420×2530×3550 mm
Engine
Engine Model
6HK1-TCG61
Fuel Type
Diesel
Power
240HP/177kW
Emission Standard
Euro 6
Displacement
7790 ml
Engine Type
Inline 6-cylinder water-cooled diesel engine
Chassis
Chassis Brand
Qingling
Tire No.
6+1
Tire Specification
295/80R22.5
Wheelbase (mm)
5000 mm
Gear Box
FAST 8-Speed
Steering Wheel
LHD
Brake
Air
Vacuum Pump
Model
SK-12
Air Extraction Rate
12 m³/min
Power
18.5 kW
Pump Speed
970 rpm/min
Compressor Pressure
0-1 Mpa
Caliber
inlet
80 mm
output
80 mm
Water Consumption
40~50 L/min
High Pressure Jet Pump
Model
350TJ
Flow Rate
350 L/min
Pressure
24 MPa
Hose Reel
60m rear mounted reel ∮19 hose
Product Description
Vehicle Configuration
🔹Powertrain: Equipped with an Isuzu 4×2 single-axle chassis and a 6HK1 engine, paired with a Fast 8-speed transmission, providing ample power reserves and ensuring no power loss during heavy duty long distance driving.
🔹Load Capacity and Dimensions: With a gross vehicle weight of 18 tons, the compact wheelbase and dimensions allow for maneuverability in narrow roads; large tires and a multiwheel layout ensure strong stability under heavy loads.
🔹Driving and Handling: Left hand drive cab, full air brakes, dual output power take off from the chassis side, synchronously driving the high pressure pump and vacuum pump for efficient power distribution and low power loss.
Subdivision Tank
🔹Capacity Storage Area: 15000L large capacity, with separate storage compartments for dirty and clean materials, allowing for flexible mixing ratios and adaptability to various operating scenarios.
🔹Structural Design: Thickened steel and anti surge design provide double protection for driving safety; corrosion resistant inner walls significantly enhance durability and reduce maintenance costs.
🔹Unloading Structure: Hydraulic full opening + large angle lifting ensures smooth dumping of stubborn sediment; overflow prevention device safeguards operational safety throughout the process.
operating pump system
(1) SK-12 Water Ring Vacuum Suction System
Performance Parameters: 12m³/min pumping speed combined with 18.5kW power output, rated speed 970rpm, 80mm inlet diameter, water consumption of only 40~50L/min, rapid and stable negative pressure establishment.
Operating Advantages: Water ring seal design easily handles water vapor and sewage backflow, eliminating the risk of pump jamming and corrosion; simple and reliable structure, requiring only routine replacement of packing seals, resulting in low maintenance costs; excellent for septic tank and shallow sludge suction.
Model
Inhalation Volume(m³/min)
Ultimate Vacuum
Power(kW)
Rotational Speed(r.p.m)
Compressor Pressure(Mpa)
Caliber
Water consumption
Vacuum Degree-450mmHg
mmHg
MPa
Vacuum Pump
Compressor
inlet
output
SK-1.5
1.5
1.35
-680
-0.091
3
4
1450
0-1
70
70
10~15
SK-3
3
2.8
-710
-0.093
5.5
7.5
1450
0-1
70
70
15~20
SK-6
6
5.4
-710
-0.093
11
15
1450
0-1
80
80
20~30
SK-9
9
8.1
-710
-0.093
15
22
970
0-1
80
80
30~40
SK-12
12
11
-710
-0.093
18.5
30
970
0-1
80
80
40~50
SK-15
15
13.5
-710
-0.093
30
45
970
0-1
80
80
50~60
SK-20
20
18
-710
-0.093
37
55
740
0-1
150
150
60~80
SK-30
30
28
-710
-0.093
55
75
740
0-1
150
150
70~100
SK-42
42
37.2
-710
-0.093
75
740
150
150
95~130
SK-60
60
54
-710
-0.093
95
590
250
250
140~180
SK-85
85
76.5
-710
-0.093
132
590
250
250
180~220
SK-120
120
110
-710
-0.093
185
590
300
300
220~260
Note: The data listed in the SK water ring vacuum pump table are obtained under the following conditions:
1. Atmospheric pressure: 0.1013 MPa (760 mmHg)
2. Inlet water temperature: 15℃
3. Suction air temperature: 20℃
4. Relative humidity: 70%
5. Performance tolerance: ±10%
(2) 350TJ High Pressure Jet Dredging System
Basic Performance: Equipped with a Tongjie 350TJ three plunger pump, flow rate 350L/min, pressure 24MPa, chassis PTO drive, pressurized clean water to form a high speed jet.
Reel Configuration: Rear end hydraulic reel with a 60m, 19mm diameter high pressure hose; automatic jet thrust inlet, compatible with various nozzles to break up clumps of silt, oil, and tree roots; suitable for 300-1200mm pipe networks.
Product details
Multi-way Valve
Hydraulic Rotary Reel
Hydraulic Oil Tank
Driver's Cab
Water-air Separator
Dry and Wet Filters
Sewage Outlet
Overflow Level Alarm Device
How does a Vacuum Jetting Truck work?
1
Pipe Unblocking
The high pressure jet, through the coordinated action of the nozzle and the reverse thrust, automatically enters the pipe, physically flushing and breaking up blockages and cleaning the pipe wall.
2
Sewage Suction
The vacuum pump creates negative pressure inside the tank, and atmospheric pressure is used to suck sludge and sewage into the tank. The water ring sealing structure is resistant to water vapor backflow, and the suction process is stable and does not jam.
3
Flexible Allocation
Clean water and sewage are stored in separate compartments, and the volume ratio of the two compartments can be freely adjusted by interconnecting ball valves, so that one vehicle can meet the needs of both cleaning and sewage suction.
4
Convenient Unloading
Supports two unloading methods: positive pressure discharge or hydraulic lifting and tilting. The hydraulic rear cover, combined with a large angle lifting, allows high concentration sludge to be emptied in one go.
Application scenarios
As a multifunctional special purpose vehicle, the water jet vacuum truck is widely used in multiple fields:
✔️Municipal Pipeline: Dredging sewers, storm drains, and inspection wells, removing silt and grease, and cleaning pipe walls.
✔️Industrial Cleaning: Cleaning industrial drainage pipes, chemical pipes, and cooling circulation systems.
✔️Property Services: Commonly used equipment for pipe dredging in residential areas, restaurants, and schools.
✔️Special Operations: River dredging; washing roads, walls, traffic signs, and urban sculptures.
exterior views

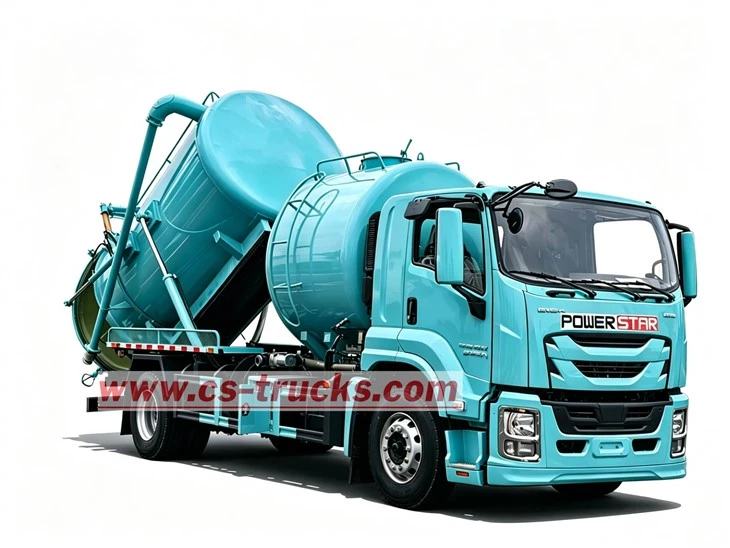

Front Right View of ISUZU 15000L Combination Sewer Cleaning Truck

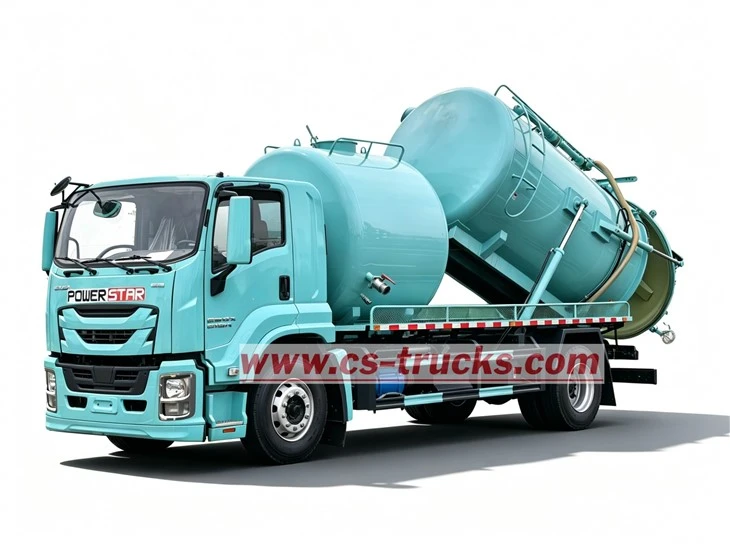

Front Left View of ISUZU 4×2 High Pressure Jetting Truck

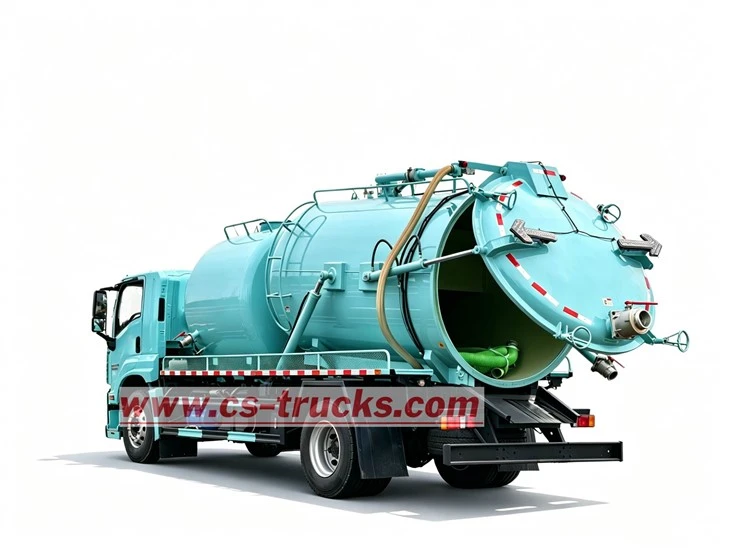

Rear Left View of ISUZU 280HP Sewer Flushing and Cleaning Truck

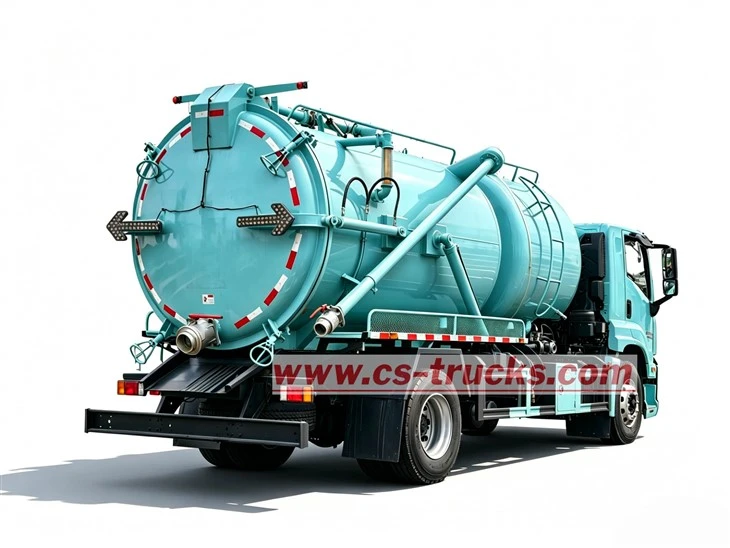

Rear Right View of ISUZU 280HP Water Jet Vacuum Truck

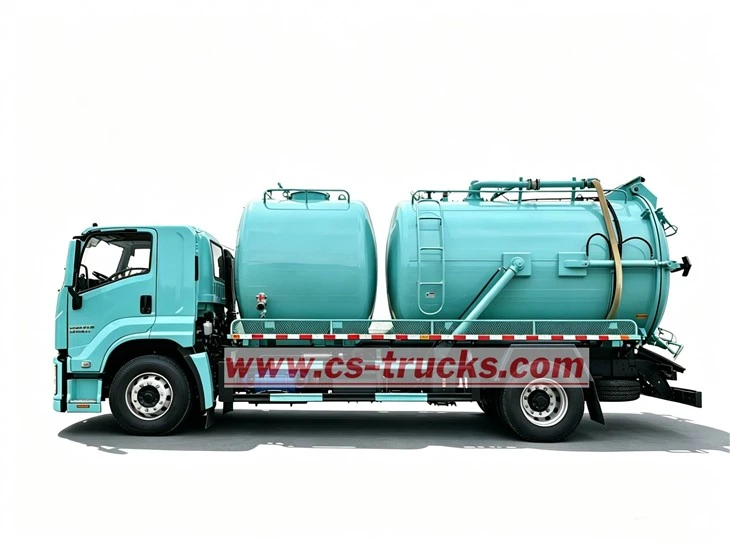

Left View of ISUZU Water Jetting and Sewage Suction Truck

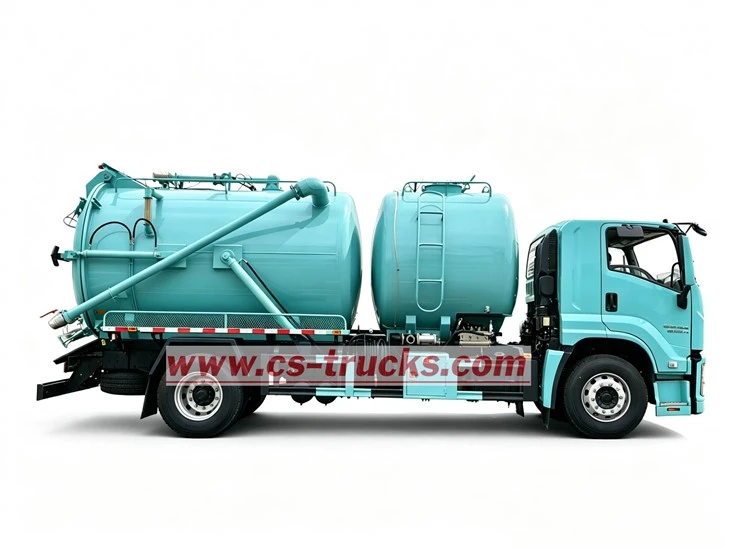

Right View of ISUZU Sewer Vacuum Truck Service Near Me

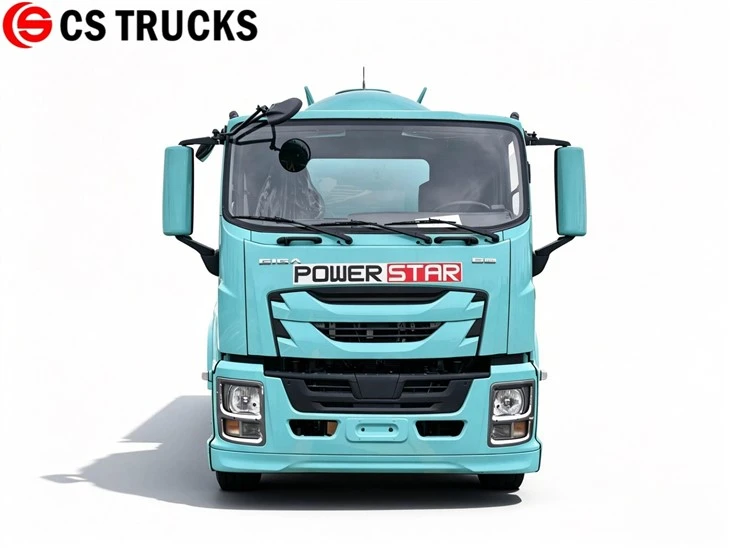

Front View of ISUZU 4×2 Water Jet Vacuum Truck

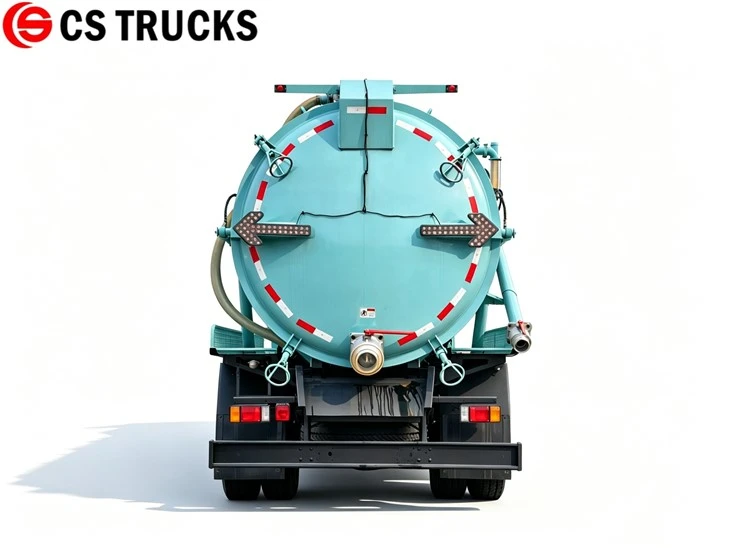

Rear View of ISUZU 15000L Sewer Vacuum Truck for Sale
