This HOWO 18000L combination sewer cleaner, with its large 18000 liters capacity and 6×4 heavy duty chassis, is specifically designed for in depth maintenance of urban pipe networks. Equipped with an MC07.35-60 engine, its robust 350 horsepower output easily handles high load continuous operations. The truck integrates high pressure dredging and vacuum suction, and its reliable engineering yellow paint makes it an efficient and durable professional choice for municipal sanitation and industrial dredging.
Model: CSC5250GXW
Capacity: 18000 Liters
Drive: 6×4
Engine Power: 350HP
Engine Type: MC07.35-60
Send Inquiry
Description
The HOWO 350HP Sewer Flushing and Cleaning Truck uses a Sinotruk HOWO 6×4 chassis and is equipped with an 18000L carbon steel tank. It is powered by an MC07.35-60 Euro VI emission standard diesel 350HP engine with a top speed of 80 km/h.
This truck integrates vacuum suction and high pressure cleaning functions. The 2BE-258A vacuum pump provides a vertical suction depth of ≥20 meters and a horizontal suction distance of ≥100 meters. The PINFL X0330 high pressure pump provides a working pressure of 200 bar for sewer jet cleaning. The 8mm thick Q235 tank is equipped with an 800mm hydraulic rear door and supports selfunloading lifting, making it an ideal choice for municipal sewer cleaning, sludge and sewage collection and transportation.
HOWO Water Jet Vacuum Truck Key Features
Manufacture:CS TRUCKS
Key Features:
🔶Large Capacity: The tank has a total capacity of 18000 liters, integrating cleaning and vacuuming for wide coverage and low retrip frequency in a single operation.
🔶Heavy Duty Drive: The rear dual axle chassis provides strong load bearing capacity and excellent maneuverability, adapting to high load continuous operation.
🔶Engine: Equipped with an MC07.35-60 engine, providing ample power and ensuring stable output under full-load conditions.
🔶Professional Dual Functions: High pressure dredging and vacuum suction work in tandem to meet the needs of in depth pipeline maintenance.
🔶Municipal Grade Design: The engineering yellow paint is highly visible and safe, suitable for urban sanitation and industrial dredging scenarios.
Technical Parameters
HOWO 18000L Water Sewer Sewage Vehicle
Overall
Vehicle Model
CSC5250GXW
Drive Type
6×4
Gross Vehicle Weight
25000 kg
Curb Weight
17100 kg
Capacity
18000 L
Maximum Speed
80 km/h
Overall Dimensions(L*W*H)
10100*2500*3850 mm
Engine
Engine Model
MC07.35-60
Fuel Type
Diesel
Power
350HP/257kW
Torque
1400 N·m
Emission Standard
Euro VI
Displacement
7360 ml
Engine Type
Inline six cylinder, water cooled, four stroke, turbocharged and intercooled
Chassis
Chassis Brand
SINOTRUK
Tire No.
10+1
Tire Specification
11.00R20
Wheelbase (mm)
4350+1350 mm
Gear Box
10-speed Manual
Steering Wheel
LHD
Brake
Air
Superstructure
Tank Material
Q235 Carbon Steel
Tank Thickness
8 mm
Sewage Outlet
800 Hydraulic Door
Tank Self-unloading
Lifting and Unloading
Vacuum Pump
Model
2BE-258A
Pressure
33 hpa(A)
Rotational Speed
740 r/min
Vertical Suction Depth
≥20 m
Horizontal Distance
≥100 m
Power
75 kW
Maximum Air Volume
47 m³/min
High Pressure Cleaning Pump
Model
PINFL X0330
R.P.M
1500
kW/hp
131/177
l.min/GPM
330/87.2
bar/PSI
200/2900
Performance And Advantages
01
Chassis and powertrain
✅High Load Bearing Chassis: SINOTRUK HOWO 6×4 chassis, gross vehicle weight 25000kg, stable under heavy load conditions.
✅High Power Engine: MC07.35-60 Euro VI diesel engine, 350HP/1400N・m, ample power reserve.
✅Reliable Driving System: 10-speed manual transmission, maximum speed 80km/h, air brakes for high safety.
02
Tank configuration
✅Large Capacity Tank: 18000L effective volume, large single sewage and sludge transfer capacity.
✅Robust Tank Material: 8mm thick Q235 carbon steel, high strength, corrosion resistance, and long service life.
✅Multifunctional: Cleaning + sludge suction in one unit, pipe unclogging and sludge removal are completed simultaneously.
Product Details
Diesel Tank
High Pressure Reel
Hydraulic Oil Tank
Hydraulic Control System
Suction Port
Tire
Manual Drain Ball Valve
Manual Suction Ball Valve
Working Principle of HOWO Vacuum Jetting Truck
Vacuum Suction System
The vacuum pump creates negative pressure inside the sealed tank, and the sludge and sewage are sucked into the tank through the suction hose; the vacuum gauge monitors the operating pressure in real time, and unloading is completed by lifting the tank and opening the bottom valve.
01
High Pressure Jetting System
The high pressure pump generates a high pressure water flow that breaks up blockages in the pipes, and the flushed off sludge can be simultaneously pumped and collected.
02
Hydraulic control system
The hydraulic unit drives the multi way valve group to control the lifting of the tank and the opening and closing of the rear cover; the manual ball valve switches the pipeline operation conditions.
03
Safety protection
Vacuum operations require ensuring the tank is sealed; real time vacuum monitoring and overflow prevention devices are needed to prevent sewage backflow and protect the vacuum pump.
04
Application Scenarios
Factory Wastewater Treatment
Cleaning of factory wastewater ponds, sedimentation tanks, reaction vessel residues, etc., suitable for chemical, pharmaceutical, food and other industries.
River And Ditch Dredging
In conjunction with sewage suction operations, clean up silt and floating debris at the bottom of rivers and open channels.
Sewage Discharge In Residential Areas
Unblock sewage pipes in residential areas and clean grease traps and basement sump pits.
Municipal Sewer Maintenance
Lorem iqsum is simply free text dolor sit am adipi we help you everyone is in the right jobs sicing elit
Exterior Views

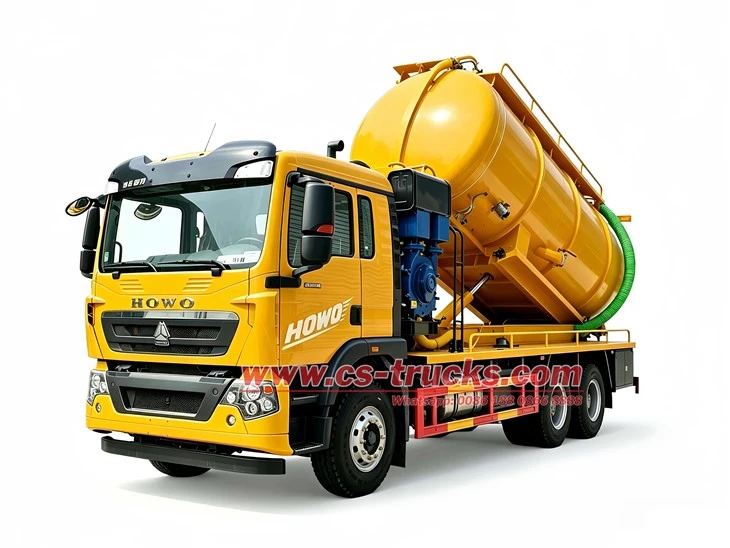

Front Left View of HOWO 350HP Sewer Flushing and Cleaning Truck

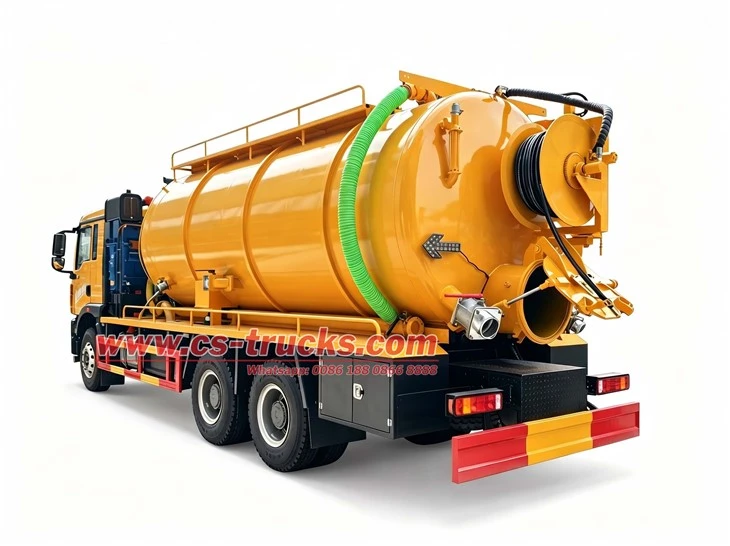

Rear Left View of HOWO 18000L Water Jet Vacuum Truck

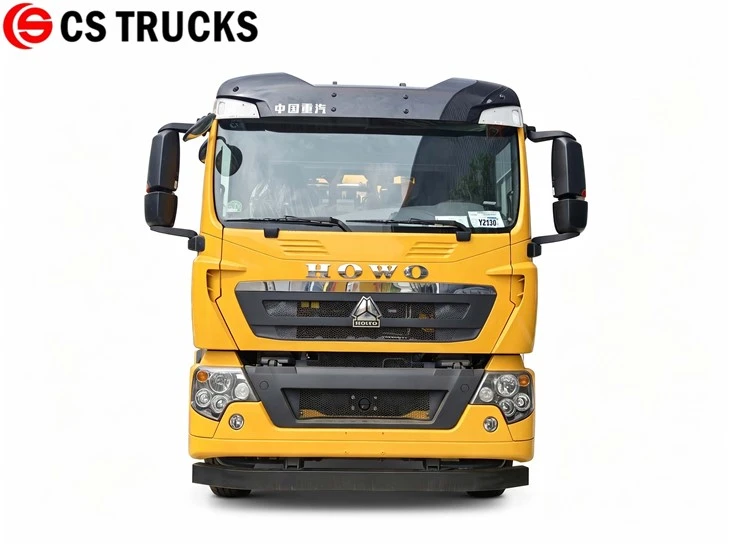

Front View of HOWO 6×4 Combination Sewer Cleaner

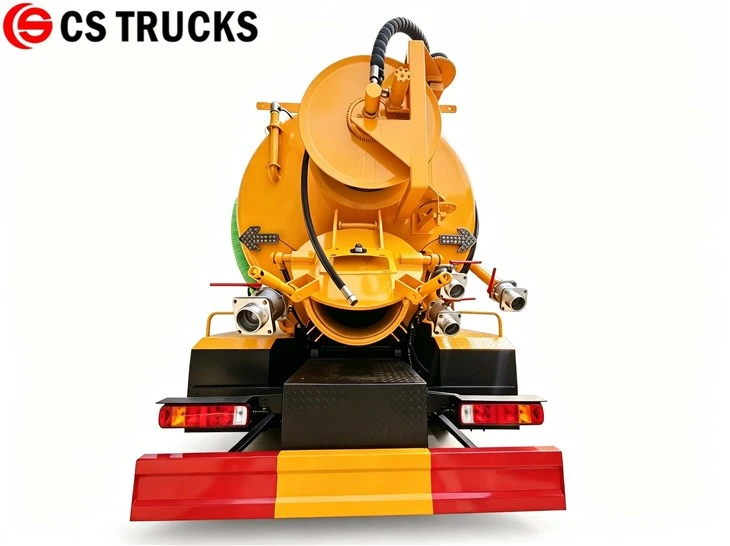

Rear View of HOWO Water Jetting and Sewage Suction Truck
Common Faults and Solutions for Cleaning and Vacuum Trucks
Common Faults
Reasons
How to Solve
Insufficient suction of vacuum pump
1. Air leakage in pipelines or valves; 2. Insufficient or deteriorated vacuum oil; 3. Clogged anti overflow valve
Inspect the seals and ball valve; replace the vacuum oil; clean the anti overflow valve
Unable to suck up sludge
1. The suction pipe is clogged; 2. The tank is not sealed; 3. The material is too viscous
Unclog the hose; tighten the flange and check the seal; add water to dilute the sludge
High pressure water pressure is low
1. Insufficient water intake for the high pressure pump; 2. Worn nozzles; 3. Leaking pipes
Check the water inlet of the clean water tank; replace the nozzle; inspect the high pressure pipeline seal
1.we can do the designs accordingto the your requirement .
2.we can offer you the high quality & reasionalble price.
3.we can offer your a reliable after-sale service.
4.we have skilled professinal design team.
5.promptly delivery. any order is welcome.
We CS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
