Products Description
Kenya Vacuum Tanker, also known as kenya sewage suction truck or kenya cleaning pollution truck, FAW vacuum tank truck is a waste management vehicle specially used to absorb and transport solid or liquid waste. It has a vacuum pump and storage tank that can collect the dirt by suction and transport it to the designated treatment or disposal equipment.
FAW Vacuum tankers are usually used to treat urban sewage, sewage pumping stations, industrial waste, sediment sludge and other liquid or solid waste with pollutants. They play an important role in urban environments, helping to maintain clean and hygienic conditions.
Key Features
----►Right hand drive, for kenya country road, uganda, tanzania.
----► Strong suction and discharge capabilities,30% stronger than normal.
----►Italy Jurop vacuum pump, super reliable.
----►Adopts advanced anti-corrosion technology and corrosion-resistant materials.
----►equipped with an intelligent control system
Technical Specification
Vacuum Tankers are very common in Kenyan cities and towns. Rapid urbanization and increasing urban populations in Kenya have led to increased pressure on sewage treatment plants and sewer systems. Vacuum Tanker can timely treat and clean up clogged sewers and foul-smelling sewage, making the urban environment cleaner and more hygienic.
General Description |
|||
| Truck model | CS TRUCKS | ||
| Cab | FAW flat luxury cab, with power steering. Electronic flameout, A/C | ||
| Driving Type | 6x4 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 11500×2500×3860 | ||
| GVW( kg) | 35000 | ||
| Mass in working order ( kg) | 21575 | ||
| Wheelbase(mm) | 4350+1350 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 295/80R22.5 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T+13T | ||
| Enging | Model | WEICHAI | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 7.255L | ||
| Max output power/rotate speed (hp /rpm ) | 320/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1350/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
Upper body specification |
|||
| Volume of tank | 22 m3 | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump Drain separator vacuum pump Fully opening rear door Sight glasses at top and bottom of tank Ladder: For access to top of tank complete with cat walk on top of tank |
||
| vacuum pump | pump type | Jurop PN155R vacuum pump | |
| Max Air Flow | 11000L/min | ||
| Time to suction full tank | 12-15 minuted | ||
| Suction Depth | 8 m | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||

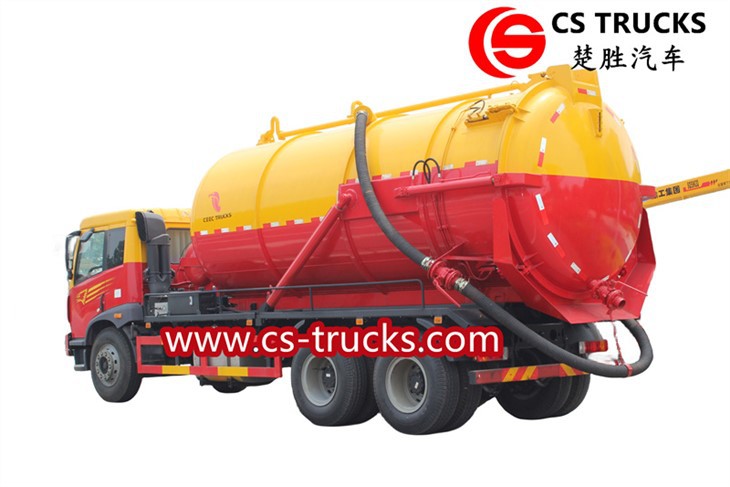

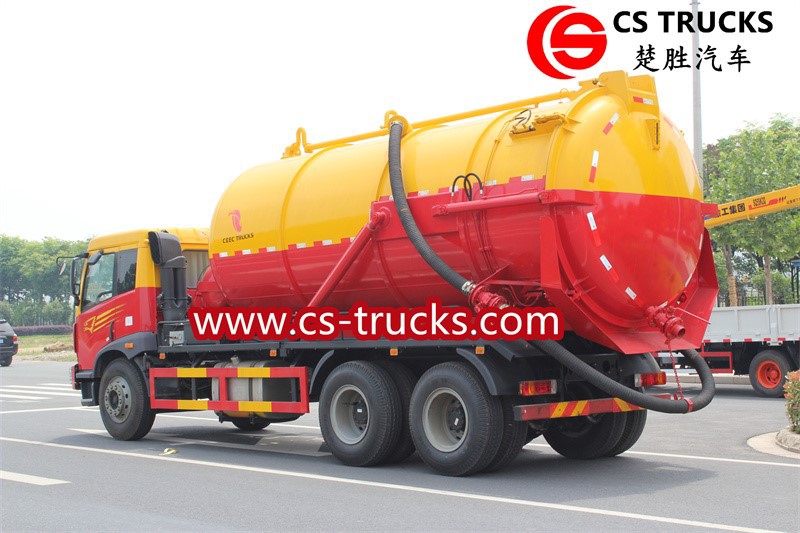

Vacuum tanker detail
Faw 10 wheeler truck chassis
Large capacity vacuum tanker
Hydraulic cylinder lifting
Hydraulic lifting system
Water tanker system
FAW 6x4 drive system
FAW vacuum tanker truck knowledge
the vacuum tanker industry in Kenya has achieved remarkable development driven by government support, technological progress and market demand. However, the industry still needs to further improve technology and product quality to cope with increasingly fierce market competition.
The vacuum tanker industry in Kenya has grown significantly in recent years. Vacuum Tanker is a special vehicle for cleaning and transporting liquid waste, which is widely used in urban sanitation and industrial fields. With the acceleration of urbanization and the intensification of environmental pollution problems, the Vacuum Tanker industry has played an important role in solving waste disposal.
1, Goverment support on the vacuum truck. The Kenyan government is aware of the urgency of waste disposal and has taken a series of measures to support the development of Vacuum Tanker. The government has stepped up investment in cleaning and sanitation programs, providing financial support for the purchase and operation of the Vacuum Tanker.
2, Technology progress. With the advancement of technology, the design and manufacture of Vacuum Tanker has been greatly improved. The new generation of Vacuum Tanker adopts advanced suction technology and materials to improve suction efficiency and storage capacity.
3, Kenya local market demand. With Kenya's population increasing and urbanization accelerating, there is a growing demand for waste disposal. Especially in urban areas, due to the lack of municipal facilities, Vacuum Tanker has become an important equipment for waste treatment.
However, the Vacuum Tanker industry in Kenya still faces some challenges. The first is the technical bottleneck. Although the technology has improved, compared with developed countries, Kenya still has a big gap in the R&D and manufacturing of Vacuum Tanker. The second is the increase in market competition. Due to the broad prospects of the Vacuum Tanker market, more and more domestic and foreign companies are pouring in, and the market competition is becoming increasingly fierce.
Factory production
kenya faw vacuum tank truck in production
kenya faw vacuum suction truck
kenya faw vacuum pump truck
kenya faw sewage tank truck
Customize your own septic service truck
Q: What is the importance of vacuum tank truck for kenya?
A:
The positive significance of Vacuum Tanker to Kenya has the following 5 points:
Addressing Water Scarcity: Kenya faces persistent drought and water scarcity. The Vacuum Tanker technology absorbs and stores a large amount of rainwater and groundwater so that it can be effectively used in the dry season. This helps to provide a more reliable water supply system that provides residents and farmers with continuous drinking and irrigation water.
Improving Sanitation: Many areas of Kenya face inadequate sanitation and waste management. Vacuum Tanker technology collects and treats sewage and wastewater without its adverse impact on the environment and health. This helps to improve hygiene conditions for local residents and reduces the risk of disease transmission.
Facilitating Agricultural Development: Agricultural operations in Kenya have a high demand for water resources. Vacuum Tanker technology can use stored water resources for farmland irrigation, providing farmers with a reliable water source. This effectively increases the yield of crops and promotes the development of agriculture.
Tourism Development: As an important tourist destination, Kenya relies on its natural beauty and wildlife sanctuaries to attract tourists. Vacuum Tanker technology helps to keep these ecosystems stable and healthy, and by properly treating wastewater and sewage, it reduces environmental pollution and protects Kenya's competitive advantage as a tourist destination.
Your advantages with CS® Vacuum tank truck:
-
FAW 6X4 truck chassis, reliable
-
Jurop Vacuum pump
-
20 cbm large vacuum tank
-
Super powerful pump
-
High pressure pipe
-
Easy installation
-
12 months after sale service guarantee
