ISUZU Drainage Truck Mounted Jetting Tanker (also known as sewage suction truck, sewer cleaning truck, or sewer vacuum truck) is engineered for comprehensive drainage and cleaning tasks including municipal sewer maintenance, industrial sludge extraction, and emergency spill response. With 13 CBM total tank capacity and 240HP power, its 4×2 chassis ensures versatile performance in both urban and industrial environments, delivering efficient drainage solutions for modern municipal and industrial applications.
*ISUZU Drainage Truck Mounted 10 CBM Jetting Tanker*
-----------------------------------------------------------------
CS factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: Built on ISUZU 4×2 chassis with 240HP diesel engine
▶ Tank Volume: Combined tank capacity 13 CBM (3 CBM clean water + 10 CBM sewage)
▶ Tank construction: Tank fabricated from 6mm premium steel plate with stainless steel lining and asphalt coating
▶ Jetting & Suction System: High‑pressure jetting at 215 bar & vacuum suction at 15,200 L/min
▶ Operation Scope: Designed for municipal sewer cleaning, industrial sludge handling, and emergency drainage operations
» II. Product Parameters for ISUZU 10 CBM Sewer Pump Truck:
| Product Name | ISUZU Drainage Truck Mounted 10 CBM Jetting Tanker | |||||
| Overall | Vehicle Model | CS5180GXW | ||||
| Drive Type | 4*2 | |||||
| Gross Vehicle Weight | ||||||
| Curb Weight | 10800
|
|||||
| Front Axle | 6.3 tons | |||||
| Rear Axle | 13 tons | |||||
| Maximum Speed | 100 km/h | |||||
| Overall Dimensions L*W*H | 8350*2540*3540 mm | |||||
| Engine | Engine Model | 6HK1-TCG61 | ||||
| Fuel Type | Diesel | |||||
| Power | 240 HP(176KW) | |||||
| Emission Standard | Euro 5 | |||||
| Displacement | 15681 ml | |||||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | |||||
| Chassis | Chassis Brand | ISUZU | ||||
| Tire No. | 6+1 | |||||
| Tire Specification | 295/80R22.5 18PR | |||||
| Wheelbase | 4500 mm | |||||
| Gear Box | FAST 8-speed | |||||
| Cab | Tilting cab | |||||
| Chassis Configuration | Air conditioning | |||||
| Steering assist | ||||||
| Central lock | ||||||
| Electric glass | ||||||
| Multi-function steering wheel | ||||||
| ABS(Anti-lock Braking System) | ||||||
| Air brake | ||||||
| High-Pressure Jetting System | Clean Water Tank Capacity | 3 CBM | ||||
| Tank Construction | Butt-joint welding | |||||
| 6mm premium steel plate(WISCO) | ||||||
| High-pressure Pump | Pressure | 215 bar | ||||
| Flow rate | 215 L/min | |||||
| Drive System | Driven by the power take-off (PTO), operable simultaneously. | |||||
| Accessories | 10 specialized nozzles for different scenarios | |||||
| 100mφ22PVC high-pressure hose 100mφ22PVC | ||||||
| Remote control operation | ||||||
| Sewage Vacuum System | Sewage Tank Capacity | 10 CBM | ||||
| Tank | 6mm premium steel plate(WISCO) | |||||
| Fully sealed pressure tank | ||||||
| Stainless steel lining | ||||||
| Electrostatic powder painting | ||||||
| Asphalt coating inside | ||||||
| Vacuum Pump | China-made SK-15 Water Circulation Pump | |||||
| Self-priming & self-discharging | ||||||
| Hydraulic System | The tank can be hydraulically lifted and tilted for rear-dump discharge, with 75° rear-door opening angle. | |||||
| The rear head features hydraulic opening/closing and integrated hydraulic locking | ||||||
| Discharge Components | Outlet: Stainless steel pneumatic ball valve (100N+150N) | |||||
| Accessories: Sight glass, pressure gauge, hand-washing device | ||||||
| Safety Features | Full-tank alarm | |||||
| Auto pressure relief | ||||||
| Secondary anti-overflow | ||||||
| Additional Equipment | 2x transparent suction hoses,φ102mm x 10m | |||||
| Stainless steel tool box | ||||||
| Coil hose reel | ||||||
| Clean water tank with heater & digital display | ||||||
| Special Functions | Cement filler port on top | |||||
| Internal supports | ||||||
| Washing machine integrated | ||||||
» III. Product Description:
1. Chassis Configuration:
♦ Engineered with a robust frame design, the chassis supports a gross vehicle weight of 18,000 kg, providing reliable load-bearing capacity for combined jetting and suction drainage operations.
♦ The robust suspension system and optimized axle distribution ensure operational stability during high‑pressure cleaning, vacuum suction, and transport cycles.
2. Powertrain System
♦ The 6HK1-TCG61 inline 6-cylinder turbocharged inter-cooled diesel engine delivers 240 HP output, meets Euro 5 standards, and is equipped with a 15,681 ml displacement.
♦ A FAST 8-speed manual transmission combined with a 4×2 drive system and a 4,500 mm wheelbase provides reliable power transmission for high-pressure jetting and vacuum suction operations across various working conditions.
3. Hydraulic Operation Panel
♦ Monitors hydraulic/vacuum pressure and controls tank lifting, rear-door operation, and suction/discharge cycles in real time.
♦ Distributes power to actuators via integrated valves, ensuring synchronized function execution during continuous drainage operations.
4. High‑Pressure Hose Reel System
♦ Winds and stores 100 meters of φ22 PVC high‑pressure hose, supports remote‑control deployment and retrieval for flexible operation.
♦ Integrated with the jetting system, it enables extended‑reach cleaning of pipelines and surfaces with 215 bar water pressure.
» IV. ISUZU Sewer Suction Truck Operating Principle:
♦ Central Hydraulic Component: 150L high‑grade steel hydraulic reservoir, serves as the primary fluid storage and distribution unit for the drainage truck's jetting, lifting and suction hydraulic functions.
♦ Oil Level Monitoring: Fitted with a transparent level indicator, allowing clear real‑time observation of fluid volume, with recommended operating range between 60%–85% of total capacity.
♦ System Protection: Integrated 10μm return‑line filter minimizes oil contamination, extends service life of hydraulic pumps and cylinders, and reduces overall maintenance frequency.
♦ Operational Adaptability: Designed for high‑frequency drainage and suction cycles, ensures consistent oil supply during continuous high‑pressure jetting and vacuum operations.
Product Details
ISUZU Sewer Tuck Rear Discharge Valve
High‑Pressure Water Pump Unit
ISUZU Septic Truck Hydraulic Outrigger
» V.ISUZU Sewage Suction Truck Solutions:
ISUZU Sewer Pump Truck For Municipal Streets
ISUZU Jetting Tanker For Construction Sites
ISUZU Sucker Pumper Truck For Rivers
ISUZU Septic Pump Truck For Industrial Parks
» VI. ISUZU Sewer Cleaning Truck Exterior Views:
Front Right View of ISUZU 10 CBM Septic Pump Truck
Front Left View of Africa ISUZU 10 CBM Sewer Pump Truck

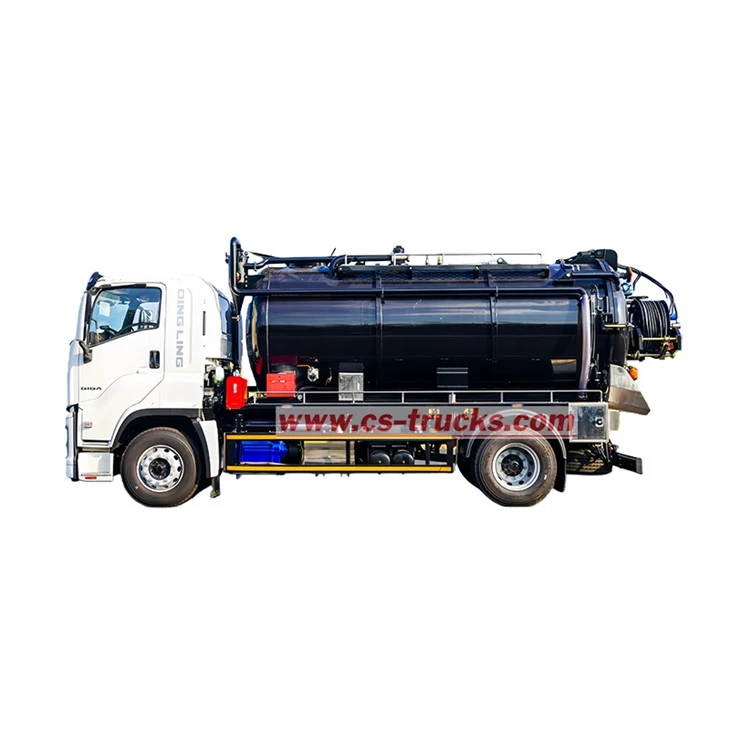

Right View of ISUZU 10 CBM Vacuum Pump Tanker
Left View of ISUZU Sucker Pumper Truck
Rear Right View of ISUZU Sewer Vacuum Sucker
Rear Left View of ISUZU Septic Pump Truck

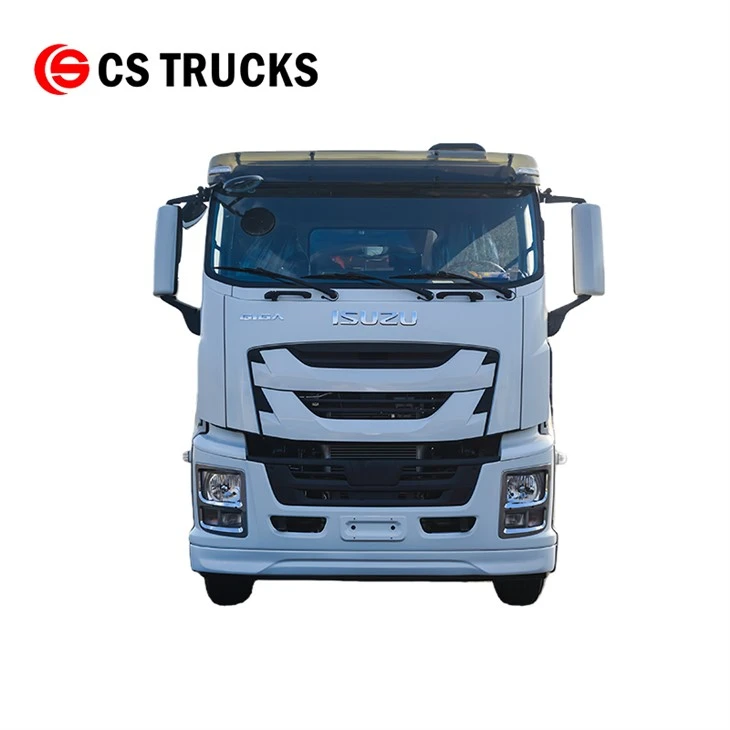

Front View of ISUZU Sewage Tanker Truck
Rear View of ISUZU Septic Pump Truck Near Me
» VII.ISUZU Sewer Vacuum Truck Tank Discharge Views:
Products--100% China ISUZU factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1.ISUZU Drainage Truck Mounted 10 CBM Jetting Tanker: Built on ISUZU 4×2 platform with 6HK1‑TCG61 diesel engine delivering 240HP + FAST 8‑speed transmission, engineered for efficient municipal sewer cleaning and industrial drainage operations.
2.Composite Tank Structure:Constructed using 6mm premium steel plate with stainless steel lining, incorporating an optimized sealed‑pressure design with 13 CBM total capacity (3 CBM clean water + 10 CBM sewage), finished with asphalt anti‑corrosion coating.
3.Core Jetting & Vacuum System: Integrated high‑pressure water pump (215 bar) and SK‑15 water‑ring vacuum pump (15,200 L/min) designed for combined cleaning and suction, achieving efficient pipeline flushing and sludge extraction with controlled discharge performance.
4.Operational & Control System: Standardized remote‑manual dual‑control configuration, supported by systems including ABS braking, tropical climate radiator, and multifunction hydraulic valves for adaptable drainage and emergency response operations.
