HOWO 6000L Septic Pump Vacuum Truck (also known as sewage suction truck, vacuum septic tank, or vacuum pump tanker) is engineered for comprehensive waste handling tasks, including municipal sanitation, septic tank cleaning, and industrial sludge removal. With a 6000L tank capacity and 160HP power, it delivers efficient performance for urban and rural sanitation applications, providing reliable waste management solutions for modern municipal and environmental needs.

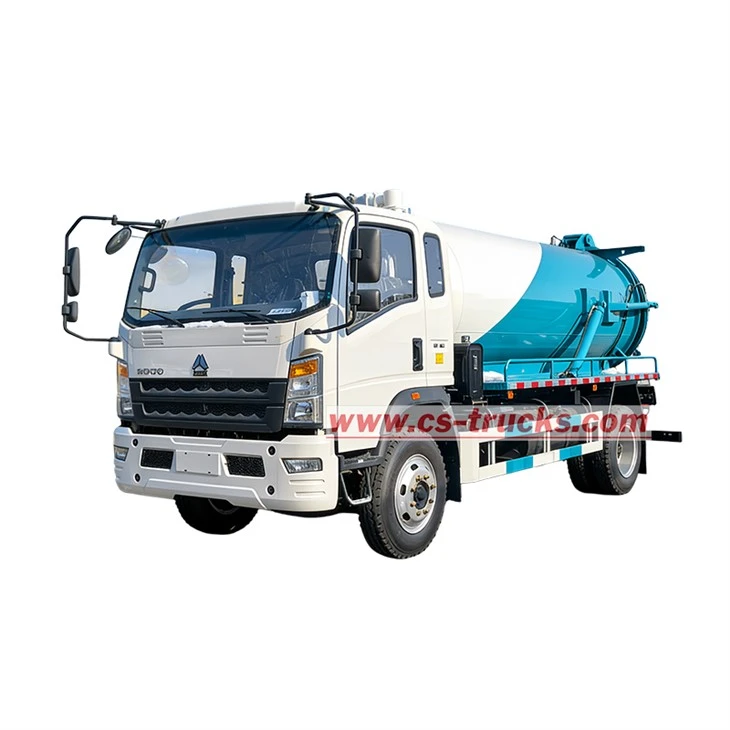

*2000 Gallons HOWO Septic Pump Vacuum Truck*
-----------------------------------------------------------------
CS factory is a professional manufacturer in the truck area,
guaranteeing all products are Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: HOWO 4×2 chassis powered by 160HP Yuchai diesel engine
▶ Tank Volume: 6000 liters single-compartment vacuum tank
▶ Tank construction: 5mm high-quality carbon steel with anti-corrosion coating and internal baffles
▶ Vacuum System: CB10/60 vacuum pump delivering 36 L/s flow rate, suction time ≤3 minutes, effective range ≥7 meters
▶ Operation Scope: Designed for septic tank cleaning, municipal sewage extraction, and industrial sludge collection
» II. Product Parameters for HOWO 6000L Sewer Truck:
| Product Name | ISUZU FVZ 3000 Gallon Fire Tanker Truck | ||
| Overall | Vehicle Model | CS5100GXW | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 11000 kg | ||
| Curb Weight | 4850 kg | ||
| Front Axle Weight | 3200 kg | ||
| Rear Axle weight | 8000 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 6300*2350*2560 mm | ||
| Engine | Engine Model | YC4E160-33 | |
| Fuel Type | Diesel | ||
| Power | 160 HP(118KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 4257 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | HOWO | |
| Tire No. | 6 tires and 1 spare tire | ||
| Tire Specification | 8.25R20 | ||
| Wheelbase | 3800 mm | ||
| Gear Box | HW90510C2 gearbox, manual, 10 gears forward with 2 reverse | ||
| Cabin | HOWO, single row,2 seats, with A/C | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for a tropical climate | ||
| Superstructure | Tank Capacity | 6000 Litres | |
| Material | 5mm thickness, high-quality carbon steel | ||
| Pump | Type | CB10/60 | |
| Flux | 36(L/S) | ||
| Rating speed | 600~800(r/min) | ||
| Shaft power | 5(kw) | ||
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | ||
| Pipe | Suction and discharge pipe | ||
| Special function | Suction time ≤ 3min, effective suction range ≥ 7, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
||
| Standard configuration | Equipped with an inspection window, discharge valve, cleaning apparatus, 5-meter-long suction pipe, oil-water separators, overflow valve, etc. The cylinder vacuum tank can be lifted hydraulically to a 40-45 degree angle. The rear door can be opened and closed hydraulically. |
||
| Optional configuration | Tanker material: stainless steel. Vacuum pump: China or Spain vacuum pumps. Anti-rust coating inside the tank |
||
» III. Product Description:
1. Chassis Configuration:
♦ Built with a heavy-duty frame structure, the chassis is rated for a gross vehicle weight of 11,000 kg, delivering dependable load capacity for vacuum suction and waste transport operations.
♦ Reinforced suspension and balanced axle loading ensure stable performance during suction, transport, and hydraulic discharge cycles.
2. Powertrain System
♦ The YC4E160-33 inline 4-cylinder turbocharged inter-cooled diesel engine delivers 160 HP output, complies with Euro III standards, and features a displacement of 4,257 ml.
♦ An HW90510C2 10-speed manual transmission combined with a 4×2 drive system and a 3,800 mm wheelbase ensures reliable power delivery for vacuum suction and discharge operations across diverse working environments.
3. Hydraulic Multi-Valve
♦ Controls tank lifting (45° dump angle), rear-door hydraulic opening/closing, and additional functions like suction arm or hose reel through dedicated lever-operated valve switching.
♦ Distributes hydraulic flow to cylinders and actuators via an integrated valve bank, enabling precise and synchronized operation during discharge and tank cleaning cycles.
4. Suction & Discharge Port Assembly
♦ Suction Port: Equipped with a quick-connect coupling for 102mm transparent suction hose, connects to the CB10/60 vacuum pump system for rapid sewage extraction from septic tanks and manholes (suction time ≤3min, effective range ≥7m).
♦ Discharge Port: Features stainless steel pneumatic ball valve (100N+150N) for gravity or pressure discharge, supports 45° hydraulic tank tipping for complete waste evacuation.
» IV. HOWO Sewer Suction Truck Operating Principle:
♦ Suction Inlet: φ102mm quick-connect port for transparent hose, connects to CB10/60 pump (36L/s) for rapid extraction from septic tanks/manholes-suction time ≤3min, effective range ≥7m.
♦ Discharge Outlet: Stainless steel pneumatic ball valve (100N+150N) enables gravity/pressure discharge, integrated with 45° hydraulic tank tipping for complete residue-free evacuation.
♦ Control Mechanism: Red lever-operated ball valves provide instant on/off flow control, while bolted flange connections ensure leak‑tight sealing during high‑intensity suction and discharge cycles.
♦ Operational Adaptability: Quick-connect design enables rapid hose changes between suction and discharge, boosting workflow efficiency in municipal sanitation tasks.
Product Details
Sewer Truck Cyclone Type Water Separator
Septic Tanker DN150 Valve Assembly
Sewage Tanker Water Ring Vacuum Pump
HOWO Septic Pump Truck Driver's Cabin
HOWO Sewer Vacuum Truck Mudguard
HOWO Sewer Pump Truck Hydraulic Lifting Cylinder
» V.HOWO Sewage Suction Truck Solutions:
HOWO Sewer Pump Truck For Residential Communities
HOWO Jetting Tanker For Municipal Streets
HOWO Sucker Pumper Truck For Construction Sites
HOWO Septic Pump Truck For Industrial Parks
» VI. HOWO Sewer Cleaning Truck Exterior Views:
Front Right View of HOWO Sewer Jetter Cleaning Truck
Front Left View of Africa HOWO Septic Tank Cleaning Truck
Rear Right View of HOWO Super Sucker Vacuum Truck
Rear Left View of HOWO Cesspool Truck For Sale
Front View of HOWO Sewage Disposal Trucks For Sale
Rear View of HOWO 6000L Sewage Vacuum Tanker
Products--100% China HOWO factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. HOWO 6000L Septic Pump Vacuum Truck: Developed on HOWO 4×2 chassis powered by YC4E160‑33 diesel engine (160HP) with HW90510C2 10‑speed manual transmission, purpose‑built for municipal septic tank cleaning and industrial waste collection.
2 . High‑Strength Tank Structure: Fabricated from 5mm carbon steel plate with anti‑corrosion coating, featuring a 6000L cylindrical vacuum tank reinforced with internal baffles for surge suppression and enhanced stability during transport. coating.
3 . Integrated Vacuum & Discharge System:Equipped with CB10/60 vacuum pump (36L/s flow rate) achieving suction time ≤3min and effective range ≥7m, combined with hydraulic tank tipping (45°) and rear door opening for complete waste evacuation.
4. Control & Safety Features:Standardized hydraulic control system with inspection window, discharge valve, and overflow protection; supported by tropical‑climate radiator, ABS braking, and optional stainless steel tank or Spain vacuum pump for enhanced durability.
