This FAW JH6 15CBM transit mixer price features an 8×4 chassis configuration and is powered by a 420HP CA6DM2-42 engine, delivering robust power that allows it to handle heavy load starts and challenging road conditions with ease. Its large capacity 15CBM mixer drum significantly enhances single trip transport efficiency, meeting the demands of high volume, continuous operations. The vehicle has been thoroughly optimized in terms of its powertrain, load carrying capacity, and operational efficiency, making it the preferred transport solution for efficiently advancing large scale engineering projects.
This FAW JH6 8x4 cement mixer truck complies with Euro Il emission standards and is equipped with a 12-speed transmission, wide base tires, and an air braking system, delivering strong load bearing capacity as well as stable and efficient driving performance.
The 15CBM mixing drum is made of wear resistant manganese steel with a 14.5 tilt angle, and its mixing speed is adjustable from 0 to 14 r/min, effectively preventing concrete segregation. Featuring a feeding rate of no less than 4 m³/min and an unloading rate of no less than 3 m³/min, the entire discharging process can be completed within 100s The widened, wear resistant inlet and outlet structures facilitate convenient operation, making this truck well suited for concrete transportation in various infrastructure projects.
high quality
advanced equipment
professional team
global shipping
1
Key Features of FAW concrete mixer truck
Manufacture: CS TRUCKS
Features:
✳️High Efficiency Load Bearing Capacity: The 15CBM large tank allows for large single batch transport, significantly improving the efficiency of material supply in engineering projects.
✳️Powerful Performance: Equipped with a 420HP CA6DM2-42 engine, providing ample power reserves and strong heavy load start up and climbing capabilities.
✳️Stable And Reliable: The 8×4 drive configuration offers excellent load bearing and driving stability, adapting to complex road conditions such as construction sites.
✳️Clear Positioning: Specifically designed for large scale infrastructure projects and high volume continuous operations, it is the preferred solution for heavy duty transportation.
Larger and wider feed hopper, longer wear resistant tilting discharge chute, and non slip staircase
3
Performance and advantages
01
Powertrain
➤ Ample Power: Equipped with a 420HP diesel engine, an inline six-cylinder water cooled turbocharged structure, providing ample power for heavy duty climbing and full load start up, meeting Euro 2 emission standards, and maintaining consistent power even on complex construction sites.
➤ Transmission System: Matched with a 12-speed manual gearbox, featuring low power transmission loss, continuous power supply to the tank's hydraulic system for extended periods, economical fuel consumption during continuous transport operations, and lower overall operating costs.
02
chassis
➤ High Load Bearing Capacity: Utilizing an 8×4 drive configuration, balanced axle load distribution, and twelve 12R322.5 heavyduty tires with strong load bearing capacity, ensuring ample single-load capacity and higher transportation efficiency.
➤ Dual Braking And Driving Safety: Standard configuration includes a full air braking system for sensitive braking response; the vehicle's overall dimensions are 11100×2500×4040 mm, providing agile steering, stable operation on highways and construction sites, and reduced risk of skidding under heavy loads.
03
Tank
➤ Large Capacity Tank: The 15CBM tank is made of Q355 wear resistant manganese steel, its 14.5° inclined tank features a 0-14 r/min steplessly adjustable speed and a spiral structure for uniform mixing, preventing concrete stratification and clumping throughout transportation.
➤ Rapid Feeding And Discharging Design: Feeding rate ≥4 m³/min, unloading rate ≥3 m³/min, complete tank unloading ≤100s; widened feed hopper and extended wear resistant unloading chute ensure zero residue at discharge, reducing tank cleaning workload.
04
Humanized configuration
➤ Cab: The left hand drive engineering cab offers excellent visibility, is well suited to the overseas left hand driving market, reduces driver fatigue during long term, high frequency transport, and features a simple operating mechanism layout for quick learning by beginners.
➤ Complete Equipment: Equipped with a non-slip maintenance ladder for convenient routine tank maintenance; the vehicle has a maximum speed of 89 km/h, suitable for both long distance urban road transport and short distance transport to large scale suburban infrastructure projects and commercial concrete plants.
4
Product Details
Manual Operation Valve
Unloading Chute
Tire
Hydraulic Oil Cooler
Diesel Engine
Pressure Gauge
5
How to maintain a Transit Mixer truck
The hydraulic oil, oil filter and gear oil of the mixer truck need to be changed every year. Lithium based grease should be added to the drive shaft and unloading bracket every month. Lithium based grease should be added to the control mechanism, rollers and support cylinder oil nozzles every six months. Before operation, the tank must be stopped and the engine turned off.
6
Application scenarios
FAW JH6 8×4 Cement Mixer Truck for Civil Engineering
FAW JH6 15CBM Transit Mixer Price for Infrastructure Road Engineering
FAW JH6 420HP Transit Mixer Truck for Large Industrial Projects
7
exterior Views

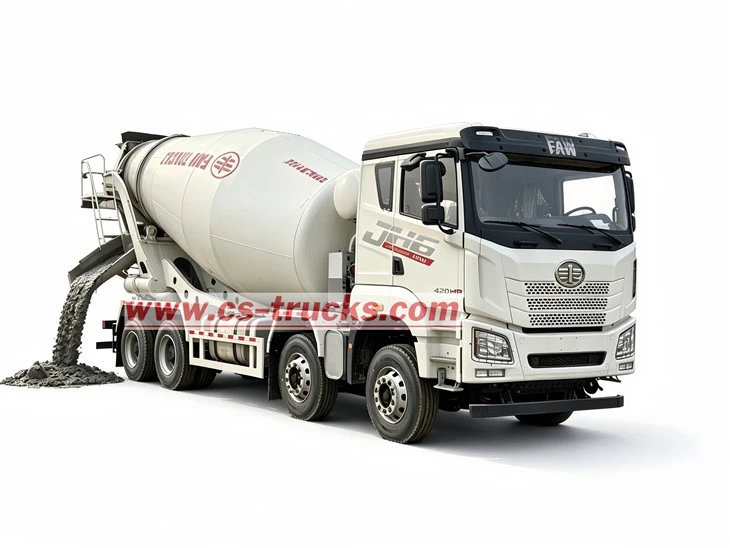

Front Right View of FAW JH6 420HP Transit Cement Mixer

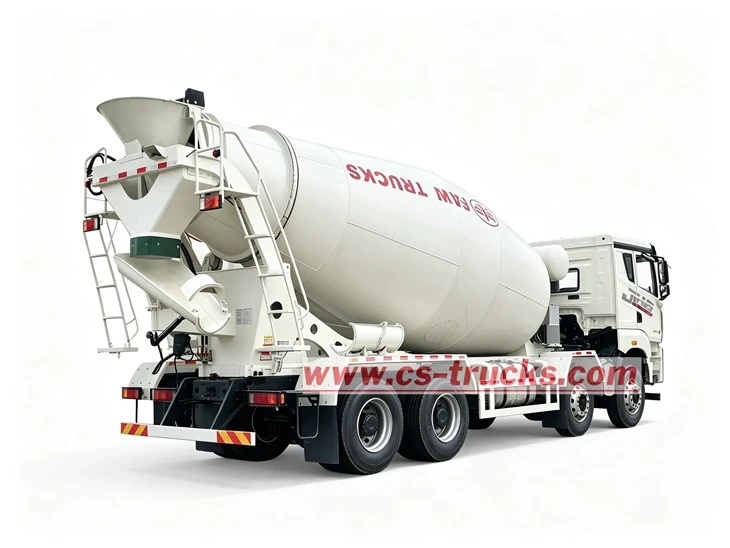

Rear Left View of FAW JH6 8×4 Volumetric Concrete Mixer

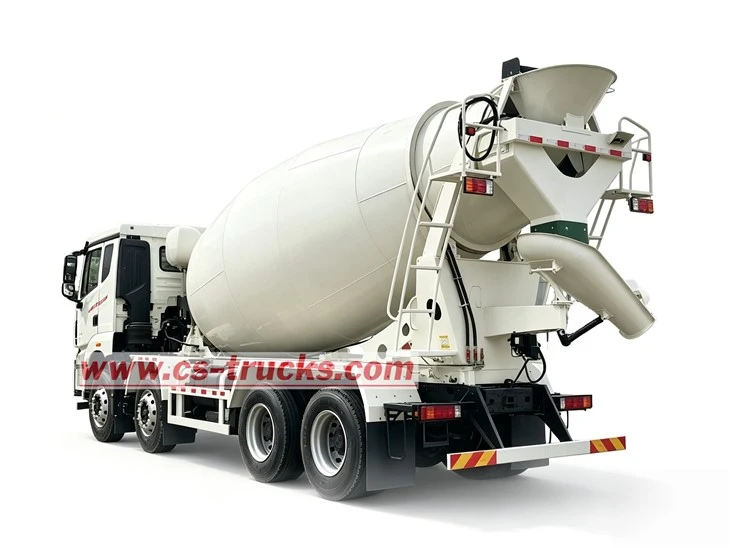

Rear Right View of FAW JH6 15CBM Volumetric Concrete Mixer Price

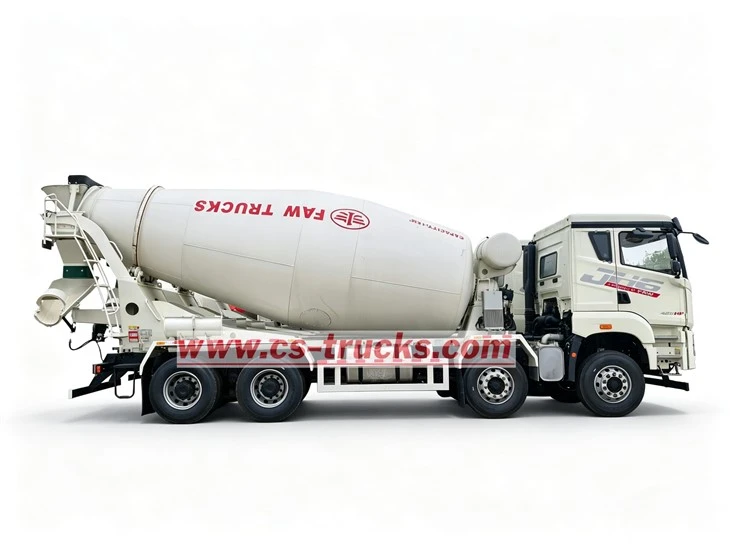

Right View of FAW JH6 420HP Transit Cement Mixer

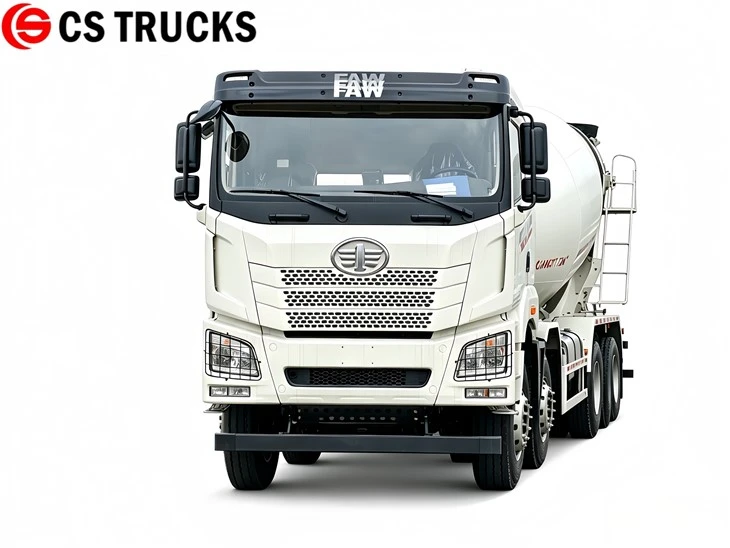

Front View of FAW JH6 8×4 Volumetric concrete mixer for sale

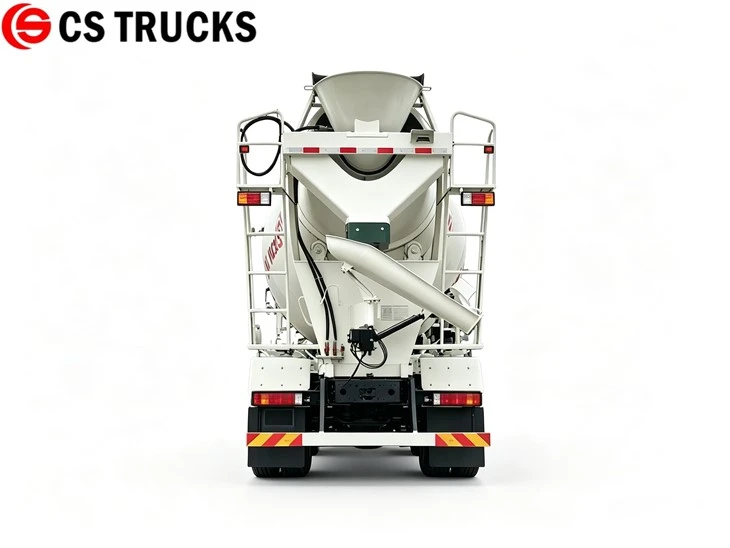

Rear View of FAW JH6 15CBM New Volumetric Concrete Mixer for Sale
Frequently Asked Questions
Q: What to do if the tank stops rotating and the concrete segregates?
A: Most of these are hydraulic system malfunctions. Replace the hydraulic oil and filter element annually, and regularly inspect the cooling and lubrication components.
Q: What is the function of a hydraulic radiator, and how is it maintained?
A: Cool the circulating hydraulic oil to prevent high temperature damage to hydraulic components; clean the dust from the heat sink fins daily, and check for leaks in the pressure gauge and pipelines.
Q: What are the proper operating procedures for the tail lever?
A: Mix on the right and unload on the left, stop the machine in the middle position, and do not touch the tank during operation.
Q: What precautions should be taken in winter and summer?
A: Winter: Use low viscosity hydraulic oil (46#), drain any remaining water to prevent freezing, and preheat for 3-5 minutes after starting.Summer: Clean the radiator, ensure oil temperature ≤ 80℃, and if water temperature exceeds 100℃, stop the machine to cool it down and add distilled water as needed.
