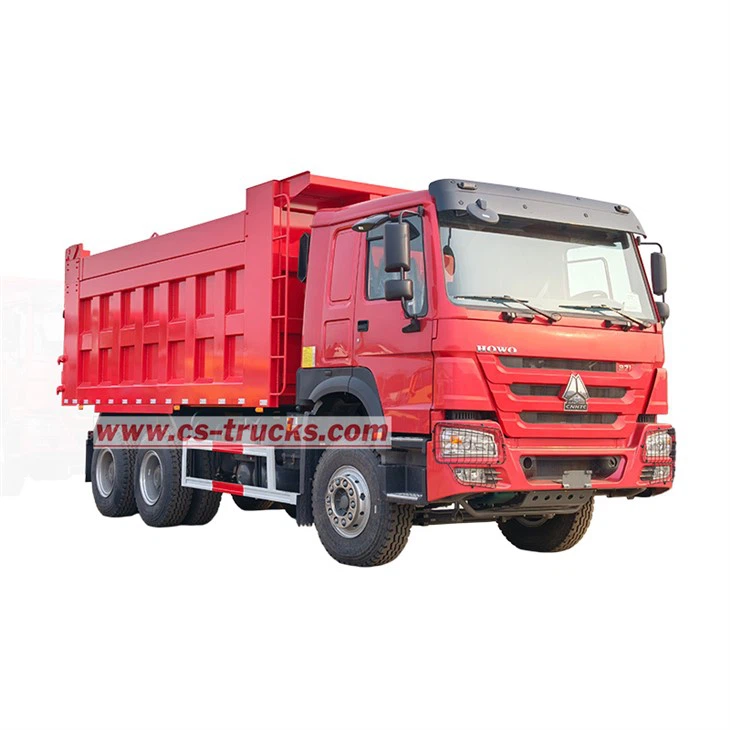

HOWO 6×4 heavy dump garbage truck (also known as garbage tipper truck, construction dumpster truck, or dumpster hauler truck) is engineered for comprehensive material hauling tasks, including mining operations, construction sites, and infrastructure projects. With a 25-ton payload capacity and 371HP power, it delivers efficient performance for heavy-duty transport applications, providing reliable material handling solutions for modern construction and industrial needs.
*Congo Heavy Loads Dump Truck Howo*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guaranteeing all products are Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
➤Chassis: SINOTRUK HOWO 6×4 heavy-duty chassis with 371HP WEICHAI diesel engine
➤ Payload Capacity: 25 tons, with dump box dimensions 5600×2300×1500 mm (floor 8mm, side 6mm)
➤ Dump System: Hydraulic lifting mechanism with fast lifting speed and stable operation for quick unloading
➤Tire & Suspension: 12.00R20 radial tires with wear-resistant tread; optimized leaf spring suspension for heavy loads
➤ Operation Scope: Designed for sand, gravel, construction waste, and coal hauling in mining, construction, and infrastructure projects
» II. Product Parameters for HOWO 6x4 Dump Truck:
| Product Name | Congo Heavy Loads Dump Truck Howo | ||
| Overall | Vehicle Model | CS5250ZX | |
| Drive Type | 6*4 | ||
| Capacity | 25 tons | ||
| Carriage Dimension | 5600x2300x1500 mm/floor 8 mm, side 6 mm | ||
| Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 12080 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 8750*2550*3450 mm | ||
| Front Axle Weight | 9000 kg | ||
| Rear Axle Weight | 16000 kgx2 | ||
| Engine | Engine Model | WD615.47 | |
| Fuel Type | Diesel | ||
| Power | 371 HP(273KW) | ||
| Emission Standard | Euro 2 | ||
| Displacement | 15681 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | Sinotruk | |
| Tire No. | 10pcs+1 spare tire | ||
| Tire Specification | 12.00R20 radial tire | ||
| Wheelbase | 3600+1350 mm | ||
| Gear Box | HW19710,10 forward & 2 rear | ||
| Steering Wheel | Left or right hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Fuel Tank | 300L | ||
| Cabin | HW76 cab, one berth, with air conditioner | ||
| Dump Box | 5600x2300x1500 mm, bottom 8mm, side 6mm | ||
» III. Product Description:
1. Chassis Configuration:
✦ Built with a heavy-duty frame structure, the SINOTRUK 6×4 chassis is rated for a gross vehicle weight of 25,000 kg, delivering dependable load capacity for a 25-ton payload and heavy dump operations.
✦ Reinforced suspension with 9,000 kg front axle and 16,000 kg×2 rear axles ensures stable performance during loaded hauling, rough terrain operation, and hydraulic dumping cycles.
2. Powertrain System
✦ Powered by a WD615.47 inline 6-cylinder turbocharged diesel engine rated at 371 HP, meeting Euro II emission standards with 15,681 ml displacement-built for heavy pulling and sustained torque in demanding conditions.
✦ A 10-speed manual transmission (HW19710) paired with a 6×4 drive configuration and 3,600+1,350 mm wheelbase provides smooth gear shifting and consistent power transfer for loaded climbs, off-road job sites, and highway transport.

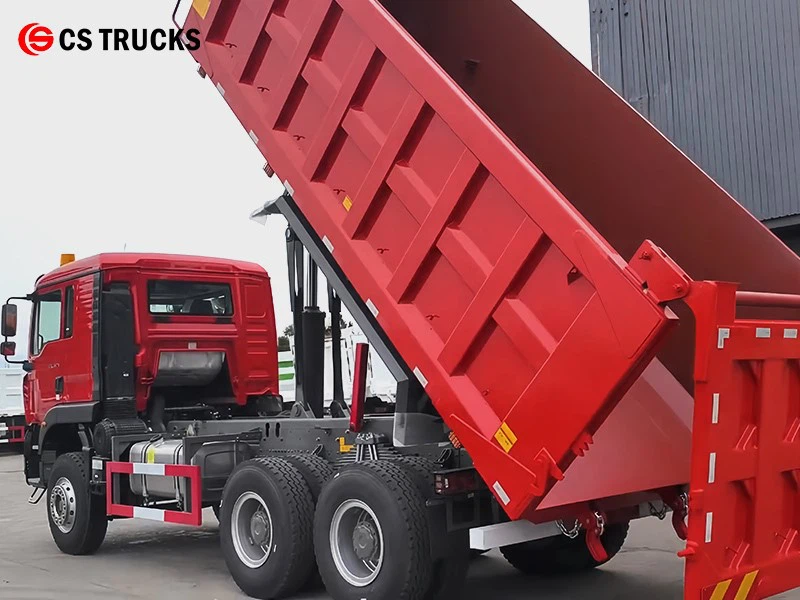

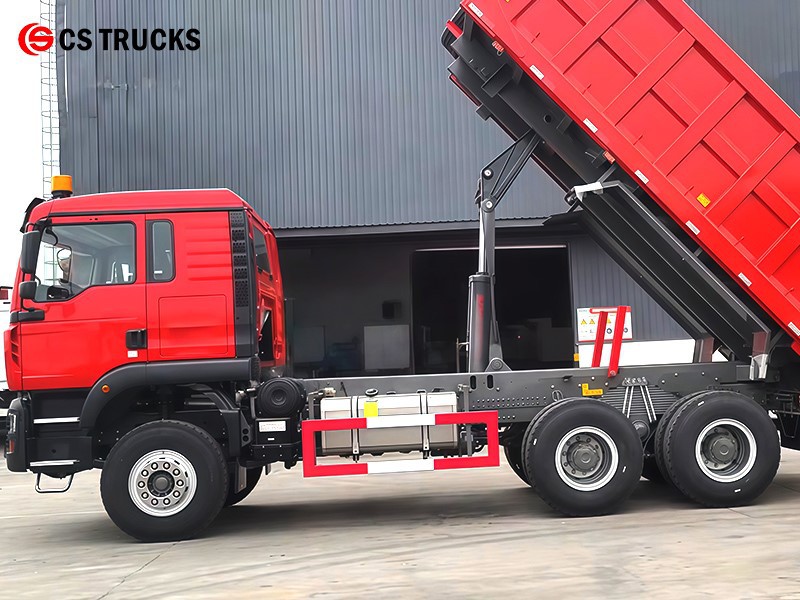

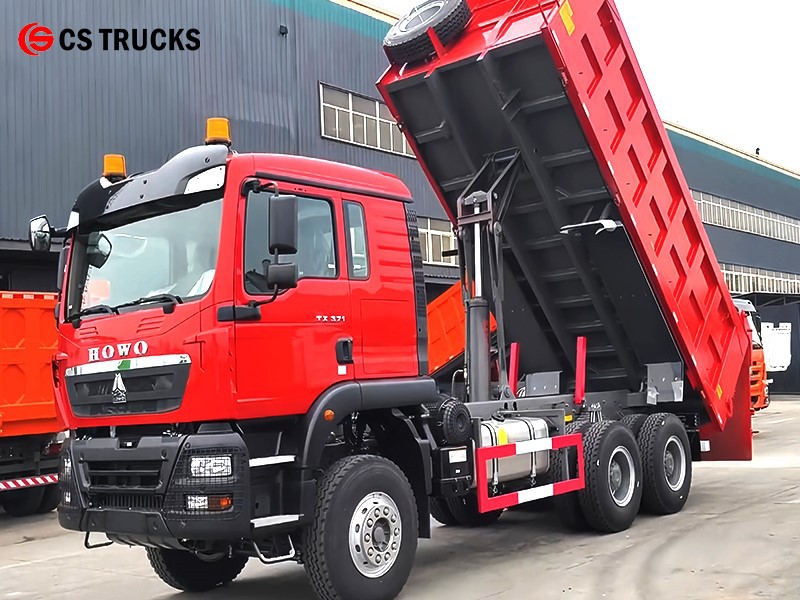

3. Hydraulic Dump System

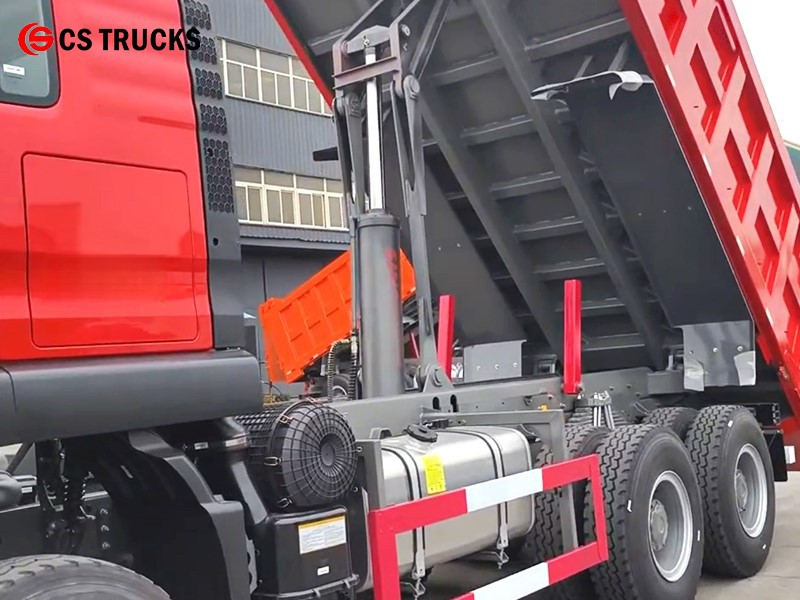

✦ A single-acting hydraulic cylinder powers the dump box lifting-fast lifting speed with smooth operation, capable of reaching the required angle for complete material discharge.
✦ The entire system is mounted on a reinforced subframe with integrated chassis components including air tanks and protective guards, built for repeated heavy-duty dumping cycles.

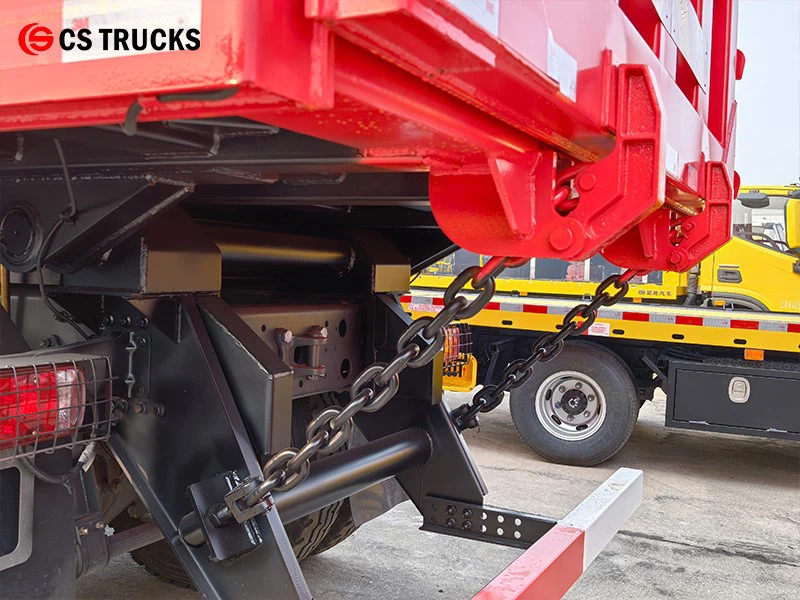

4. Tailgate Chain & Hinge Assembly
✦ Heavy-duty chains control tailgate opening angle during dumping to prevent over-rotation or detachment, while keeping the tailgate stable during transport.
✦ Cast steel hinge brackets and high-strength pins allow smooth upward pivoting, working with the chains for controlled, reliable unloading under heavy loads.
» IV. HOWO Garbage Tipper Truck Operator safely:
In order to achieve the optimal performance of the oil cylinder and ensure the safety of the dump truck, be sure to comply with the following specifications:
1. Front-end lifting cylinders are only to be used as lifting devices; do not use them as support structures.
2. When the cylinder is in the lifted position, the time it is exposed to moist air must not exceed 30 minutes.
3. After the cargo body has fully settled into place, hold the air control valve handle in the "down" position for approximately 30 seconds before switching it to the neutral/stop position.
4. Do not use the brakes while unloading, as this will severely damage the vehicle, hydraulic cylinders, or other hydraulic components.
5. Do not use reverse gear when unloading; reverse rotation of the power take-off and oil pump can easily damage the pump and oil seals.
6. Excessively high engine speed will cause insufficient fuel supply and damage the hydraulic pump and cylinders.
7. When shutting down the hydraulic system, please disengage the power take-off.
8. Do not lift the cylinder when the cargo body is unevenly loaded or under any other abnormal conditions.
9. Do not lower the cargo body while lifting a heavily loaded body.
10. Do not drive the vehicle while the air control valve handle is in the "down" position.
Product Details

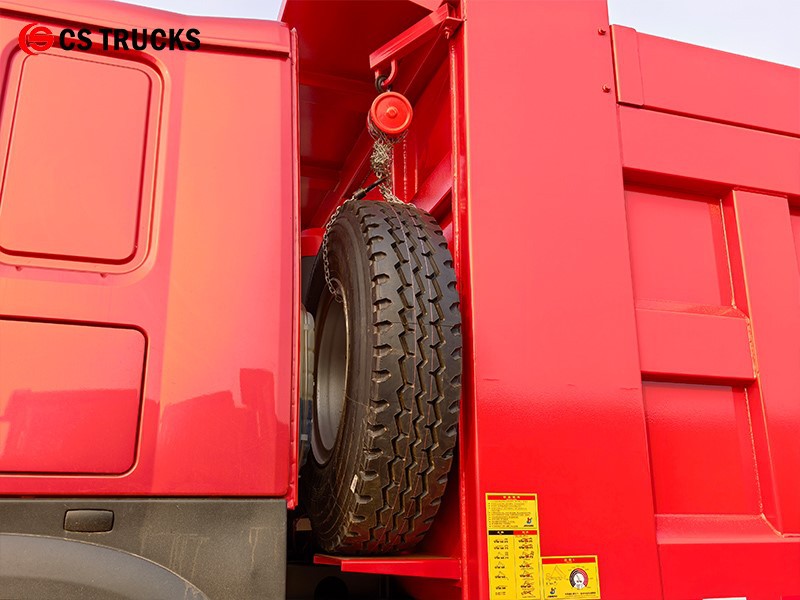

HOWO Dump Truck Spare Tire

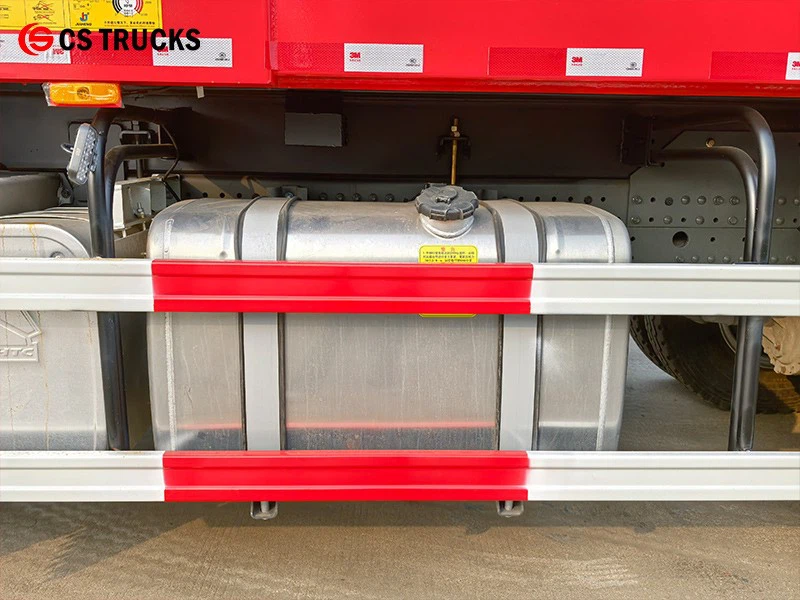

HOWO Tipper Truck Aluminum Fuel Tank

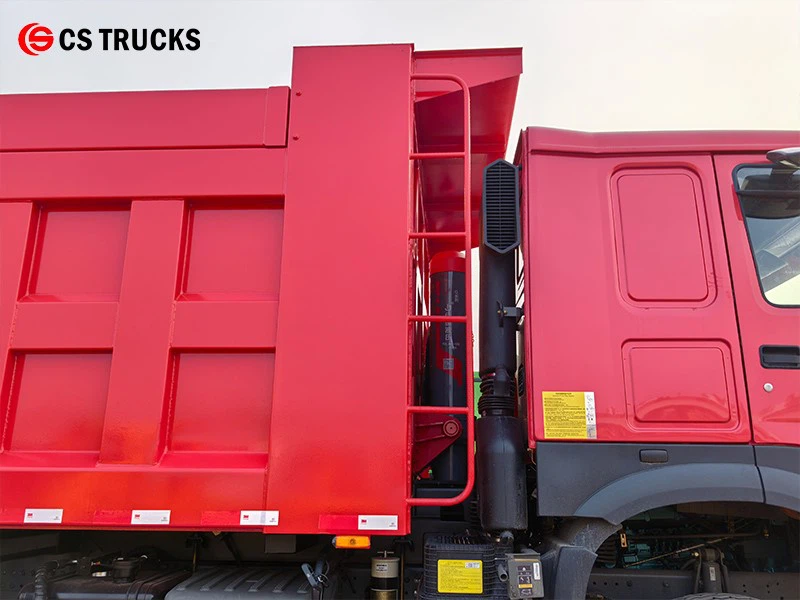

HOWO Dumpster Delivery Truck Access Ladder

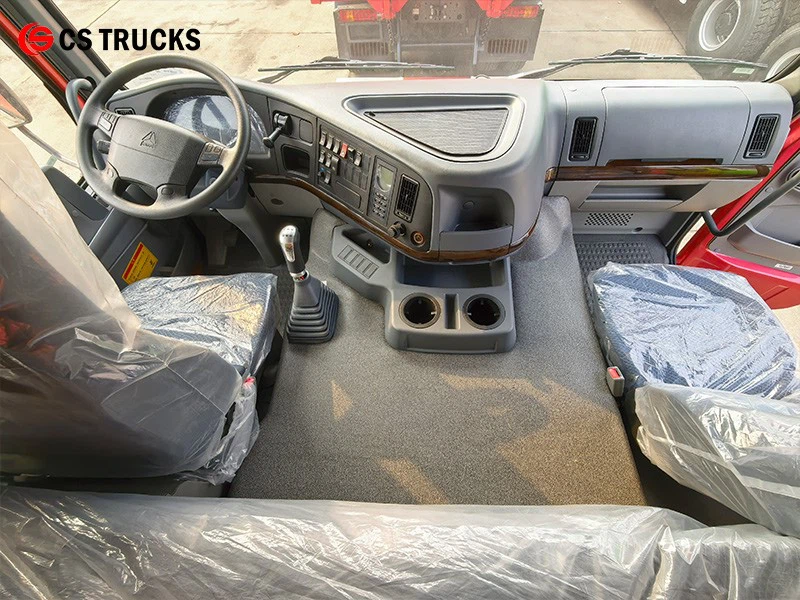

HOWO Dumpster Hauler Truck Driver's Cabin
HOWO Trash Dumpster Truck 10-Speed Manual Transmission

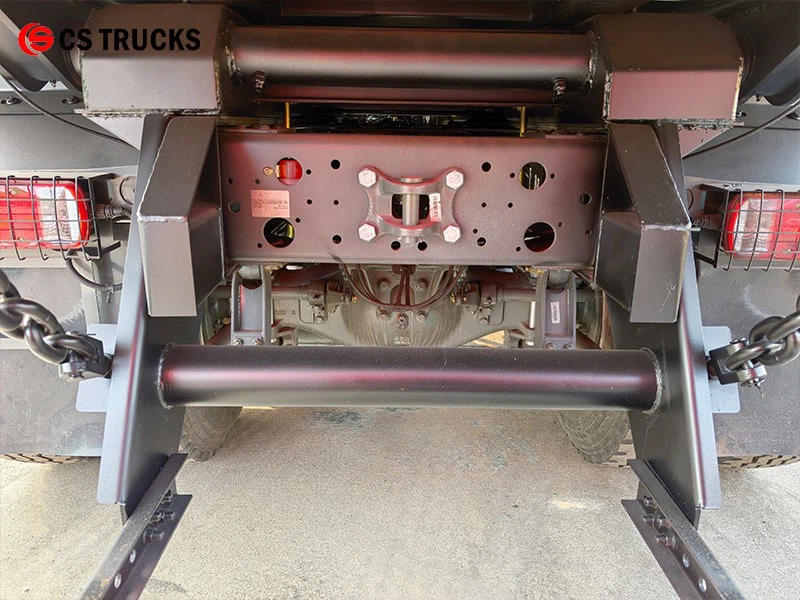

HOWO Dumpster Hauling Truck Towing Device
» V.HOWO Dumpster Hauler Truck Solutions:

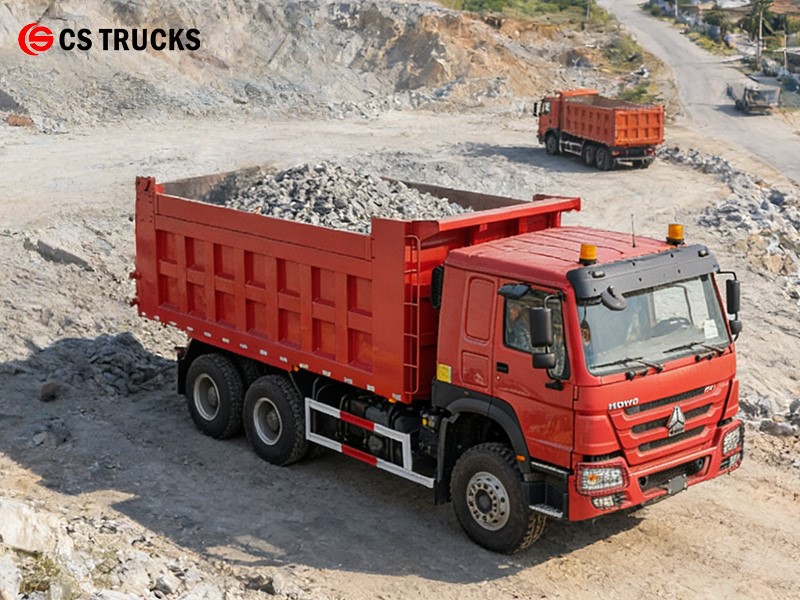

HOWO Heavy Loads Dump Truck for Mining Sites

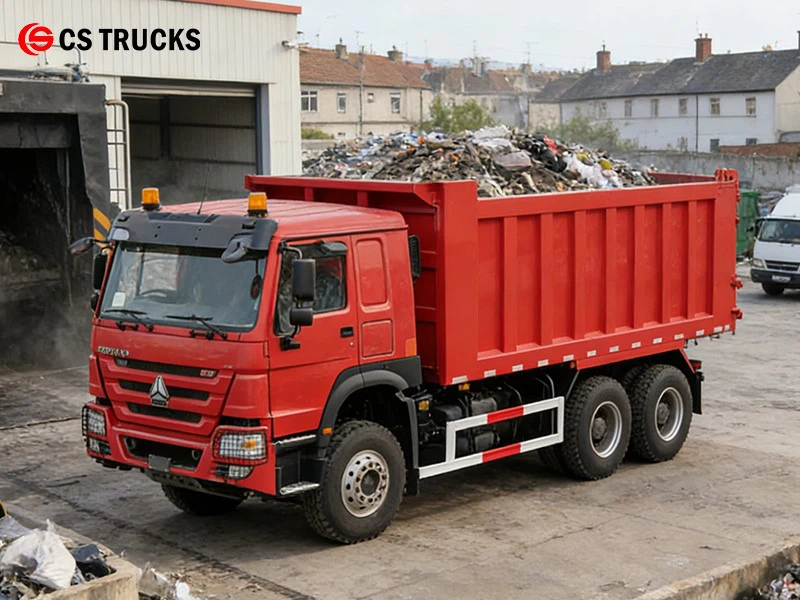

Garbage Dumpster Hauler Truck for Waste Transfer Stations

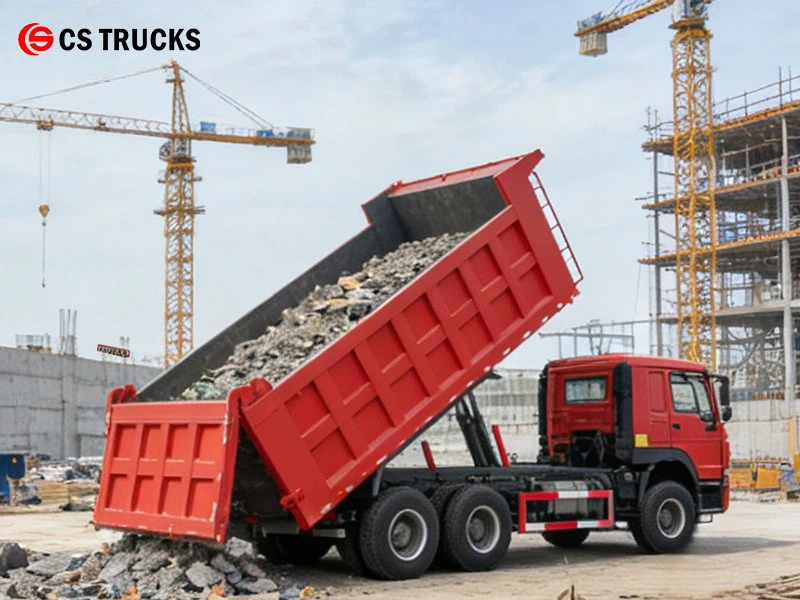

HOWO Construction Dumpster Truck for Construction Sites
HOWO Roll Off Garbage Truck for Industrial Parks
» VI. HOWO Trash Dumpster Truck Exterior Views:

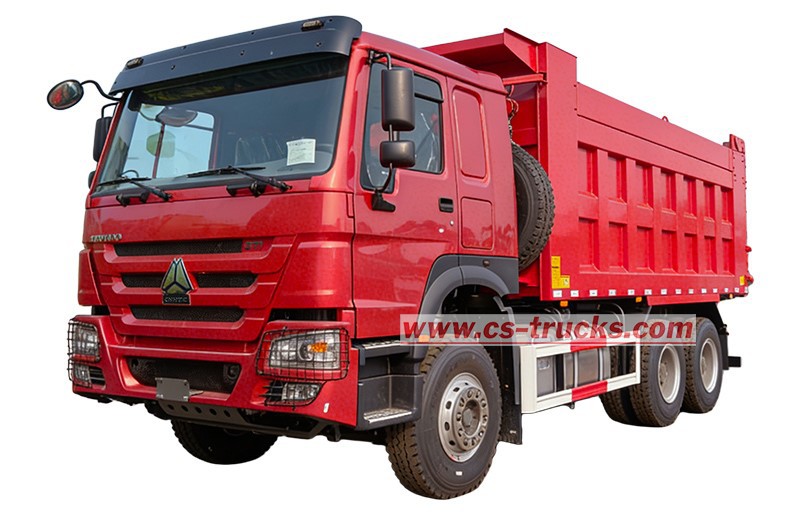

Front Right View of HOWO Heavy Loads Dump Truck

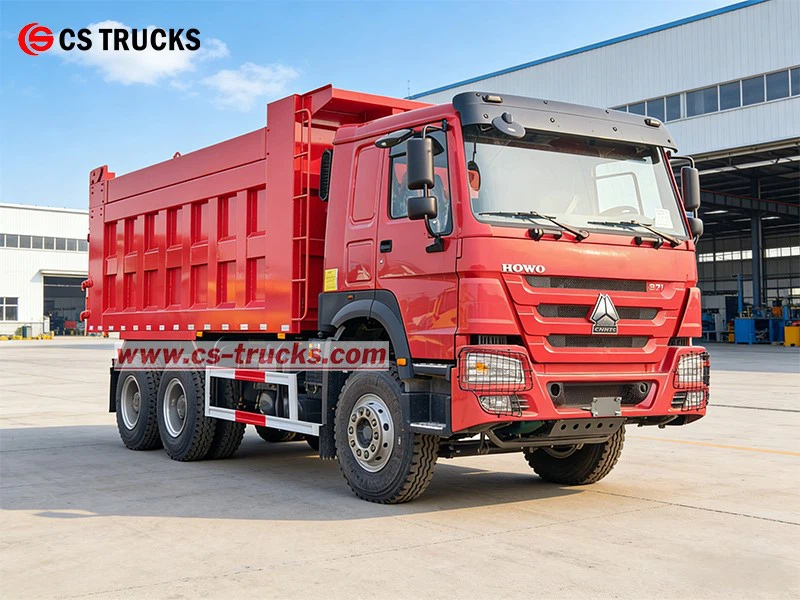

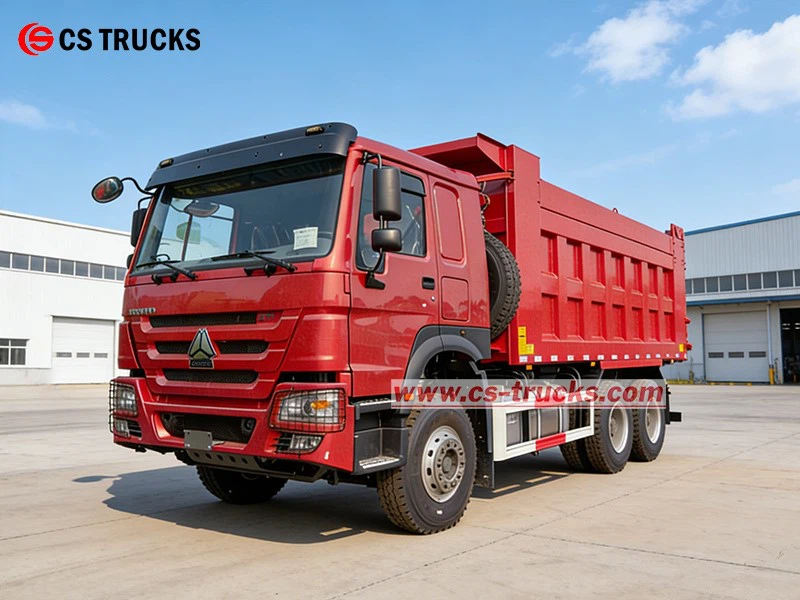

Front Left View of Africa HOWO Garbage Dumpster Hauler Truck

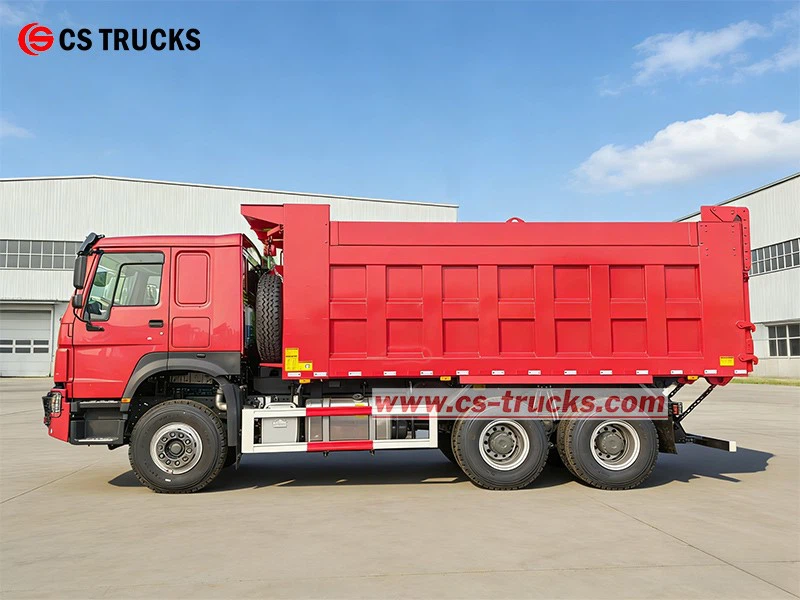

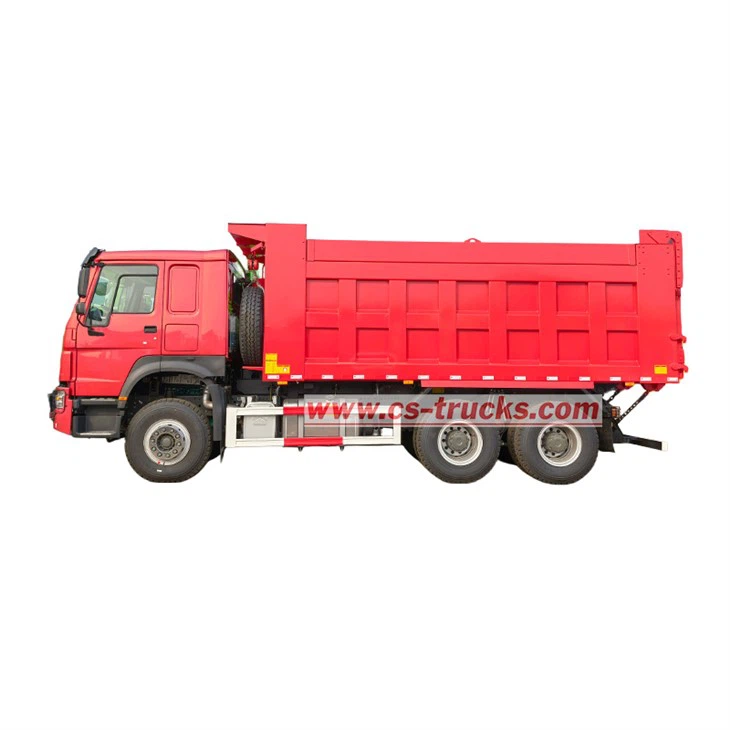

Left View of HOWO 6x4 Garbage Tipper Truck

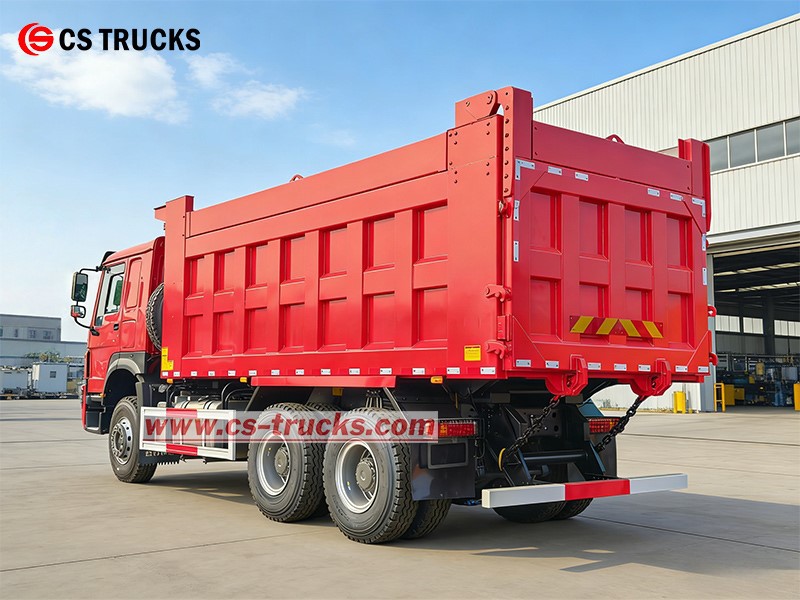

Rear Left View of HOWO 25 Tons Construction Dumpster Truck

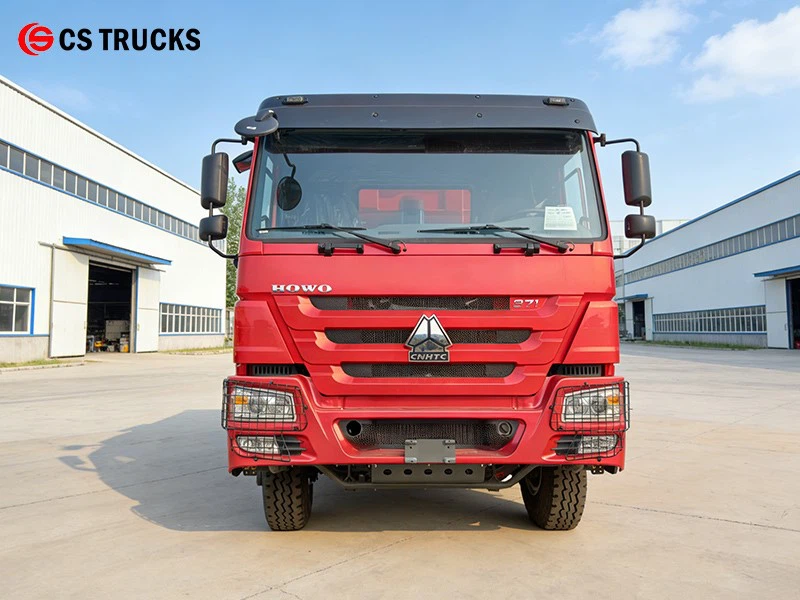

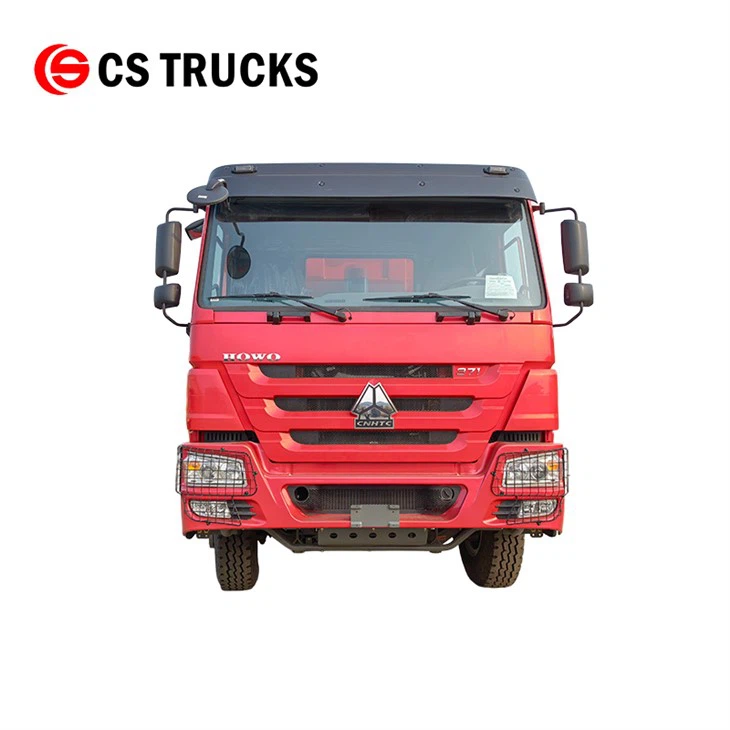

Front View of HOWO 6x4 Dumpster Hauler Truck

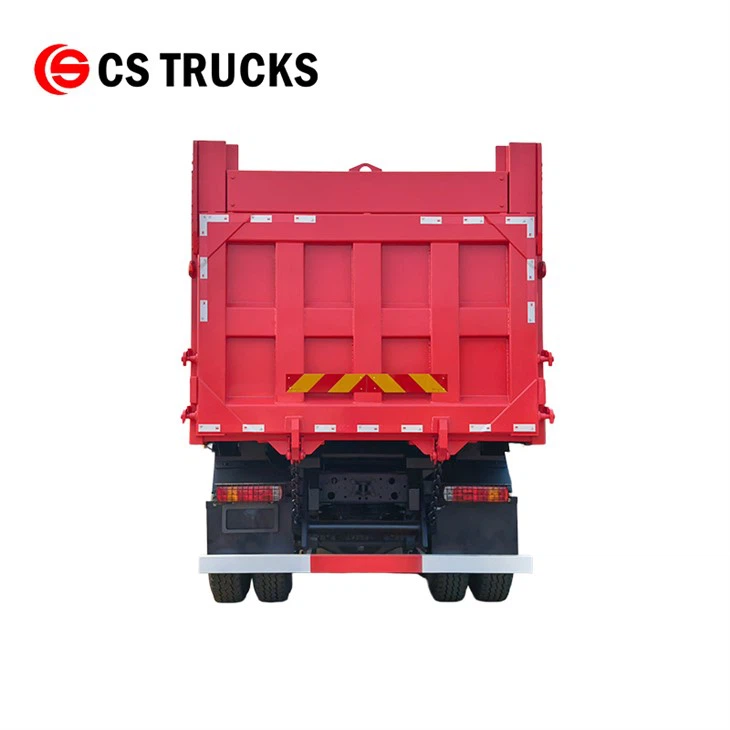

Rear View of HOWO Trash Dump Truck With Dumpster
» Ⅶ. Dump Truck Operation Demonstration:
Products--100% China HOWO factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. HOWO 6×4 Heavy Dump Truck: Built on SINOTRUK 6×4 chassis powered by WD615.47 diesel engine (371HP) with HW19710 10-speed manual transmission, purpose-built for mining, construction, and heavy material hauling.
2 . High-Strength Dump Box: Fabricated from 8mm floor and 6mm side steel plate, featuring a 5600×2300×1500 mm dump box with reinforced structure for heavy loads and long-term durability.
3 . Hydraulic Dump System: Equipped with a fast-acting hydraulic lifting cylinder, achieving smooth and quick unloading, combined with a tailgate chain and hinge assembly for controlled, safe discharge.
4. Chassis & Safety Features: Heavy-duty frame with 9,000 kg front axle and 16,000 kg×2 rear axles, leaf spring suspension, 12.00R20 radial tires, tropical climate radiator, and air brake system for reliable performance in demanding job site conditions.
