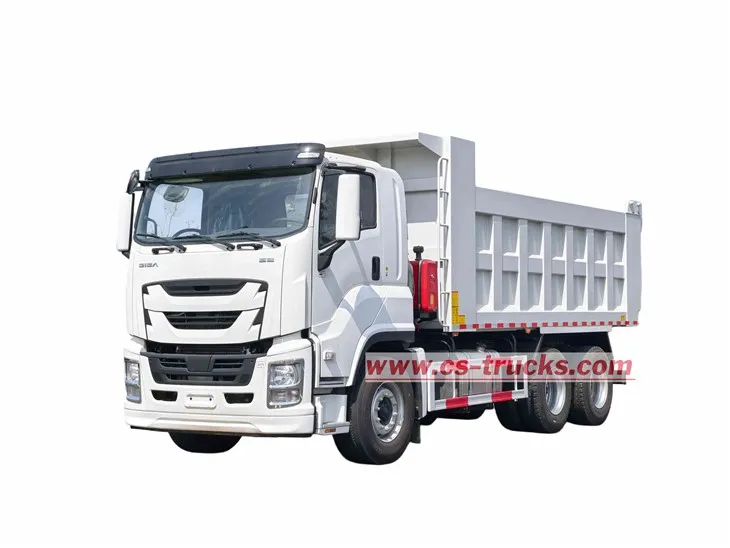

The Japan Isuzu 10 wheeler construction dumping truck adopts a 6×4 drive chassis with stable load-bearing capacity and excellent passability, and is powered by a 420HP 6WG1-TCG6 engine that delivers strong performance and reliable durability, making it specially designed for high-intensity engineering operations such as mining, infrastructure construction and earthwork transportation.
Model: CS5350ZX
Capacity: 30CBM
Drive: 6×4
Engine power: 420 HP
Engine type: 6WG1-TCG60
Send Inquiry
Description
Product Overview

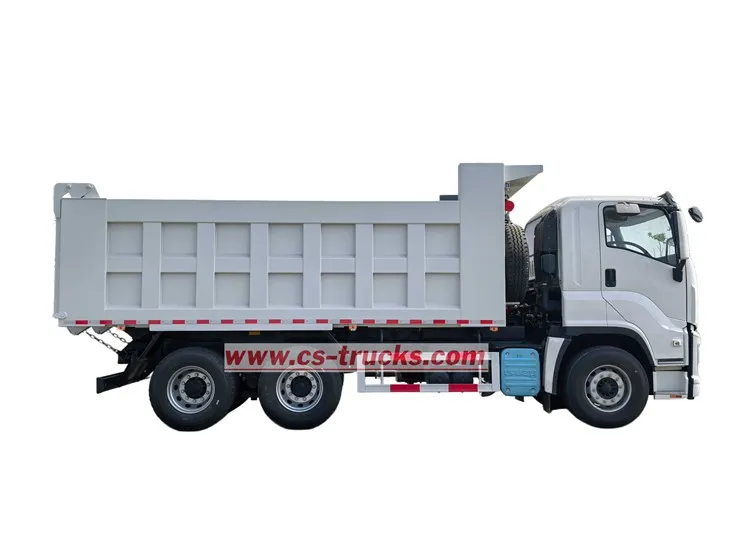

This ISUZU 420HP hooklift dump truck features a 6×4 drive configuration and a spacious 30CBM cargo box to effortlessly handle bulk materials like earth, stone and sand. Powered by the reliable 6WG1-TCG60 Euro VI engine, it delivers abundant low-end torque for smooth heavy-load starts and climbs.
Crafted from high strength wear resistant steel with an 8mm thick bottom plate and 6mm thick side plates, the cargo box features a front mounted single cylinder hydraulic lifting system with a maximum angle of 45°-50°, enabling fast, thorough unloading and making it perfectly suited for heavy duty operations like mining and infrastructure construction.
6×4 Drive
30CBM
420HP
Euro VI
I.Product Specifications
Product Name
Japan Isuzu 10 Wheeler Construction Dumping Truck
Overall
Vehicle Model
CS5350ZX
Drive Type
6*4
Capacity
30CBM
Gross Vehicle Weight
35000 kg
Curb Weight
9500 kg
Maximum Speed
100 km/h
Overall Dimensions L*W*H
9745x2540x3080 mm
Front Axle Weight
9 tons
Rear Axle Weight
13 tons
Engine
Engine Model
6WG1-TCG60
Fuel Type
Diesel
Power
420 HP(309KW)
Emission Standard
Euro VI
Displacement
15681 ml
Engine Type
nline 6-cylinder, water-cooled, four-stroke, turbocharged and intercooled
Rated Speed
1400 rpm
Maximum Torque
2250 N-m
Maximum Torque Speed
900-1300 rpm
Chassis
Chassis Brand
Qingling
Clutch
Single-piece dry, hydraulic control
Rear Axle
Dual drive axle
Frame
U shaped trapezoidal high strength frame
Suspension
7-leaf front leaf springs, 10-leaf rear leaf springs
Tire No.
10+1
Tire Specification
385/65R22.5 20PR
Wheelbase
4600+1370 mm
Gear Box
Fast 12 gears
Steering Wheel
Left or right hand drive
Brake
Dual-circuit air brake + ABS + exhaust brake
Fuel Tank
400L
Cabin
Seat Capacity
2 people
Driver's Seat
Air-suspension seat
Standard Features
Air conditioning, power windows, central locking, hydraulic shock absorbers
Dump Box
Carriage Dimensions
7600 x 2500 x 1600 mm, bottom 8mm, side 6mm
Lifting Form
Front-mounted single-cylinder hydraulic lift
Maximum Lifting Angle
45°~50°
II.Products Description
01
Power and environmental performance

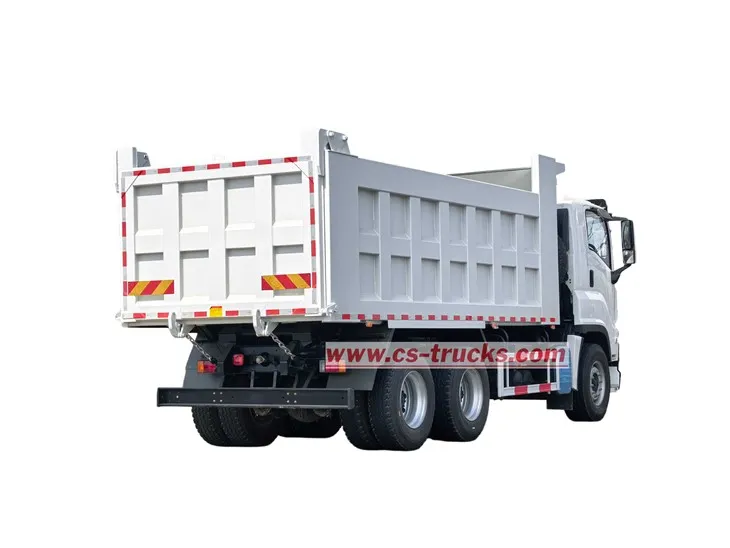

♦Powerful Core Performance: The ISUZU 30CBM dumpster hauling truck is equipped with a 6WG1-TCG60 engine, delivering 420 horsepower and 2250 N·m of peak torque, easily handling heavy-load starts, hill climbing, and other engineering conditions.
♦ Environmentally Compliant: It meets Euro VI emission standards, while electronically controlled high-pressure common rail technology optimizes combustion, achieving a balance between power and fuel economy.
02
Chassis and load-bearing structure

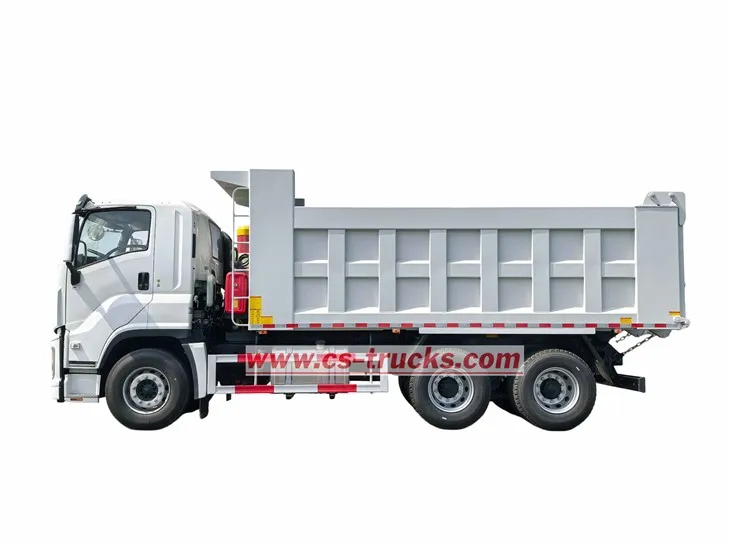

♦ Stable Chassis: This ISUZU 6x4 drive construction dumpster truck features a U-shaped trapezoidal high-strength frame, coupled with a 7-leaf front and 10-leaf rear thickened suspension, providing strong impact resistance and adaptability to complex construction site conditions.

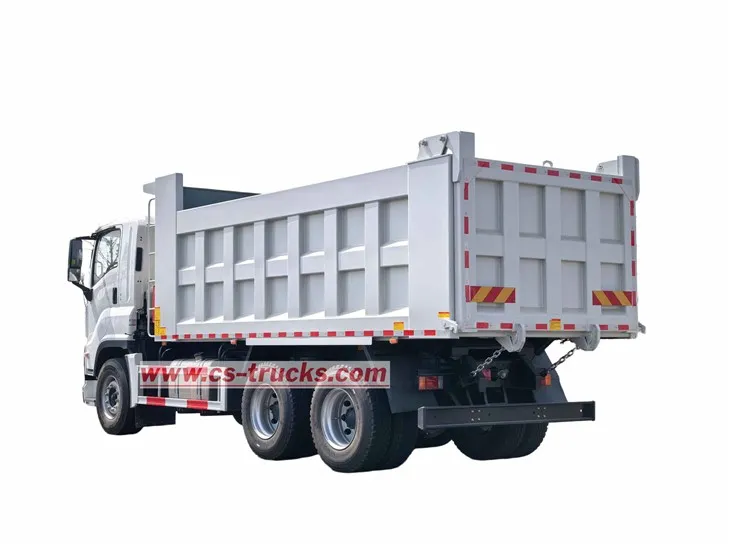

♦ Heavy-Load Stability: Equipped with a dual-drive rear axle and 10+1 heavy-duty tires, it can bear a total weight of 35 tons, ensuring stability during long-distance heavy-load transportation.
03
Handling and ride comfort
♦ Highly Efficient Transmission: Matched with a Fast 12-speed gearbox, the gear distribution is reasonable, power transmission is smooth, and it adapts to various road conditions and shifting needs.
♦ Strong Adaptability: Supports left-hand/right-hand drive, covering different markets worldwide; the cab is equipped with an air-suspended seat and air conditioning to reduce driver fatigue during long working hours.
04
Hydraulic lifting system

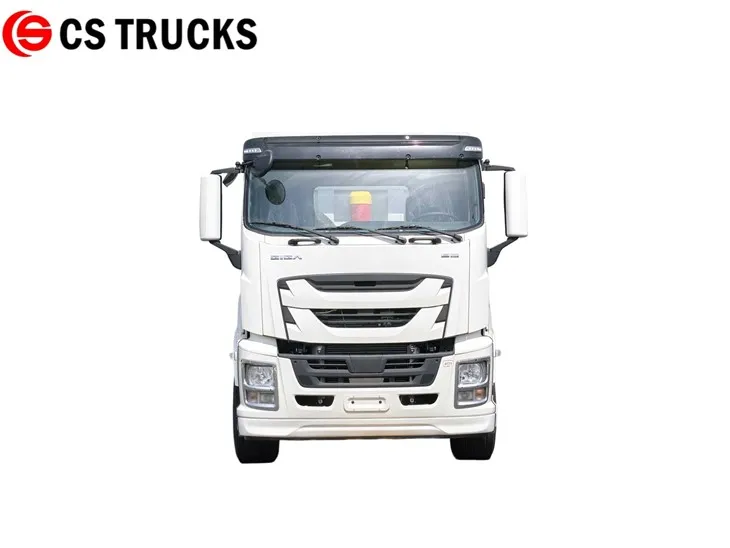

♦ Reliable Lifting Structure: Our ISUZU Trash Dump Truck With Dumpster features a front mounted single cylinder hydraulic lifting design with a compact structure and even force distribution, and the high thrust hydraulic cylinder delivers stable support for the fully loaded 30CBM cargo box, ensuring a smooth, shock-free lifting process.
♦ Highly Efficient Unloading Performance: The truck boasts a maximum lifting angle of 45°-50°, enabling rapid and thorough unloading without residue,which significantly improves the turnover efficiency of bulk materials such as earth, rock, and sand.
