The Howo heavy-duty 30tons Dumper is a dump truck used in construction sites. It adopts a left-hand drive 6×4 drive and the cab can accommodate 3 people. Howo heavy-duty 30tons Dumper has a maximum speed of 105km/h, a maximum gradeability of 25%, and a minimum turning radius of 7.5m. Howo heavy-duty 30tons Dumper is equipped with a WD615.95E engine, which is a vertical, water-cooled, six-stroke, turbocharged and intercooled type. The emission standard reaches Euro 3. The displacement is 9.726L, the rated power is 336 horsepower, and the maximum torque is for 1350N.M. The braking system uses air brakes and central drum parking brakes. The tire specification is 12.00R20, the rated voltage of the electrical system is 24V, and the battery capacity is 100Ah.
The cabin is made of high-performance carbon steel plates, with a front/side panel thickness of 6mm and a rear/side panel thickness of 8mm. It has a hydraulic control system and a front lifting device. The unloading time is fast, and the tailgate and side panels can be released automatically. In addition, the Howo 30T construction dumper is also equipped with a number of safety protection equipment and lights, as well as removable paint, and the loading capacity can be customized according to needs. All in all, this Howo 30T construction dumper offers strong performance and excellent quality, making it an ideal choice for heavy-duty situations such as construction sites.
Specification Data
|
Description |
Howo 30T construction dumper |
|
|
Item |
CS dump truck |
|
|

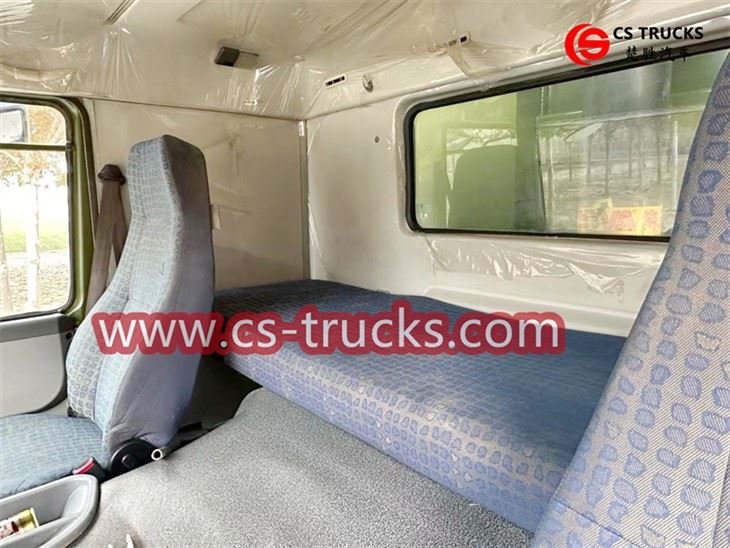

Cabin |
Two seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
|
Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
|
Driving type |
Left hand drive 6×4 |
|
|
Wheel base |
4565+1370mm |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
WD615.95E |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 3 |
|
|
Displacement (L) |
9.726L |
|
|
Rated power (KW) |
336 hp |
|
|
Max torque (N.m/rpm) |
1350N.M |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Tyre size |
12.00R20 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
30 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|
Discharging System |
Front lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|
Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
What are the characteristics of the heavy-duty HOWO dump truck box?
1. Spacious cargo capacity: The box design of the heavy-duty Howo 336hp dump truck is very spacious and can accommodate a large amount of cargo. This makes it ideal for transporting large cargo or carrying large quantities of goods.
2. Durable box material: In order to withstand the pressure of heavy goods and long-term use requirements, the box of the Howo heavy-duty 336hp dump truck is constructed of high-strength steel or other solid materials to ensure the durability and durability of the box.
3. Reasonable cargo storage layout: The Howo heavy-duty dump truck has a reasonable internal layout and is equipped with fixed cargo storage facilities, such as hooks, fixed brackets, etc., which can fix the cargo in the appropriate position and ensure safety during driving. Stability and security.
4. Convenient unloading system: The box of the Howo heavy-duty 30tons dump truck is equipped with a convenient unloading system, which generally uses a hydraulic unloading system. This system can quickly and safely unload the goods from the box, improve the unloading efficiency and reduce the labor intensity of the staff.
5. Multi-functional box design: The box design of Howo heavy-duty 30tons dump trucks is usually very multi-functional and can be customized according to customer requirements. For example, protective facilities, heating or cooling equipment, etc. Howo heavy-duty 30tons dump trucks can be added as needed to meet customers with different transportation needs.
