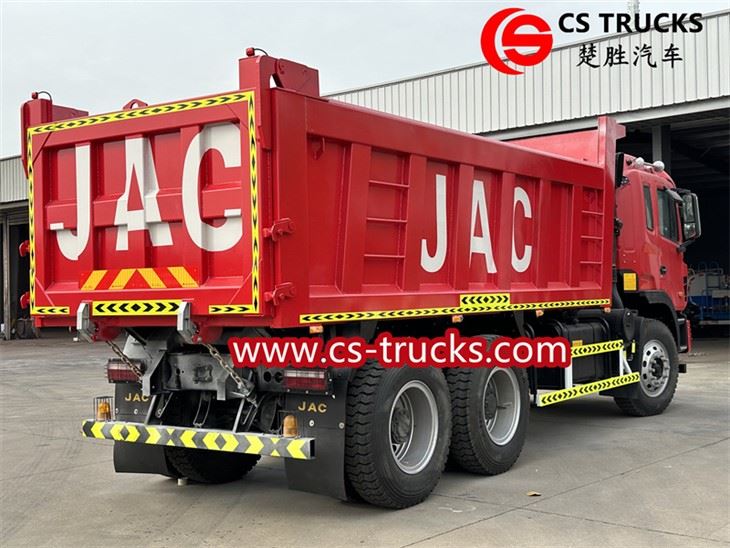

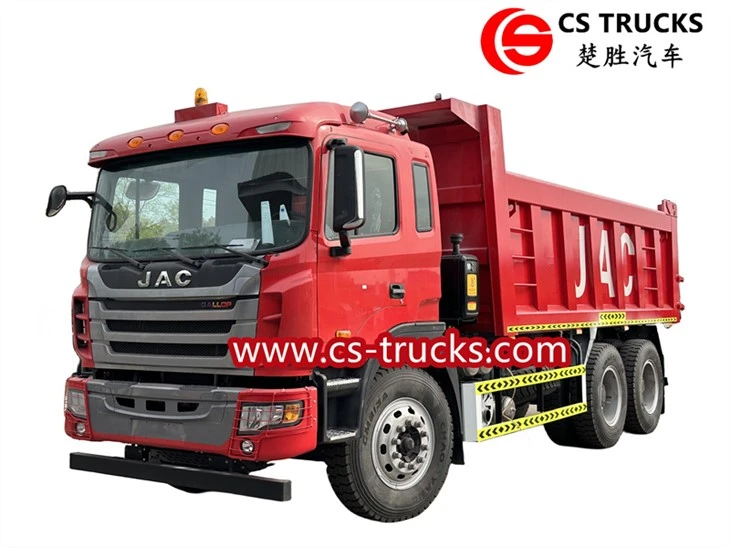

Products Description
We CS TRUCKS produced dump truck also named tipper truck, self-discharging truck. This based on famous brand truck chassis, including ISUZU, HOWO, SHACMAN, JAC, FAW, JMC, etc. which refitted with special upper structure. And the components consist of Hydraulic Lifting Device, Dump Body, Auxiliary Frame and Spare Parts.
The Jac Dump Lorry Truck equipped with high quality dump body and middle hydraulic lifting cylinders, which loading capacity can be 25Tons. The dump trucks widely used together with excavator trucks, loading trucks and belt conveyor machine. Therefore, the dump truck is an ideal Construction Truck mainly for heavy duty goods loading & transportation.
Key Features
----►JAC cabin 6x4 / 6x6 drive
----►Weichai WP10.380E32 diesel engine 380 hp
----►Front lifting cylinder, super reliable.
----►Customized dump body size 5600x2300x1500mm
----►Optional dump body thickness for side 8mm and floor 10mm
----►12 months after sale service, long guarantee assurance.
----►7 days + 24 hours service
Technical Specification
JAC gallon Dump Truck Lorry based on type II Jac 6*4 LHD chassis; tipper body capacity could up to 20 tons. The truck use hydraulic system and mechanical system to realize truck good self-discharging function. Trucks widely used in city, mining area, construction area, etc.
General Description |
|||
| Truck model | CS TRUCKS | ||
| Cab | JAC gallon , A/C | ||
| Driving Type | 6x4 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 8500×2500×3500 | ||
| GVW( kg) | 25000 | ||
| Mass in working order ( kg) | 11200 | ||
| Wheelbase(mm) | 4250+1450 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 12R22.5 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T | ||
| Enging | Model | WEICHAI | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 9.26L | ||
| Max output power/rotate speed (hp /rpm ) | 380/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1600/1500~1800 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
Upper body specification |
|||
| Tipper Body | 5600x2300x1500 mm | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of Tipper Lorry | Thickness for side 8mm and floory 10mm | ||
| Lifting Model | Front lifting, heavy duty type, with safety support | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
Pay attention to use the jac dump truck
After carefully reading the above information, you must be well known how to use the JAC 6x4 Dump Truck; below show some parts you need to pay attention while using the truck.
- The loaded materials should be distributed in the body, strictly forbidden overloading.
- Keep nobody stand around when operating the dump truck.
- Strictly forbidden the PTO on Working Position during the truck driving.
- Strictly forbidden operate the Control Device during the truck driving.
- Please keeps the dump truck in flat road during discharging working, strictly forbidden discharging working in a transverse slope.
- During the whole loading and unloading process, the operator should not leave the Control Device, in case of there is an emergency.
- When truck stopped and ready for lifting work, operator should start the truck engine firstly, and make the engine idle for 3~5 minutes, then following Chapter 4 for operation.
- Make sure the truck engine idle, and then Accelerator Switch line can be UP POSITION to make PTO start working.
- When dump body start for discharging working, release the accelerator plate when last level hydraulic cylinder extend, then engine rotation speed slowdown, which can reduce the dump body lifting of inertia. When dump body to maximum lifting angle, stop the gear pump to avoid any emergency.
Shipment Method

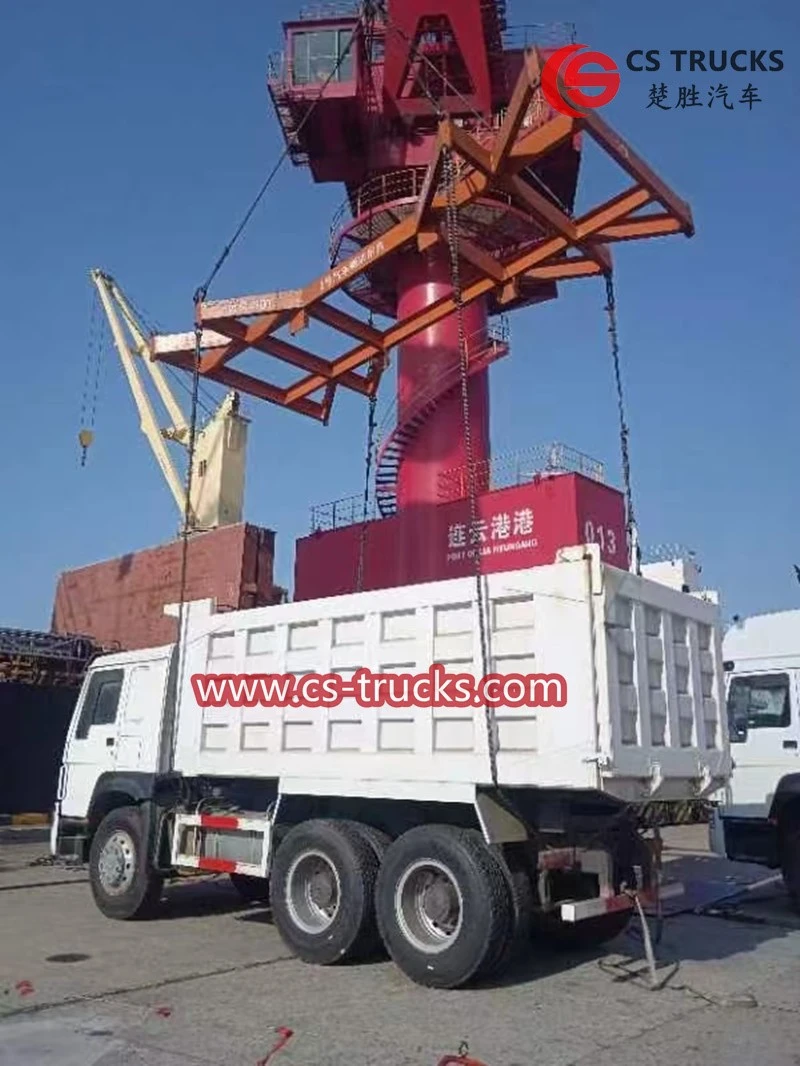

Dump truck for shipment

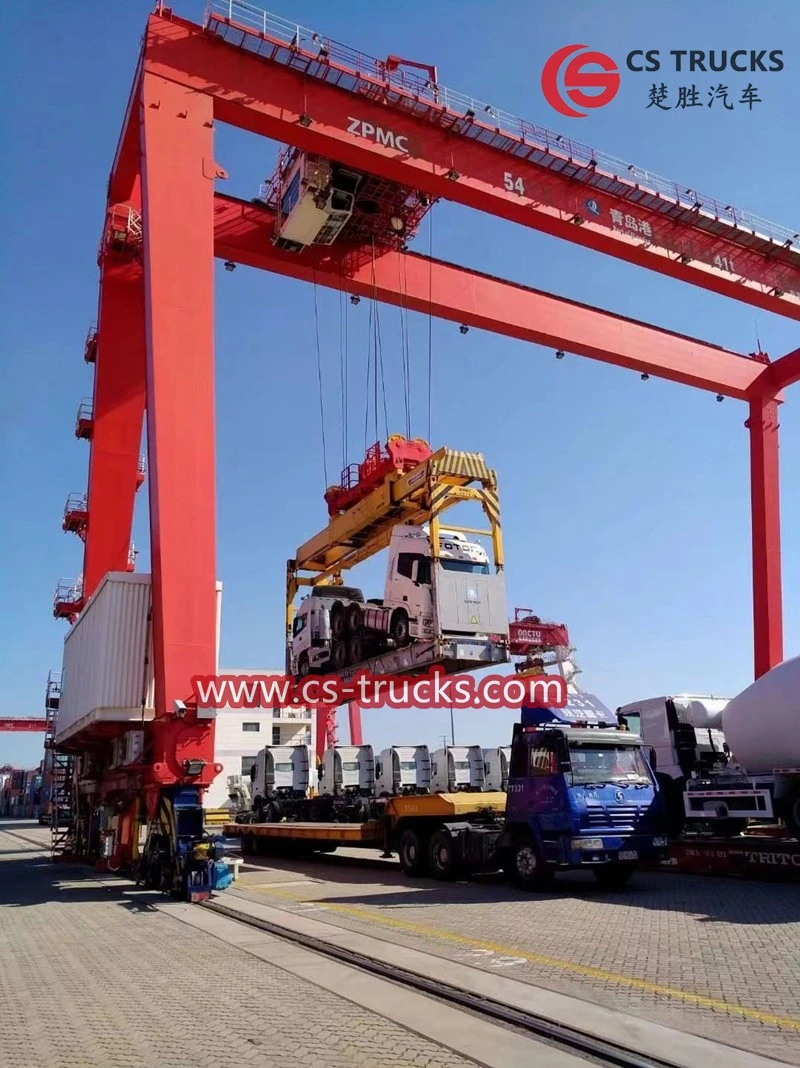

40FR container for shipment
JAC truck lorry for shipment

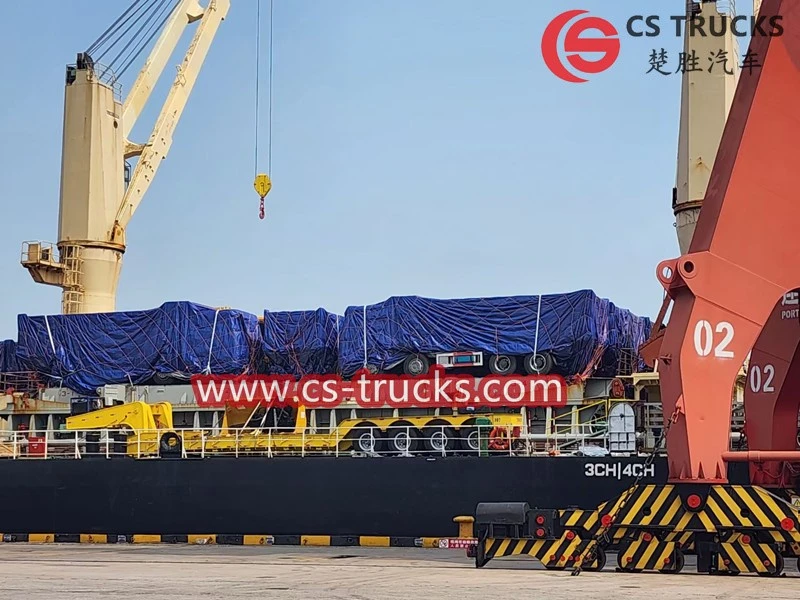

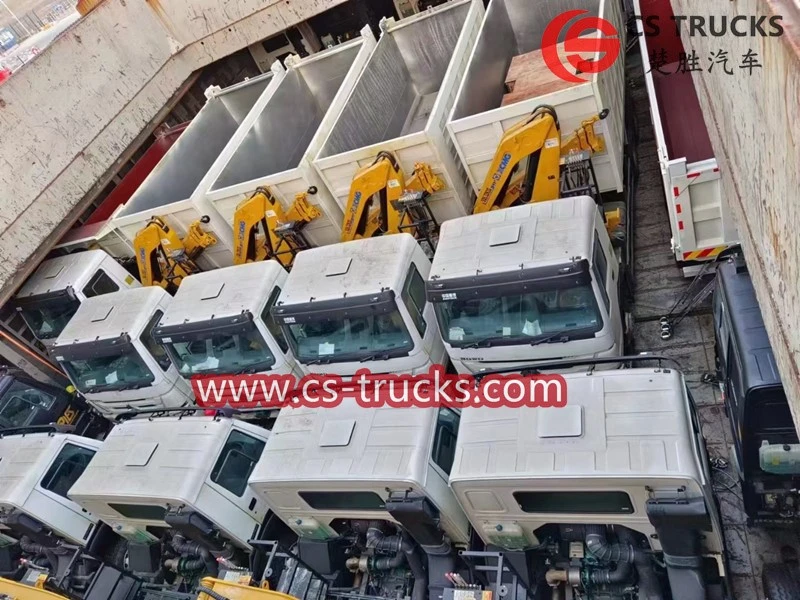

Bulk shipment with curtain for protection
Troubleshooting for dump tipper truck
Q: What we can do when dump truck have a problem?
|
Malfunction |
Possible Reason |
Solution |
||
|
Gear Pump broke down |
|
|
||
|
No-load body not lifting |
|
|
||
|
Full-load body not lifting |
|
|
||
|
Dump body can lift a little, not to the maximum lifting angle |
|
|
||
|
Dump body lifting to an angle then start falling down automatically |
|
|
||
|
There is a noise during lifting process |
|
|
Your advantages with CS® Dump truck:
-
JAC Gallop truck chassis, reliable
-
Front Dump Body Type
-
Extremely durable
-
Quiet running
-
Dump body 5600x2300x1500mm
-
Thickness for side 8mm and floor 10mm
-
12 months after sale service guarantee
