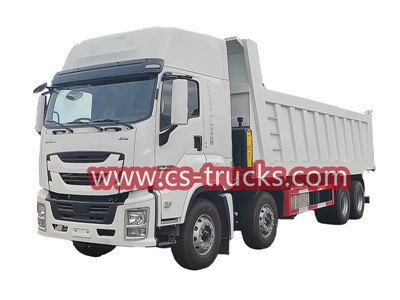

Isuzu giga dumper
The ISUZU 6WG1 420HP Middle Lifting Dump Truck also called Isuzu GIGA dump truck,Isuzu 420HP 25tons dumper truck,Isuzu GIGA 6x4 tipper truck,Isuzu GIGA dump lorry truck,Isuzu 6x4 heavy-duty garbage dump truck, is a powerful and versatile vehicle designed for heavy-duty applications,particularly in construction, mining, and transportation industries. With a robust 6WG1 engine under the hood, this ISUZU 6WG1 420HP Middle Lifting Dump Truck delivers an impressive 420 horsepower, providing the necessary torque and power to tackle various demanding tasks with ease.
The Isuzu GIGA dump truck is a powerful heavy-duty truck equipped with a high-performance engine that provides reliable power output. It has excellent load-carrying capacity and unloading efficiency, and is suitable for heavy-duty work scenarios. Its robust and durable design and advanced technical features ensure excellent performance in a variety of construction site environments. The GIGA dump truck has a flexible unloading mechanism and a structure that is easy to maintain, while focusing on the comfort and safety of the driver, providing users with an excellent transportation solution with high efficiency, reliability and easy operation.
Products Description
|
Manufacturer |
POWERSTAR Trucks |
|
|
Item |
Isuzu GIGA Dump Truck |
|
|
Brand |
Isuzu |
|
|
Model |
PT5340GTW |
|
|
Production Time |
35 days |
|
|
Truck Chassis |
||
|
Specification |
Overall dimensions |
9650*2600*3700 mm |
|
Gross weight |
34,000 kg |
|
|
Kerb weight |
15,500 kg |
|
|
Wheelbase |
4565+1370 mm |
|
|
Driving type |
6*4 |
|
|
Chassis model |
Isuzu GIGA heavy-duty |
|
|
Tire size |
315/80R22.5 |
|
|
Passengers in cab |
3 |
|
|
Max speed |
105km/h |
|
|
Engine |
Engine model |
6WG1-TCG52 |
|
42Type of fuel |
Diesel |
|
|
Power |
420 HP |
|
|
Emission |
Euro 6 |
|
|
Type |
6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4-valve,diesel engine |
|
|
Displacement |
15681ml |
|
|
Gearbox |
12-shift gearbox |
|
|
Upper Structure |
||
|
Boom Crane performance |
Dump box size |
6000x2400x1500 |
|
Loading capcity |
25 tons |
|
|
Body material |
High performance carbon steel |
|
|
Plate thickness |
Side 5mm, bottom 6mm |
|
|
Discharge time |
40S-50S |
|
|
Control |
Hydraulic |
|
|
Lifting system |
Hydraulic cylinder,middle lifting device |
|
|
Tipping angle |
45 degree |
|
|
Hydraulic system pressure |
20Mpa |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Color & LOGO |
According to wish |
|
|
Factory standard |
"U" shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1. Front lifting system 2.U-shape dump box 3. Working camera can be equipped |
|
Isuzu GIGA Middle Lifting Dump Truck
This vehicle is the first choice for businesses looking for a reliable and efficient heavy-duty transport solution. Whether navigating rough terrain, hauling heavy loads or maximizing jobsite efficiency, Isuzu dump trucks are able to prove themselves in the most demanding environments.
01/
Engine and Performance:
The heart of this dump truck is the ISUZU 6WG1 engine, renowned for its reliability, efficiency, and performance. With 420 horsepower at your disposal, this engine ensures optimal power delivery for enhanced productivity on the job site. Whether hauling heavy loads or navigating challenging terrain, the ISUZU 6WG1 engine provides the muscle needed to get the job done efficiently.The 6WG1 engine features a 6-cylinder inline configuration with water cooling, turbocharging, and an intercooler, ensuring smooth and responsive power delivery across a wide range of operating speeds.
With a maximum torque of around 2250N.m, the 6WG1 engine provides ample pulling power, making it ideal for hauling heavy loads over rough terrain or up steep gradients. The engine is also compliant with modern emission standards Euro VI, ensuring that it operates cleanly and efficiently while minimizing its environmental impact.
02/
Transmission and Drive System:
The Isuzu 420HP 25tons dumper truck typically comes equipped with a manual transmission system, allowing the driver to have full control over gear selection. This transmission is designed to handle the high torque output of the 6WG1 engine, ensuring smooth and reliable power transfer to the wheels.
The truck features a 6x4 drive configuration, which provides superior traction and stability, especially on uneven or slippery surfaces. This drive system allows the truck to distribute power evenly across the front and rear axles, ensuring optimal grip and handling, even when carrying heavy loads.
03/
Design and Construction:
The Isuzu GIGA 6x4 tipper truck is built to withstand the rigors of heavy-duty use. The truck features a sturdy chassis and frame, reinforced with high-strength steel to ensure maximum durability and reliability. The suspension system is designed to absorb shocks and vibrations, providing a smooth ride even over rough terrain.
The truck's cab is spacious and comfortable, providing ample room for the driver and any additional passengers. It is equipped with modern amenities such as air conditioning, power windows, and central locking, ensuring a pleasant and convenient driving experience. The cab also features excellent visibility, allowing the driver to see clearly in all directions, reducing the risk of accidents.
04/
Dump Body and Lifting Mechanism:
One of the standout features of the Isuzu GIGA dump lorry truck is its middle lifting dump box. This unique design allows the truck to dump its load from the middle of the bed, rather than the traditional front or rear lifting mechanisms. This feature offers several advantages, including improved maneuverability in tight spaces, reduced risk of overloading the front or rear axles, and increased dumping efficiency.
The dump box is typically made from high-strength steel, ensuring durability and longevity. It is equipped with powerful hydraulic cylinders that lift the box smoothly and efficiently, allowing the truck to empty its load quickly and easily. The dump box is also designed to be compatible with a variety of materials, including gravel, sand, dirt, and more.
05/
Industry Applications:
The Isuzu GIGA 35tons tipper lorry truck finds applications across various industries, including construction, mining, infrastructure development, and municipal services. Its adaptability and performance make it a versatile asset for companies looking to streamline operations, boost productivity, and maximize efficiency in their respective fields.
Technological Features:
Incorporating cutting-edge technologies, this dump truck comes equipped with state-of-the-art features to enhance performance and functionality. From advanced engine management systems to smart connectivity options, the Isuzu 6x4 dumper vehicle leverages technology to optimize operations and streamline workflows.
06/
Safety and Comfort:
The Isuzu 6x4 heavy-duty garbage dump truck prioritizes safety and driver comfort. With advanced safety features and ergonomic design elements, this vehicle offers a secure and comfortable driving experience. From adaptive handling systems to driver-assist technologies, every aspect is engineered to ensure safety and efficiency on the road.
With its rugged design and powerful engine, the Isuzu VC66 6X4 dump truck is a versatile vehicle suitable for a wide range of applications. Whether in construction, mining or other heavy industries, this dump truck excels in different working environments, demonstrating adaptability and reliability in every task.
