ISUZU 5 ton garbage tipper truck (also called dump truck, tipper lorry, or construction dumpster truck) is designed for material transport and dumping tasks. Jobs include moving sand and gravel to construction sites, hauling waste to disposal yards, or unloading soil and debris at fill areas.
With a 5 ton payload and 132 HP Euro 6 engine, this ISUZU light garbage tipper truck for construction handles city streets and unpaved roads alike. It delivers reliable service for small contractors, construction crews, and waste management operators around the Philippines.
*ISUZU 5 Ton Tipper Truck Philippines*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guarantee all products Brand-New and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: ISUZU 4×2 chassis with 132 HP 4KH1CN6HB Euro 6 diesel engine
▶ Payload & Body: 5 ton real load capacity, tipper body size 3900×1700×800 mm
▶ Brake & Safety: Air brake system with ABS, tiltable cab for easy engine maintenance
▶ Urban & Rural Capability: 7.00R16 tires, 3365 mm wheelbase, stable on city streets and unpaved roads
▶ Operation Scope: Suitable for sand and gravel transport, construction waste hauling, and small infrastructure projects
» II. Product Parameters for ISUZU 5 Ton Tipper Truck:
| Product Name | ISUZU 5 Ton Tipper Truck Philippines | ||
| Overall | Vehicle Model | CSC5070ZX | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 10550 kg | ||
| Curb Weight | 4420 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 6150*2260*2340 mm | ||
| Engine | Engine Model | 4KH1CN6HB | |
| Fuel Type | Diesel | ||
| Power | 132 HP(97KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 2999 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU | |
| Tire No. | 6+1 | ||
| Tire Specification | 7.00R16 | ||
| Wheelbase | 3365 mm | ||
| Gear Box | Manual 6-speed forwards and 1 reverse | ||
| Steering Wheel | Left or right hand drive | ||
| Front Axle Weight | 3 Tons | ||
| Rear Axle Weight | 5 Tons | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Superstructure | Cargo Capacity | 5 Tons | |
| Cargo Size | 3900*1700*800 mm | ||
| Equipped with air conditioning, power steering, and a multifunctional LCD instrument panel. | |||
| Front axle load capacity: 3 tons; Rear axle load capacity: 5 tons. | |||
| Features an ABS (Anti-lock Braking System). | |||
| Utilizes air brakes (or hydraulic brakes). | |||
| The cabin is tiltable. | |||
| 700mm frame, paired with 700R16 tires. Frame height: 176mm. | |||
| 800mm crossbeam, paired with 750R16 tires. Frame height: 216mm. | |||
» III. Product Description:
ISUZU 5 Ton Tipper Chassis
◉ Cabin： ISUZU 4x2 standard cab, with A/C and power steering
◉ Engine：4KH1CN6HB, 132 HP, inline 4 cylinder, 2.999 L displacement, Euro VI
◉Transmission： Manual 6-speed forward and 1-speed reverse
◉ Front Axle Load：3 ton
◉ Rear Axle Load：5 ton
◉ Cargo Box Dimensions：3900 × 1700 × 800 mm, tipper type
◉ Tires: 7.00R16, 6 wheels plus 1 spare
ISUZU 5T Cargo Body & Hydraulic System
◉ Rugged Frame Construction: 800mm crossbeam with 216mm frame height provides extra strength for frequent dumping cycles.
◉ 800mm Frame Option: Pairs with 750R16 tires and 216mm frame height. Stronger chassis for heavier loads and rougher terrain.
◉ Brake & Safety: Air brake system with ABS for reliable stopping. Tiltable cab makes engine maintenance easy.
» IV. ISUZU Light Dumpster Truck Operating Principle :
♦ Tipper Body: 3900×1700×800 mm cargo box with 5 ton payload capacity. Built for sand, gravel, construction waste, and soil hauling.
♦ Powertrain: 132 HP 4KH1CN6HB Euro 6 diesel engine with manual 6-speed transmission. Air brake system with ABS for safe stopping in all conditions.
♦ Crane Structure: Folding arm design with high-strength steel construction. Outriggers provide stable support on uneven ground. 360° continuous slewing allows full range operation without moving the vehicle.
♦ Urban & Rural Use: Compact overall length of 6150 mm fits tight job sites and narrow city streets. 7.00R16 tires handle both paved roads and unpaved tracks.
Product Details
ISUZU 4X2 Tipper Box Guardrail & Safety Chain
ISUZU 5T Tipper Spare Tire
ISUZU 5T Tipper Hydraulic Lifting Cylinder

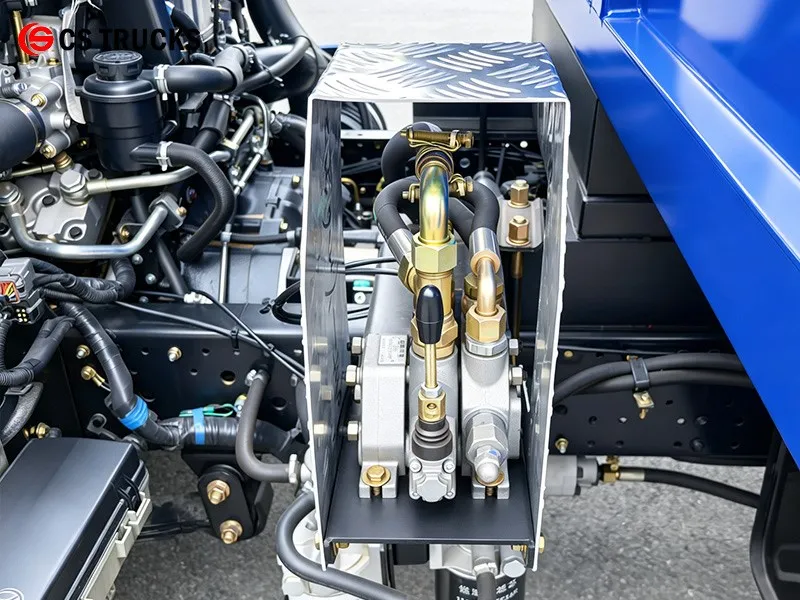

ISUZU 132HP Tipper Hydraulic Control Valve
ISUZU 5T Tipper Driver's Cab
ISUZU Tipper 6-Speed Gear Shift Lever
» Ⅴ.ISUZU 4x2 Dumpster Hauler Truck Solutions:
ISUZU 4x2 Light-Duty Dump Truck for Quarry & Mining Hauling
ISUZU 4x2 Tipper Truck for Construction Site Unloading
ISUZU Urban Dump Truck for Municipal Waste & Garbage Collection
ISUZU 4x2 Tipper Truck for Waste Transfer & Recycling Centers
» Ⅵ. ISUZU 4X2 Garbage Tipper Truck Exterior Views:
Front left view of ISUZU 132HP Euro 6 garbage dump truck for construction
Front right view of ISUZU 4×2 5 ton garbage tipper truck for Philippines
Left view of ISUZU 4×2 garbage tipper truck with tiltable cab
Right view of ISUZU 5 ton payload garbage tipper with air brake and ABS
Rear left view of ISUZU 5T garbage tipper for sand and gravel hauling
Rear right view of ISUZU small dump truck with 7.00R16 tires
Front view of ISUZU 4x2 132HP Euro 6 garbage tipper lorry

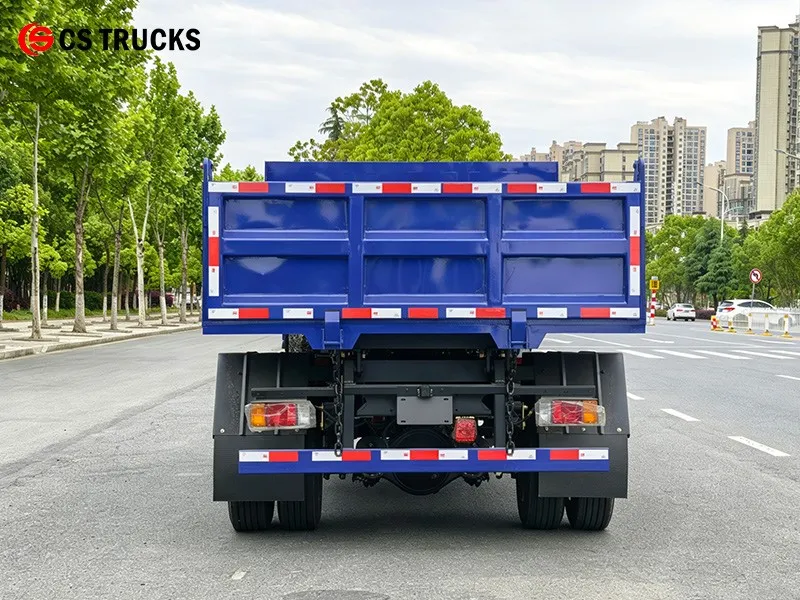

Rear view of ISUZU 5 ton construction tipper
» Ⅶ. ISUZU 5 Ton 132HP Lifting Dump Truck Exterior Views:
Products--100% China ISUZU factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. ISUZU 4×2 Tipper Truck Chassis:Built on ISUZU 4×2 platform with 4KH1CN6HB diesel engine delivering 132 HP + manual 6-speed transmission, designed for light to medium cargo transport in construction, waste management, and small infrastructure projects across the Philippines.
2. Tipper Cargo Body: Manufactured from high strength steel, featuring 3900×1700×800 mm dimensions with 5 ton real load capacity, finished with durable paint for long service life in tropical and dusty conditions.
3. Hydraulic Tipper System: Equipped with hydraulic lifting cylinder, 5 ton rated lifting capacity, smooth and controlled dumping action, with tiltable cab for easy access to engine and hydraulic components.
4. Safety & Urban Features: 4×2 drive with 7.00R16 tires, air brake system with ABS, 3365 mm wheelbase for stable handling. Tiltable cab with A/C and power steering, plus multifunctional LCD display for driver convenience and safety.
