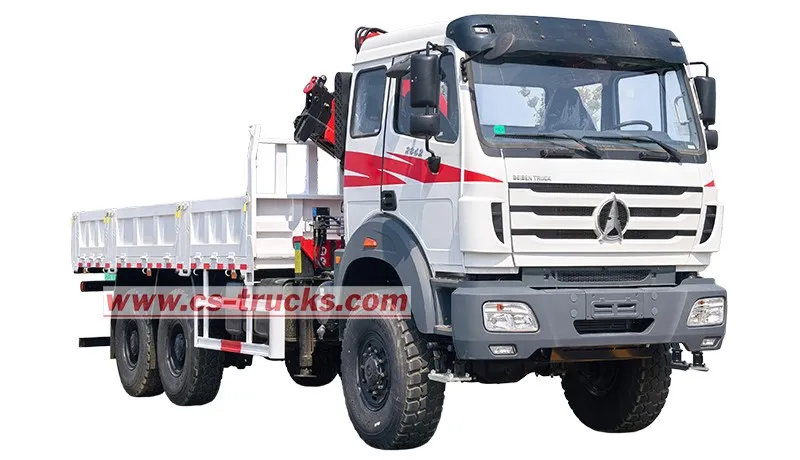

The Beiben 6×6 offroad dropside truck with crane (also called knuckle boom crane truck, truck-mounted knuckle crane, or offroad truck mounted crane) is designed for heavy material transport and lifting tasks. Jobs include moving supplies to remote work sites, loading equipment at oil fields, or unloading construction materials in rough terrain. With a 20 ton payload and 420 HP engine, its 6×6 all wheel drive chassis handles muddy tracks and rocky trails. It delivers reliable service for mining companies, oilfield operators, and infrastructure contractors.

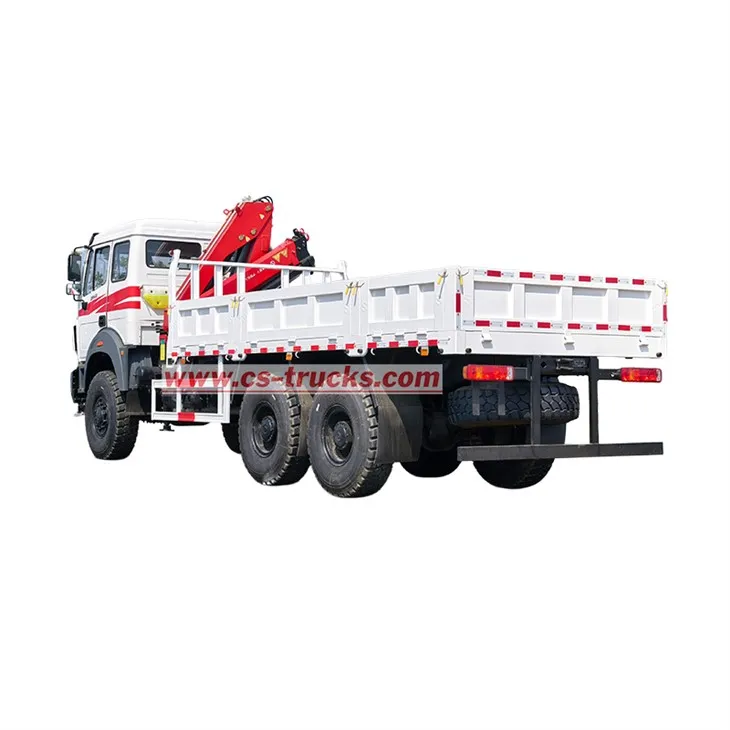

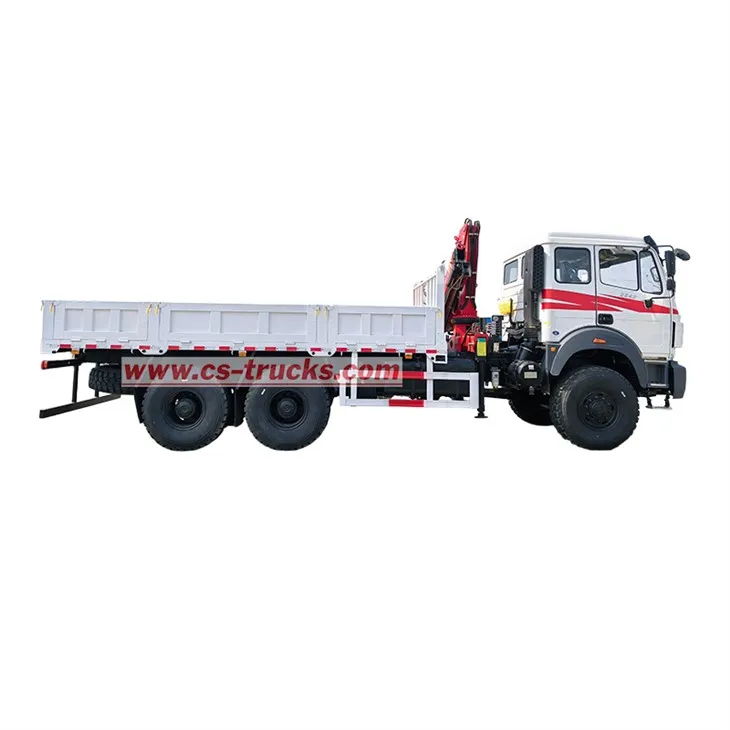

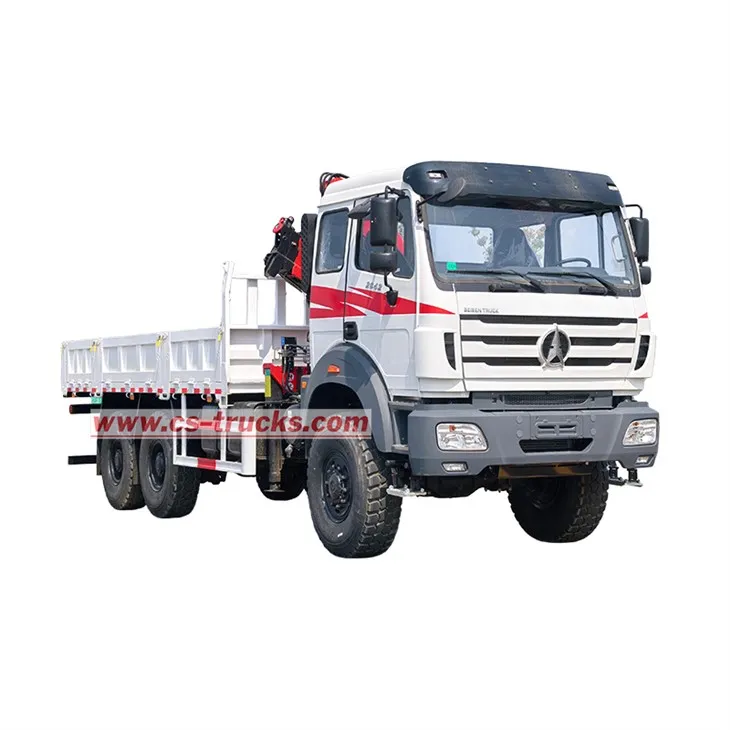

*Beiben 6 Wheeler 2642 Offroad Dropside Truck With Crane*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guarantee all products Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: Beiben 6×6 all wheel drive chassis with 420 HP Weichai diesel engine
▶ Payload & Body: 20 ton real load capacity, dropside body size 6000×2550×550 mm
▶ Crane System: Rear mounted SQZ80 3 folding crane, 4000 kg max lifting capacity, 360° rotation
▶ Offroad Capability: 14.00R20 tires, 29° approach angle, 52° departure angle for muddy and rocky terrain
▶ Operation Scope: Suitable for material transport, equipment loading, and cargo handling in mining, oilfield, and construction sites
» II. Product Parameters for Beiben 6x6 Truck Mounted Crane:
| Product Name | Beiben 6 Wheeler 2642 Offroad Dropside Truck With Crane | ||
| Overall | Vehicle Model | CS5260SCD | |
| Drive Type | 6*6 | ||
| Overall Dimensions L*W*H | 9350*2550*3530 mm | ||
| Cargo Box Dimension | 6000*2550*550 mm | ||
| Gross Vehicle Weight | 26000 kg | ||
| Curb Weight | 10800 kg | ||
| Real Load Weight | ≥20tons | ||
| Maximum Speed | 90 km/h | ||
| Engine | Engine Model | WP12.420E32 | |
| Engine Brand | WEICHAI | ||
| Fuel Type | Diesel | ||
| Power | 420 HP(309KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 11596 ml | ||
| Engine Type | 6 cylinders in line, straight in-line,4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine | ||
| Max. output | 309kw(420ps)/2100 rpm | ||
| Max torque/Speed | 1750 N · m/1200-1500rpm | ||
| Chassis | Chassis Brand | Beiben | |
| Tire No. | 6 tires and 1 spare tire | ||
| Tire Specification | 14.00R20 | ||
| Wheelbase | 4450+1450 mm | ||
| Front Axle | 7 Ton drive axle | ||
| Rear Axle | 13 Ton×2, Beiben double reduction axle | ||
| Front Wheel Track | 2070 mm | ||
| Rear Wheel Track | 2040/2040 mm | ||
| Front/Rear Overhang | 1410/1310 mm | ||
| Approach Angle | 29° | ||
| Departure Angle | 52° | ||
| Max Speed | 90 km/h | ||
| Transmission | FAST 12JS200T, 12 forwarder, 2 reverse gear, synchronous meshing by manual | ||
| Clutch Description | ¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance | ||
| Braking System | Service brake: Brake gap can be adjusted automatically double circulation air brake system Assistant brake: WEVB(Engine exhaust brake) Park brake: Spring brake effect to middle and rear tires |
||
| Suspension System | Leaf spring suspension | ||
| Front Axle | Semi-elliptic leaf springs shock absorbers | ||
| Rear Axle | Torsion bar semi-elliptic leaf springs | ||
| Cabin | NG80 long cab, 2 seats and one sleeper bed, cool and heating air-conditioner, hydraulic suspension driver's seat, four point safety belt for driver and co-driver, with FM/AM radio player, USB interface | ||
| Crane Specifications | Crane Model | SQZ80-3 unit | |
| Max Lifting Capacity | 4,000 kg | ||
| Max Lifting Moment | 80 kN.m | ||
| Max. Outreach | 6.25 m | ||
| Max. Lifting Height | 8.6 m | ||
| Crane Working Radius | 6.2 m | ||
| Rated Flow of Hydraulic System | 32 L/min | ||
| Hydraulic Oil Tank Capacity | 60 L | ||
| Rated Pressure of Hydraulic System | 20 Mpa | ||
| Slewing Angle | 360° | ||
| Outrigger Span | 3457 mm | ||
| Crane Weight | 1500 kg | ||
» III. Product Description:
Beiben 2642 6x6 off-road chassis
● Cabin： NG80 long cab, 2 seats with one sleeper berth, with A/C
● Engine： Weichai WP12.420E32, 420 HP, inline 6 cylinder, 11.596 L displacement, Euro III
● Transmission：FAST 9JS150A, 9-speed forward and 1-speed reverse
● Front Axle Load：7 ton drive axle
● Rear Axle Load：13 ton × 2, Beiben double reduction axles
● Cargo Box Dimensions：6000 × 2550 × 550 mm, dropside type
● Tires: 14.00R20, 6 wheels plus 1 spare
Beiben 4-ton Knuckle Crane
● Lifting Power: High-strength steel boom gives you 4,000 kg max lift, reaching up to 8.6 meters high with a 6.25 meter working radius.
● Hydraulic Performance: The system runs at 20 MPa with 32 L/min flow. Movements are smooth and precise, whether you're lifting heavy loads or positioning delicate cargo.
● Stability on Rough Ground: Outriggers span 3457 mm to keep the truck planted. The 360° rotation lets you work from any angle without moving the vehicle.
» IV. Beiben 6×6 Boom Crane TruckOperating Principle:
♦ Hydraulic Control System: The 20 MPa hydraulic system delivers smooth, precise control for lifting up to 4,000 kg with an 8.6 m reach height and 6.25 m working radius.
♦ Lifting Performance: Max lift capacity of 4,000 kg with 80 kN·m lifting moment. Reach extends to 6.25 meters horizontally and 8.6 meters vertically.
♦ Crane Structure: Folding arm design with high-strength steel construction. Outriggers provide stable support on uneven ground. 360° continuous slewing allows full range operation without moving the vehicle.
♦ Operational Range: Suitable for oil field equipment loading, construction material unloading on rough terrain, and mining cargo handling. 6×6 drive with 14.00R20 tires, 29° approach angle, and 52° departure angle tackles muddy tracks and rocky trails.
» Ⅴ. Beiben 6x6 All Terrain Truck with Crane Operating Principle:
Specification Table
|
Item |
Unit |
SQZ80-3(4T) |
|
Max. lifting moment |
kN ∙ m |
80 |
|
Max. lifting capacity |
kg |
4000 |
|
Max. outreach |
m |
6.25 |
|
Max. lifting height |
m |
8.6 |
|
Rated Flow of Hydraulic System |
L/min |
32 |
|
Oil tank capacity |
L |
60 |
|
Rated Pressure of Hydraulic System |
MPa |
20 |
|
Recommended Power |
kw |
15 |
|
Installation space |
mm |
715 |
|
Slewing angle |
° |
360° |
|
Crane Weight |
kg |
1500 |
|
Outrigger Span |
mm |
3457 |

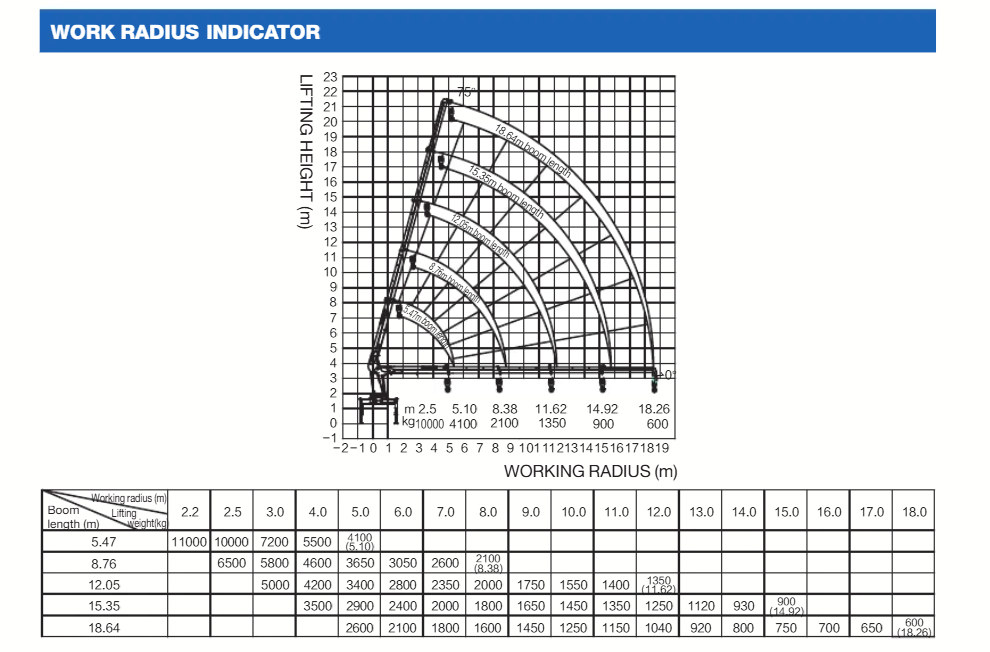

Crane Rated Load
Crane Drawing
Product Details

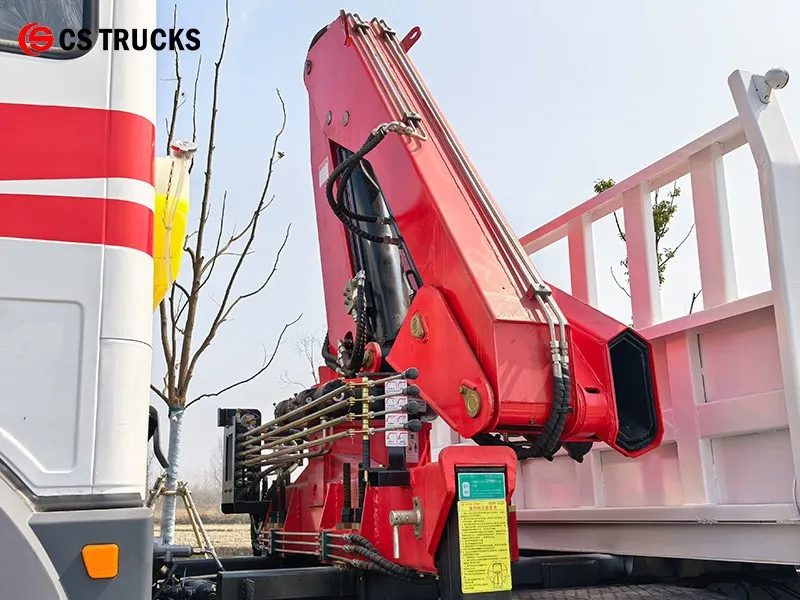

Beiben Crane Truck Folding Boom Crane

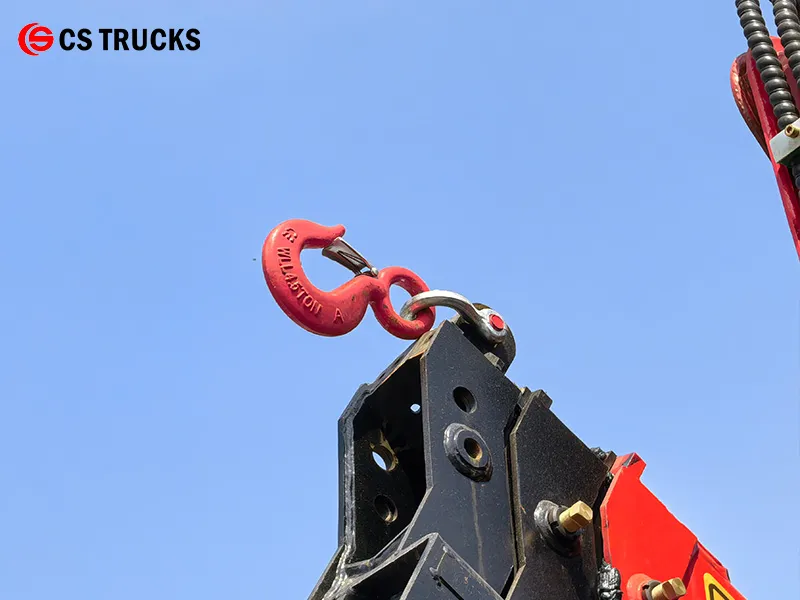

Beiben 6×6 Boom Crane Truck Crane Hook Assembly

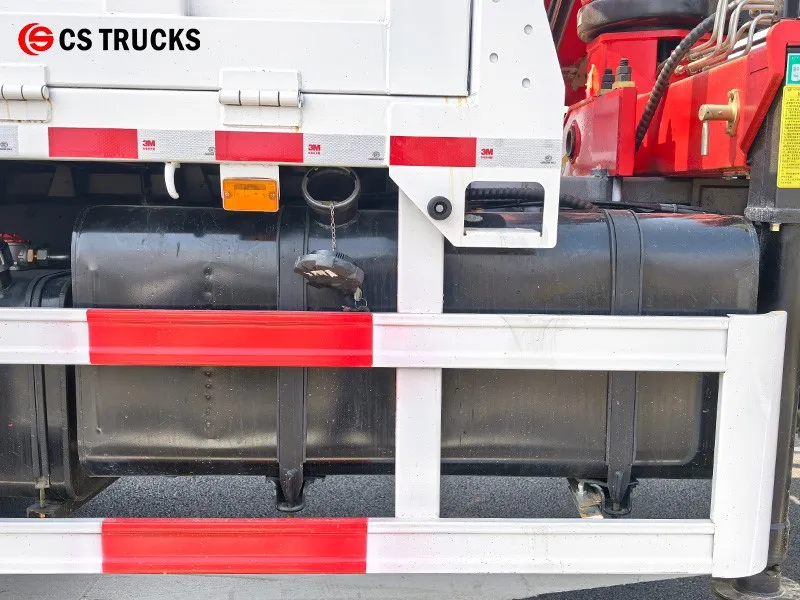

6X6 Self-Loading Crane Truck Fuel Tank

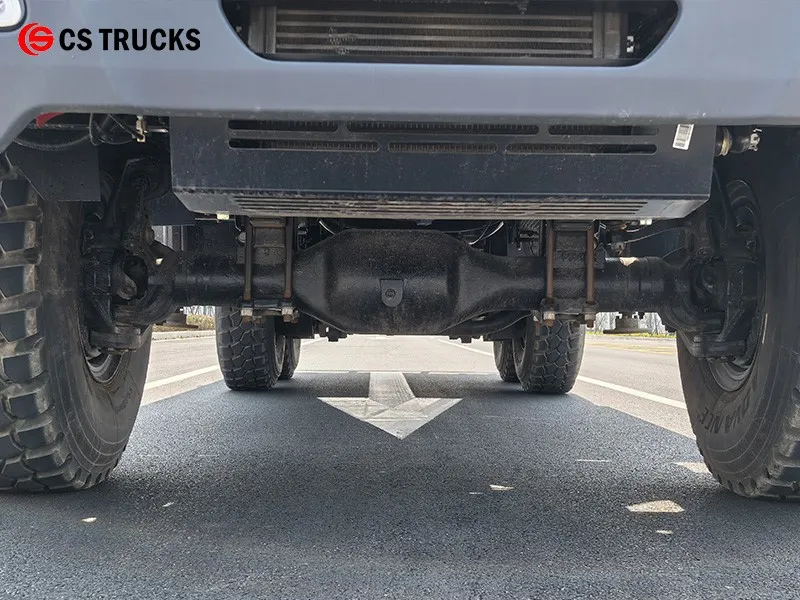

Beiben 6x6 Offroad Drive

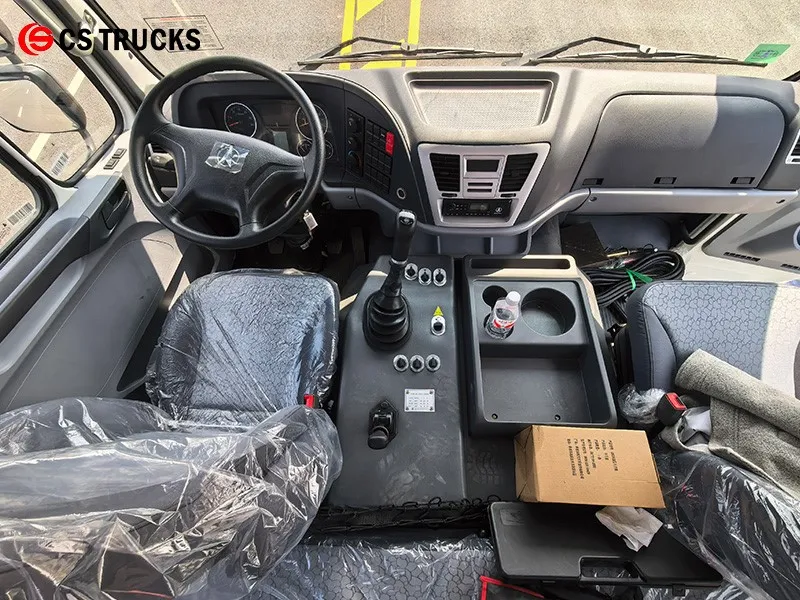

Beiben Boom Crane Truck Driver's Cab

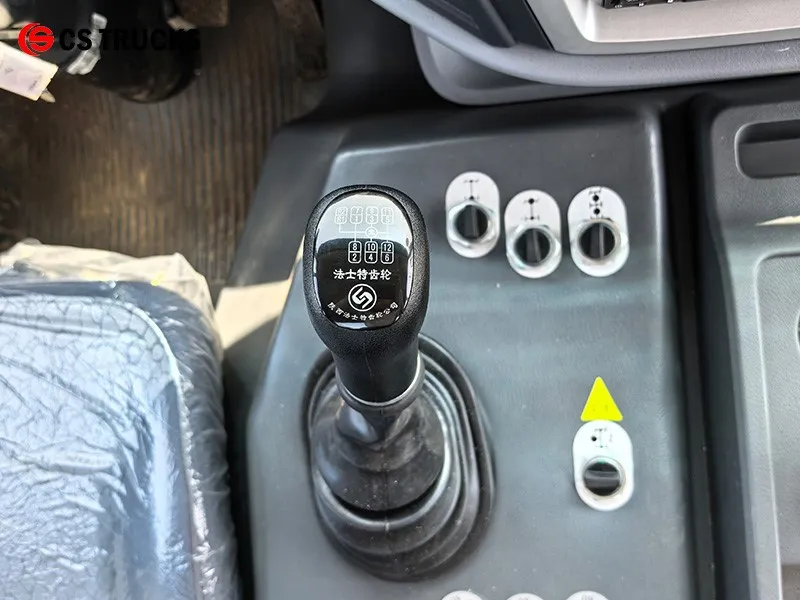

Beiben 12-Speed Gear Shift Lever
» Ⅵ.BeibenHeavy Duty Crane Truck Solutions:

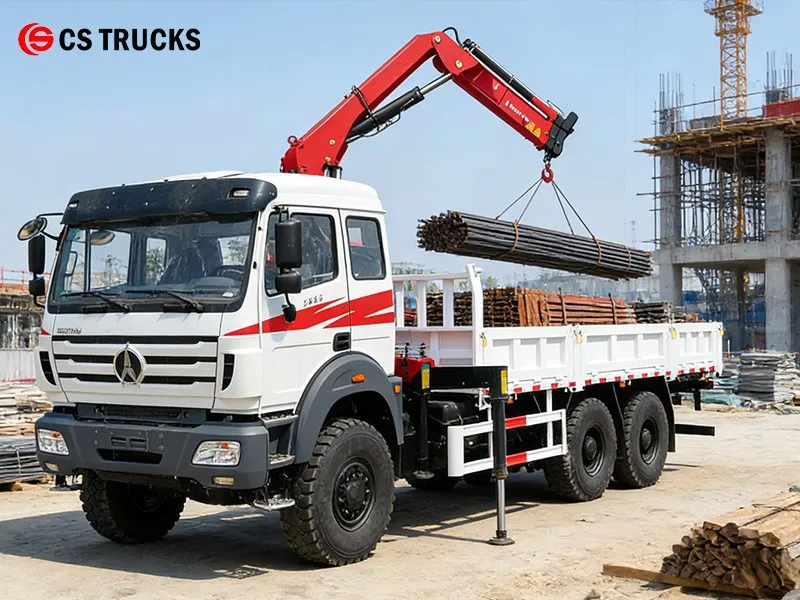

Beiben 6×6 Boom Crane Truck for Construction & Building Materials

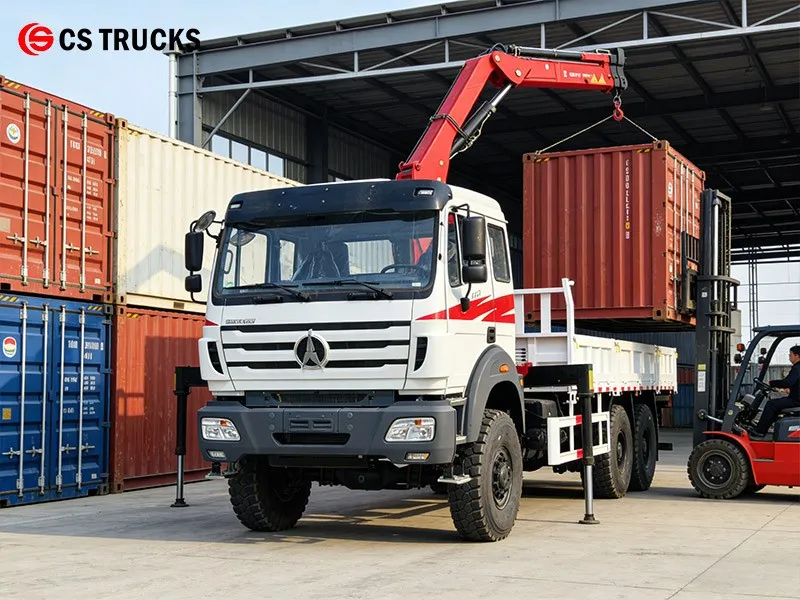

Beiben 2642 Self-Loading Crane Truck for Logistics

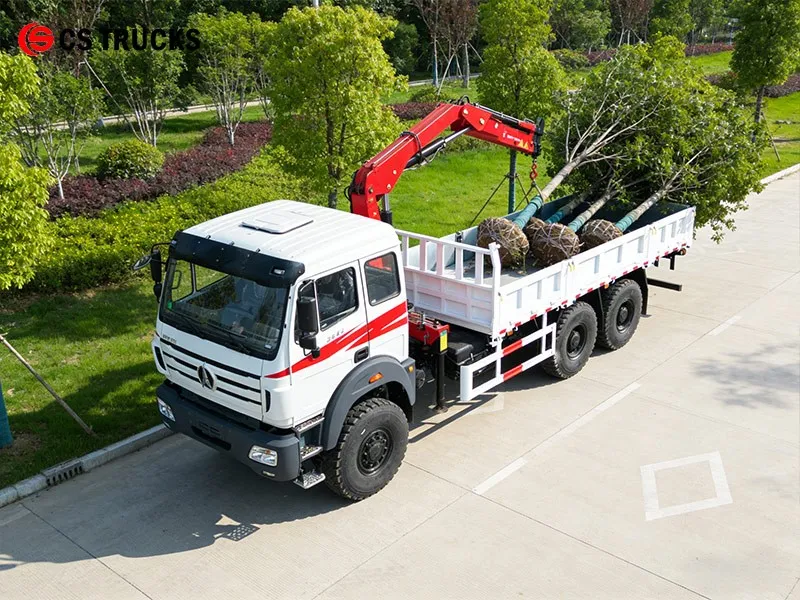

Beiben Heavy Duty Crane Truck for Trees Delivery

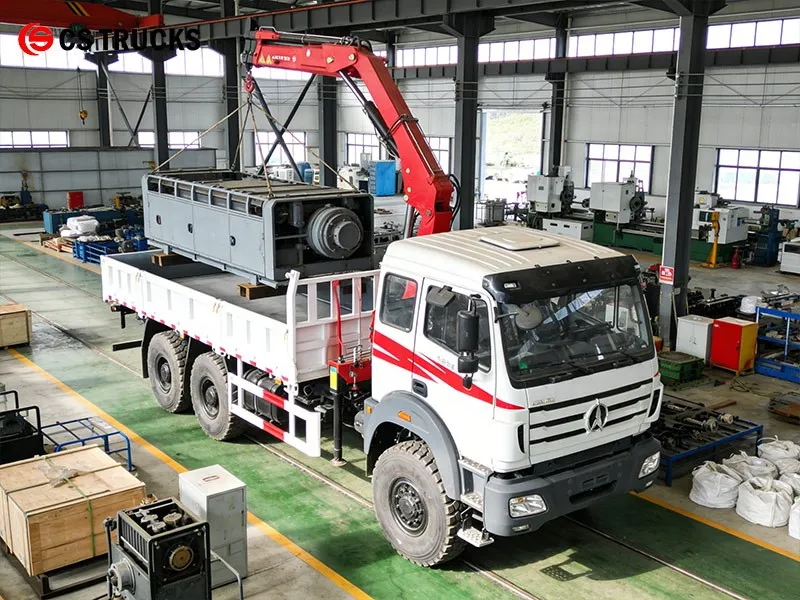

Beiben 6x6 All Terrain Truck for Warehousing Delivery
» Ⅶ. Beiben Self-Loading Crane Truck Exterior Views:

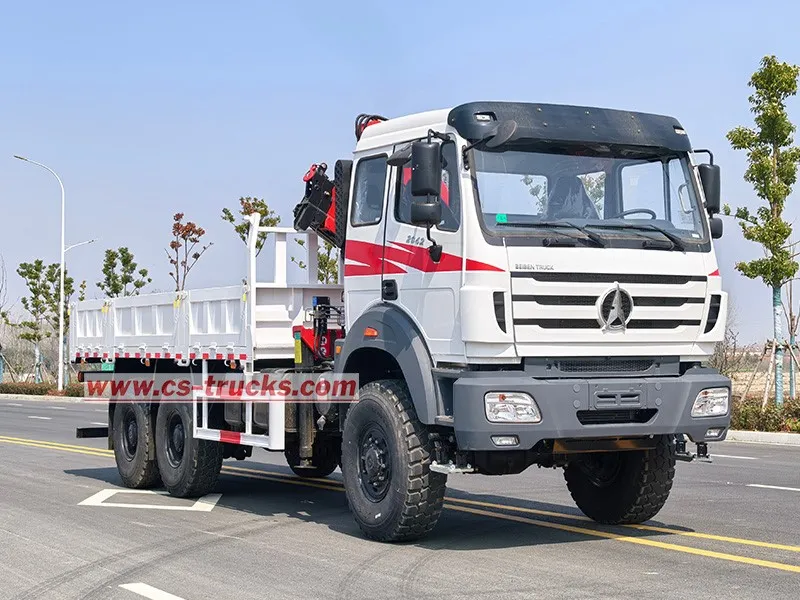

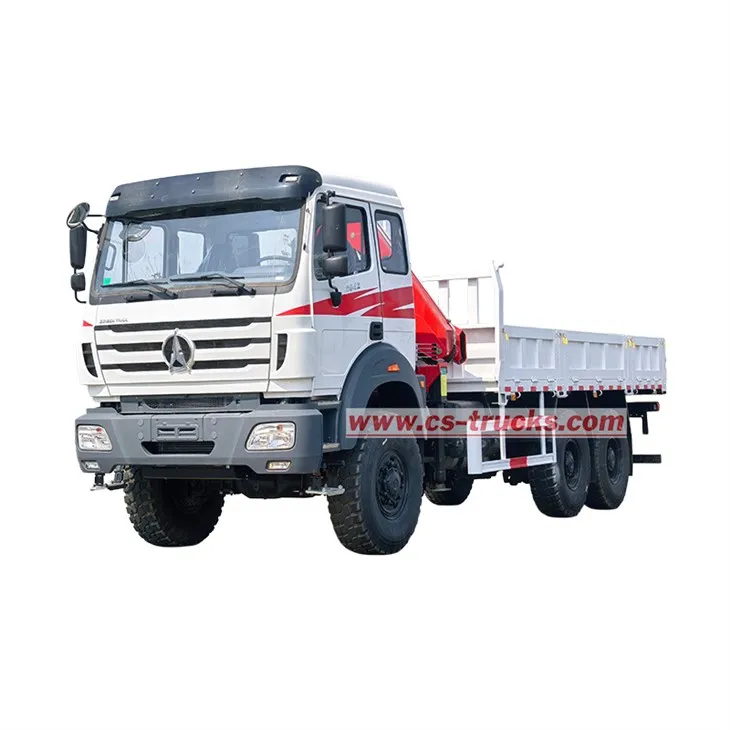

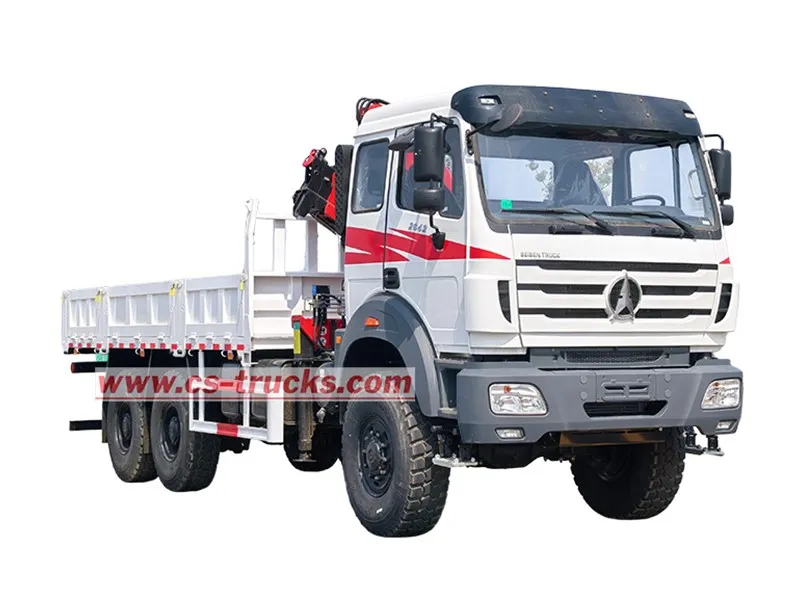

Front right view of Beiben 6×6 offroad tipper truck with rear folding crane

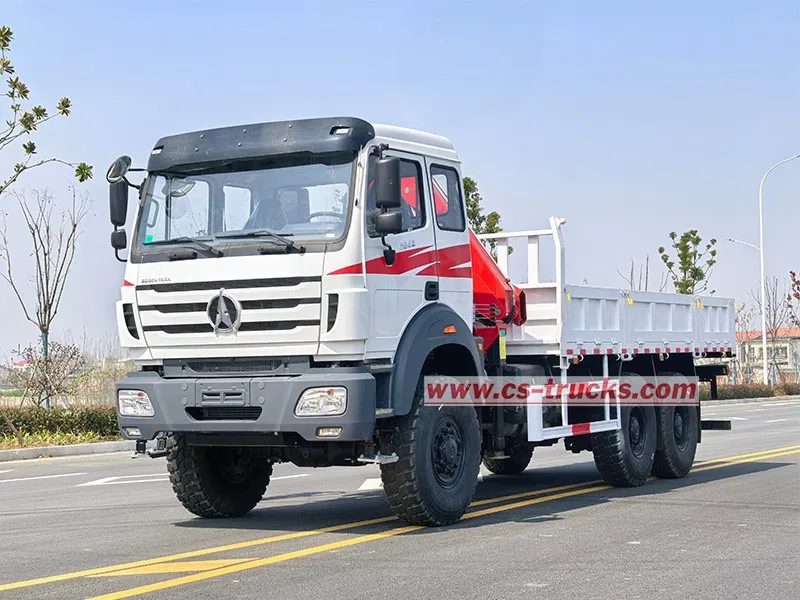

Front left view of Beiben 420 HP all wheel drive dropside truck for mining

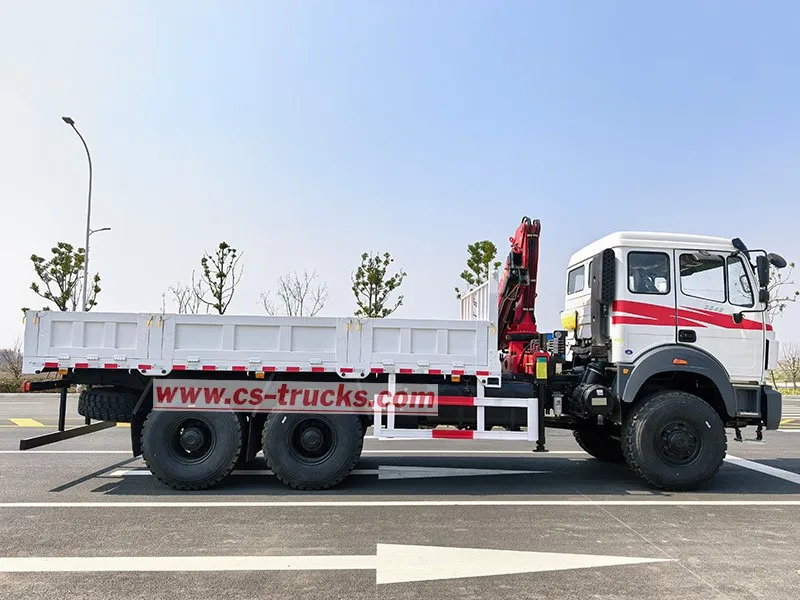

Right view of Beiben 20 ton payload offroad cargo truck with lifting crane

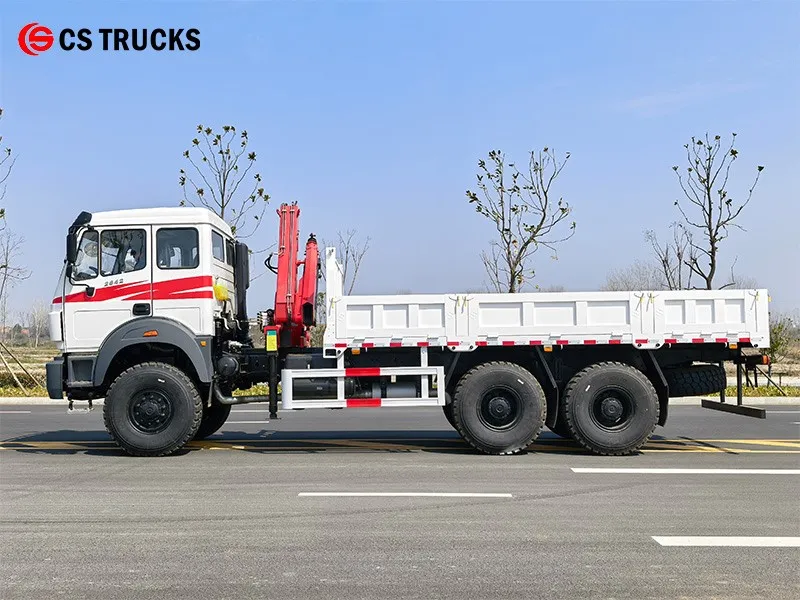

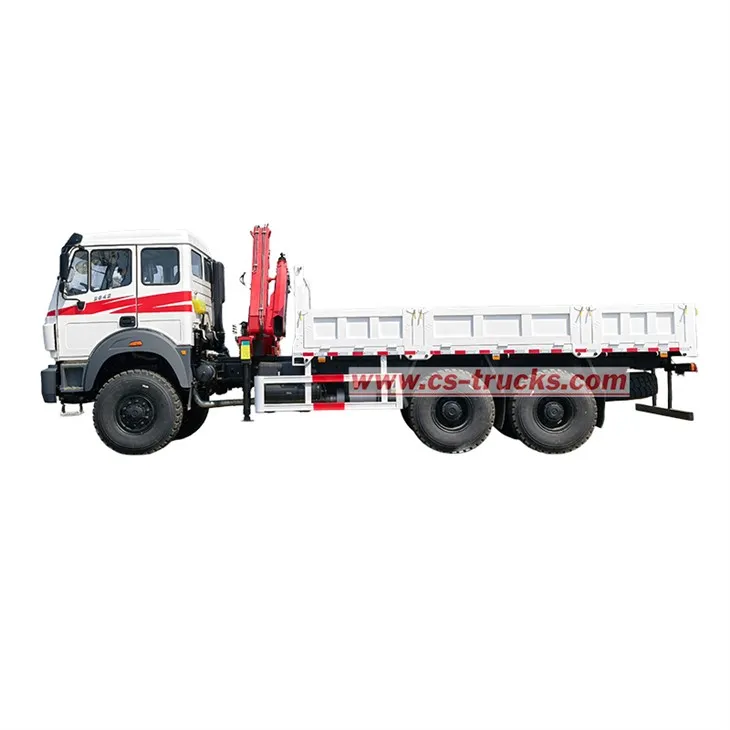

Left view of Beiben 6×6 offroad dropside truck with folding crane

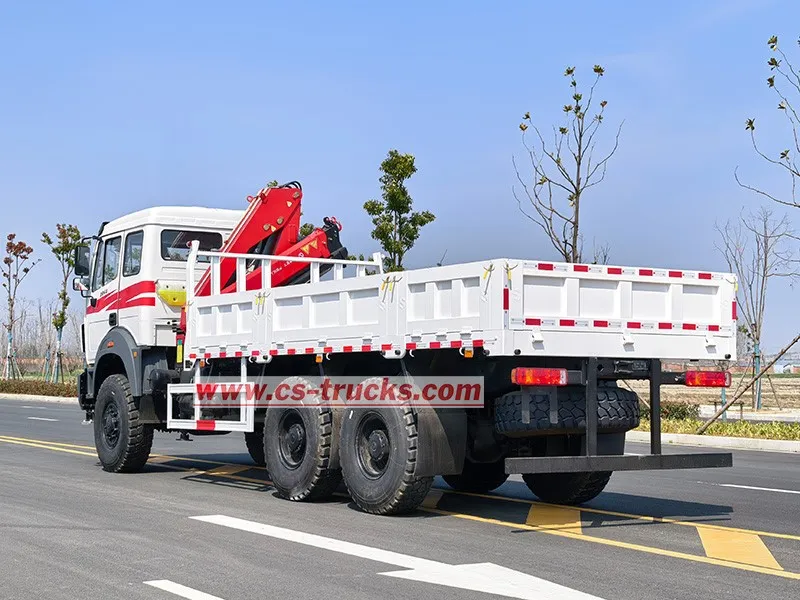

Rear left view of Beiben 6×6 crane truck for oil field equipment transport

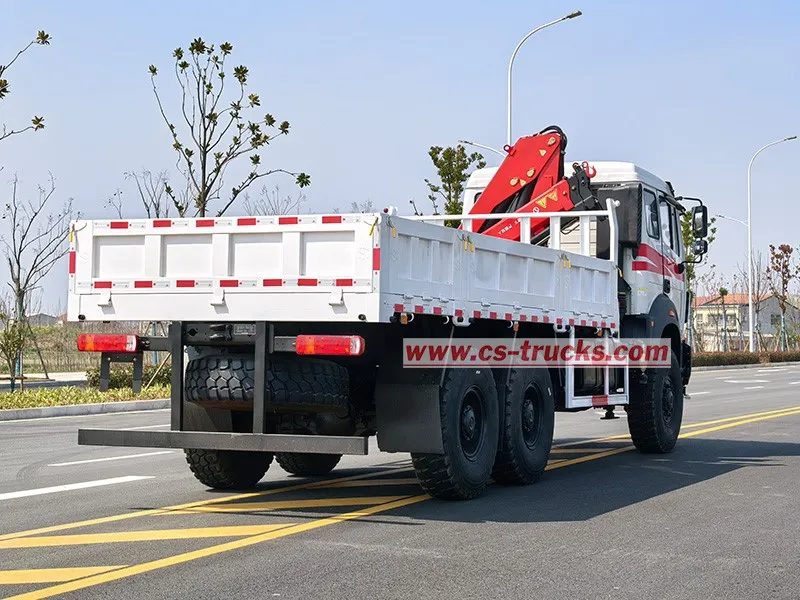

Rear right view of Beiben 4000 kg capacity rear mounted folding crane truck

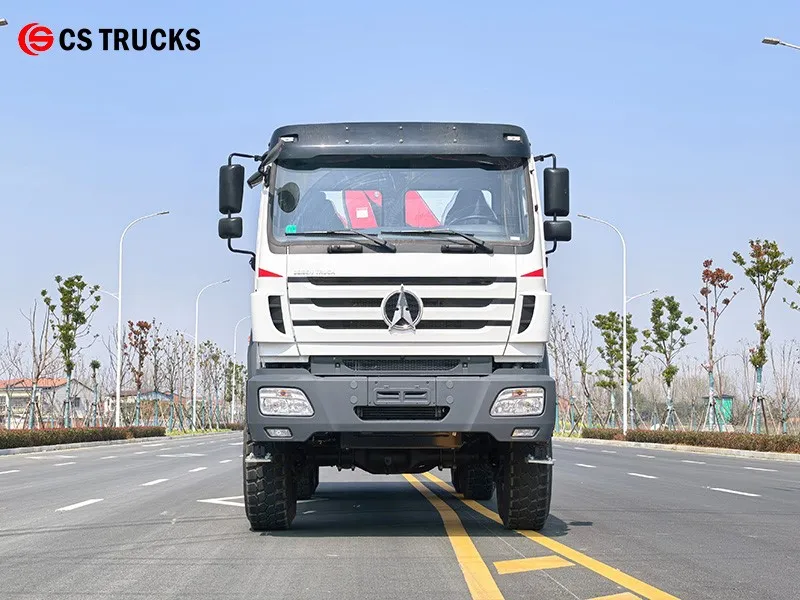

Front view of Beiben 6×6 offroad dropside hauler with SQZ80 crane

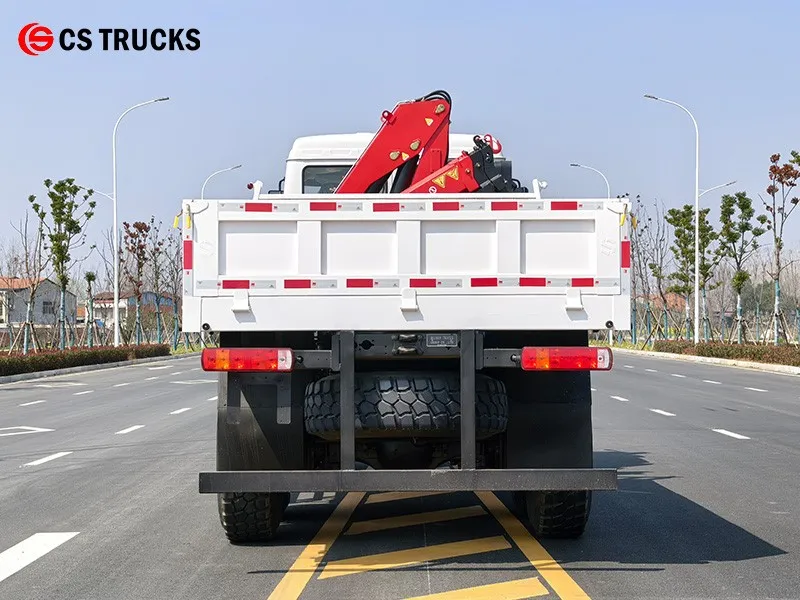

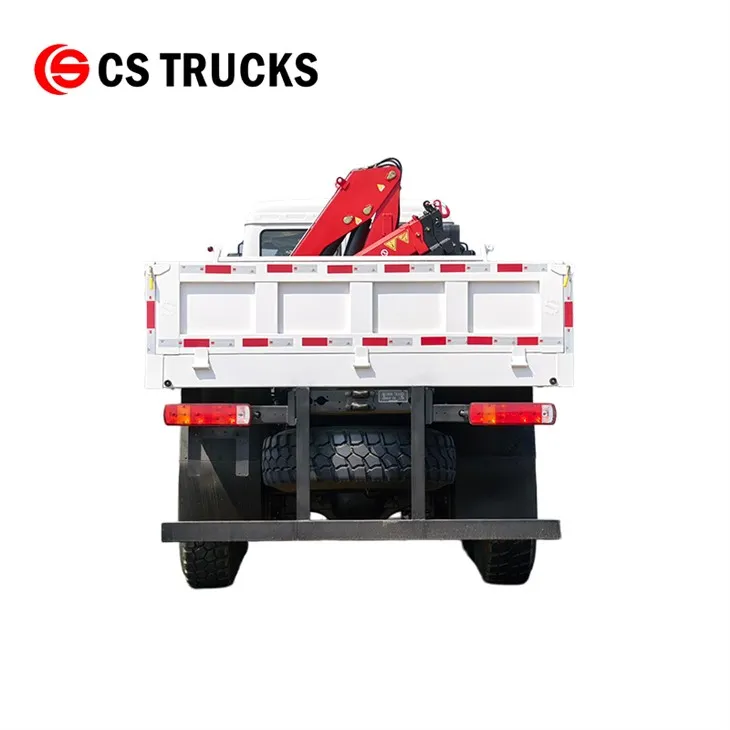

Rear view of Beiben 20 ton offroad dropside vehicle with 4 ton crane

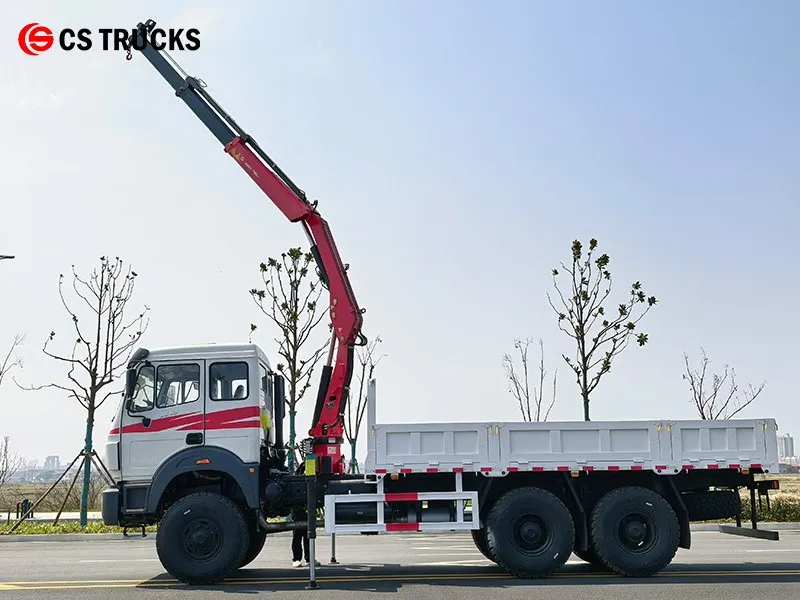

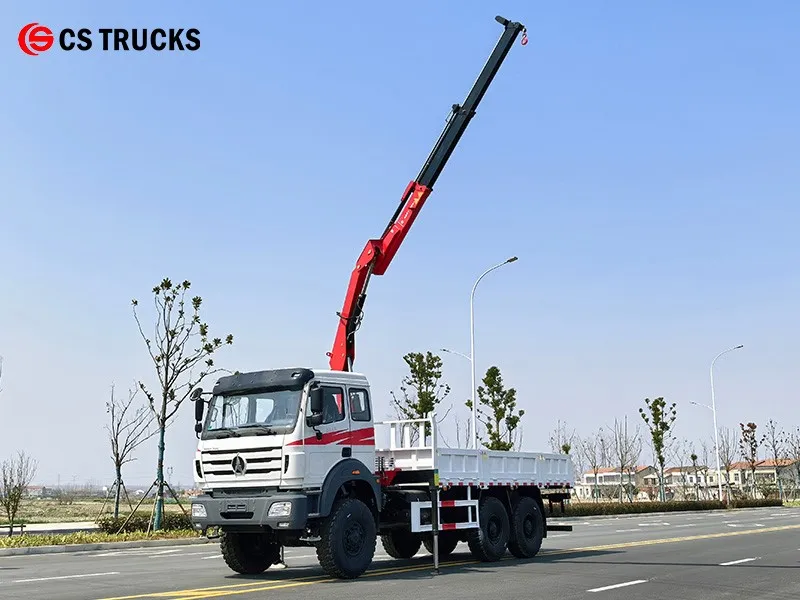

» Crane Operating Status
Products--100% China Beiben factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. Beiben 6×6 Offroad Dropside Truck Chassis: Built on Beiben 6×6 all wheel drive platform with WP12.420E32 diesel engine delivering 420 HP + FAST 12JS200T 12 speed manual transmission, designed for heavy cargo transport in mining, oil field, and construction environments.
2. Dropside Cargo Body: Manufactured from high strength steel, featuring 6000×2550×550 mm dimensions with 20 ton real load capacity, finished with durable paint for long service life in harsh conditions.
3. Rear Mounted Folding Crane: Equipped with SQZ80 3 hydraulic crane, 4,000 kg max lifting capacity, 80 kN·m lifting moment, 6.25 m working radius, and 8.6 m lifting height with 360° continuous slewing.
4. Offroad & Safety Features: 6×6 drive with 14.00R20 tires, 29° approach angle, 52° departure angle. Air brake system with WEVB engine exhaust brake, spring brake on middle and rear axles, and leaf spring suspension for reliable performance on muddy tracks and rocky trails.
