ISUZU 5 Tons tipper truck (also known as dump truck, garbage dumpster truck, or light-duty tipper) is engineered for material transport including construction delivery, urban supply, and small-scale logistics. With 5-ton capacity and 132HP power, its 4×2 chassis delivers stable performance across urban roads, providing reliable transport solutions for modern construction and municipal needs.
The effective load capacity of the tipper body is 5 tons, utilizing reinforced steel as the primary construction material. The body structure employs optimized structural design. The ISUZU tipper truck is equipped with professionally engineered hydraulic tipping systems, control mechanisms, and material handling equipment.
*ISUZU 132HP NPR 5 Tons Tipper Lorry Truck*
-----------------------------------------------------------------
CS factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶Chassis: Based on ISUZU 4×2 chassis, with 132HP diesel engine
▶ Container Volume: Tipper body capacity 5 tons
▶ Container construction: Body made of reinforced steel
▶Lifting System: Installed at front of the vehicle, with hydraulic power
▶ Operation Scope: Suitable for construction delivery, urban supply, and small-scale logistics operations
» II. Product Parameters for ISUZU 132HP NPR 5 Tons Tipper Lorry Truck
| Product Name | ISUZU 132HP NPR 5 Tons Tipper Lorry Truck | ||
| Overall | Vehicle Model | CSC5070ZX | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 7300 kg | ||
| Curb Weight | 2300 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 5995*1960*2790 mm | ||
| Engine | Engine Model | 4KH1CN6HB | |
| Fuel Type | Diesel | ||
| Power | 132 HP(97KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 2999 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU | |
| Tire No. | 6+1 | ||
| Tire Specification | 7.00R16 | ||
| Wheelbase | 3365 mm | ||
| Gear Box | Manual 6-speed forwards and 1 reverse | ||
| Steering Wheel | Left or right hand drive | ||
| Front Axle Weight | 3 Tons | ||
| Rear Axle Weight | 5 Tons | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Superstructure | Cargo Capacity | 5 Tons | |
| Cargo Size | 3900*1700*800 mm | ||
|
|||
» III. Products Description:
1.Chassis Configuration:
♦ Equipped with 3-ton front axle and 5-ton rear axle, reinforced frame structure ensures stability during loading and transport operations.
♦ Air brake system with ABS and tropical climate radiator provides reliable stopping performance under continuous working cycles in demanding environments.
2.Powertrain System
♦ 4KH1CN6HB inline 4-cylinder turbocharged diesel engine delivers 132HP peak power, meeting Euro 6 emission standards with 2999ml displacement.
♦ Manual 6-speed transmission with 4×2 drive system and 3365mm wheelbase chassis configuration provides stable power transmission for tipper truck operations under varied working conditions.
3.Hydraulic Control System
♦ Front-mounted hydraulic tipping system with optimized circuit design enables rapid yet stable body lifting/lowering operation.
♦ Integrated control valve assembly supports precise tipping angle adjustment to accommodate various discharge scenarios.
4.Rear Door Safety Chain
♦ Prevents accidental opening during body lifting to avoid material leakage
♦ Dual protection mechanism working with hydraulic lock for mechanical‑hydraulic safety
♦ Position limiting and damping during door operation for smooth opening/closing cycles
» IV. ISUZU Garbage Dumpster Truck Operating Principle:
♦ Power source: 132HP engine drives hydraulic pump through drivetrain to generate working pressure
♦ Actuation: Front-mounted tipping cylinder with reinforced linkage enables smooth body lifting
♦ Design: Engineered for high-frequency urban operations with rapid response and controlled return
♦ Performance: Delivers efficient and reliable tipping capacity for construction and municipal unloading scenarios
Product Details
ISUZU Tipper Truck Cab
Manual Hydraulic Control Valve
ISUZU Dump Truck Rear Drive Axle
» V.ISUZU Garbage Dumpster Truck Solutions:
ISUZU Dumpster Truck For Construction Sites
ISUZU Dumpster Hauling truck For Mining Sites
ISUZU Garbage Dumpster Truck For Waste Transfer Stations
ISUZU Tipper Lorry Truck For Industrial Parks
» VI. ISUZU Tipper Lorry Truck Exterior Views:
Front Right View of ISUZU 5 Tons Garbage Dumpster Truck

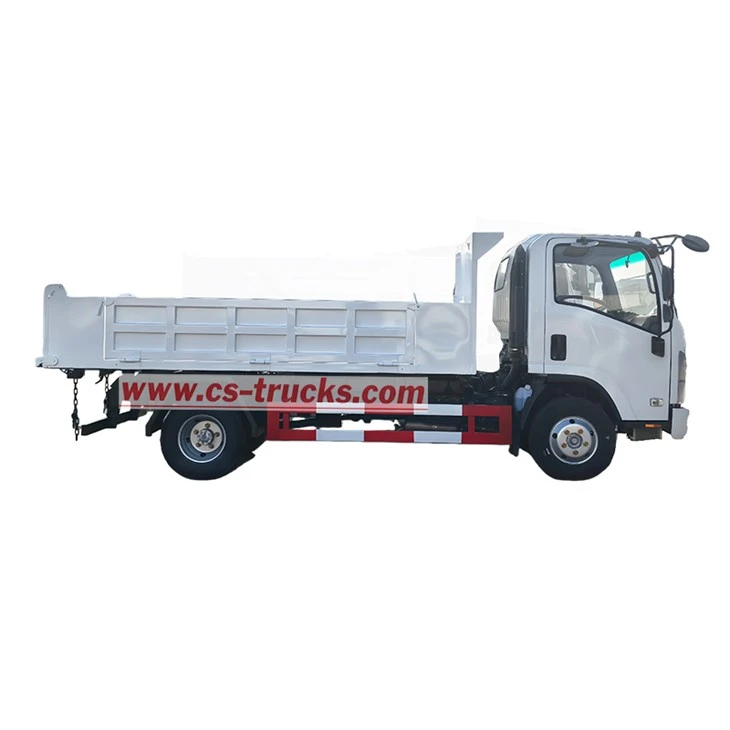

Right View of ISUZU 5 Tons Tipper Lorry Truck
Rear Right View of ISUZU Dumpster Hauling Truck
Rear Left View of ISUZU Construction Dumpster Truck
Front View of ISUZU Mini Dumpster Truck
Rear View of ISUZU Dumpster Delivery Truck
Products--100% china ISUZU factory trucks!
Shipping --100% fast, Convenience, Efficient!
Guarantee--7days + 24hours Safetify Service!
1. ISUZU 5-ton Tipper Truck Chassis:Configured with 4KH1CN6HB diesel engine rated at 132HP + ISUZU manual 6-speed transmission system, optimized for operational efficiency in urban transportation applications.
2. Tipper Body Structure: Manufactured from reinforced steel, featuring optimized structural construction with cargo dimension specifications, finished with specialized protective coating.
3. Hydraulic Tipping System: Custom-configured hydraulic assembly designed for material unloading operations, engineered to achieve effective tipping and controlled return performance.
4. Operational Equipment: Standardized hydraulic tipping configuration, with optional auxiliary systems including ABS braking, tropical climate radiator, and multifunctional instrument panel for enhanced operational versatility.
