Products Description
Faw heavy dumper trucks are typically used for hauling material over the road or around a job-site. Like a truck tractor or semi trucks, they feature a cab but also offer a hydraulic dump bed in the rear. The hydraulic pump lifts the dump trailer in the rear to dispose of its contents. Dump trucks are used to carry a variety of materials such as debris, dirt, sand, gravel and much more which makes it a perfect fit for any industry.
Technical parameters for Heavy dumper truck faw
The FAW J6P 8x4 390HP Left Hand Drive Tipper is a versatile heavy-duty vehicle designed for a variety of applications, especially for industries that need to transport large quantities of materials over challenging terrain. Some of the key applications for this tipper included. The 50tons faw tipper is widely used in the construction industry for transporting building materials such as sand, gravel, crushed stone and other aggregates to building sites.
Driver's Cab (One sleeper with A/C)
| Model | FAW J6P Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
| Engine brand | XICHAI |
| Engine model | CA6DM2-39E3F |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & Inter-cooling |
| Displacement | 11.04 liters |
| Max. Output | 390hp@1900rpm |
| Max. torque | 1750Nm @1300 rpm |
| Bore/Stroke | 123/155mm |
| Specific fuel consumption | ≤195g/kW.h |
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
| Type | Heavy duty, manual fuller type | |||||||||||||||
| Model | FAST 12 shift Manual | |||||||||||||||
| No of speeds | 12 forward + 2 reverse | |||||||||||||||
| Type | 6.5 tons steering with double T-cross section beam |
| Capacity | 6500kg |
| Type | 18 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock |
| Capacity | 18T |
| Frame | Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer, 1739mm |
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
| Capable of maintaining the sound level as low as possible. |
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
| Installed heavy duty front and rear steel bumpers |
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
| Wheel base | 1950+4150+1350 mm |
| Overall length | 10800mm |
| Overall width | 2500mm |
| Overall height | 3450mm |
| Internal Size | 7500x2300x1500mm |
| Thickness of body steel | Side 8mm & bottom 10mm |
| Tipping type | Front lift type with hydraulic system (Optional HYVA hydraulic cylinder) |

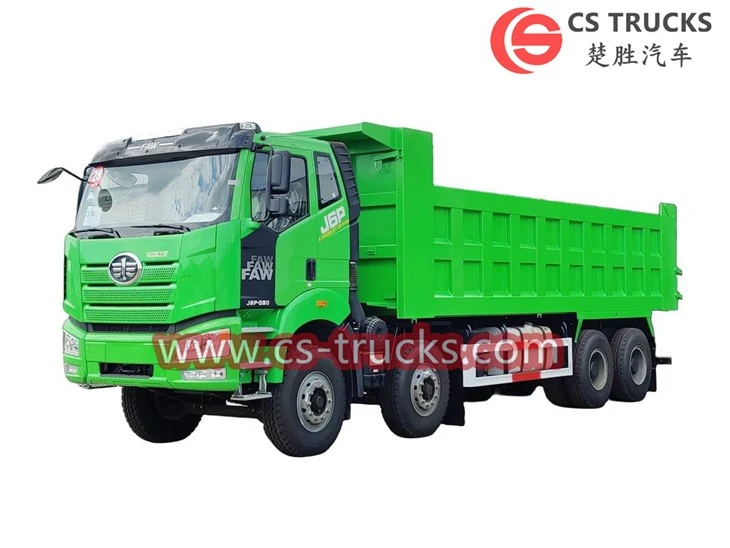

FAW heavy tipper dump truck

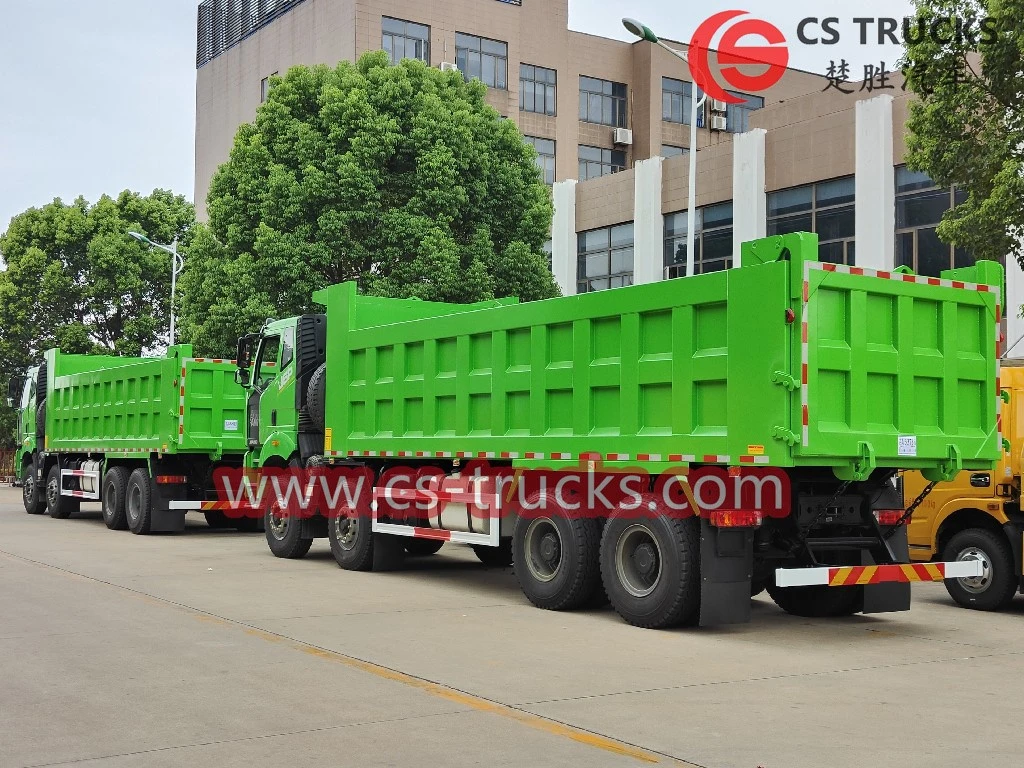

Dumper lorry faw
Africa customer buy FAW dump trucks reasons
The FAW dump truck is a special vehicle used to transport and unload various bulk materials, with high load capacity and excellent passing capacity. The following will introduce the structural composition and characteristics of the Heavy dump truck Faw in detail, and discuss its significance and value for African country construction:
- Body structure: The FAW dump truck adopts a strong and durable steel body structure to carry large amounts of materials and cope with harsh road conditions. The body usually consists of a cargo box, lifting system and control system. The cargo box is used to load bulk materials, the lifting system can tilt the cargo box to unload materials, and the control system is used to operate the unloading process.
- Engine and transmission system: FAW dump trucks are equipped with high-performance engines and powerful transmission systems to meet the needs of high-load transportation. The engine is usually a diesel engine with high torque and power output, ensuring that the vehicle has sufficient power under various working conditions.
- Loading capacity and unloading capacity: The design of the FAW dump truck lorry focuses on improving the loading and unloading capacity. They usually have a large load capacity and use the world's advanced unloading mechanism and hydraulic system to unload materials quickly and efficiently, improving construction and transportation efficiency.
- All-terrain capability: The FAW dump tipper truck has excellent all-terrain capability and can adapt to various complex terrains and harsh road conditions in Africa. They adopt sufficiently high chassis clearance, powerful four-wheel drive system and optimized suspension system to ensure stable driving of the vehicle on muddy, steep and uneven roads.
For African country construction, FAW dump trucks are of great significance and value:
- Infrastructure construction: African countries are vigorously developing infrastructure, such as roads, bridges, water conservancy projects, etc. FAW dump trucks can effectively transport construction materials, accelerate project progress, and promote the development of infrastructure construction.
- Agricultural development: Agriculture in African countries accounts for an important proportion of the national economy. FAW dump trucks can be used for agricultural product transportation, farmland reclamation, and rural road construction to improve agricultural production efficiency, increase farmers' income, and promote agricultural development.
- Mineral resource development: Africa is rich in mineral resources, and FAW dump trucks, as heavy equipment vehicles, can be used for the mining and transportation of mineral resources to promote the development of mining and economic growth.
- Disaster relief and construction projects: Africa is often hit by natural disasters such as floods and earthquakes. FAW dump tippers have the flexibility and carrying capacity to play a key role in rescue and reconstruction projects, helping the country cope with the challenges of natural disasters.
In one sentense, FAW heavy duty dump trucks are of great significance and value in the construction of African countries. They provide reliable transportation solutions for infrastructure construction, agricultural development, mineral resource development and disaster relief, and promote the African economy. and social development.
